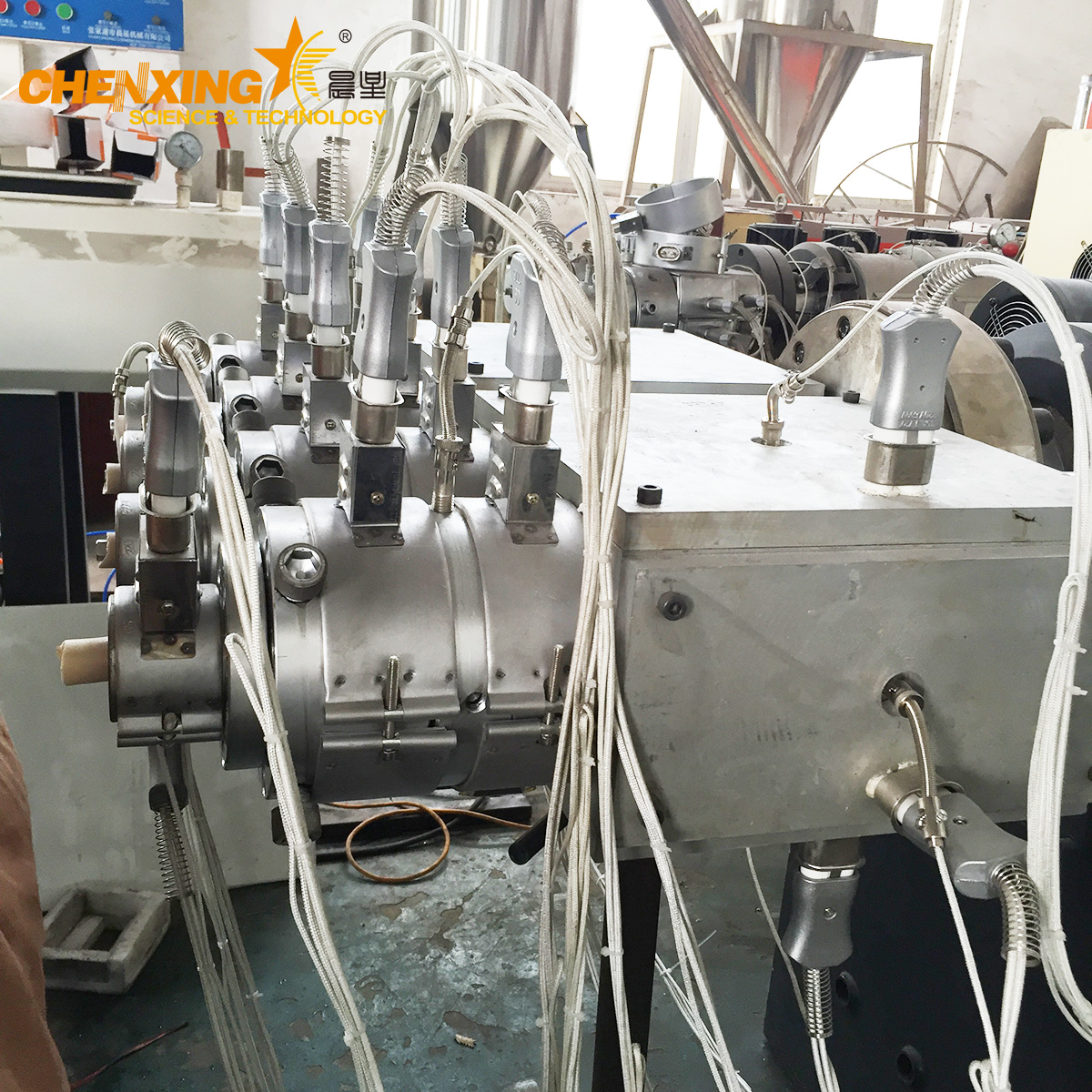

Four-cavity PVC pipe mould for high-output extrusion

Four Cavity PVC Pipe Extrusion Line | High-Efficiency PVC Pipe Production

Share to:

Four Cavity PVC Pipe Extrusion Line | High-Efficiency PVC Pipe Production

Name: Four Cavity PVC Pipe Extrusion Line | High-Efficiency PVC Pipe Production
Brand: chenxing
Rating: 5.0 (80 reviews)

Availability:

Quantity:




Inquire

Brand:
chenxing

Product Description

Product Description

Product Overview

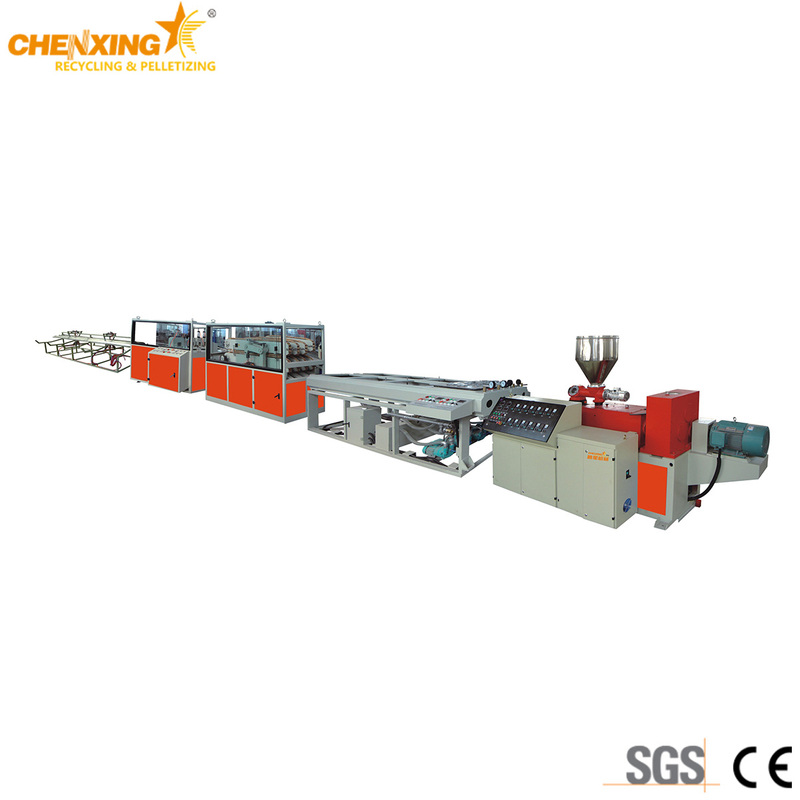

The Four Cavity PVC Pipe Extrusion Line is an advanced high-efficiency production system designed for manufacturing Φ16–32mm PVC pipes with significantly higher output and lower operating cost. This production line adopts conical twin-screw extrusion technology and integrates a specially engineered four-cavity mould, allowing simultaneous extrusion of four high-precision pipes in one process. Compared with traditional single-cavity lines, it delivers greatly improved productivity, reduced energy consumption, and optimized floor-space utilization.

Engineered with technology originally derived from European PVC processing standards, this extrusion line ensures stable output, consistent pipe quality, and flexible operation. It is ideal for manufacturers seeking to maximize capacity for electrical conduit, water supply pipe, and cable protection pipe production.

Key Features & Advantages

1. High-Efficiency Four-Cavity Extrusion

The production line extrudes four PVC pipes at once, achieving excellent economic benefits. Pipe diameters range from Φ16–32mm. The system maximizes the extrusion performance of the SJZS 51/105 or SJZS 65/132 conical twin-screw extruder, resulting in outstanding hourly output and stable pipe dimensions.

2. Independent Single-Control Calibration

Each pipe is calibrated through a stainless-steel single-control spraying shaper. This prevents waste caused by diameter adjustment on one pipe affecting the other three. Operators can fine-tune each tube individually to maintain precision and reduce scrap rate.

3. Fully Synchronized Haul-Off & Cutting System

The automatic single-control four-haul-off unit and cutting machine are integrated with the front-end calibration system. This increases operational flexibility, reduces manual intervention, and ensures consistent pipe cutting accuracy.

4. Enhanced Energy Efficiency

The extrusion line is equipped with an energy-saving conical twin-screw extruder. Combined with optimized heating, cooling, and drive systems, the machine significantly reduces energy consumption per kilogram of production.

5. Reduced Labor & Space Requirements

By producing four pipes simultaneously, the system reduces the need for multiple production lines, lowers labor costs, and reduces workshop space requirements—making it a high-value solution for modern pipe manufacturers.

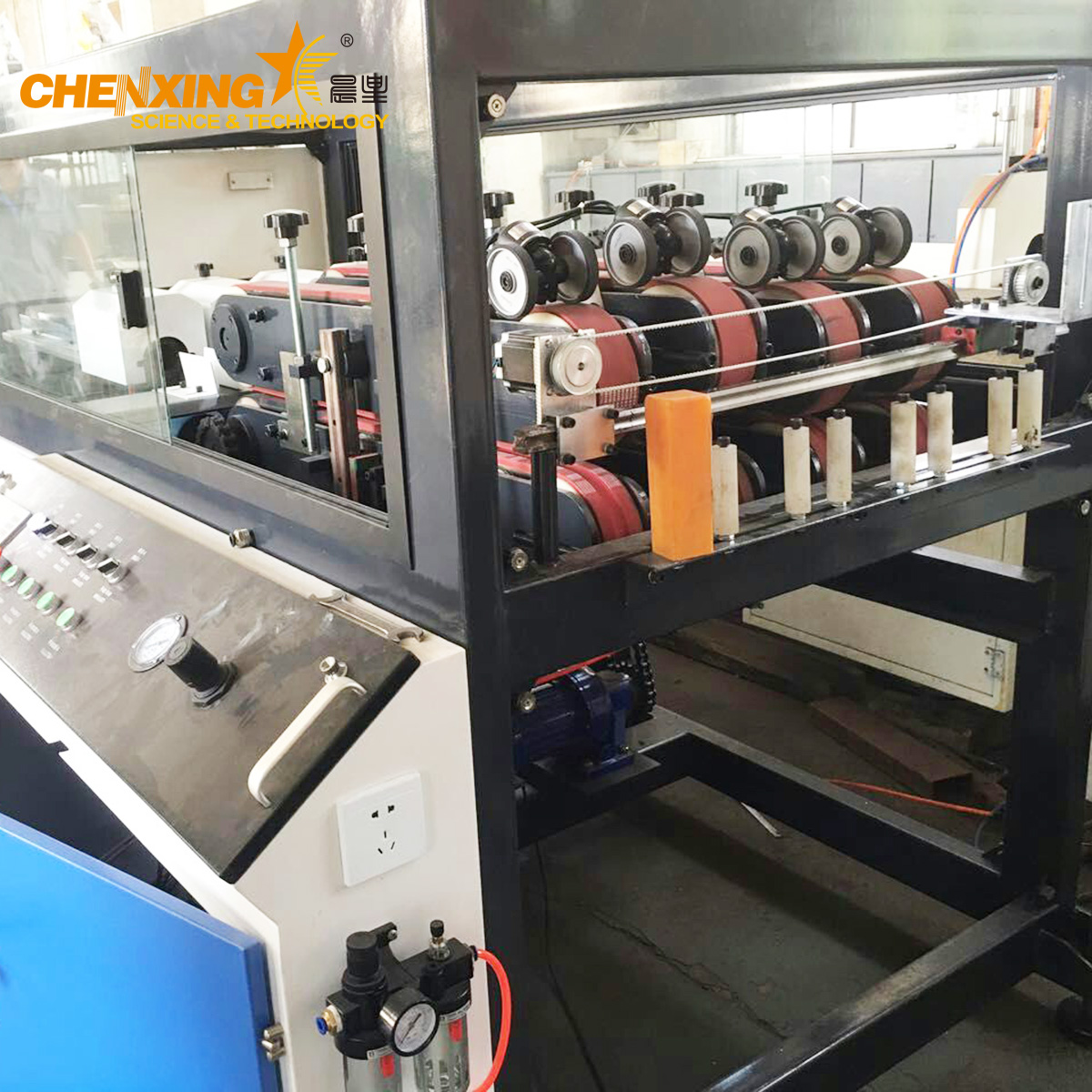

Multi-cavity PVC pipe production line spray calibration tank

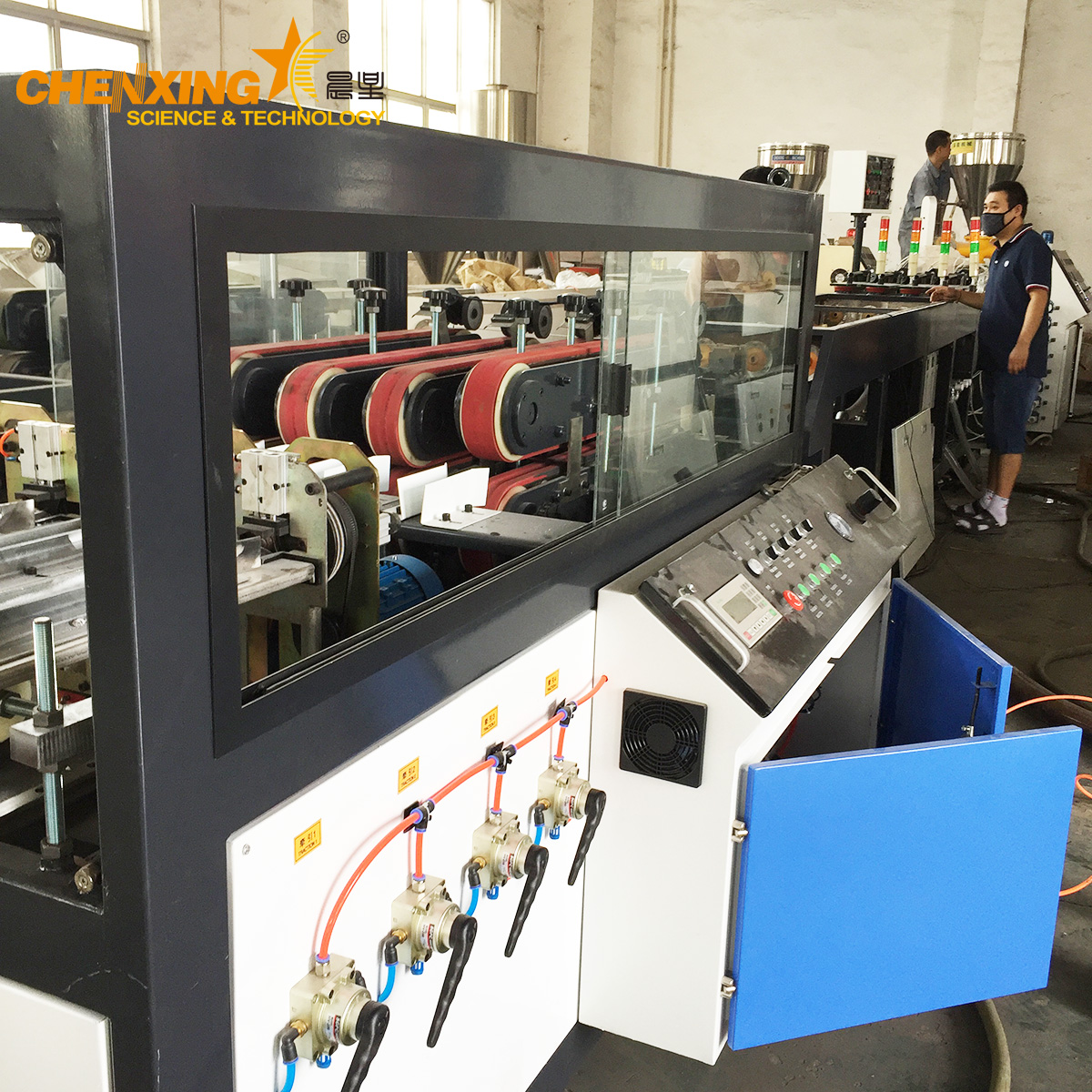

Four-haul-off system for 16–32mm PVC pipe extrusion

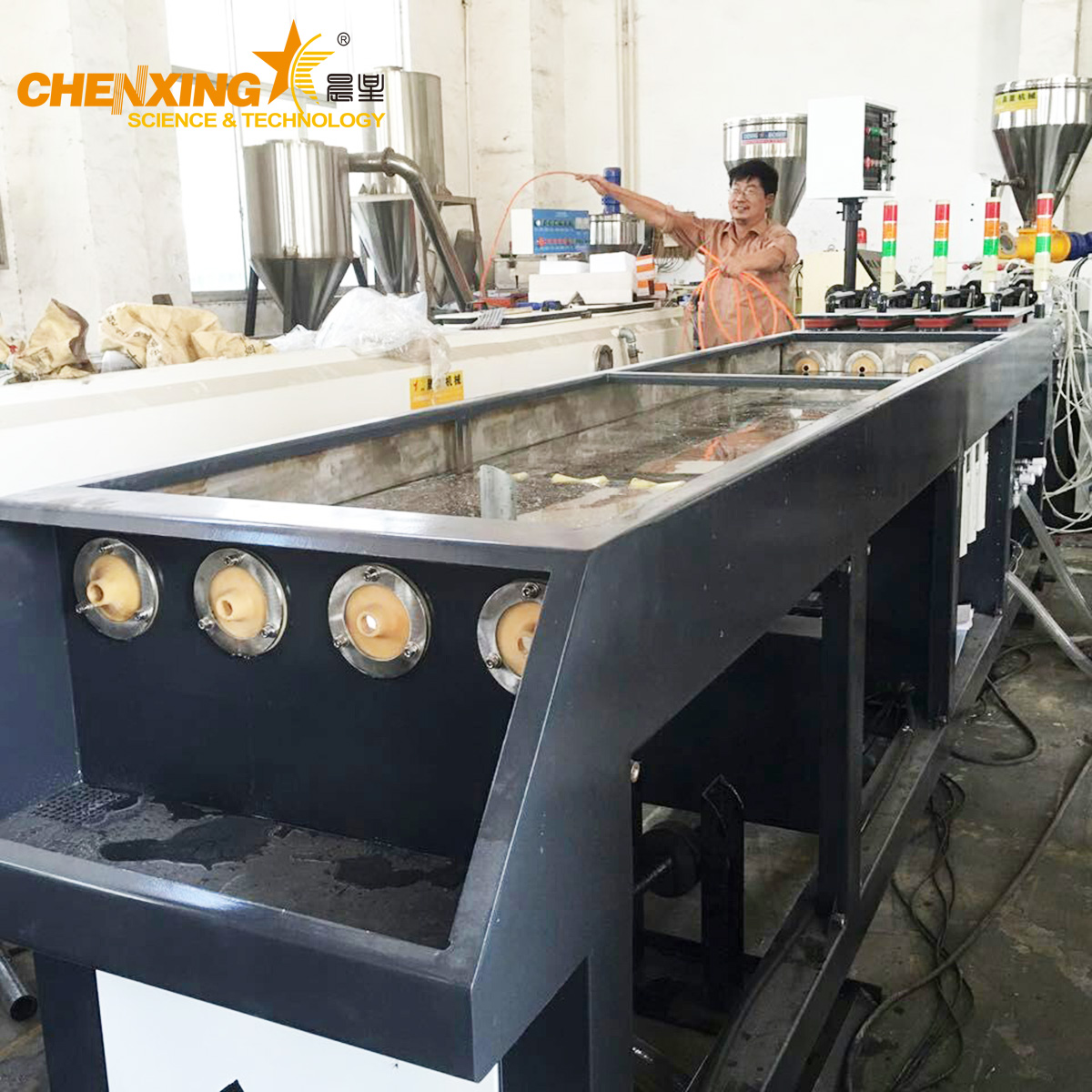

Four cavity PVC pipe extrusion line with conical twin screw extruder

Technical Specifications

Parameter	Value
Max. Output of Extruder	150–250 kg/h
Vacuum Tank Length	6 m
Haul-Off Speed	0–15 m/min
Max. Diameter of Four Pipes	Φ16–32 mm
Haul-Off Force	2000 N
Drive Motor Power	4 pcs × 1.1 kW

Applications of the Four-Cavity PVC Pipe Extrusion Line

This extrusion line is widely used for the production of:

Electrical conduit pipes
Cable protection pipes
Thin-wall water pipes
Telecommunications ducting
General-purpose small-diameter PVC pipes

The system is designed to deliver stable, round, smooth-surface pipes suitable for downstream printing, cutting, bending, and packaging processes.

Why Choose Our Four-Cavity PVC Pipe Extrusion Line?

Over 20 years of experience in PVC extrusion equipment manufacturing
In-house engineering team for customized solutions
Fast delivery and global after-sales technical support
Reliable, stable, and energy-efficient equipment optimized for continuous operation
Competitive pricing for high-output multi-cavity extrusion systems

FAQ – Four Cavity PVC Pipe Extrusion Line

1. What pipe sizes can be produced on the Four Cavity PVC Pipe Extrusion Line?

This production line is designed for high-efficiency manufacturing of four PVC pipes simultaneously, with pipe outer diameters ranging from Φ16–32 mm. Customized moulds for special dimensions can be provided upon request.

2. What is the output capacity of this extrusion line?

Depending on the selected extruder model (SJZS 51/105 or SJZS 65/132), the line achieves a stable output of 150–250 kg/h, delivering high productivity and excellent pipe quality.

3. How does the four-cavity design improve efficiency compared to a single-cavity line?

The four-cavity system extrudes four pipes in one process, effectively reducing energy consumption per unit output, saving workshop space, and lowering labor and operational cost. It is the most cost-effective solution for mass production of small-diameter PVC pipes.

4. Can each pipe be adjusted independently during production?

Yes. The line is equipped with single-control stainless steel calibration tanks, enabling independent diameter adjustment for each pipe without affecting the other three. This minimizes waste and improves product consistency.

5. What materials are compatible with this extrusion line?

The system is optimized for processing UPVC, CPVC, and other rigid PVC formulations commonly used in piping applications. We also support customizing screw and barrel configurations for different material requirements.
