PVC corrugated roof tiles have become a mainstream roofing material in industrial buildings, warehouses, agricultural facilities, factories, and temporary construction projects.
Compared with traditional metal sheets and fiber cement tiles, PVC roofing sheets offer:
Excellent corrosion resistance
Lightweight structure
Long service life
Low maintenance cost
Easy installation
Behind this growing demand stands the PVC Corrugated Roof Tile Extrusion Line, a complete automated production system designed for continuous high-efficiency sheet manufacturing.
A PVC Corrugated Roof Tile Extrusion Line is an integrated extrusion production line that converts PVC powder and additives into finished corrugated roofing sheets through heating, extrusion forming, cooling shaping, and cutting processes.
This production line is specifically engineered to manufacture:
PVC trapezoidal roof sheets
Corrugated wave roof panels
Industrial roofing boards
Agricultural roofing tiles
It combines extrusion technology, precision forming molds, and automatic control systems to ensure stable output quality.
A standard PVC corrugated roof tile extrusion line consists of the following core units:
The extrusion system usually adopts a conical twin screw extruder, which is ideal for PVC powder processing.
Its advantages include:
Stable plasticization
Uniform melt temperature
High output efficiency
Low material degradation

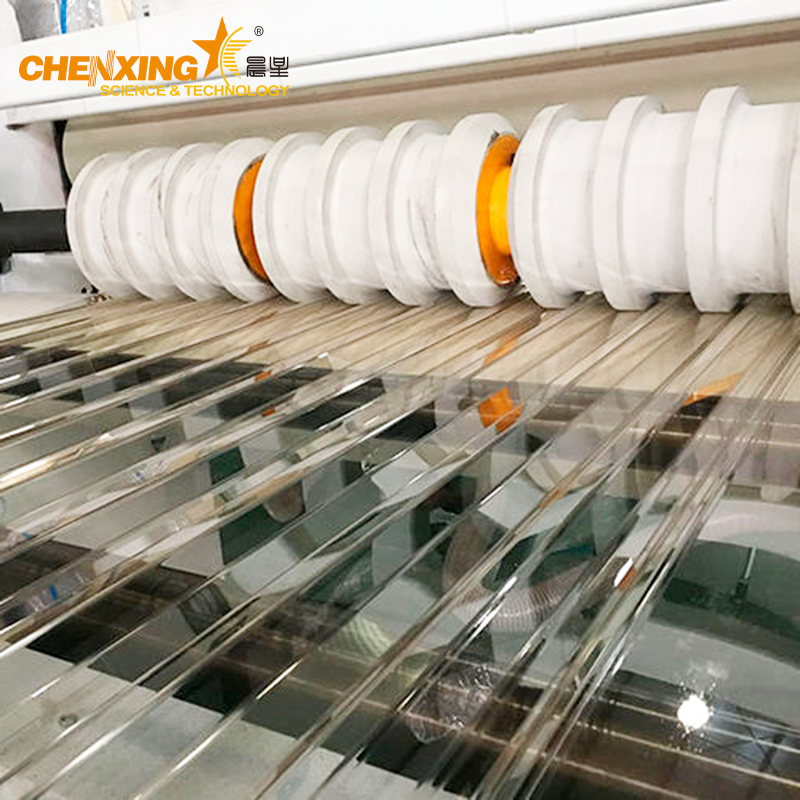

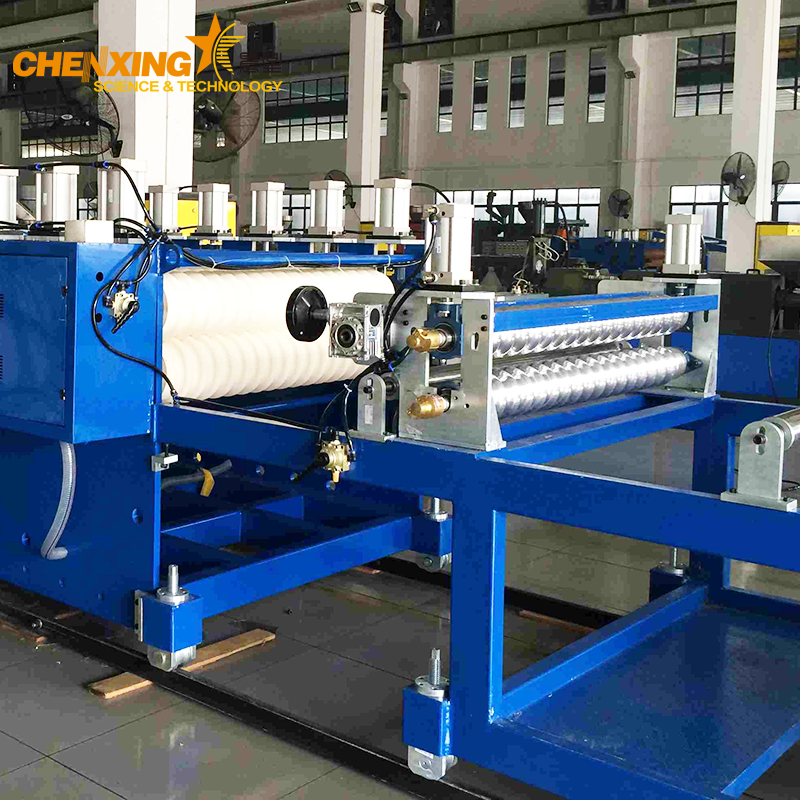

The extrusion die shapes molten PVC into flat sheet form, which then enters corrugated forming molds to create precise wave profiles and surface patterns.
Customized mold designs allow production of:
Different wave shapes
Sheet thickness variations
Customized width specifications
The vacuum forming table ensures accurate sheet dimensions and smooth surface finish. Water cooling stabilizes sheet geometry and prevents deformation.
The haul-off machine continuously pulls the formed sheet at synchronized speed, maintaining consistent production flow.
Length cutting machines ensure precise panel dimensions and smooth edges suitable for packaging and installation.
The complete production workflow includes:
Raw material feeding and automatic dosing
PVC melting and plasticizing inside extruder
Sheet extrusion through precision die
Corrugated shaping and vacuum calibration
Cooling and dimensional stabilization
Haul-off traction
Length cutting and stacking
This continuous production process allows 24-hour industrial operation with stable output.
PVC corrugated roofing sheets produced by extrusion lines are widely applied in:
Used in factories, warehouses, and logistics centers for lightweight roofing systems.
Commonly installed in greenhouses, livestock farms, poultry houses, and storage barns due to chemical resistance and moisture protection.
PVC roof sheets resist salt corrosion and chemical vapors, making them suitable for coastal regions and chemical plants.
Used in prefabricated buildings, mobile houses, and temporary shelters.
Automated extrusion lines support continuous operation with high output capacity.
Precision forming molds ensure smooth surface finish and uniform wave structure.
PVC raw materials combined with automated processing reduce labor and energy costs.
Production lines can be customized for:
Different sheet widths
Thickness ranges
Wave profiles
Color options
Select extruder size based on target daily production volume.
Consider sheet width, thickness, and wave type required by your market.
Decide between semi-automatic or fully automatic stacking and packaging systems.
Reliable manufacturers offer:
Long-term spare parts supply
Installation guidance
Operator training
Technical support
Chenxing Machinery specializes in plastic extrusion equipment manufacturing and complete production line solutions.
Our PVC corrugated roof tile extrusion lines feature:
Industrial-grade heavy frame structure
Stable twin screw extrusion systems
Precision forming mold technology
Intelligent electrical control system
Long-term continuous operation capability
We provide full turnkey services including:
Production line layout design
Mold customization
On-site commissioning
Technical training
Looking for a reliable PVC corrugated roof tile extrusion line manufacturer or roof sheet production machine supplier?
Visit www.chenxingmachinery.com
Contact our engineering team for customized production solutions and competitive quotations.
