In modern plastic extrusion manufacturing, twin screw extruders are widely recognized as the most reliable solution for processing difficult-to-melt materials such as PVC powder and high-filled compound formulations.
Compared with traditional single screw systems, twin screw extrusion technology offers superior material conveying stability, mixing uniformity, and temperature control — making it the preferred choice for PVC pipe, profile, board, and granulation production lines.
A twin screw extruder is a plastic extrusion machine that uses two parallel or conical rotating screws inside a heated barrel to convey, melt, mix, and homogenize polymer materials.
Unlike single screw extruders, twin screw systems generate stronger shear and mixing forces, enabling stable processing of:
PVC dry blend powder
High calcium-filled compounds
Rigid PVC formulations
Heat-sensitive polymer materials

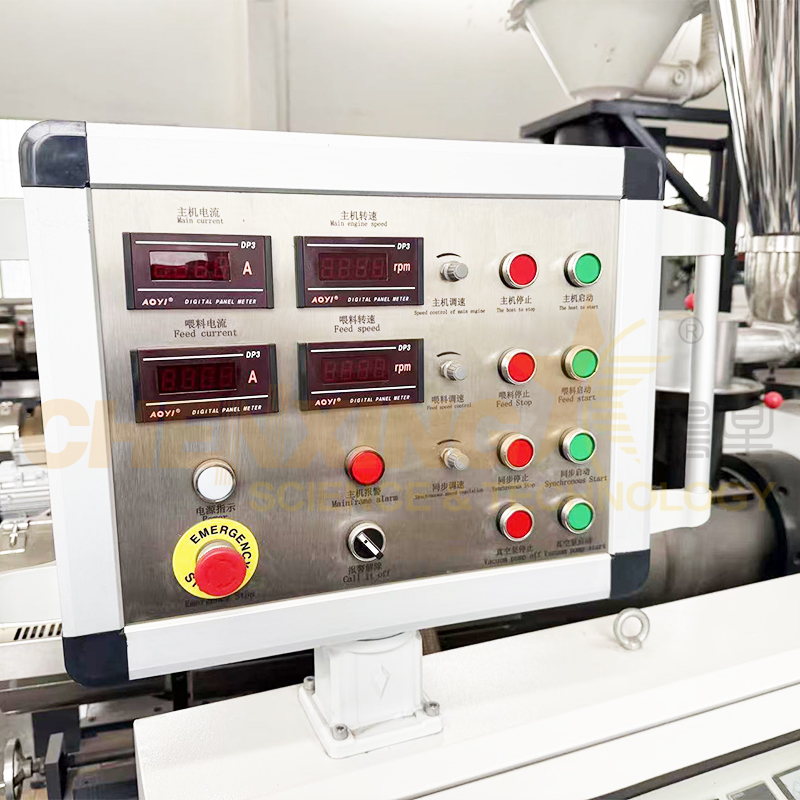

The conical twin screw extruder (such as the SJSZ series) is a special design optimized for PVC extrusion.
Its key feature is the tapered screw structure, where the screw diameter gradually decreases along the processing direction. This structure provides:
Higher torque output
Better powder feeding stability
Lower material shear damage
Improved plasticizing efficiency
Because of these advantages, conical twin screw extruders are widely used in:
PVC pipe extrusion lines
PVC profile production lines
PVC sheet and board extrusion
PVC pelletizing systems
The extrusion process consists of several synchronized stages:
PVC powder or compound material enters the hopper and is evenly distributed between the two screws.
As the screws rotate in opposite outward directions, the material is gradually compressed, heated, and melted through mechanical shear and barrel heating zones.
The intermeshing screw structure ensures continuous mixing, uniform melt temperature, and stable pressure before the die head.

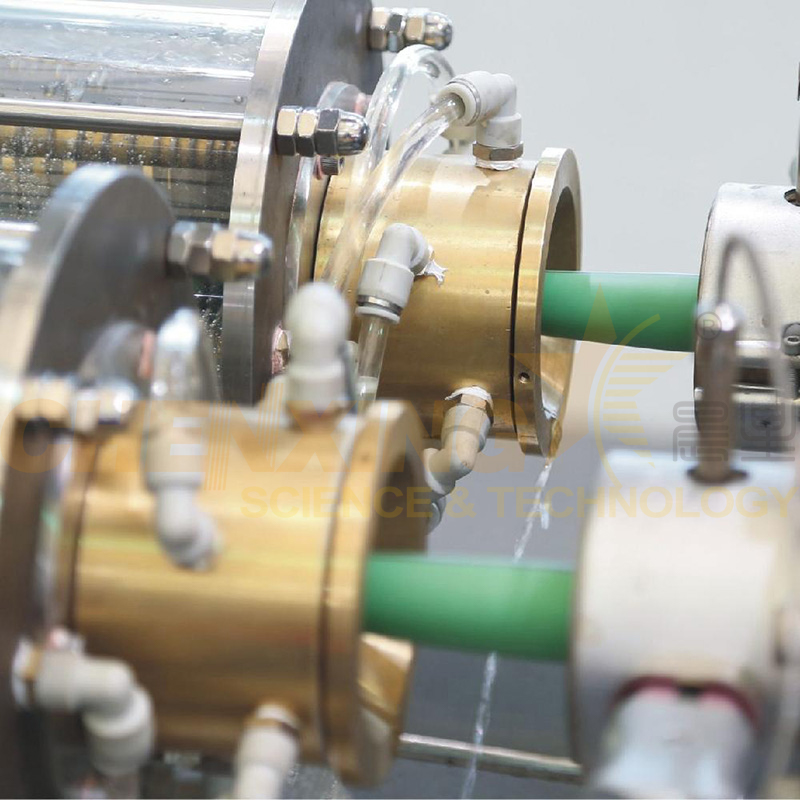

The homogeneous molten PVC is pushed through the extrusion mold to form pipes, profiles, boards, or granules.
Twin screw extruders are the industry standard for producing:
UPVC water supply pipes
Drainage pipes
Electrical conduit pipes
Industrial pressure pipelines
Used for:
Door and window profiles
Decorative panels
Skirting boards
Construction profiles
Suitable for:
Foam boards
Rigid PVC sheets
Advertising panels
Industrial plastic plates
Twin screw extruders are commonly applied in PVC compound pellet production with stable granule quality and uniform size distribution.
Based on your uploaded technical data, Chenxing Machinery SJSZ Series offers the following engineering advantages:
Production capacity range:
60–120 kg/h (SJSZ-45)
200–300 kg/h (SJSZ-65)
300–400 kg/h (SJSZ-80)
600–800 kg/h (SJSZ-92)
Meeting both small workshop and large industrial factory production demands.
Available screw diameters:
45/90 mm
51/105 mm
55/110 mm
65/132 mm
80/156 mm
92/188 mm
This allows precise matching to different PVC formulations and output requirements.
Main motor power ranges from:
15 kW to 110 kW,
ensuring high torque output even under heavy-load PVC extrusion conditions.

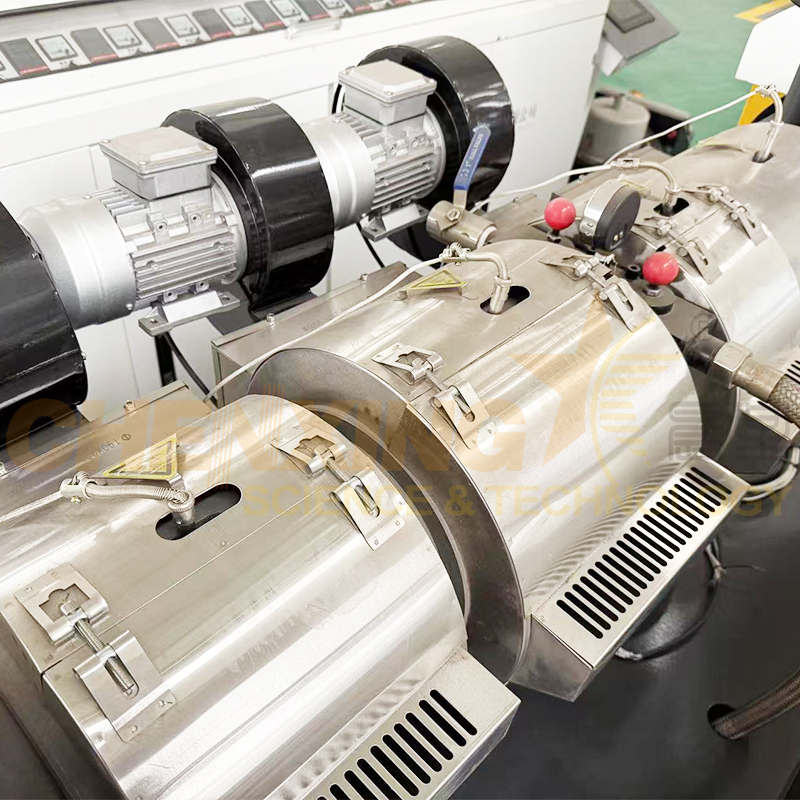

Barrel heating power up to:
86.8 kW (SJSZ-92)
Multiple heating zones provide accurate temperature control for sensitive PVC processing.
Heavy-duty machine frame
High center stability (1000–1200mm)
Optimized screw length up to 2500mm effective length
Continuous industrial operation capability
| Feature | Twin Screw Extruder | Single Screw Extruder |
|---|---|---|
| PVC Powder Processing | Excellent | Limited |
| Mixing Efficiency | High | Medium |
| Shear Control | Adjustable | Basic |
| Output Stability | Very Stable | Stable |
| Investment Cost | Higher | Lower |
| Application Focus | PVC, Compounds | PE, PP, Recycling |
Comparison | Single Screw Extruder | Twin Screw Extruder |
|---|---|---|
Screw Structure | One screw | Two screws |
Material Conveying | Screw-based conveying | Depends on screw configuration |
Mixing Capability | Generally more limited | Can provide more intensive mixing, depending on design |
Typical Materials | PE, PP and selected recycled plastics | PVC formulations, polymer compounds and other applications depending on design |
Typical Applications | Pipe, sheet, profile and pelletizing | PVC extrusion, compounding and polymer processing |
Equipment Complexity | Relatively simple | More complex |
Investment Cost | Generally lower | Generally higher |
The choice between a single screw and twin screw extruder depends on the polymer material, formulation, production capacity and final product requirements. Neither design is universally suitable for every extrusion application.
When selecting a twin screw extruder, consider:
PVC powder requires conical twin screw configuration for stable feeding and melting.
Select appropriate model size according to kg/hour output demand.
Pipe, profile, board, and pelletizing lines require different downstream equipment matching.
Modern extrusion factories often integrate:
Automatic feeders
Gravimetric dosing systems
PLC centralized control
Online monitoring systems
Chenxing Machinery has over two decades of manufacturing experience in plastic extrusion equipment.
Our SJSZ Series conical twin screw extruders are designed with:
Precision-machined alloy screws
High-strength gear transmission systems
Stable electrical control architecture
International export-standard manufacturing quality
We supply complete solutions including:
PVC pipe extrusion lines
Profile production lines
Sheet and board production lines
PVC pelletizing systems
A twin screw extruder is used to convey, plasticize, mix and process polymer materials. Depending on its screw configuration, it can be used for PVC pipe and profile extrusion, plastic compounding, masterbatch production and other polymer processing applications.
A conical twin screw extruder has two tapered screws with diameters that decrease along the processing direction. A parallel twin screw extruder uses two screws with a constant nominal diameter along the working section. Their structural designs, operating characteristics and typical applications are different.
Conical counter-rotating twin screw extruders are widely used for rigid PVC processing because their screw geometry and conveying characteristics are suitable for processing PVC dry blends. They are commonly integrated into PVC pipe and profile extrusion lines.
Twin screw extruders can process different polymer materials depending on their screw configuration and machine design. Typical applications include rigid PVC compounds, polymer blends, filled compounds and masterbatch materials.
Co-rotating twin screw extruders have two screws rotating in the same direction and are widely used for polymer compounding and material modification. Counter-rotating twin screw extruders have screws rotating in opposite directions and are commonly used in specific PVC extrusion and polymer processing applications.
Consider the polymer type, material formulation, required production capacity, final product dimensions, screw configuration and downstream equipment. For PVC pipe and profile manufacturing, the conical counter-rotating twin screw extruder is a common choice.
