In modern PVC processing and plastic compounding, formulation precision directly determines product quality, stability, and production efficiency. Whether manufacturing PVC pipes, profiles, sheets, or granules, liquid additives such as stabilizers, plasticizers, lubricants, and processing aids must be delivered with high accuracy.
A Liquid Dosing Machine is specifically engineered to transport and meter liquid additives from storage tanks to production systems using controlled pump feeding and electronic weighing systems. It replaces manual batching, significantly reducing labor intensity while eliminating formulation errors.
For extrusion manufacturers pursuing automation and consistency, liquid dosing systems are no longer optional—they are fundamental infrastructure.
Liquid additives are stored in designated tanks before being transferred to the dosing system. Tank materials, pump components, pipeline materials and sealing elements should be selected according to the chemical properties, viscosity and operating temperature of the liquid.
Stainless steel can be used for suitable applications, but the specific material grade should be confirmed based on the liquid being handled and the required operating conditions.

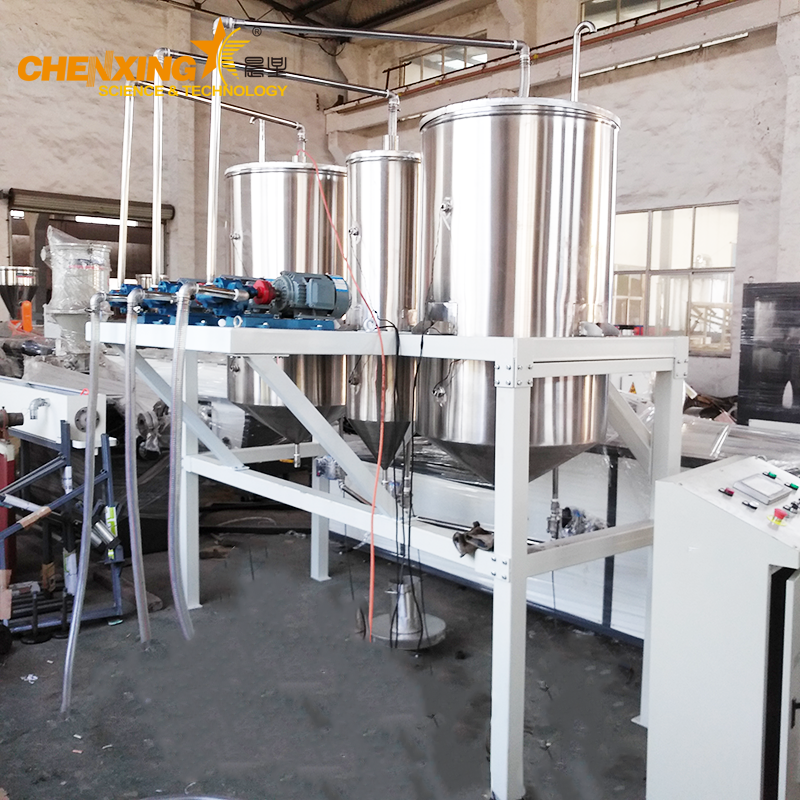

A liquid dosing machine consists of several components working together to store, transfer, measure and control liquid additives.
The storage tank holds the liquid additives before dosing. Its capacity and material are selected according to the liquid properties and production requirements.
The pump transfers liquid from the storage tank to the dosing point. Pump selection depends on liquid viscosity, required flow rate, conveying distance and operating conditions.
The metering unit measures the quantity of liquid supplied to the production process. Depending on the machine design, it may use a gravimetric weighing system or a flow meter-based measurement system.

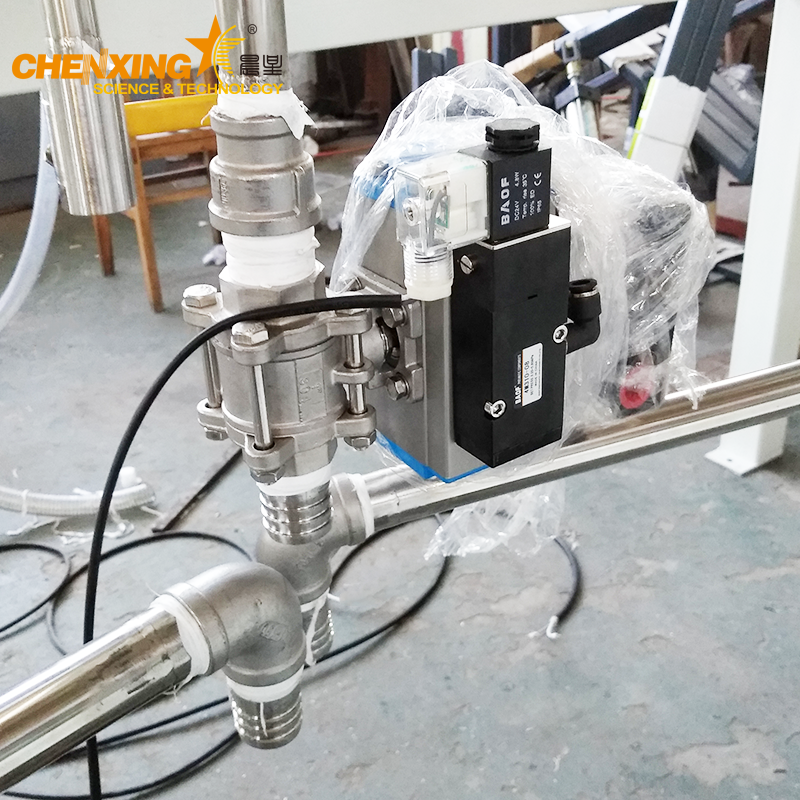

Valves regulate liquid flow, while pipelines connect storage tanks, pumps and dosing points. Their materials and dimensions should be suitable for the liquid being handled.
The PLC coordinates the dosing sequence, pump operation and relevant control functions according to the selected system configuration.

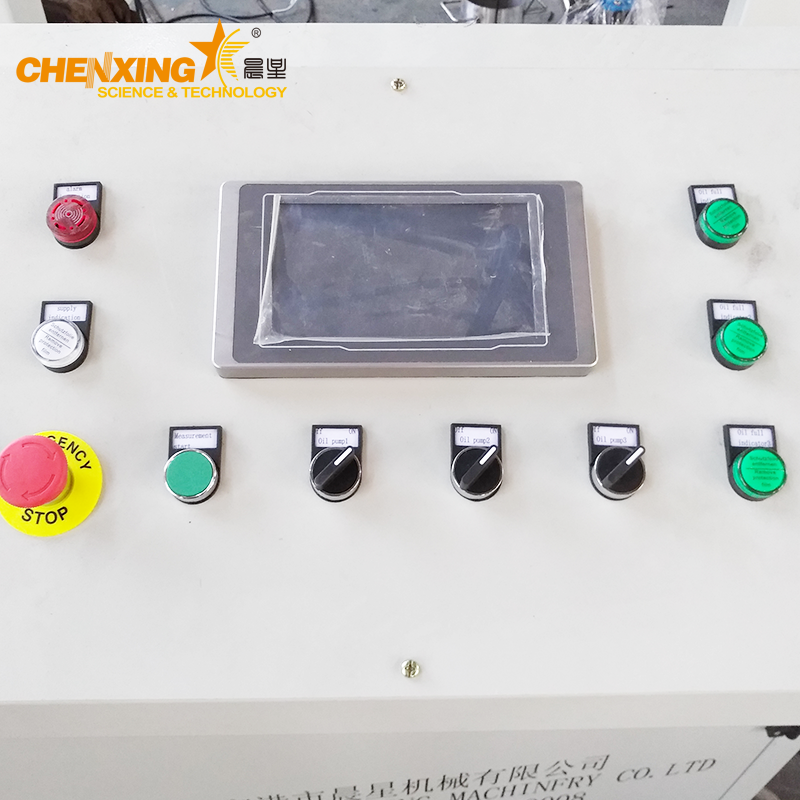

An HMI touchscreen allows operators to enter dosing parameters, monitor equipment status and operate the system. Recipe management and production data recording can be included when supported by the control configuration.
A Liquid Dosing Machine is an automated feeding system designed to:
Extract liquid additives from storage tanks
Deliver them via pump-based transport
Measure dosage using electronic weighing
Control the entire process through a PLC system
Unlike solid feeding systems that use screw conveyors, liquid dosing machines rely on precision pump extraction and cumulative electronic weighing to ensure accurate formulation.
In PVC compounding applications, this system ensures that each batch receives the exact required ratio of liquid stabilizers or plasticizers, preventing product inconsistencies.
The machine operates through four core stages:
Liquid materials are stored in stainless steel tanks designed for industrial durability and corrosion resistance.
Oil pumps draw liquid additives from storage tanks using stable pressure-controlled feeding methods.
The system uses electronic weighing sensors to accumulate the required dosing amount with high precision.
The PLC-controlled dosing system automates the entire batching process, ensuring:
High dosing accuracy
Stable repeatability
Automatic cycle control
Reduced human error
This integrated automation enables precise formulation management in PVC mixing and extrusion lines.
Based on the product configuration shown, the Liquid Dosing Machine offers:
✔ PLC-based intelligent control system
✔ Electronic weighing cumulative metering
✔ Pump-driven liquid transport
✔ Stainless steel storage tanks
✔ Simple mechanical structure
✔ High dosing precision
✔ Low failure rate
✔ Convenient maintenance access
The structural design emphasizes operational reliability and long-term industrial durability.
Liquid dosing systems can use different measurement methods depending on the required dosing accuracy, material characteristics and production process.

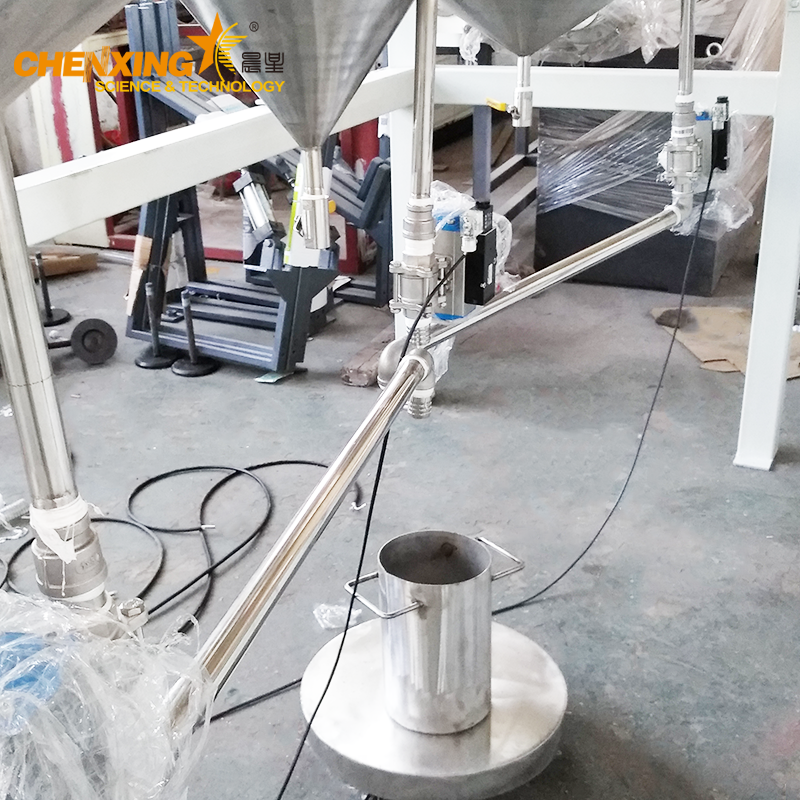

Gravimetric dosing measures liquid by weight. A weighing sensor detects changes in the weight of the liquid supply or weighing vessel, allowing the control system to determine the delivered quantity.
This method is suitable for applications where liquid additives need to be measured according to a target mass.
Flow meter-based dosing measures the liquid passing through a pipeline. Depending on the selected meter, the system can monitor instantaneous flow rate and calculate cumulative liquid quantity.
This method is useful for applications requiring controlled liquid transfer and flow-based measurement.
The appropriate dosing method depends on liquid viscosity, required measurement range, target quantity, batch size, process conditions and the actual control requirements.
The measurement method should be confirmed before selecting pumps, sensors, valves and PLC control functions.
The Liquid Dosing Machine is mainly used in:
PVC auxiliary additive batching
PVC compound mixing systems
Automatic weighing applications
High-output extrusion lines
Centralized feeding systems
It is particularly suitable for factories aiming to:
Increase production efficiency
Reduce labor intensity
Prevent formulation omissions
Improve product quality stability
For extrusion plants targeting consistent mechanical performance in pipes, profiles, or sheet production, automated liquid feeding significantly improves quality control.
Selecting a liquid dosing machine requires more than checking its storage tank capacity or pump power. The system should be matched to the actual liquid materials and production process.
Before choosing equipment, manufacturers should consider:
Identify each liquid additive, including its viscosity, density, chemical compatibility and operating temperature.
Confirm the target quantity per batch or the required continuous feeding rate.
Determine whether gravimetric weighing or flow meter-based measurement is more suitable for the application.
The number of liquid materials and dosing points affects the number of tanks, pumps, metering units and control channels.
The distance between storage tanks and dosing points affects pump selection and pipeline design.
Confirm whether the system needs PLC control, HMI operation, recipe management, data recording or communication with existing production equipment.
A properly configured liquid dosing system should be designed around the customer's formulation, material properties and production requirements rather than relying on a standard configuration for every application.
| Factor | Manual Dosing | Liquid Dosing Machine |
|---|---|---|
| Accuracy | Operator-dependent | High-precision electronic weighing |
| Labor Intensity | High | Low |
| Consistency | Variable | Stable & repeatable |
| Production Efficiency | Moderate | High |
| Error Risk | High | Minimal |
Automated dosing systems eliminate common problems such as underfeeding, overfeeding, and skipped additives.
In global markets—especially North America and Europe—customers demand:
Consistent product performance
Standardized formulations
Traceable production data
Reduced operational risk
A PLC-controlled liquid dosing machine aligns with these industrial expectations.
Automated dosing can support more standardized production procedures and improve the consistency of recorded process data. Overall quality management and product compliance still depend on the manufacturer's complete production and inspection system.
The Liquid Dosing Machine can be integrated with:
High-speed heating & cooling mixers
Twin screw extruders
Single screw extrusion lines
Centralized batching systems
Through PLC coordination, the dosing system can synchronize with upstream and downstream equipment, forming a fully automated PVC compounding workflow.
The mechanical design reflects several engineering priorities:
Structural simplicity
Ease of operation
Reliable long-term performance
Easy maintenance accessibility
Industrial users benefit from lower downtime and reduced maintenance complexity.
As an experienced plastic machinery manufacturer with over two decades of engineering and export experience, Zhangjiagang Chenxing Machinery Co., Ltd. provides integrated solutions for:
Plastic extrusion systems
Mixing and compounding lines
Automatic dosing systems
Recycling and pelletizing equipment
Our equipment is engineered with practical industrial experience, ensuring compatibility with diverse global production standards.
We focus on:
Stable mechanical design
High dosing precision
Long-term durability
Technical support for overseas clients
A liquid dosing machine is used to measure and transfer liquid additives according to predefined production requirements. It is commonly used in plastic compounding processes where controlled feeding of liquid ingredients is required.
Depending on the pump, tank, pipeline and sealing materials, a liquid dosing machine may handle compatible plasticizers, liquid stabilizers, lubricants, processing oils and other liquid additives. Material compatibility should be confirmed before equipment selection.
Liquid dosing machines may use gravimetric weighing or flow meter-based measurement. The appropriate method depends on the machine configuration and process requirements.
Yes. A suitably configured liquid dosing system can be integrated with PVC mixing equipment to supply liquid additives during the compounding process. The transfer arrangement and control sequence should match the mixer and production workflow.
Yes. Dosing parameters can be configured according to the control system. Recipe storage and selection can also be included when supported by the PLC and HMI configuration.
A system can be designed with multiple storage tanks, pumps and dosing channels to handle different liquid additives. The number of channels depends on the required formulation and equipment configuration.
Customers should provide the liquid type, viscosity, density, required dosing quantity, number of additives, target production capacity, conveying distance and preferred automation functions. These details help determine the suitable dosing method and equipment configuration.
In modern PVC manufacturing, accurate additive feeding determines product stability, mechanical performance, and long-term market competitiveness.
A Liquid Dosing Machine:
Improves formulation accuracy
Reduces labor cost
Enhances production efficiency
Ensures consistent product quality
For extrusion factories aiming to upgrade automation levels and reduce production risks, investing in a PLC-controlled liquid dosing system is a strategic decision.
