Product Description

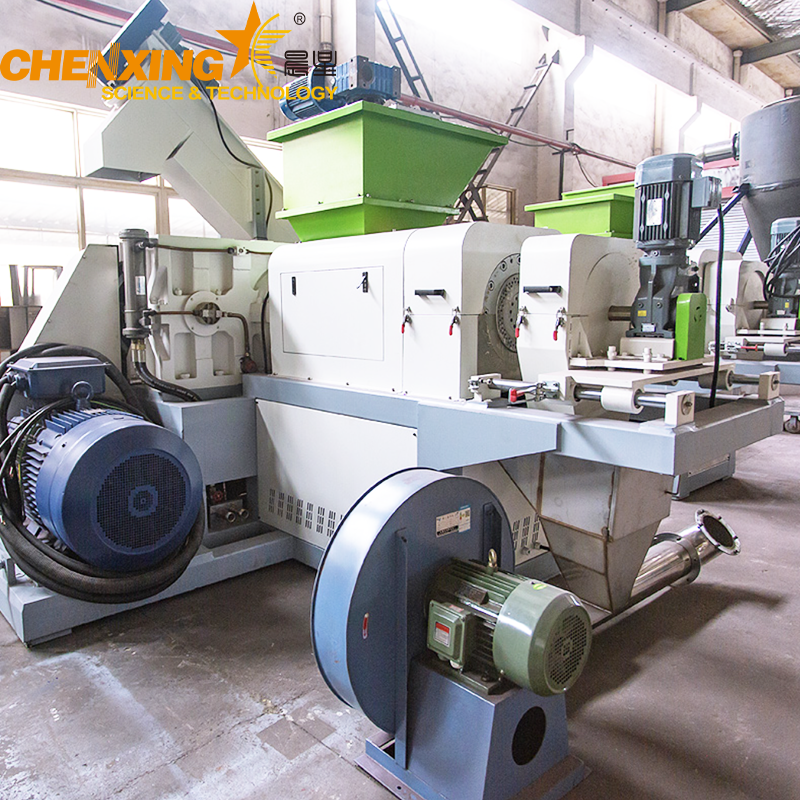

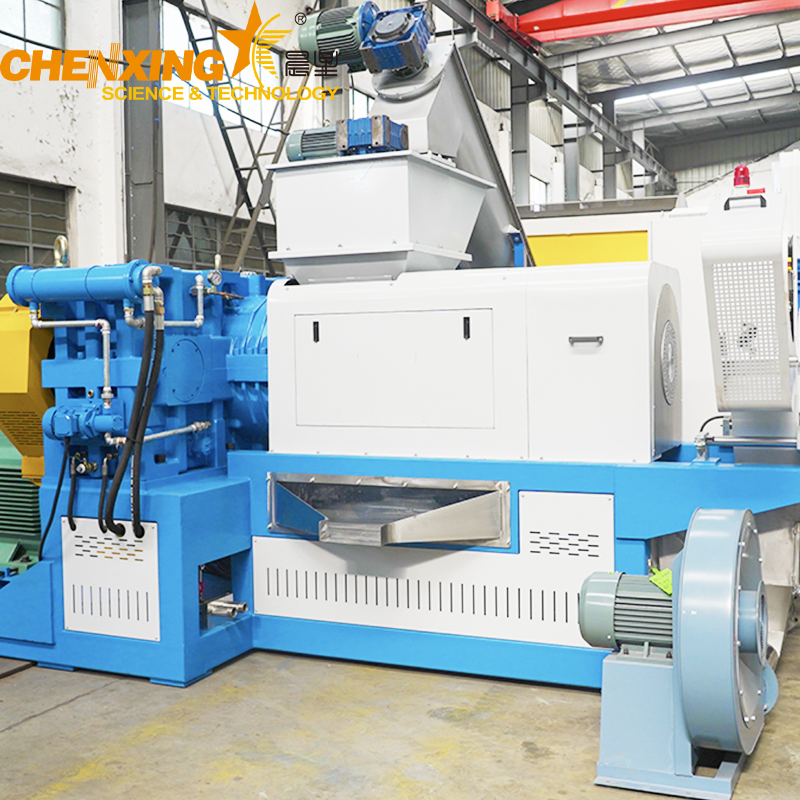

The Plastic Film Screw Press Squeezer & Densifier System is a breakthrough drying solution in the plastic recycling industry. It is specially designed for washed plastic films and non-woven bags, effectively reducing moisture content from 30–40% down to as low as 3%.
With low power consumption and high efficiency, this system not only removes moisture but also densifies the plastic into compact granules, making them easy to feed into extruders and pelletizers. It is the perfect pre-treatment equipment for plastic recycling and pelletizing lines.
Feeding: Washed plastic films or non-woven bags enter the system.
Screw Press Squeezing: A specially designed screw press thoroughly squeezes out moisture.

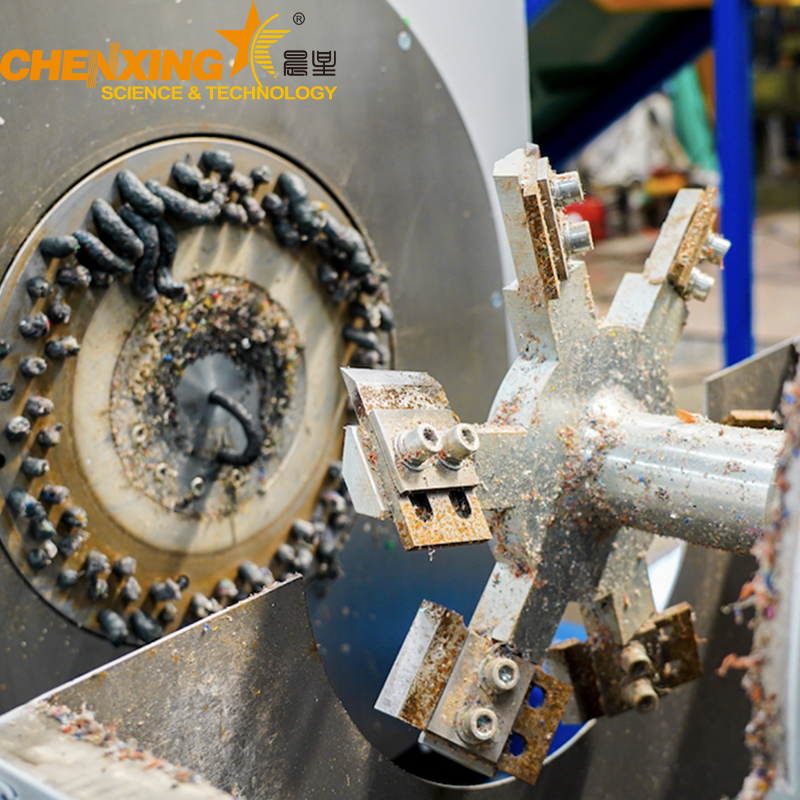

Thermal Densification: The plastic is heated and densified into small, uniform granules.
Output: The dried and densified granules are discharged, ready for direct use in extruders or pelletizers.
This automatic process ensures consistent drying, stable feeding, and increased extruder efficiency.
| Model | Dimension (mm) | Inlet Size (mm) | Main Motor Power | Rotated Speed | Capacity | Drainage Method | Material Outlet | Hydraulic Station Motor |
|---|---|---|---|---|---|---|---|---|
| CX-500 | 2350×900×1840 | 2350×900×1840 | 90 kW | 42 r/min | 500–600 kg/h | Drain at the Bottom | Free Falling | 1.5–2.2 kW |
| CX-1000 | 2350×900×1840 | 2350×900×1840 | 160 kW | 42 r/min | 700–800 kg/h | Drain at the Bottom | Free Falling | 1.5–2.2 kW |
CE Certification available
Larger models customizable upon request
High Moisture Reduction: Lowers film moisture to approx. 3%
Improved Extruder Feeding: Produces denser granules for smooth processing
Energy Saving: Efficient drying with reduced power consumption
Versatile Application: Suitable for PE film, PP woven bags, agricultural film, non-woven bags, etc.
Easy Integration: Works seamlessly with washing lines and pelletizing extruders
Q1: What materials can be processed with this system?
A1: It is suitable for washed PE films, PP woven bags, agricultural films, non-woven bags, and similar lightweight plastics.
Q2: How much moisture can the machine remove?
A2: It reduces moisture content from 30–40% down to around 3–5%, depending on material type.
Q3: What is the final product form?
A3: The output is densified plastic granules, which can be directly fed into extruders or pelletizers.
Q4: Can this machine replace traditional dryers?
A4: Yes, it is faster, more efficient, and consumes less energy than conventional centrifugal or hot-air dryers.
Q5: Is customization available?
A5: Yes, we can provide larger capacity models and adjust system specifications based on customer requirements.
