Despite the rapid development of twin screw and special extrusion systems, the single screw extruder remains the most widely used plastic processing machine in the global extrusion industry.
From pipe extrusion and profile production to sheet, pelletizing, and recycling applications, single screw extruders continue to dominate industrial production due to their simplicity, reliability, and cost-efficiency.
Understanding how single screw extruders work and how to select the right configuration is critical for manufacturers aiming to achieve stable output and consistent product quality.

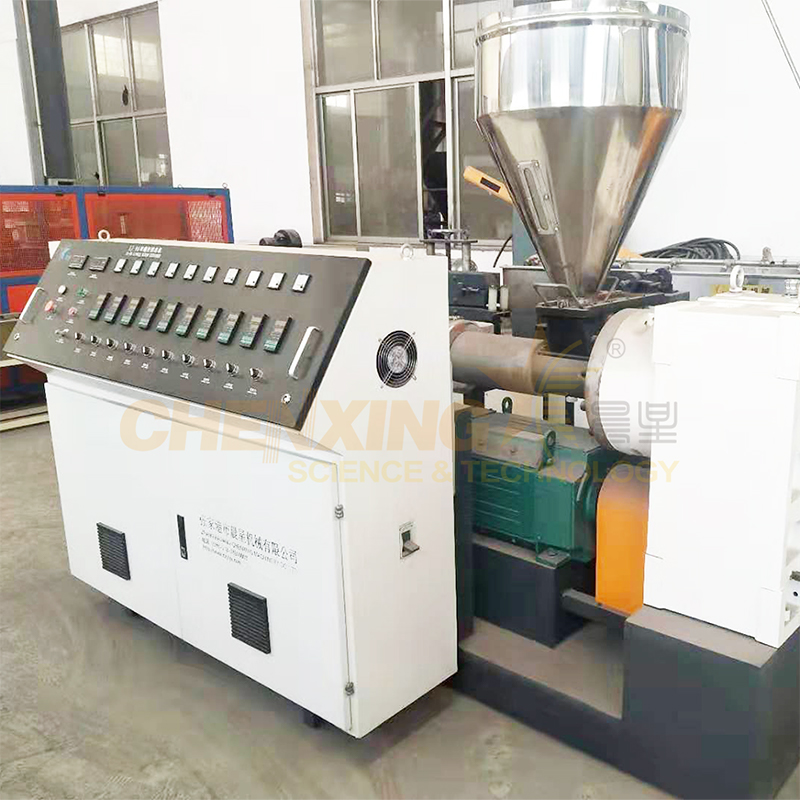

A single screw extruder is a continuous plastic processing machine that melts, homogenizes, and conveys thermoplastic materials using a rotating screw inside a heated barrel.
It converts solid raw material (pellets, powder, flakes) into a uniform molten polymer stream and shapes it through a die to produce finished or semi-finished plastic products.
Typical output products include:
Plastic pipes and tubes
Profiles and window frames
Sheets and boards
Granules and recycled pellets
Filaments and special extruded parts
A standard industrial single screw extrusion system consists of:
The screw is the core working element. It determines:
Melting efficiency
Mixing quality
Output stability
Energy consumption
Chenxing Machinery designs screws with optimized compression ratios and material-specific geometry.
The barrel is divided into multiple heating zones with precise temperature control to ensure gradual plasticization and stable melt flow.
High-torque motors and hardened gearboxes provide stable rotational speed and continuous operation under heavy loads.
Modern PLC and inverter systems allow:
Speed adjustment
Temperature monitoring
Production parameter recording
Automatic safety protection
The extrusion process can be divided into three main functional zones:
Raw materials are fed into the hopper and conveyed forward by the rotating screw.
Friction, shear force, and external heating melt the polymer and remove air gaps between particles.
The molten plastic is stabilized and pumped uniformly toward the die, ensuring constant output pressure and dimensional accuracy.
Used for:
PVC pipe production
HDPE water pipe manufacturing
PPR hot water systems
Gas and drainage pipelines
Single screw extruders are widely applied in:
Window and door profiles
WPC boards
Decorative wall panels
Ceiling panels
Suitable for:
Plastic sheets
Packaging films
Industrial protective layers
Used as downstream extruders in:
Film washing lines
Flake reprocessing systems
Pelletizing production lines
The mechanical structure is simple and reliable, making it ideal for long-term industrial production.
Compared with twin screw extruders, single screw systems offer lower capital investment and maintenance cost.
Supports processing of:
PE, PP, PVC
HDPE, LDPE
ABS, PS
Recycled plastics
Straightforward mechanical design reduces operator training requirements and maintenance downtime.
Different polymers require different screw designs. For example:
PVC powder needs special low-shear screws
PE and PP pellets require higher compression ratios
Production scale determines screw diameter and motor power selection.
Pipe extrusion, profile extrusion, and pelletizing all require different extrusion configurations.
Modern production lines often integrate:
Automatic feeding systems
Gravimetric dosing
Online diameter control
Centralized control platforms
Typical industrial single screw extruders range from 25mm to 150mm depending on production output
Yes, but screw design and temperature profile may need adjustment for optimal performance.
With proper maintenance, industrial extruders can operate reliably for 10–15 years or more.
Yes. They are commonly integrated with:
Vacuum calibration tables
Haul-off machines
Cutting systems
Stacking and winding units
Chenxing Machinery has decades of manufacturing experience in extrusion equipment. Our single screw extruders are engineered with:
High-strength alloy screws
Precision-machined barrels
Stable torque transmission systems
Energy-efficient heating control
We supply complete extrusion line solutions including:
Pipe extrusion lines
Profile production lines
Recycling pelletizing systems
Customized extrusion projects
Looking for a reliable single screw extruder for your production line?
Visit www.chenxingmachinery.com
Contact our engineering team for machine selection, line layout design, and technical consultation.
