In modern plastic recycling and waste reduction systems, shredding is the first and most critical stage of material size reduction. Whether you are processing plastic lumps, pipes, films, woven bags, pallets, or industrial scrap, choosing the correct shredder type directly affects downstream crushing, washing, and pelletizing efficiency.
Two common industrial shredders dominate the market:
Although they serve similar purposes, their structure, working principles, and application scenarios differ significantly.
This guide explains the engineering logic behind both machines and helps you determine which one fits your production line.

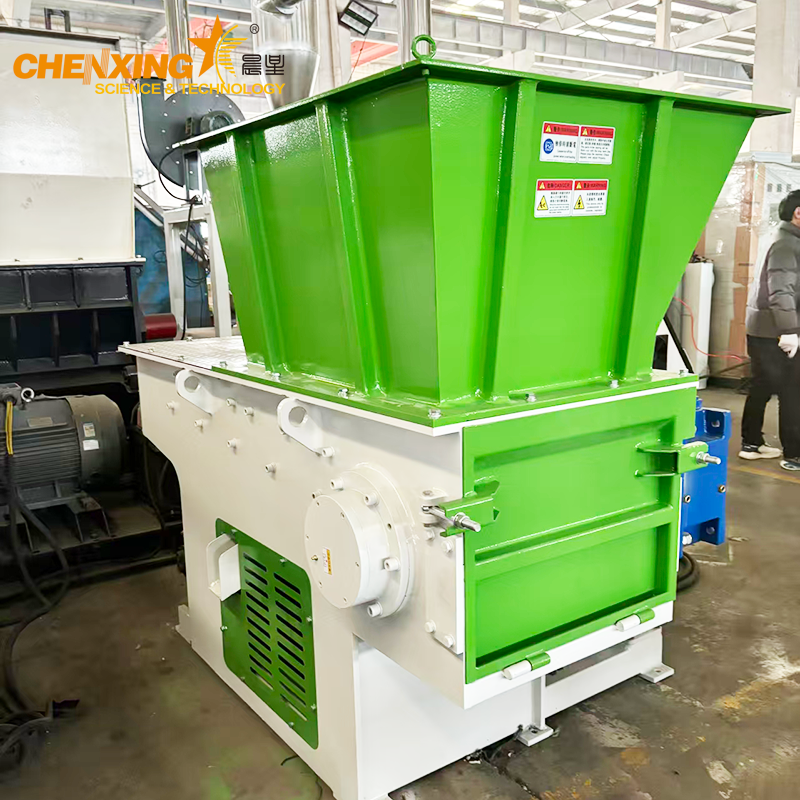

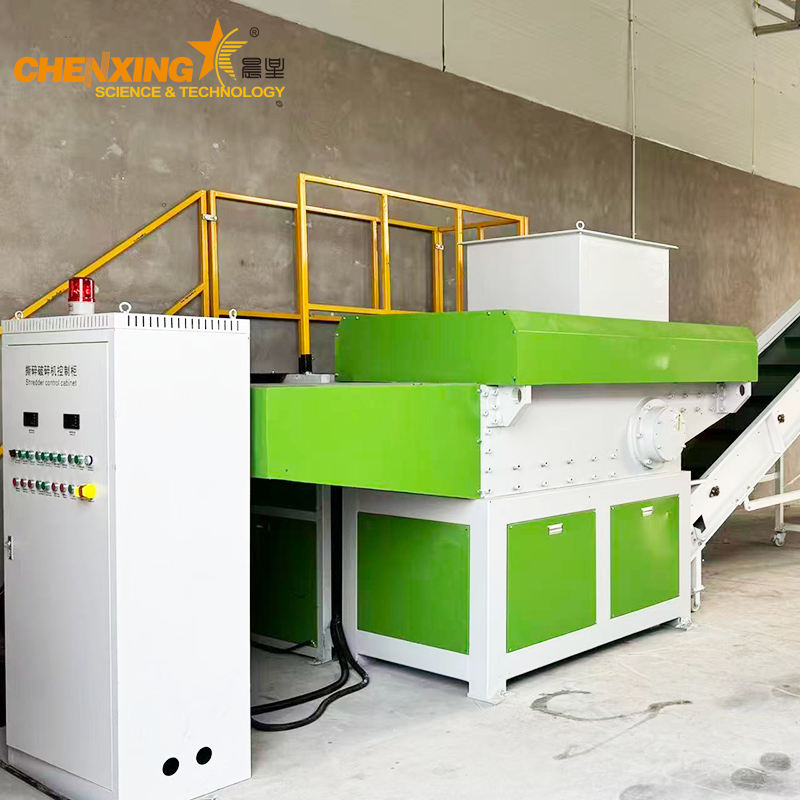

A single shaft shredder is an industrial size-reduction machine designed with one main rotor shaft equipped with rotating blades and a hydraulic push system.
One heavy-duty rotor
Replaceable square blades
Hydraulic ram feeder
Adjustable screen mesh
Gearbox-driven system
PLC control system (optional)
Material is fed into the shredding chamber.
The hydraulic ram pushes material toward the rotating shaft.
Rotating blades cut against stationary counter knives.
Material is reduced until it passes through the screen.
Uniform output size is achieved.
Because it uses a screen, the output particle size is controllable.
Plastic lumps
Injection molded rejects
Plastic pipes
PET bottles
Woven bags
Film scraps
Rubber materials
Wood pallets
Single shaft shredders are preferred when uniform output size is required before granulation or washing.

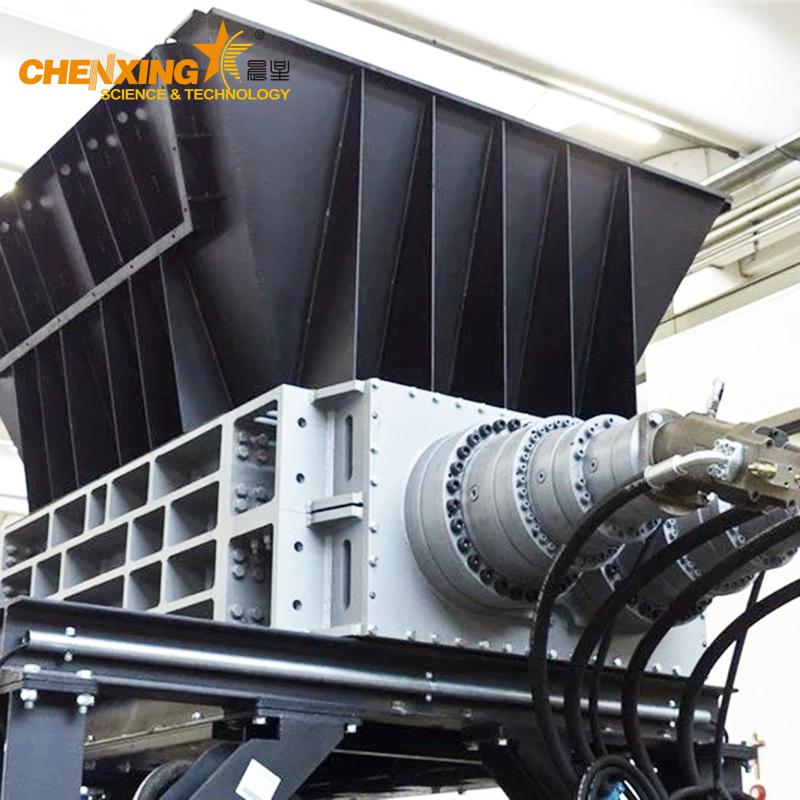

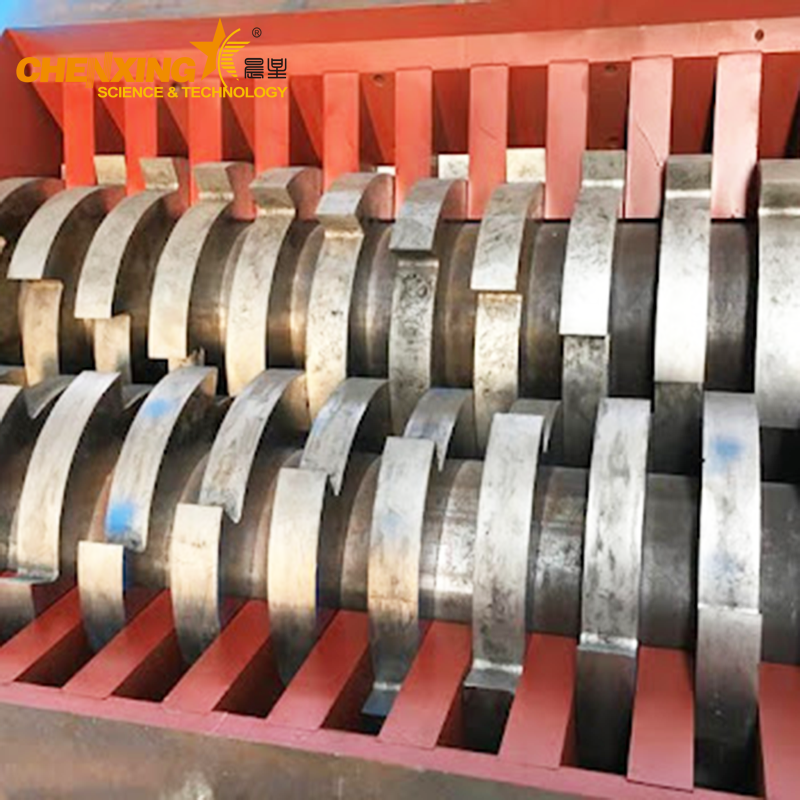

A double shaft shredder uses two parallel rotating shafts equipped with hook-type blades. It is designed for primary coarse shredding.
Two synchronized shafts
Interlocking hook blades
High torque gearbox
No screen system
Low speed, high torque design
Material enters the shredding chamber.
Two shafts rotate in opposite directions.
Hook blades grab and tear material apart.
Output is coarse and irregular in size.
Unlike single shaft shredders, double shaft shredders do not use screens, meaning output size is not precisely controlled.
Large plastic pipes
Plastic drums
Tires
Metal scrap
E-waste
Thick-walled materials
Municipal solid waste
Double shaft shredders are commonly used as primary shredders before secondary crushing.
| Feature | Single Shaft Shredder | Double Shaft Shredder |
|---|---|---|
| Number of Shafts | 1 | 2 |
| Output Control | With screen | No screen |
| Output Size | Uniform | Coarse & irregular |
| Feeding System | Hydraulic ram | Self-feeding |
| Torque | Medium to High | Very High |
| Suitable For | Controlled granule size | Heavy bulk materials |
| Typical Use | Secondary shredding | Primary shredding |
In many industrial recycling plants, both machines work together:
Double Shaft Shredder → Single Shaft Shredder → Crusher → Washing → Pelletizing
The double shaft handles bulky materials first.
The single shaft refines the size for downstream processing.
This staged design improves energy efficiency and protects crushers from overload.
When selecting a shredder, consider:
Soft film? Rigid lumps? Thick pipes? Metal contamination?
Need 40mm flakes? 80mm blocks? Or just volume reduction?
Industrial shredders range from hundreds of kg/h to several tons per hour.
Is there a crusher? Granulator? Washing line?
Choosing the wrong shredder increases wear cost and reduces system stability.
Shredding directly impacts:
Energy consumption of crusher
Washing efficiency
Pelletizing stability
Blade wear cost
Line automation level
A well-designed shredding system reduces maintenance cost and increases ROI.
A single shaft shredder uses one rotating rotor with cutting blades and typically a hydraulic pusher. A double shaft shredder uses two counter-rotating shafts with interlocking cutters. Single shaft machines commonly use screens to control discharge size, while conventional double shaft shredders generally produce coarser, less uniform output.
The choice depends on pipe diameter, wall thickness, length and required output size. Large-diameter pipes may require a heavy-duty pipe crusher or a pre-shredding system. A suitable machine should be selected according to the actual pipe specifications and processing requirements.
Yes. Industrial shredders can be configured to process suitable HDPE and PP waste, including pipes, containers, lumps and other plastic scrap. Blade configuration, feeding design and motor power should match the material and required capacity.
Most conventional double shaft shredders operate without a discharge screen and produce coarse, irregularly sized material. If more controlled output sizing is required, additional crushing or size-reduction equipment may be necessary.
Important information includes material type, feed dimensions, wall thickness, moisture content, required capacity, target output size and downstream equipment configuration.
At Chenxing Machinery, we provide:
Heavy-duty single shaft shredders
High torque double shaft shredders
Custom rotor design
Replaceable blade systems
Integrated recycling line solutions
Engineering support for plastic processing plants
Our shredders are designed for industrial-grade continuous operation with stable torque output and optimized blade configuration.
If you are planning a plastic recycling plant or upgrading your shredding stage, our technical team can recommend the correct configuration based on your material and capacity.
