In modern elevator systems, safety, balance, and smooth operation are critical factors. While most people are familiar with elevator cabins and counterweights, fewer understand the importance of a component called the elevator compensation chain.
This seemingly simple mechanical element plays a vital role in maintaining elevator balance, especially in high-rise buildings and heavy-load elevator systems. In this article, we will explore what an elevator compensation chain is, how it works, its main types, and how to select the right one for your elevator system.

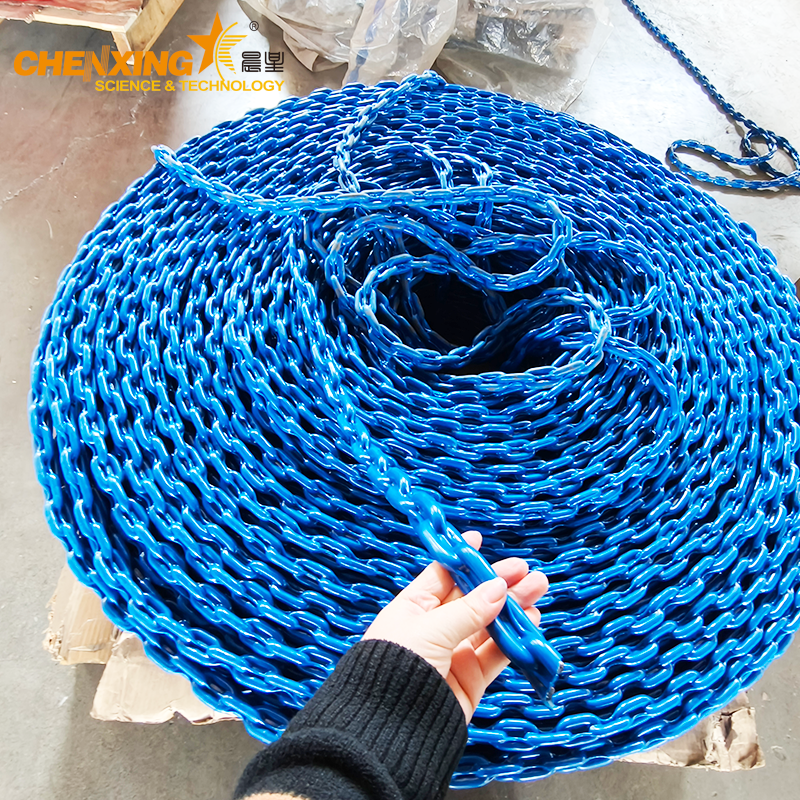

An elevator compensation chain, sometimes referred to as a balance chain, is installed between the elevator car and the counterweight. Its primary function is to compensate for the changing weight of the hoisting cables as the elevator moves up and down.
When an elevator travels upward or downward, the length of the suspension cables on each side changes. Without compensation, this would create a weight imbalance that could cause vibration, reduced efficiency, and mechanical stress on the elevator system.
The compensation chain solves this problem by providing a balanced weight distribution throughout the elevator’s travel range, ensuring smooth and stable operation.
This is why compensation chains are widely used in:
Passenger elevators
Freight elevators
High-rise building lifts
Commercial building elevators
Industrial lift systems

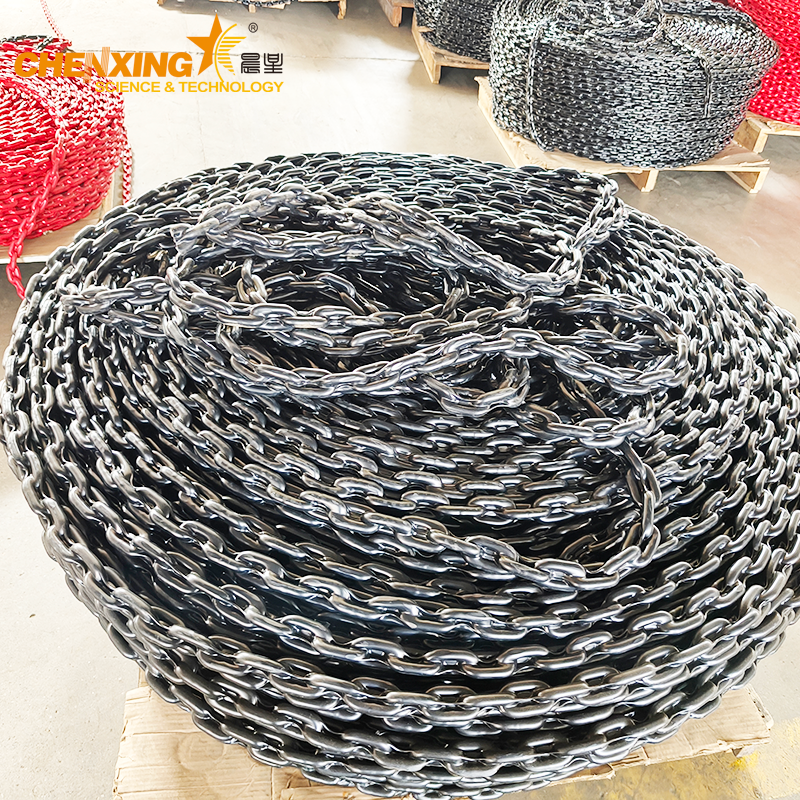

The compensation chain is installed at the bottom of the elevator shaft, connecting the elevator car and the counterweight. As the elevator moves, the chain naturally adjusts its position along the shaft floor.
The chain's weight provides a balancing effect that offsets the changing cable mass, which leads to several important benefits:
Reduced vibration during elevator movement
Improved energy efficiency
Increased mechanical stability
Lower wear on elevator components
For optimal performance, the compensation chain is often used together with an elevator compensation chain guide device, which helps prevent excessive chain swing and keeps the system aligned.
Depending on the application and noise reduction requirements, different types of compensation chains are available.

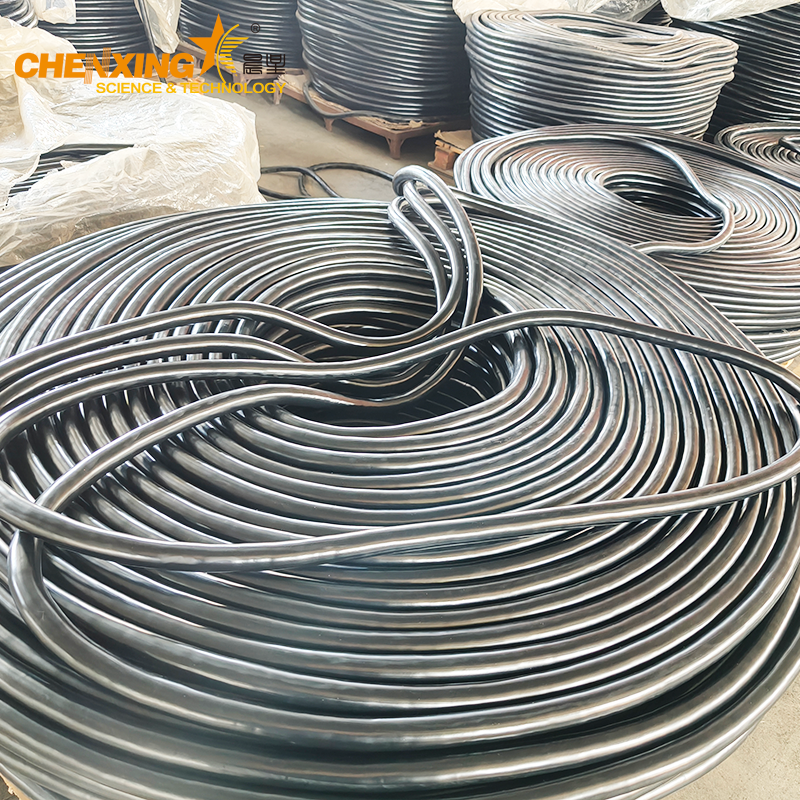

A PVC coated compensation chain is covered with a protective plastic layer that reduces friction noise and improves corrosion resistance. This type is commonly used in modern elevator systems where quiet operation is important.
This design combines exposed metal chain sections with partial plastic covering. It offers a balance between durability, cost efficiency, and noise reduction.
The sleeve coated chain features plastic sleeves around the chain links, which helps minimize wear and improves operational stability.
In this design, the entire chain is enclosed in plastic material. It provides maximum noise reduction and corrosion protection, making it ideal for high-end elevator installations.
Using a poorly designed or low-quality compensation chain can cause several issues in elevator systems:
Increased vibration and noise
Uneven mechanical stress
Reduced elevator lifespan
Higher maintenance costs
High-quality compensation chains are manufactured with precision weight control, durable materials, and optimized coating technology to ensure long-term reliability.

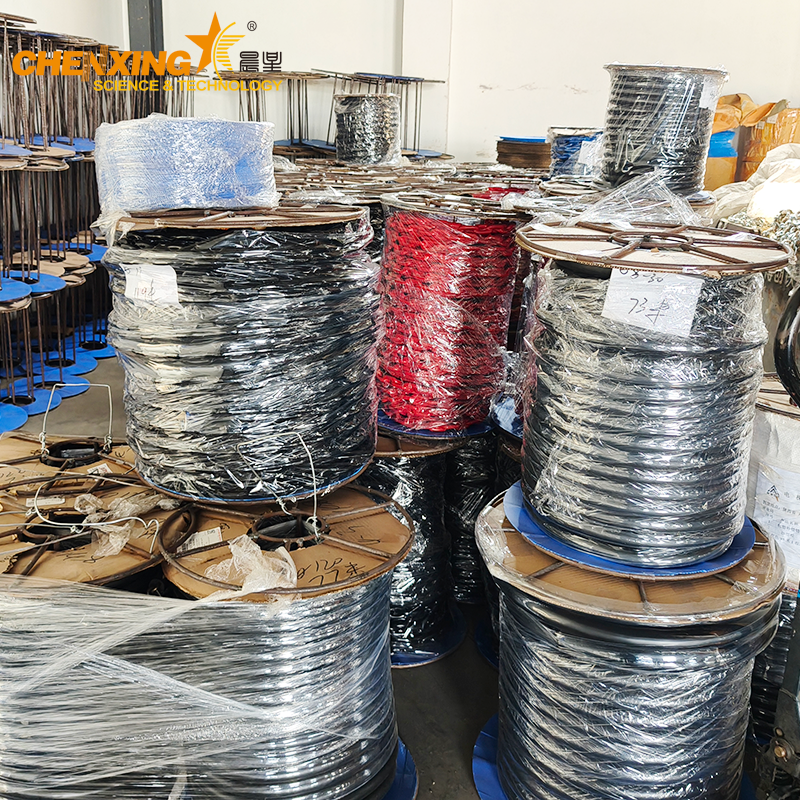

As an experienced industrial machinery manufacturer, Zhangjiagang Chenxing Machinery Co., Ltd. provides reliable elevator compensation chain solutions designed for stability, durability, and performance.
Our compensation chains are manufactured using high-strength steel cores combined with advanced plastic coating technology, ensuring excellent wear resistance and long service life.
Key advantages include:
Stable weight distribution for smooth elevator operation
Durable plastic coating for noise reduction
Corrosion resistance for long-term use
Multiple models available for different elevator systems
Custom specifications available for special projects
| Model | Weight (kg/m) |
|---|---|
| WFB-5 | 0.68 ± 0.2 |
| WFB-6 | 0.86 ± 0.2 |
| WFB-7 | 1.12 ± 0.2 |
| WFB-8 | 1.49 ± 0.2 |
| WFB-9 | 1.88 ± 0.2 |
| WFB-10 | 2.23 ± 0.2 |
| WFB-11 | 2.98 ± 0.2 |
| WFB-12 | 3.24 ± 0.2 |
| WFB-13 | 3.72 ± 0.2 |
| WFB-14 | 4.46 ± 0.2 |
| WFB-15 | 5.25 ± 0.2 |
| WFB-16 | 5.95 ± 0.2 |
Custom designs are available based on elevator load capacity, shaft height, and operating conditions.
When selecting a compensation chain, engineers usually consider several key factors:

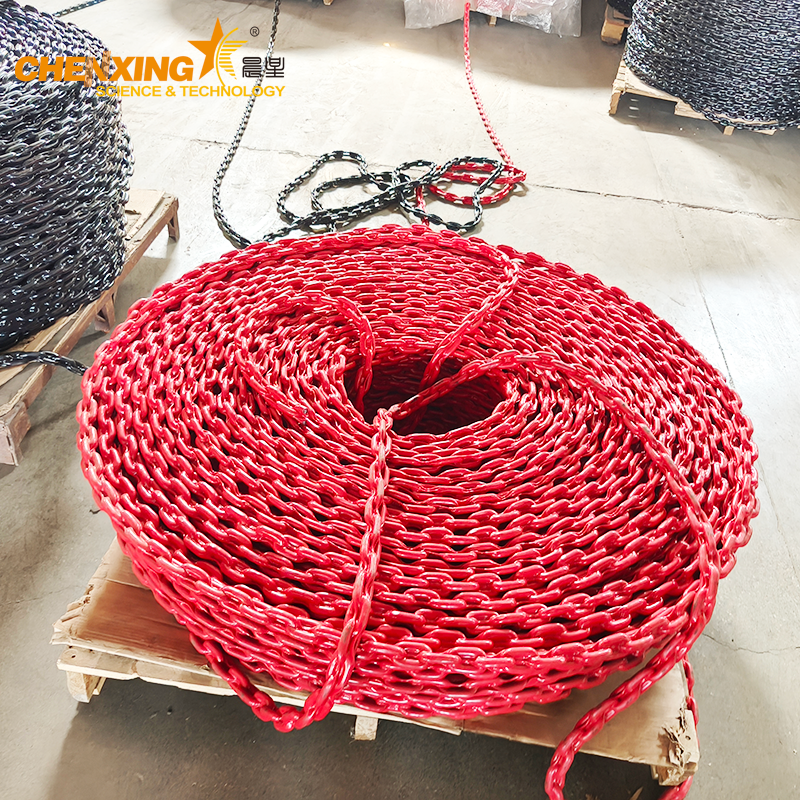

High-rise elevators require heavier compensation chains to maintain balance.
Freight elevators typically require stronger and heavier chains than passenger lifts.
Residential and commercial buildings often prefer PVC coated or fully plastic chains to reduce noise.
Corrosion resistance may be necessary in humid or industrial environments.
Working with an experienced manufacturer ensures the chain specifications are properly matched with the elevator system design.
An elevator compensation chain is used to balance the weight difference between the elevator car and the counterweight during operation. As the elevator moves, the length of the suspension cables changes, creating weight imbalance. The compensation chain offsets this variation and ensures smooth, stable elevator movement.
The compensation chain is typically installed at the bottom of the elevator shaft, connecting the elevator car and the counterweight. As the elevator travels up and down, the chain moves along the shaft floor and maintains system balance.
Most elevator compensation chains are manufactured using high-strength steel chains combined with plastic or PVC coatings. The steel provides structural strength, while the plastic coating helps reduce noise, prevent corrosion, and extend service life.
There are several common types of compensation chains used in elevator systems:
PVC coated compensation chain
Half plastic compensation chain
Sleeve coated compensation chain
Fully plastic coated compensation chain
Each type offers different levels of noise reduction, durability, and environmental protection.
PVC coated compensation chains are popular because they provide excellent noise reduction, wear resistance, and corrosion protection. The plastic coating also minimizes friction between chain links and elevator components, making them ideal for residential and commercial elevators.
Without a compensation chain, the elevator system may experience weight imbalance caused by the changing cable length during operation. This can result in vibration, increased mechanical stress, reduced efficiency, and potentially higher maintenance costs.
Selecting the right compensation chain depends on several factors:
Elevator height
Load capacity
Building type
Noise requirements
Environmental conditions
Working with a professional manufacturer helps ensure the chain weight and specifications match the elevator system design.
A compensation chain guide device is used to control the movement of the chain inside the elevator shaft. It prevents excessive swinging or tangling, ensuring the chain moves smoothly and safely during elevator operation.
A high-quality compensation chain can last many years under normal operating conditions. Factors such as material quality, installation method, and maintenance practices can affect the overall service life.
Yes. Many manufacturers offer customized compensation chains based on elevator system requirements, including chain weight, length, coating type, and installation configuration. Custom solutions ensure optimal performance for different building heights and elevator capacities.
Choosing the right compensation chain is essential for maintaining safe, smooth, and efficient elevator operation.
At Chenxing Machinery, we provide high-quality elevator compensation chains and guide devices for global customers. Our engineering team can help recommend the most suitable model based on your elevator design and operational requirements.
If you are planning a new elevator installation or looking to upgrade existing components, feel free to contact our team for professional technical support and quotations.
