PVC Plastic Reinforced Pipe Production Line | Spiral Hose Extrusion Machine

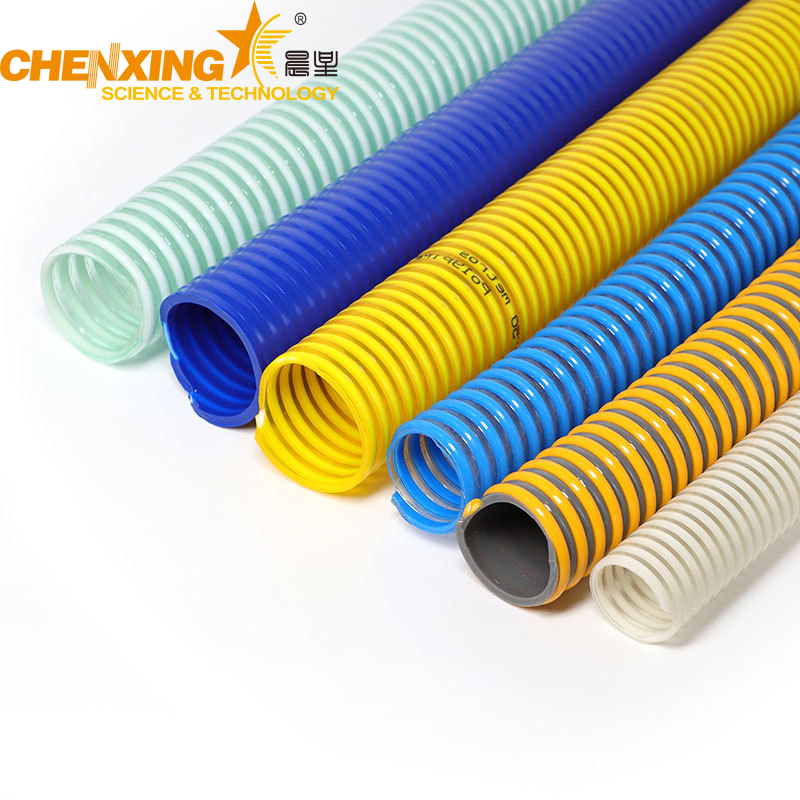

The PVC Plastic Reinforced Pipe Production Line is designed for manufacturing high-quality spiral reinforced hoses with soft PVC walls and rigid PVC helix reinforcement. The final pipes feature excellent extrusion resistance, corrosion resistance, negative pressure resistance, anti-bending strength, and high flexibility, making them suitable for conveying gas, liquid, and powder.

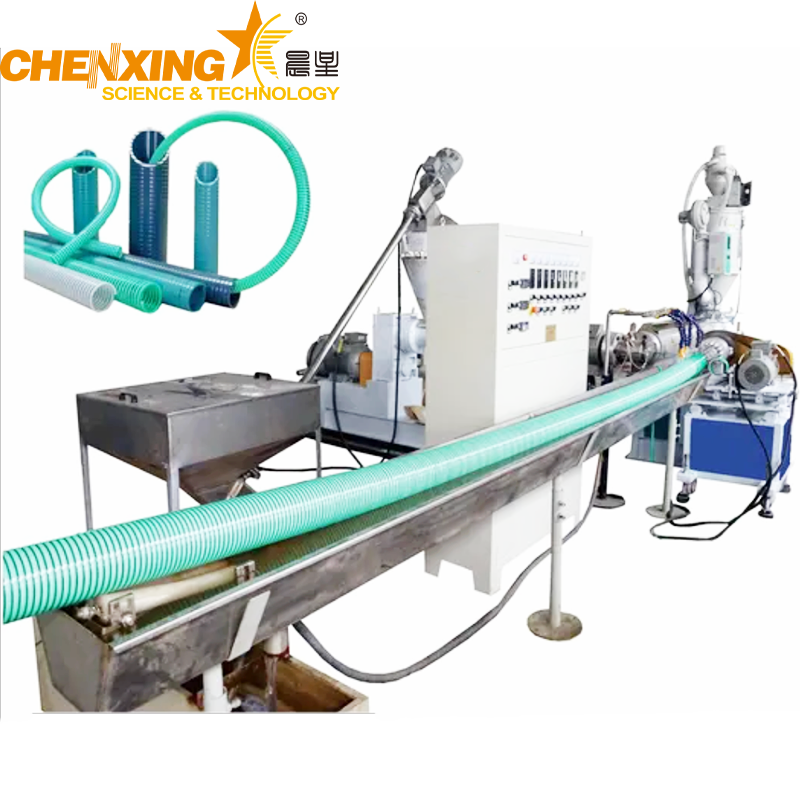

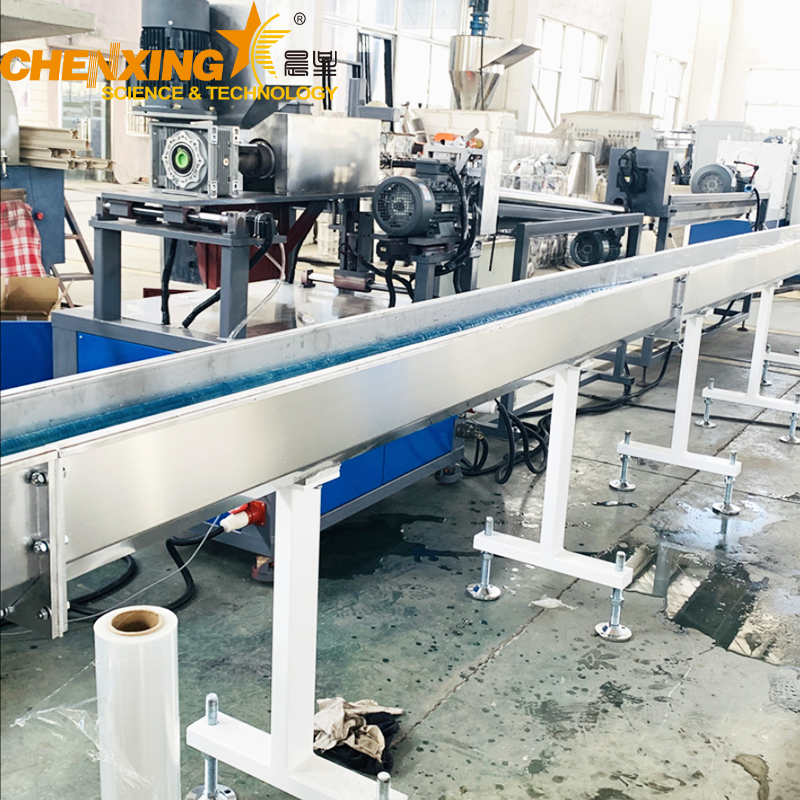

This line is composed of two single-screw extruders (65mm), extrusion moulds (strip extrusion mould and pipe forming mould), cooling water tank, rotary haul-off machine, and pipe holder. By using different moulds and reinforcement structures, it can produce a wide range of PVC spiral hoses for industrial, agricultural, medical, and household applications.

Key Features

1. Versatile Hose Production – Capable of producing various hoses such as hard/soft PVC spiral hoses, PVC hoses with metal wire reinforcement, medical hoses, drainage hoses, water supply hoses, vacuum cleaner hoses, and cable protection hoses.

2. High-Quality Components – Equipped with Siemens, ABB, Omron, Fuji, Delta and other internationally recognized electrical parts for reliable operation.

3. Durable Mechanical System – All machine parts are processed and installed with high precision to ensure long service life and consistent performance.

4. Flexible Customization – Supports different reinforcement structures such as rigid PVC, fiber, metal wire, and spiral profiles to meet diverse industry needs.

5. Global Recognition – Machines are widely exported to Iran, Turkey, Poland, Brazil, Peru, Chile, Dubai, France, Romania, Syria, Egypt, and Tunisia.

6. Comprehensive Support – Includes on-site installation, commissioning, operator training, and long-term after-sales service.

Applications

• Industry: Gas, liquid, and powder transportation

• Agriculture: Irrigation hoses and drainage pipes

• Medical: Flexible medical spiral PVC hoses

• Construction: Water supply and protective conduit hoses

• Household & Commercial: Vacuum cleaner hoses, cable protection hoses, and flexible spiral tubes

Machine Configuration

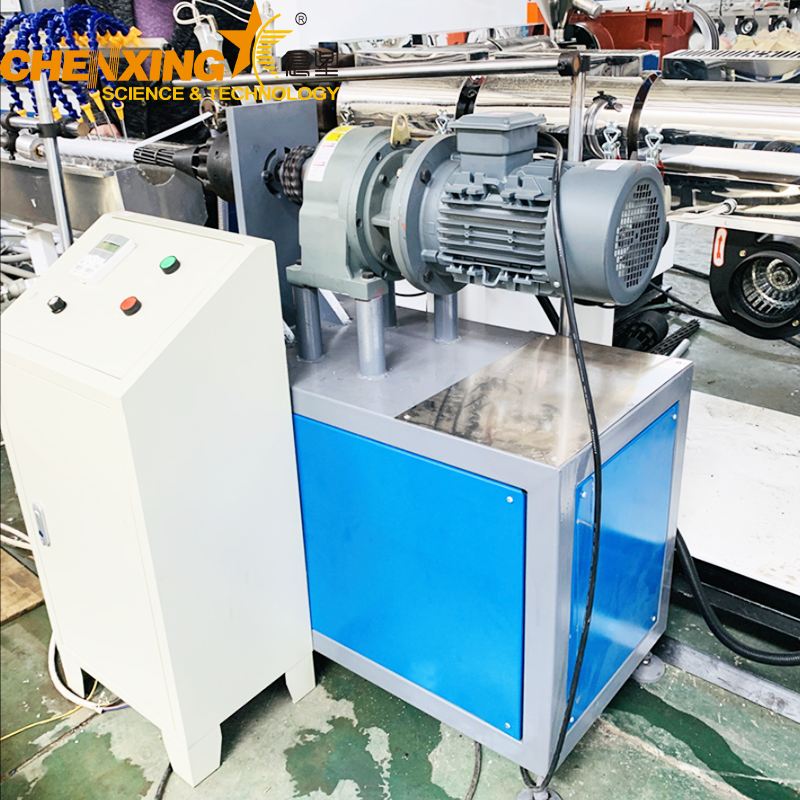

• Single Screw Extruder – Extrudes the initial hose shape

• Die Head & Mould – Shapes the reinforced spiral structure

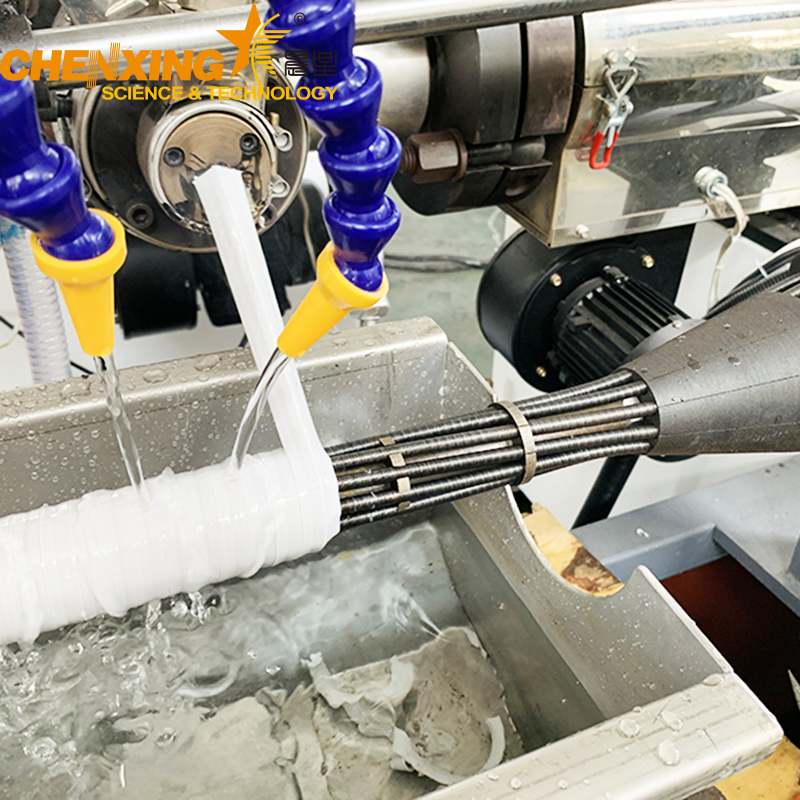

• Winding & Forming Unit – Drives moulds and spiral reinforcement

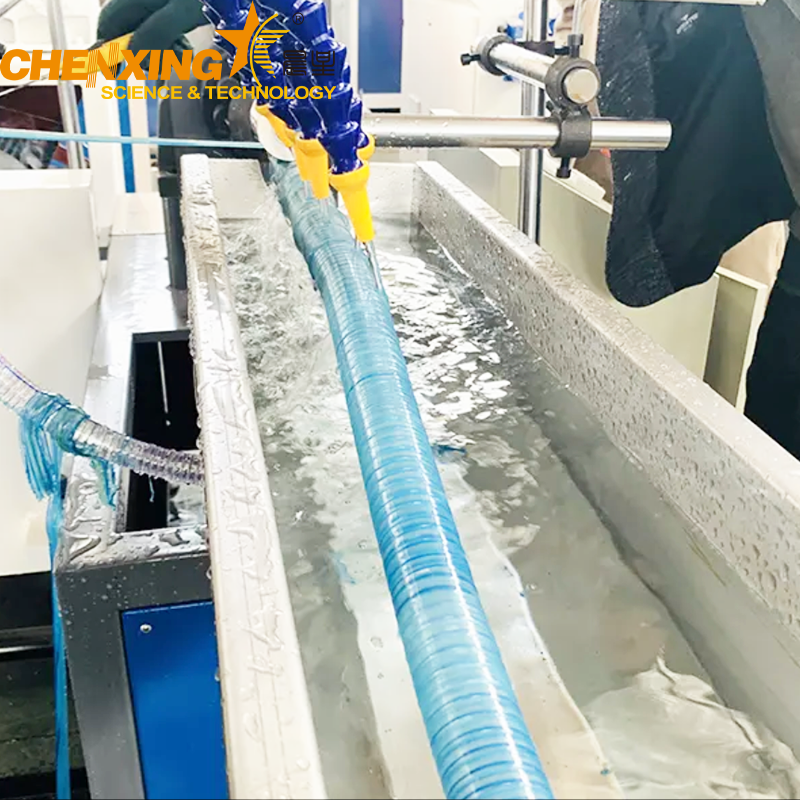

• Cooling System – Ensures precise hose shaping and durability

• Rotary Haul-Off & Pipe Holder – Controls hose transport and dimension stability

• Electric Control System – Precision control using globally recognized brands

FAQ

Q1: What kinds of hoses can this production line manufacture?
A1: It can produce PVC spiral hoses, metal wire reinforced hoses, spring hoses, water hoses, vacuum cleaner hoses, and cable protection hoses.

Q2: What materials are supported?
A2: Mainly PVC, but it can also be adapted for PP, PE, and EVA based hoses.

Q3: How is hose quality guaranteed?
A3: We use high-precision moulds, advanced cooling systems, and branded electrical parts (Siemens, ABB, Omron, etc.) to ensure stable performance and premium hose quality.

Q4: Can the hose reinforcement structure be customized?
A4: Yes, the machine supports hard plastic reinforcement, fiber reinforcement, metal wire reinforcement, and spiral profile reinforcement.

Q5: Do you provide overseas installation and training?
A5: Yes, we send experienced technicians to your factory for installation, commissioning, and operator training, along with full-time after-sales service.
