With the rapid growth of additive manufacturing, the demand for stable, high-precision filament materials has increased dramatically. Whether used in industrial prototyping, education, consumer products, or engineering parts, the performance of 3D printers largely depends on filament quality.
A 3D filament extrusion line is the core production system that converts plastic raw materials into consistent, diameter-controlled filaments such as PLA, ABS, PETG, TPU, and nylon. At Chenxing Machinery, filament extrusion technology is designed to support manufacturers who aim to produce professional-grade filament with high dimensional accuracy and stable mechanical properties.
Understanding how a 3D filament extrusion line works is essential for companies planning to enter or expand in the 3D printing materials market.

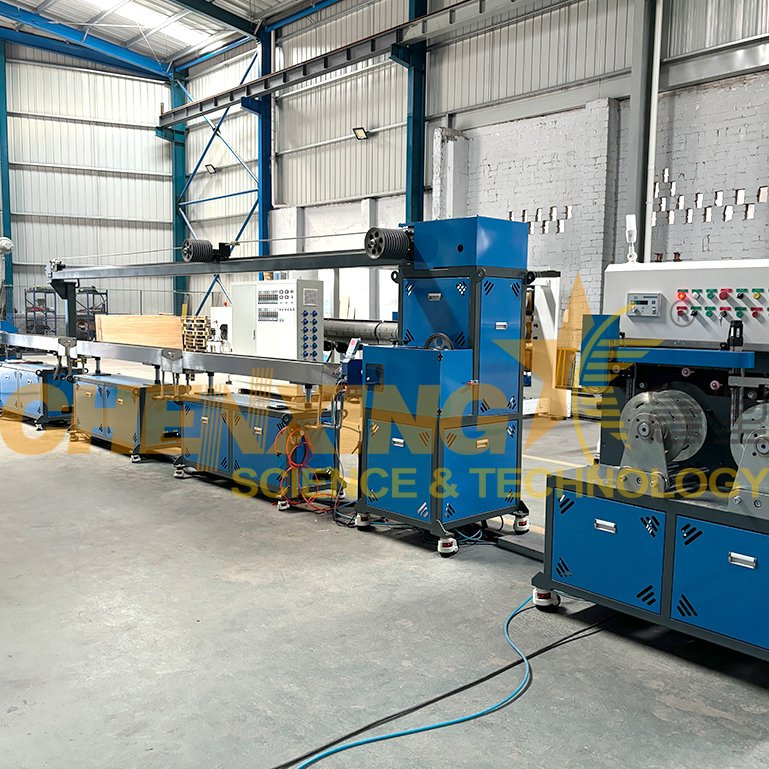

A 3D filament extrusion line is a continuous production system that melts thermoplastic materials and shapes them into thin, uniform filament strands with precise diameter control (typically 1.75 mm or 2.85 mm).

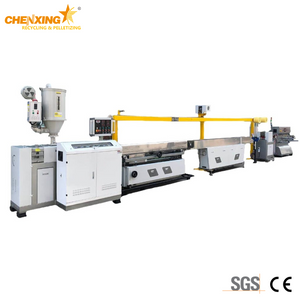

The extrusion line integrates multiple functional units:
Material feeding and drying system
Single screw extruder
Precision extrusion die
Water cooling tank
Laser diameter measurement system
Pulling unit (haul-off machine)
Automatic spool winder
Together, these components ensure consistent filament geometry, smooth surface finish, and stable mechanical performance.
Modern filament extrusion lines are designed to handle a wide range of thermoplastic materials:
PLA (Polylactic Acid)
ABS (Acrylonitrile Butadiene Styrene)
PETG (Polyethylene Terephthalate Glycol)
TPU (Thermoplastic Polyurethane)
Nylon (PA6, PA66)
Carbon fiber reinforced composites
Glass fiber reinforced filaments
Each material requires different temperature control profiles, screw designs, and cooling strategies. Chenxing extrusion systems allow parameter adjustment to accommodate these variations.
Before extrusion, raw pellets must be properly dried to remove moisture. Hygroscopic materials such as PLA and nylon are particularly sensitive to water content.
A vacuum loader or hopper dryer feeds the dried material into the extruder barrel to ensure stable input flow.

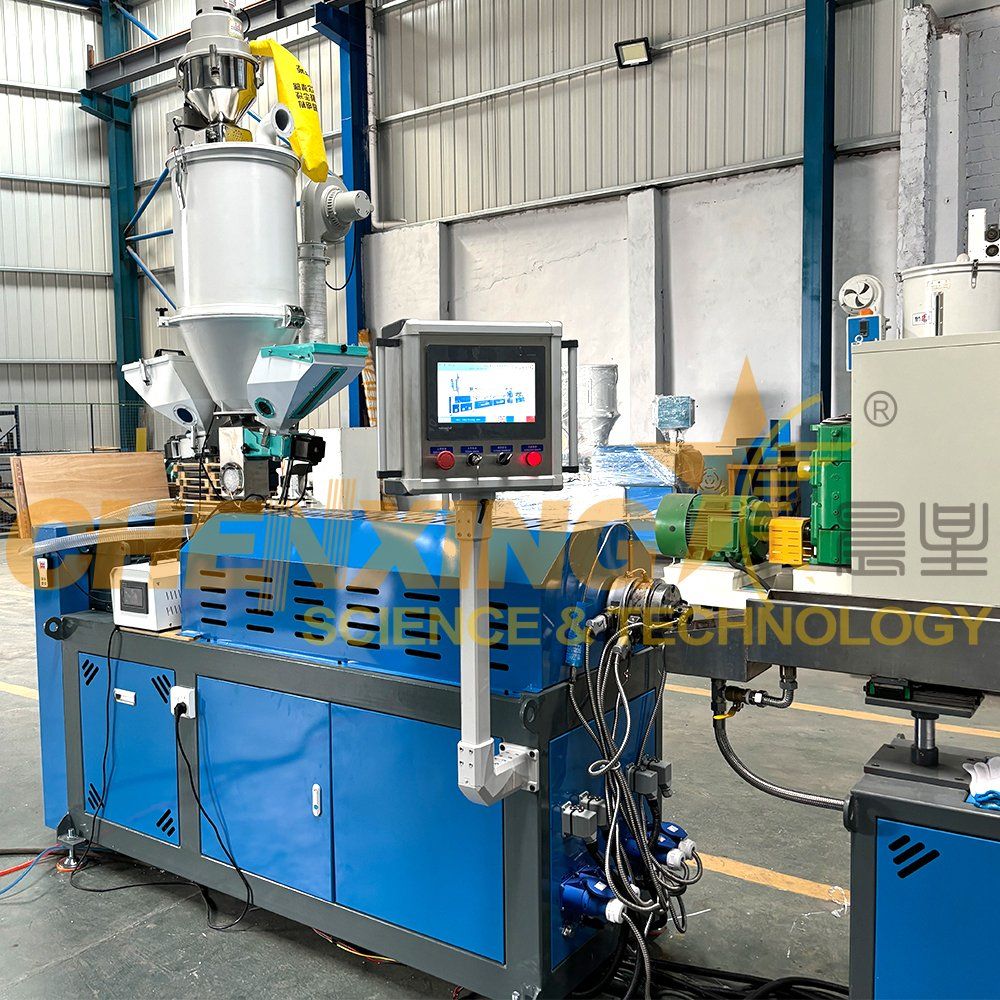

Inside the extruder, the rotating screw transports and compresses the material. Through controlled heating zones and mechanical shear, plastic pellets are gradually melted and homogenized into a stable melt flow.
High-quality plasticization is critical for:
Smooth filament surface
Stable extrusion pressure
Uniform mechanical properties
The molten plastic passes through a specially designed filament die. This step determines the initial filament diameter before cooling.
Precision die machining ensures:
Smooth melt flow
Minimal diameter fluctuation
Stable extrusion geometry
After extrusion, the filament enters a water cooling tank. Controlled cooling stabilizes filament shape and prevents deformation.
Advanced filament lines use closed-loop water temperature control to maintain consistent cooling conditions.
A laser diameter gauge continuously monitors filament size in real time.
If diameter deviation is detected, the system automatically adjusts:
Pulling speed
Extrusion output rate
This closed-loop control system is essential for maintaining tolerance levels within ±0.02 mm, which is required for professional 3D printing applications.
The stabilized filament is pulled by a synchronized haul-off unit and wound onto spools using an automatic winder.
The winding system ensures:
Uniform tension
Neat spool arrangement
Consistent coil spacing
This improves packaging quality and user convenience.
Our extrusion systems integrate laser feedback control to ensure filament diameter consistency required by industrial-grade printers.
Optimized screw design and heating systems deliver stable melt flow and high throughput without sacrificing product quality.
From standard PLA and ABS to engineering composites, Chenxing filament extrusion lines support flexible material switching.
PLC control systems allow operators to:
Store production recipes
Monitor real-time performance
Reduce operator dependency
Improve repeatability
Optimized heating zones and motor drive systems reduce power consumption while maintaining production stability.
Used to produce engineering-grade filaments for functional prototyping and end-use parts.
Universities and training centers produce low-cost teaching filaments locally.
Manufacturers can develop specialty filaments such as:
Carbon fiber reinforced filaments
Flame-retardant filaments
Flexible TPU grades
Recycled PET and PLA flakes can be converted into eco-friendly filaments, supporting circular economy initiatives.
Standard configurations support 1.75 mm and 2.85 mm filament sizes. Custom diameters are also available.
Yes. With proper filtering and melt stabilization, recycled PET, PLA, and ABS flakes can be processed into usable filaments.
Output depends on material type and screw diameter. Typical capacity ranges from 20 kg/h to over 100 kg/h.
Yes. Laser measurement and closed-loop adjustment systems are standard for professional production lines.
Chenxing offers complete project support including layout design, installation guidance, operator training, and after-sales service.
With decades of experience in plastic extrusion equipment manufacturing, Chenxing Machinery provides:
Industrial-grade mechanical design
Stable long-term operation reliability
Custom production line configurations
Global technical support network
Our extrusion solutions are widely used in filament manufacturing, compounding, recycling, and specialty material production.
