What Is A Winder Machine And Why Is It Critical in Pipe Extrusion Lines?

Understanding the End-of-Line Challenge in Pipe Extrusion

In a modern pipe extrusion line, most attention is often placed on the extruder, die, calibration system, and haul-off unit. However, for flexible pipes, small-diameter tubing, and coiled pipe products, the final stage of the line plays an equally decisive role.

This is where the winder machine becomes essential.

Without a properly designed winder, even a well-tuned pipe extrusion line can suffer from product deformation, unstable tension, inefficient handling, and increased labor cost. Understanding what a winder machine is and why it matters in pipe extrusion helps manufacturers improve both production efficiency and final product quality.

What Is a Winder Machine in Pipe Extrusion?

A winder machine is an end-of-line device used to continuously collect extruded pipes or tubes and wind them into coils under controlled tension and speed.

In pipe extrusion lines, winders are typically used for:

• PE irrigation pipes

• Small-diameter PP or PE tubes

• Flexible conduit pipes

• Coiled multilayer pipes

The primary purpose of a winder is not simply storage, but maintaining dimensional stability and surface quality as the pipe exits the extrusion process.

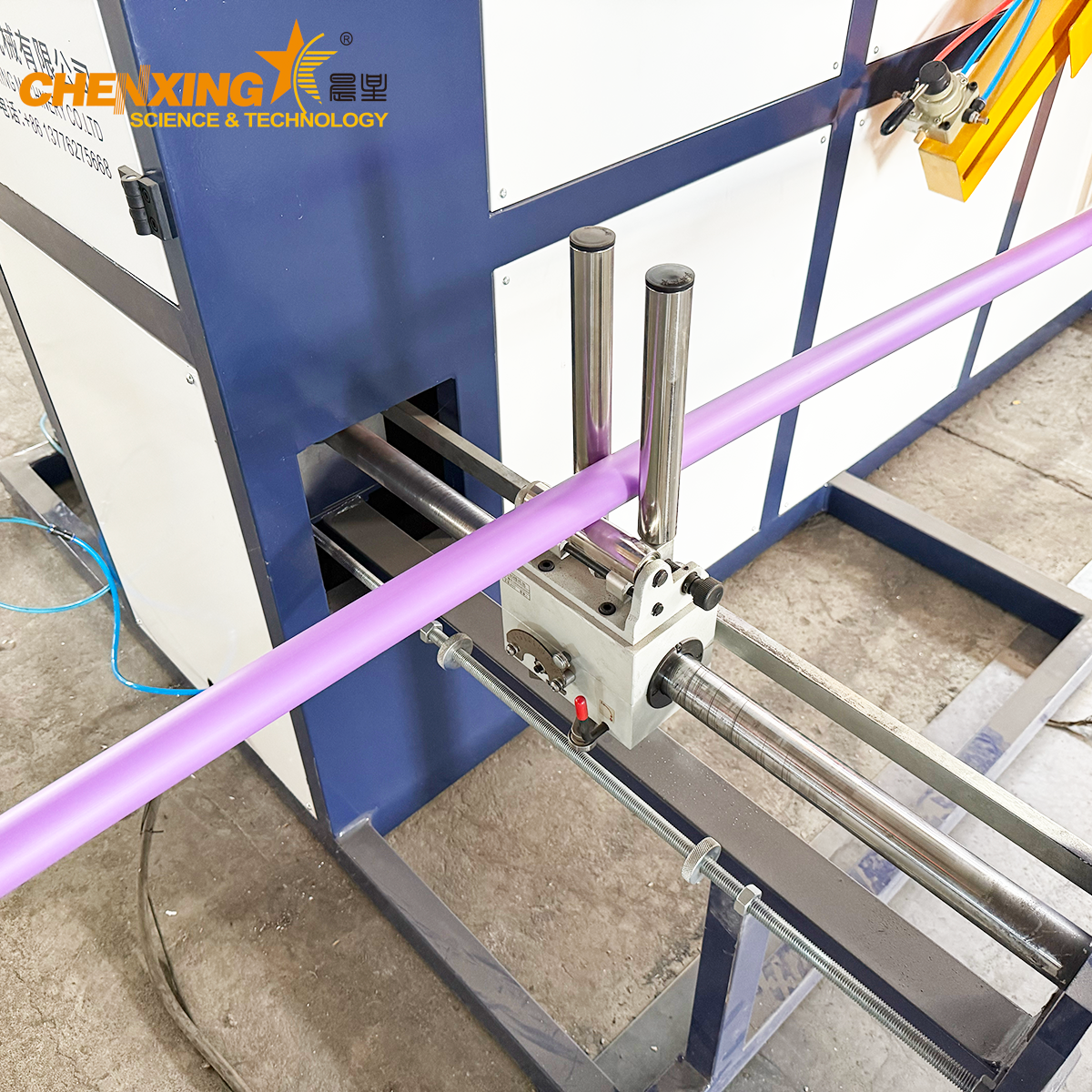

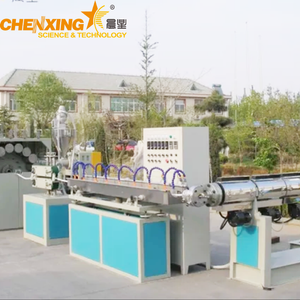

How a Winder Works in a Pipe Extrusion Line

After extrusion, calibration, cooling, and haul-off, the pipe enters the winding section. At this stage, the pipe is still warm and susceptible to deformation.

A winder operates by coordinating three core functions:

1. Speed synchronization with the haul-off unit

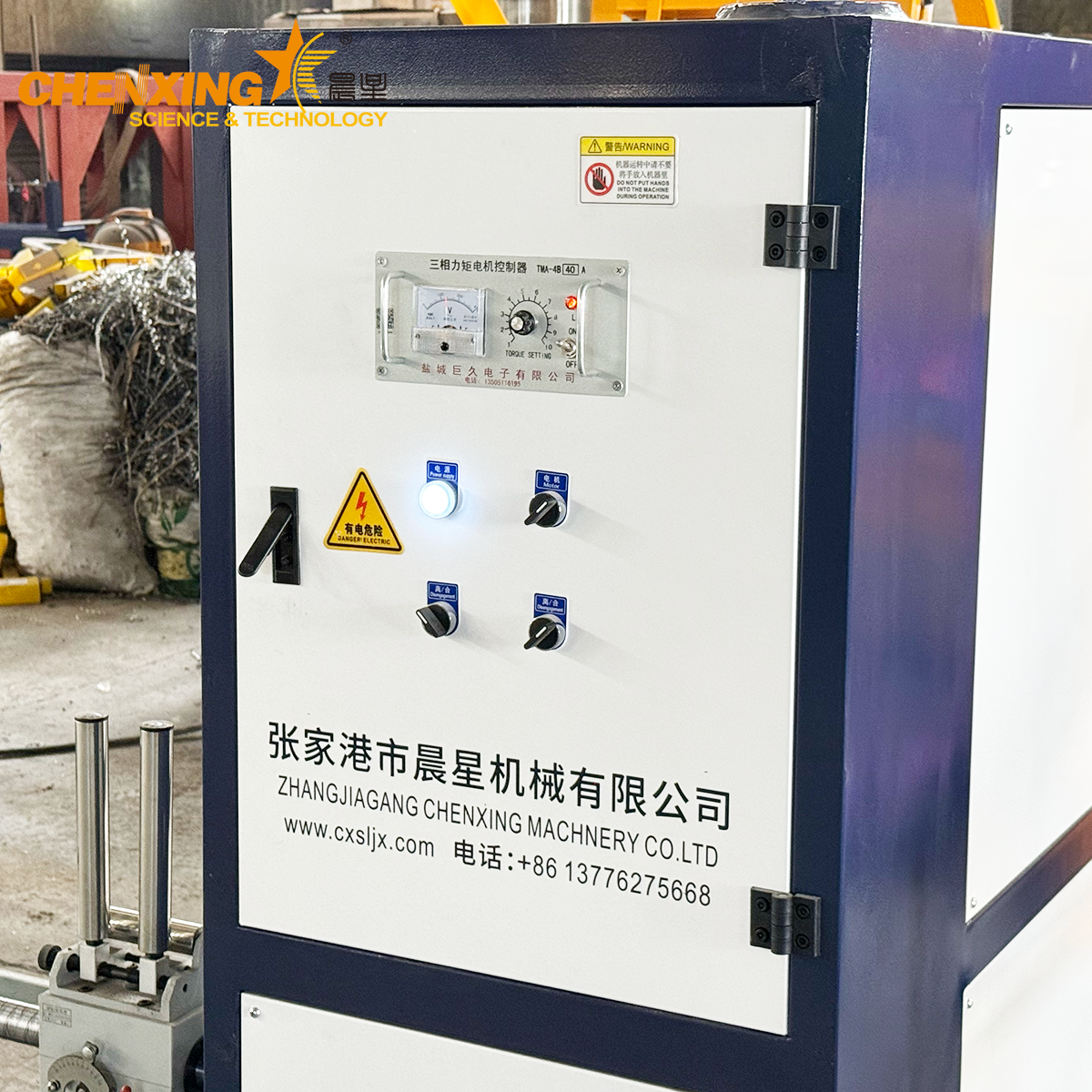

2. Constant tension control adapted to pipe diameter and wall thickness

3. Guided coil formation to ensure uniform layering

By adjusting winding torque and speed in real time, the winder prevents stretching, flattening, or irregular coiling—common problems in pipe extrusion without proper winding control.

Why Is a Winder Machine Important in Pipe Extrusion Lines?

1. Preserving Pipe Geometry and Dimensional Accuracy

For coiled pipe products, shape retention is critical. Inadequate winding can lead to:

• Ovality

• Flattened pipe walls

• Residual stress

A properly configured winder ensures that the pipe cools and sets under stable mechanical conditions, preserving roundness and dimensional consistency.

2. Supporting Stable Line Speed and Continuous Production

Pipe extrusion is a continuous process. Any interruption at the end of the line can force upstream equipment to slow down or stop.

A winder enables:

• Continuous extrusion without manual intervention

• Stable haul-off speed

• Reduced line stoppages

This stability improves overall line output and reduces material waste caused by start-stop cycles.

3. Reducing Labor and Improving Workplace Safety

Manual coiling of extruded pipes is labor-intensive and inconsistent. Automated winders significantly reduce manual handling by:

• Automatically collecting and forming coils

• Eliminating repetitive lifting tasks

• Reducing operator fatigue and injury risk

For manufacturers operating multiple extrusion lines, this automation translates directly into lower labor cost per unit.

Common Types of Winders Used in Pipe Extrusion

Different pipe products require different winding solutions. Typical winder configurations include:

Single-Station Winder

• Suitable for stable production runs

• Compact and cost-effective

• Common for small-diameter pipe extrusion

Double-Station Winder

• Allows coil change without stopping the line

• Higher efficiency for long production cycles

• Widely used in industrial pipe extrusion plants

Servo-Controlled Winder

• Precise tension and speed control

• Ideal for thin-wall or flexible pipes

• Supports higher extrusion accuracy

Integration of the Winder with Other Extrusion Equipment

A winder must work in harmony with:

• Vacuum calibration tanks

• Cooling systems

• Haul-off units

• Cutting or marking devices

Mismatch between winder capacity and line speed can cause instability. Therefore, winder selection should be part of the overall extrusion line engineering design, not an afterthought.

Key Benefits of Using the Right Winder in Pipe Extrusion

From an operational standpoint, a properly selected winder delivers measurable benefits:

• Improved product consistency

• Reduced scrap and rework

• Higher line uptime

• Better coil appearance for end customers

• Easier transportation and storage

These advantages are particularly important for export-oriented pipe manufacturers supplying large-volume projects.

 FAQ

Q1: Do all pipe extrusion lines require a winder?
No. Rigid pipes cut to fixed lengths typically use cutters instead. Winders are essential for flexible or coiled pipe products.

Q2: Can one winder handle different pipe diameters?
Yes, within a specified range. Adjustable winding arms and tension systems allow diameter changes without replacing the machine.

Q3: How does a winder affect extrusion accuracy?
Indirectly but significantly. Stable winding prevents back tension fluctuations that can affect wall thickness and surface quality.

Q4: Can winders be added to existing extrusion lines?
In most cases, yes. Modular winders can be integrated with minimal changes to the current line layout.

Conclusion: The Winder Is More Than an Auxiliary Machine

In pipe extrusion lines, the winder is not merely a collection device—it is a quality control and efficiency tool. By stabilizing end-of-line handling, it protects the investment made in upstream extrusion equipment.

Manufacturers seeking higher output, better product consistency, and lower labor costs should view the winder as a core component of the extrusion line, not an optional add-on.
