| High-performance Three-Dimensional Mixer for powder and granule blending. Ideal for pharmaceutical, plastic, and chemical industries. Available in 5L–1500L capacities. | |||||||||
Chenxing
Product Description

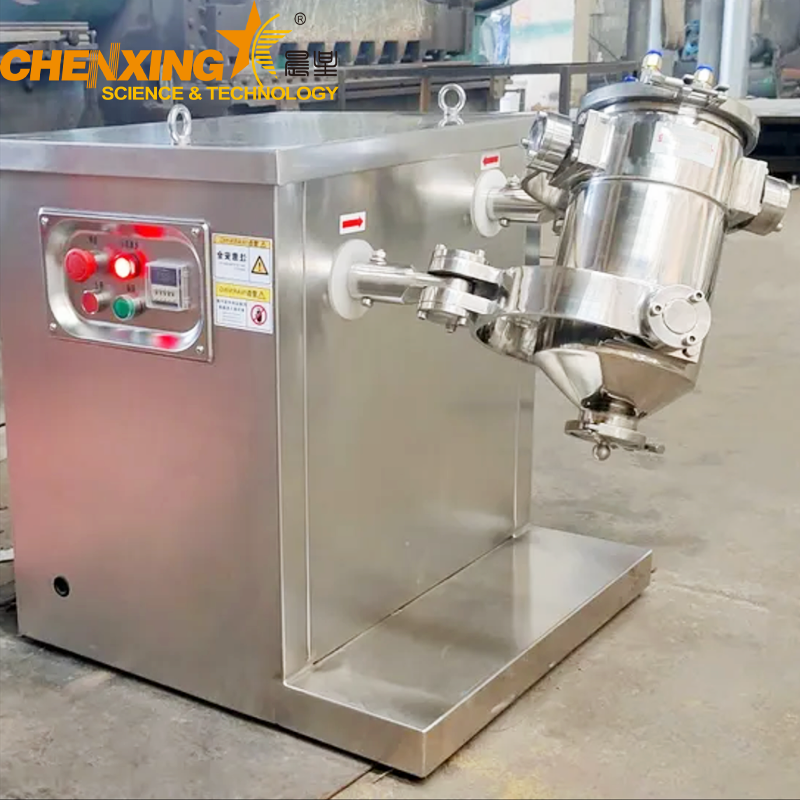

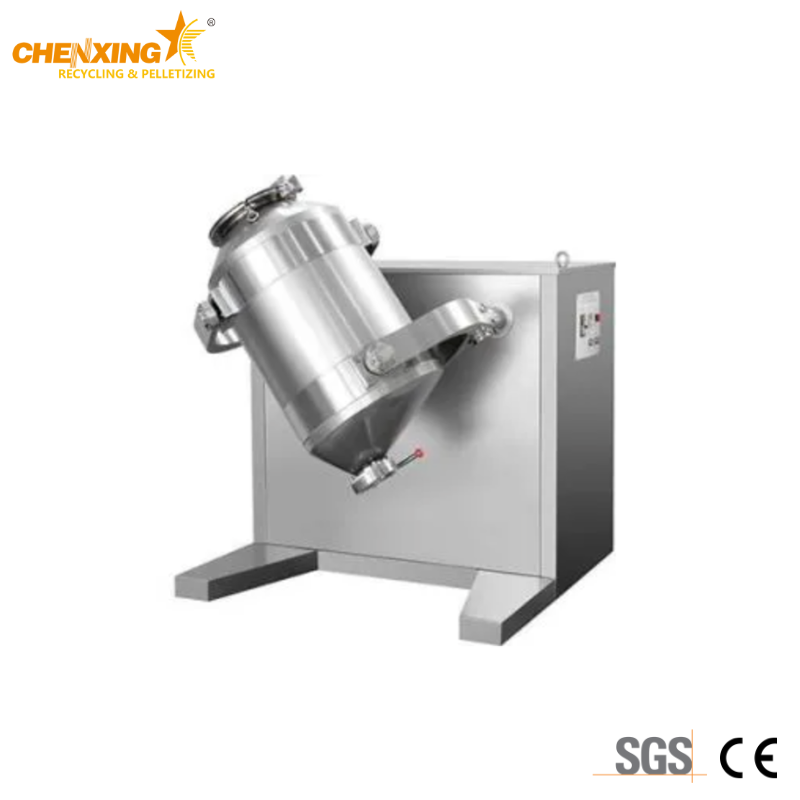

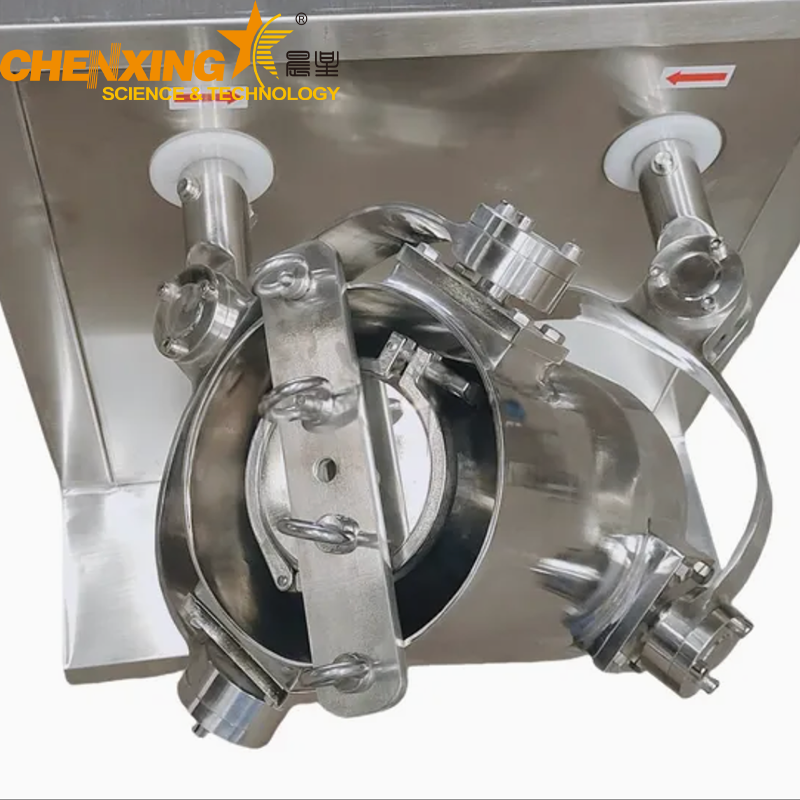

The Three-Dimensional Mixer (3D Mixer) is an advanced industrial mixing solution designed for precise and uniform blending of various powder and granular materials. Featuring a Y-shaped universal joint structure, this machine achieves unique translation, inversion, and rotation in three-dimensional space, ensuring accelerated material flow and diffusion during the mixing process.
Unlike conventional mixers, our 3D Mixer prevents material segregation and accumulation caused by centrifugal force, delivering highly uniform mixing results in a short time. This makes it ideal for industries such as pharmaceuticals, chemicals, food processing, plastics, and metallurgy.
✔ Efficient Mixing Technology – Ensures thorough and homogeneous blending with minimal material loss.
✔ Unique 3D Motion Design – Combines translation, inversion, and rotation for optimal material diffusion.
✔ Prevents Material Segregation – Maintains consistency by avoiding density-based separation.
✔ Vacuum Feeding Compatibility – Supports manual, automatic, or vacuum feeding systems.
✔ Energy-Saving & Low Noise – Designed for quiet and efficient operation with minimal energy consumption.
The Three-Dimensional Mixer is widely used in:
Pharmaceutical Industry – Blending of powders, granules, and active ingredients.
Plastic Industry – Mixing color masterbatch, additives, and raw materials.
Food Industry – Mixing food powders and ingredients.
Chemical Industry – Uniform blending of chemicals and fine powders.
Metallurgy & Mining – Preparing powdered metals and minerals.
| Model | Mixing Barrel Volume (L) | Max Loading Volume (L) | Max Loading Weight (kg) | Spindle Speed (rpm) | Motor Power (kW) | Machine Weight (kg) |
|---|---|---|---|---|---|---|
| SWH-5 | 5 | 4 | 4 | 3–20 | 0.37 | 90 |
| SWH-20 | 20 | 17 | 15 | 3–20 | 0.55 | 100 |
| SWH-50 | 50 | 40 | 40 | 3–20 | 1.1 | 200 |
| SWH-100 | 100 | 85 | 80 | 3–15 | 1.5 | 650 |
| SWH-200 | 200 | 170 | 100 | 3–15 | 2.2 | 900 |
| SWH-400 | 400 | 340 | 200 | 3–15 | 4 | 1350 |
| SWH-600 | 600 | 500 | 300 | 3–10 | 5.5 | 1550 |
| SWH-800 | 800 | 680 | 400 | 3–10 | 7.5 | 2500 |
| SWH-1000 | 1000 | 850 | 500 | 3–10 | 7.5 | 2650 |
| SWH-1500 | 1500 | 1270 | 750 | 3–8 | 11 | 4500 |
Precision Engineering: High-quality stainless steel construction ensures durability and hygiene.
Customizable Options: Available in various capacities (5L–1500L) for small-scale and large-scale operations.
Safety Features: Equipped with overload protection, automatic stop, and easy-to-clean design.
International Standards: Certified by CE, ISO, and compliant with GMP requirements.
Q1: What materials can the 3D Mixer handle?
A: It is suitable for powders, granules, and solid materials across pharmaceutical, food, plastic, and chemical industries.
Q2: Does the mixer support vacuum feeding?
A: Yes, it is compatible with both manual and vacuum feeding systems for dust-free operations.
Q3: How uniform is the mixing effect?
A: The three-dimensional motion ensures over 99% mixing uniformity within a short mixing cycle.
Q4: What is the typical mixing time?
A: Depending on material properties, 5–15 minutes is usually sufficient for full mixing.
Q5: Do you provide installation and training?
A: Yes, we offer on-site installation and operator training, along with lifetime technical support.
