What Is An SRL-Z Vertical Mixing Unit And Why Is It Essential for Plastic Compounding And Extrusion Lines?

Introduction: Why Material Mixing Quality Determines Final Product Performance

In plastic extrusion, compounding, and recycling industries, material preparation directly affects product consistency, mechanical performance, and production stability.

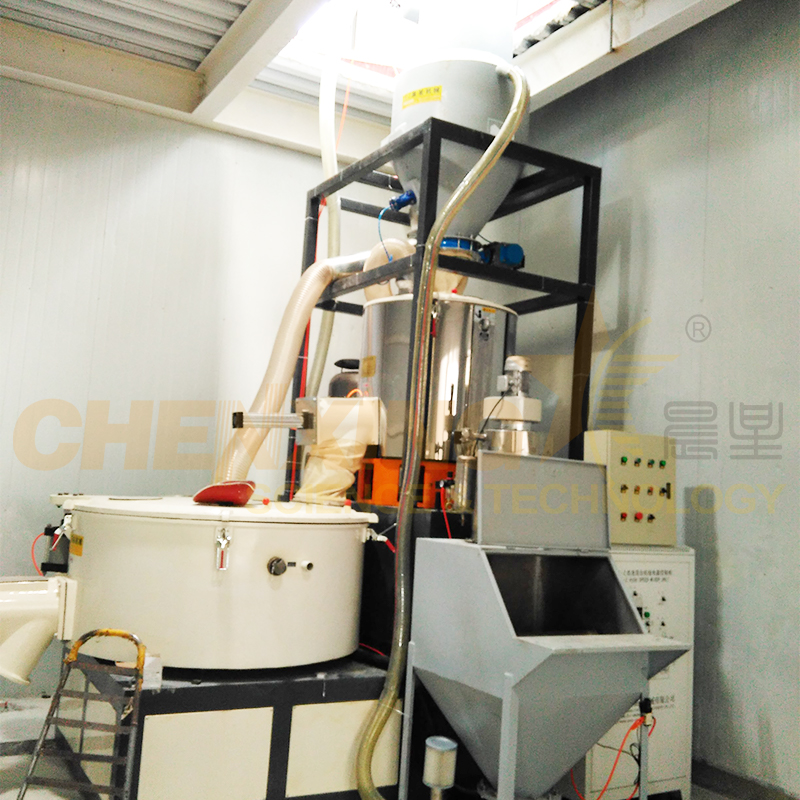

An SRL-Z series vertical-type mixing unit is an integrated hot and cooling mixing system designed to achieve uniform blending, precise heating, efficient cooling, and stable batch processing for plastic raw materials and additives.

At Chenxing Machinery, SRL-Z vertical mixers are widely used in PVC pipe extrusion lines, profile production lines, plastic compounding plants, CaCO₃ masterbatch systems, and recycling pelletizing lines.

What Is an SRL-Z Vertical Mixing Unit?

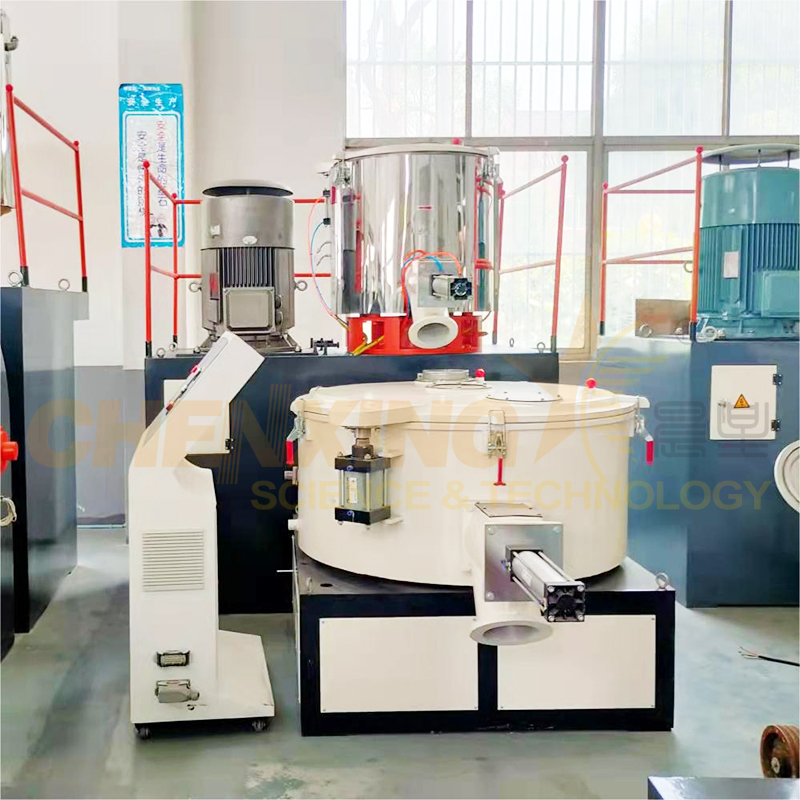

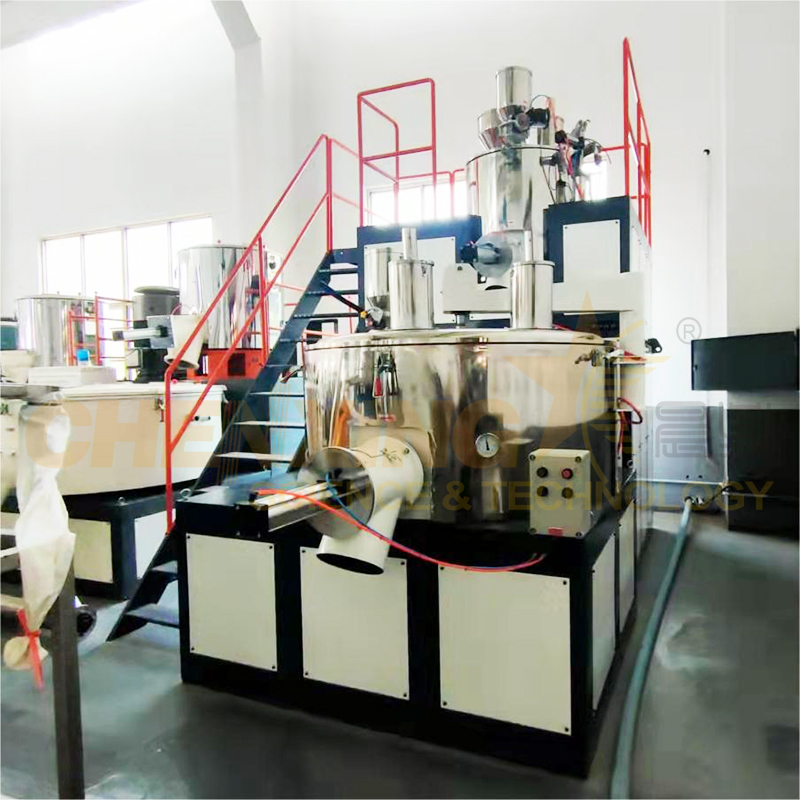

The SRL-Z mixing unit is a combined system consisting of:

• High-speed hot mixer

• Vertical cooling mixer

• Integrated electrical control cabinet

• Automatic discharge and material transfer structure

This configuration enables a continuous workflow:

Heating → Mixing → Plasticization → Rapid Cooling → Ready-to-Use Compound Output

Compared with traditional single mixers, the SRL-Z series provides better temperature control, shorter batch cycles, and improved material homogeneity.

Main Applications of SRL-Z Vertical Mixing Units

According to the equipment design and application data, SRL-Z mixers are widely used for:

Plastic Material Compounding

• PVC dry blend preparation

• Additive mixing

• Stabilizer and filler blending

Pipe and Profile Production Lines

The mixing unit is an upstream feeding system for:

• PVC pipe extrusion lines

• Window profile production

• Board and sheet extrusion

Uniform dry blend ensures:

• Stable extrusion pressure

• Smooth surface finish

• Consistent product quality

CaCO₃ Masterbatch Processing

SRL-Z systems are suitable for calcium carbonate filling compounding processes, which require:

• Accurate ratio mixing

• High-speed heating

• Controlled cooling

Plastic Recycling and Reprocessing

Used for:

• Recycled material homogenization

• Color masterbatch blending

• Pellet preparation before extrusion

How Does the SRL-Z Vertical Mixing Unit Work?

Step 1: High-Speed Heating Mixing

Raw materials enter the hot mixer where:

• High-speed blades generate friction heat

• Electric heating assists temperature rise

• Materials are evenly mixed and plasticized

The system supports self-friction heating + electric heating, allowing precise thermal control.

Step 2: Automatic Transfer to Cooling Mixer

Once the target temperature is reached, materials are automatically discharged into the cooling mixer.

Step 3: Rapid Cooling and Stabilization

The vertical cooling mixer uses:

• Dual-layer sealing structure

• Arc-shaped cooling cover design

This design prevents deformation and improves cooling efficiency.

After cooling, materials are ready for extrusion or storage.

Key Technical Advantages of Chenxing SRL-Z Mixing Units

Dual Heating System Design

Supports both:

• Electric heating

• Mechanical friction heating

This combination ensures fast heating response and energy efficiency.

Stable Mechanical Structure

The machine adopts:

• Reinforced frame structure

• Dynamic and static balance tested blades

• High mechanical rigidity

This ensures long-term stable operation at high rotation speeds.

Advanced Blade Geometry

The optimized blade structure improves:

• Mixing uniformity

• Material circulation

• Thermal distribution

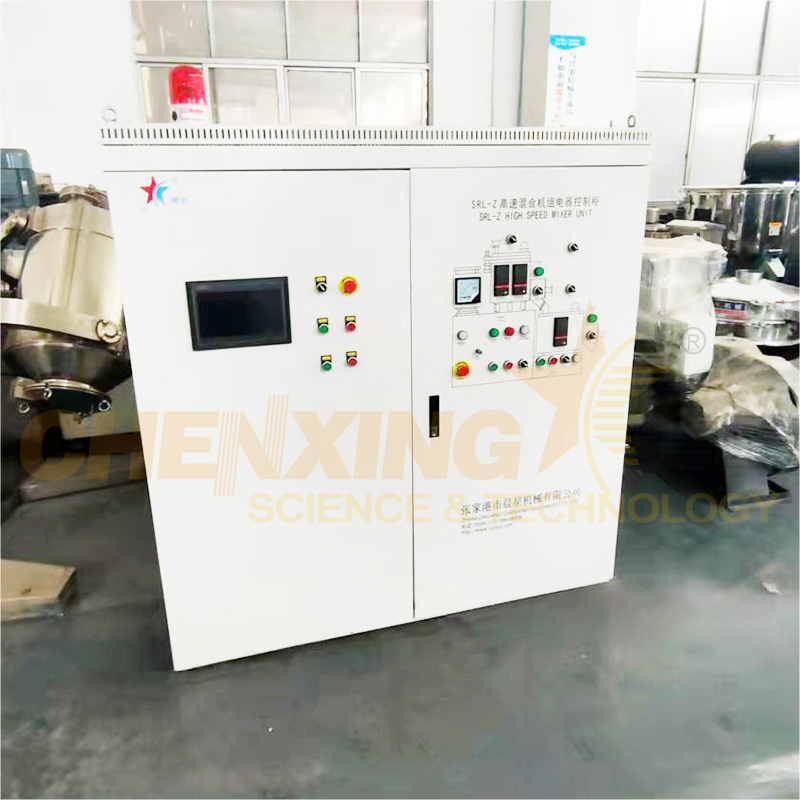

Intelligent Control System

PLC-based control allows operators to:

• Monitor temperature in real time

• Control mixing cycles

• Automate discharge timing

• Reduce manual intervention

Compact Vertical Layout

The vertical design saves workshop floor space and simplifies material transfer flow.

Main Technical Parameters Overview (SRL-Z Series)

According to the product table in the image, typical configurations include:

Capacity Range

• Hot mixer volume: 50L to 800L

• Cooling mixer volume: 100L to 2000L

Motor Power Range

• Heating motor: 11 kW to 110 kW

• Cooling motor: 5.5 kW to 30 kW

Mixing Time

• Heating time: 8–10 minutes

• Cooling time: 6–8 minutes

Heating Method

• Electric heating

• Self-friction heating

Discharge Method

• Manual control

• Pneumatic discharge

This wide parameter range allows customization according to production capacity requirements.

Why SRL-Z Mixing Units Are Critical in Plastic Extrusion Lines

Improve Material Homogeneity

Uniform mixing prevents:

• Color inconsistency

• Additive segregation

• Extrusion defects

Enhance Extrusion Stability

Stable dry blend quality leads to:

• Smooth melt flow

• Reduced screw load fluctuation

• Improved product surface quality

Increase Production Efficiency

Fast heating and cooling cycles shorten batch processing time and increase overall plant output.

Reduce Material Waste

Precise temperature and mixing control minimize overheating and material degradation.

FAQ

Q1: What materials can be processed with SRL-Z mixers?

PVC powder, PE/PP compounds, additives, CaCO₃ masterbatch, recycled plastics, and color masterbatch materials.

Q2: Can the mixing unit be integrated into an automatic feeding system?

Yes. SRL-Z mixers can be connected with vacuum loaders, silos, and automatic feeding pipelines.

Q3: Is temperature control automatic?

Yes. The control system allows real-time temperature monitoring and automatic heating stop and discharge control.

Q4: What production scale is suitable?

From small batch laboratories to industrial-scale extrusion factories, multiple capacity models are available.

Q5: Does Chenxing provide customized configurations?

Yes. Mixing volume, motor power, control system, and discharge method can be customized.

Why Choose Chenxing Machinery for Mixing Solutions?

Chenxing Machinery has decades of experience in plastic processing equipment manufacturing. Our SRL-Z mixing systems are designed with:

• Industrial-grade mechanical structure

• Long service life components

• Stable thermal performance

• Global installation and technical support

We provide complete material handling and extrusion preparation solutions for pipe, profile, recycling, and compounding plants.
