| High-performance PVC corner bead production line for decorative profiles. Automated extrusion, shaping, punching, and cutting for 90° corner trims. | |||||||||
Chenxing
Product Description

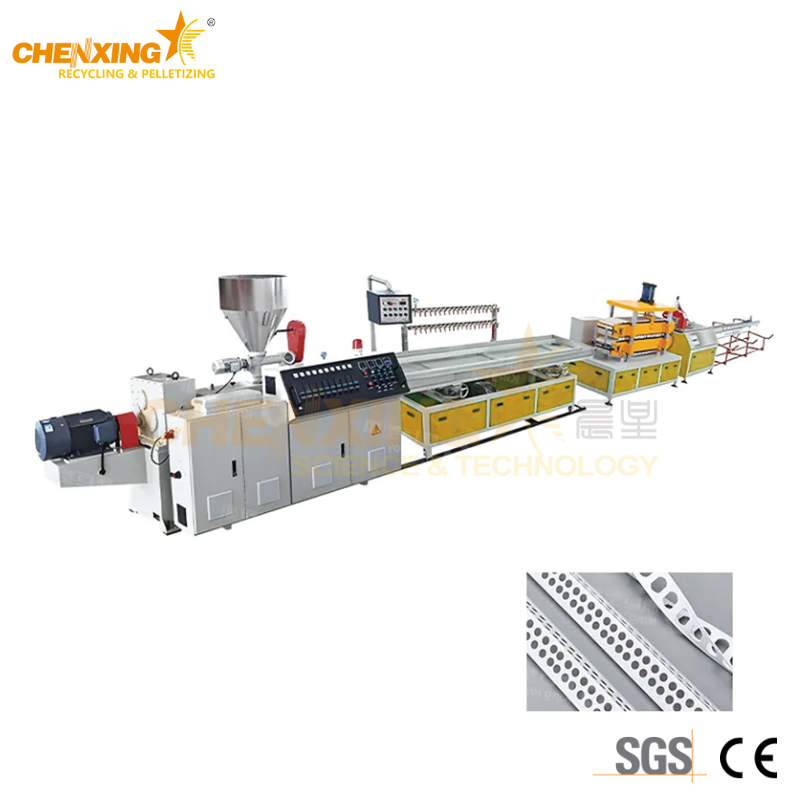

The PVC Corner Bead Extrusion Line is a specialized production system designed for manufacturing high-quality PVC YinYang corner beads and decorative profiles. This line is widely used in the construction and interior decoration industry for creating 90-degree convex corner trims, ensuring durability, aesthetic appeal, and easy installation.
The production line integrates automatic feeding, extrusion, shaping, cooling, punching, and cutting, providing high efficiency and consistent product quality.
Main Material: PVC (Polyvinyl Chloride)
Output Products: PVC YinYang corner beads, decorative corner trims, profiles
Production Process: Mixing → Extrusion → Shaping → Cooling → Punching → Cutting → Bundling
Key Advantage: Low cost, easy customization, strong decorative effect
PVC Mixer & Feeder – Prepares and feeds the raw material into the extruder.
Conical Twin-Screw Extruder – Ensures uniform melting and shaping of PVC material.

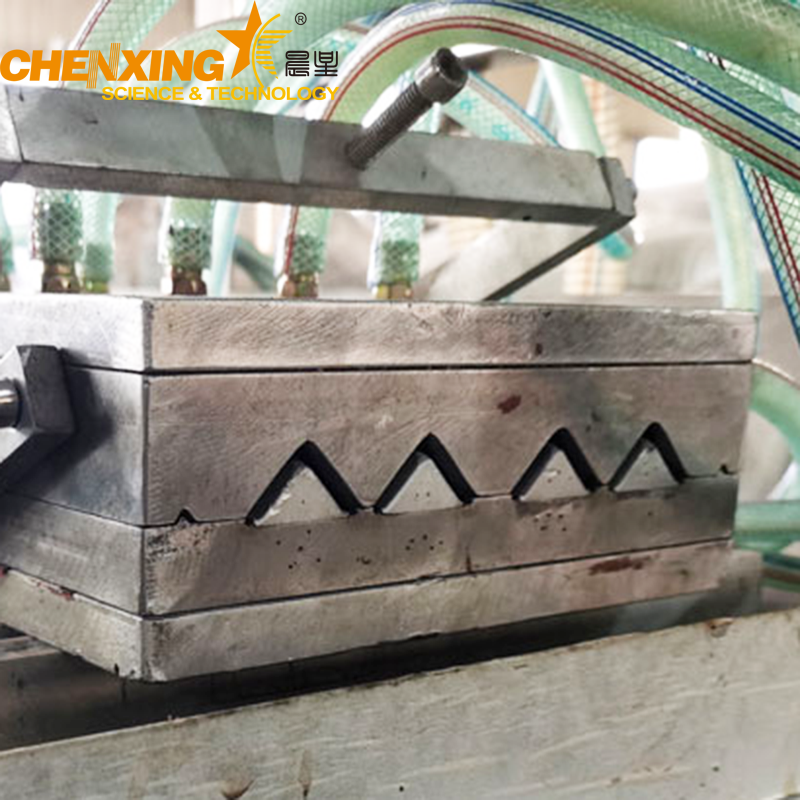

Corner Bead Mould – Forms the required profile with high precision.
Vacuum Calibrating Table – Provides accurate shaping and cooling.

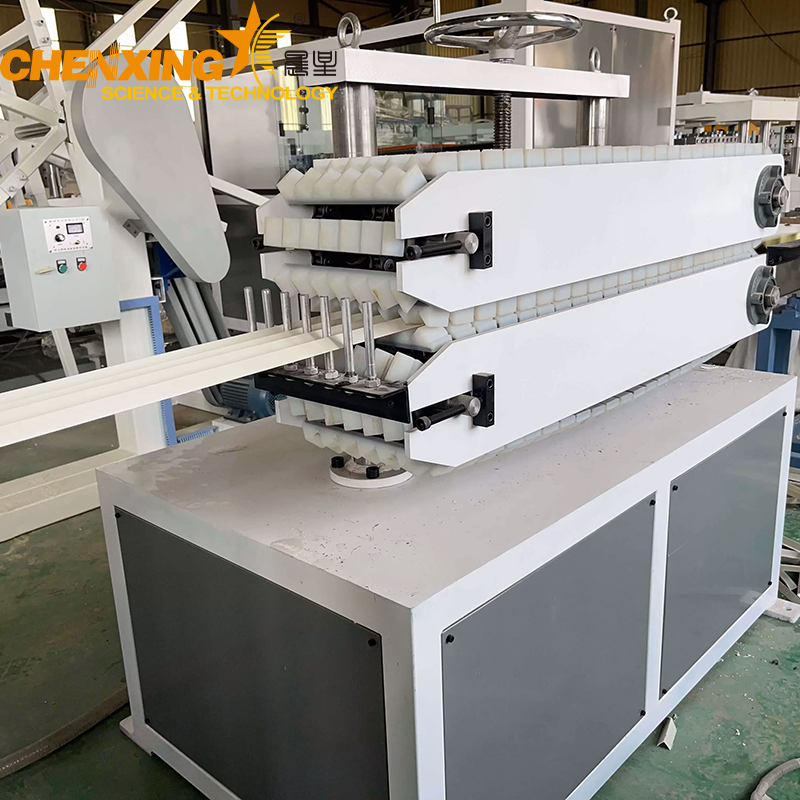

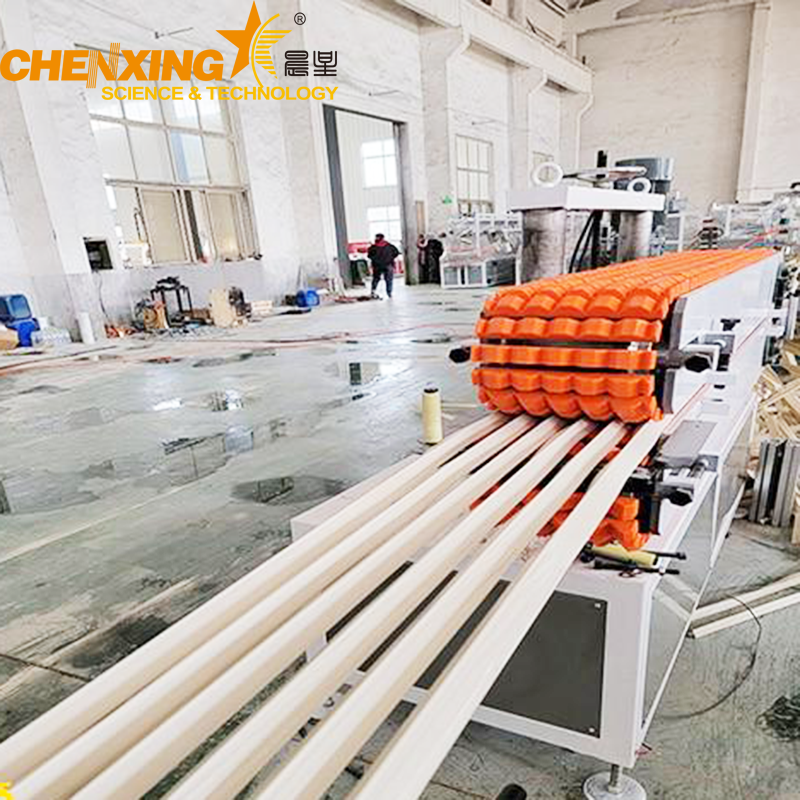

Haul-Off Machine – Stabilizes and pulls the profile through the line at a controlled speed.
High-Speed Punching Machine – Creates ventilation holes and decorative patterns.
Cutting Machine – Cuts the profiles into precise lengths.
Stacking/Bundling Unit – Collects and packs finished products for storage or shipping.
| No. | Machine Model | Qty. |
|---|---|---|
| 1 | Conical twin-screw extrusion machine | 1 pc |
| 2 | Vacuum calibrating table | 1 pc |
| 3 | Haul-off machine | 1 pc |
| 4 | High-speed punching machine | 1 pc |
| 5 | Cutting machine | 1 pc |
High Precision – Stable extrusion and accurate profile shaping.
Energy Efficient – Low energy consumption with optimized control system.
Customizable Design – Supports various colors, sizes, and patterns.
Durable Output – Strong, impact-resistant, and long-lasting profiles.
Easy Operation – User-friendly interface and fully automated control.

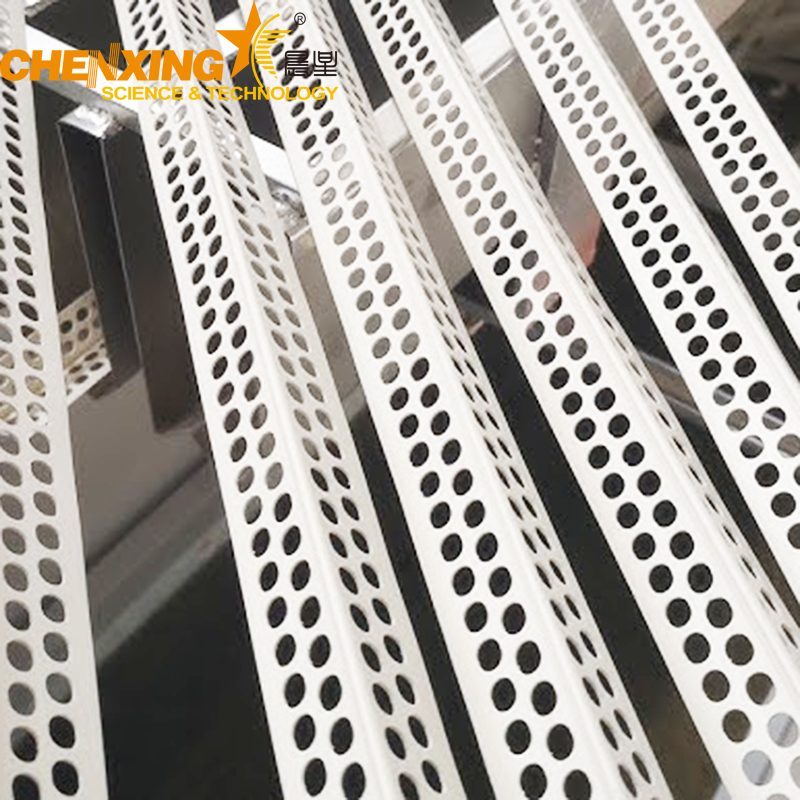

PVC YinYang corner beads are widely used for interior and exterior wall decoration, especially for 90-degree corners. They provide:
Edge protection against cracks and damage
Improved aesthetic appearance
Easy installation and maintenance
Compatibility with different decorative styles
Q1: What raw material does this line use?
A1: The main material is PVC resin, with optional additives for color and strength.
Q2: Can this machine produce different corner bead designs?
A2: Yes, by changing the mould, you can produce various shapes and sizes.
Q3: What is the typical production capacity?
A3: It depends on the extruder model, typically 80–150 kg/h for standard configurations.
Q4: Does it support automatic stacking and bundling?
A4: Yes, the line includes an optional automatic bundling system for improved efficiency.
Q5: Can you provide installation and training?
A5: Yes, we offer on-site installation, operator training, and lifetime technical support.
