Product Description

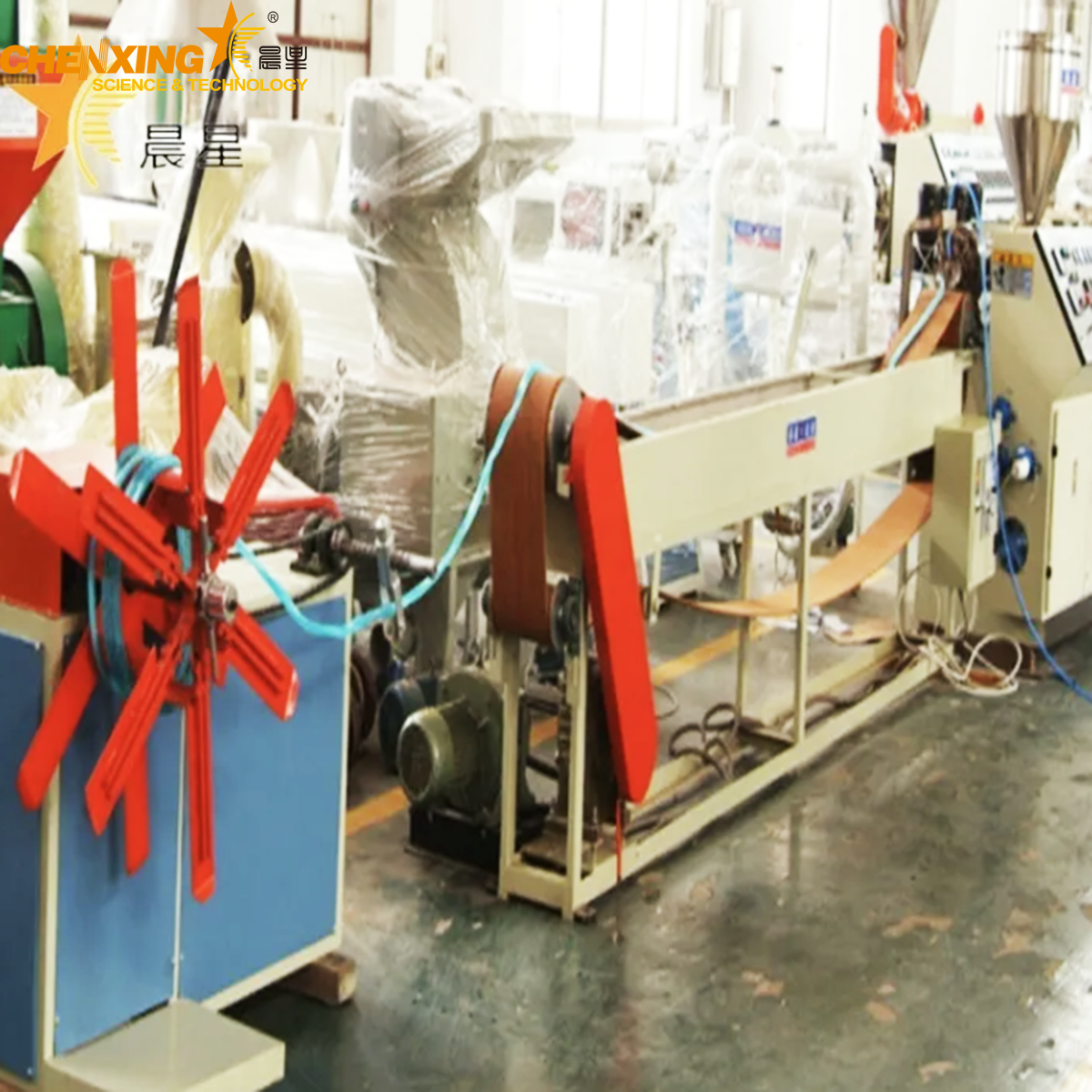

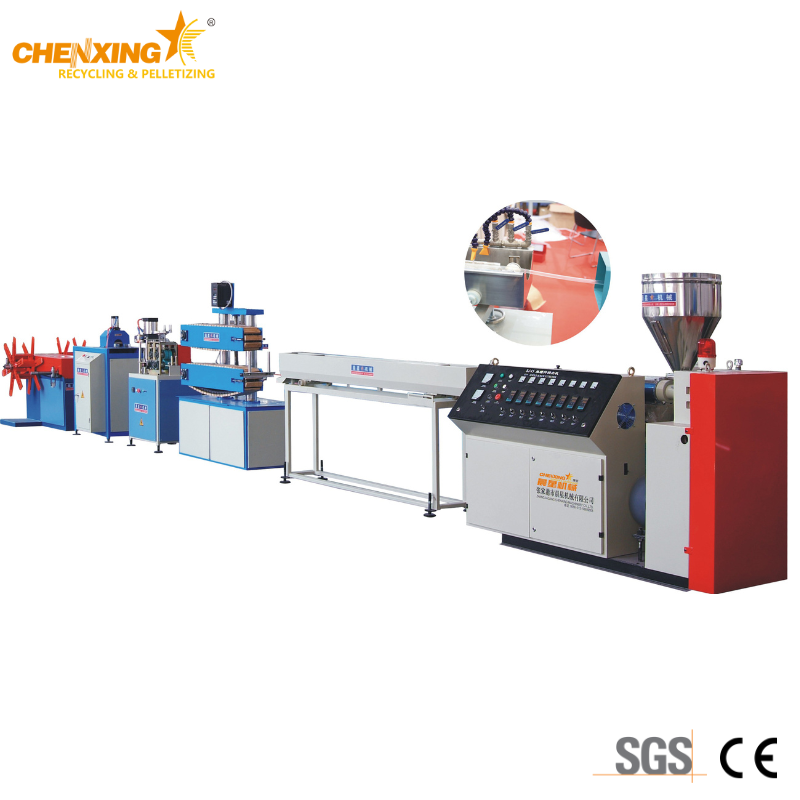

The PU/PE/PVC Precision Medical Tube Extrusion Line is specially designed for producing PVC, PP, PE and other plastic soft tubes widely used in medical, chemical, food, and beverage industries.
It is capable of manufacturing single tubes, striped single tubes, co-extruded tubes, multi-layer tubes, and tubes with color markings.

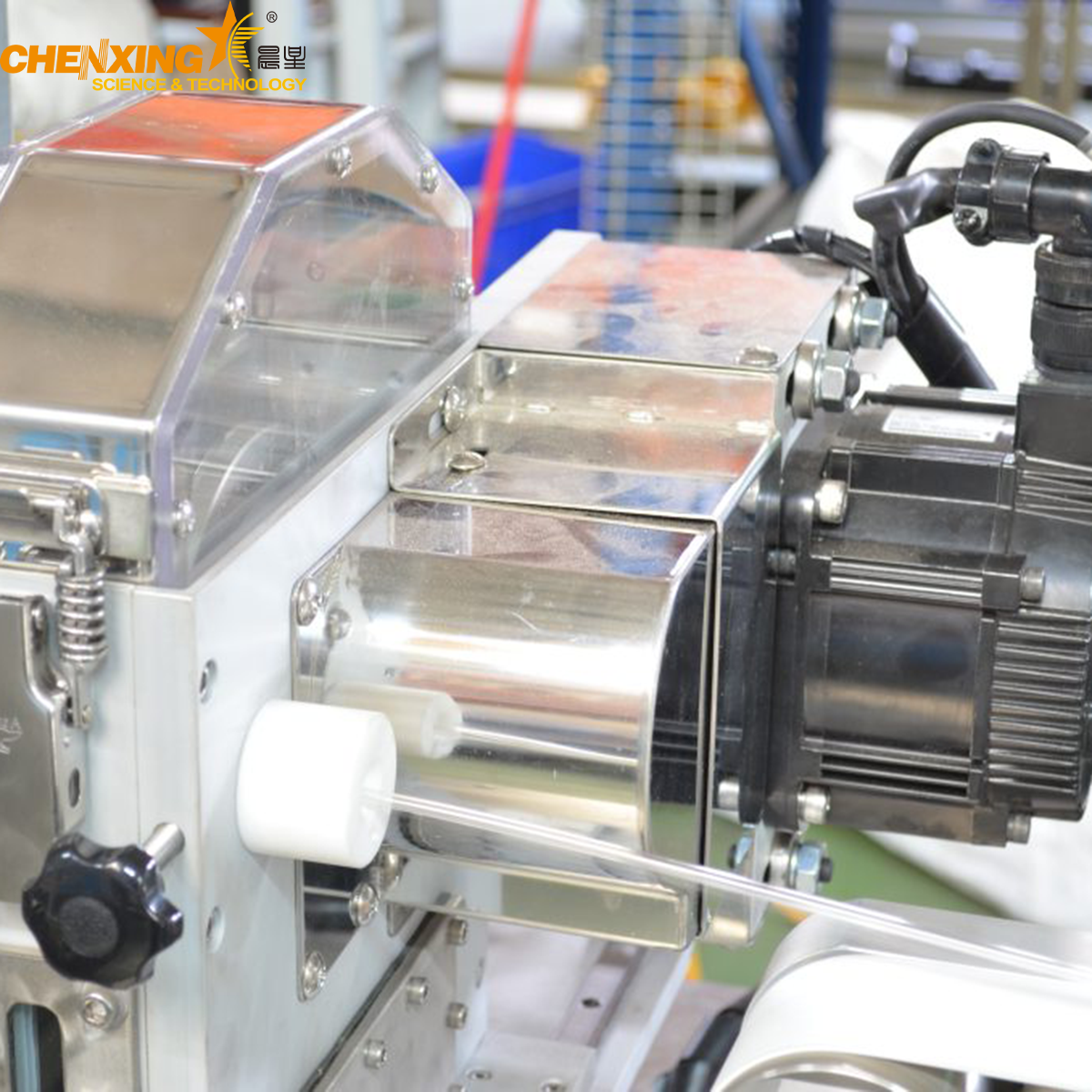

This extrusion line adopts advanced technology with frequency control for both the extruder and color marking machine, ensuring stable extrusion speed. The cooling tank features automatic water level and temperature control, while the haul-off machine uses a belt-and-roller combination with frequency adjustment for consistent speed.
High-Precision Extrusion: Ball-head connecting rod structure and guide post positioning ensure dual-tube extrusion with low noise, no impact, and minimal vibration.
Ink Printing System: Equipped with oil ink printing before cooling, making the tube text clearer and more durable.
Stable Feeding System: Imported 60W adjustable-speed motor with spring hopper provides smooth and accurate feeding.
Energy-Saving Heating: Special core rod heating system improves efficiency and reduces energy consumption.

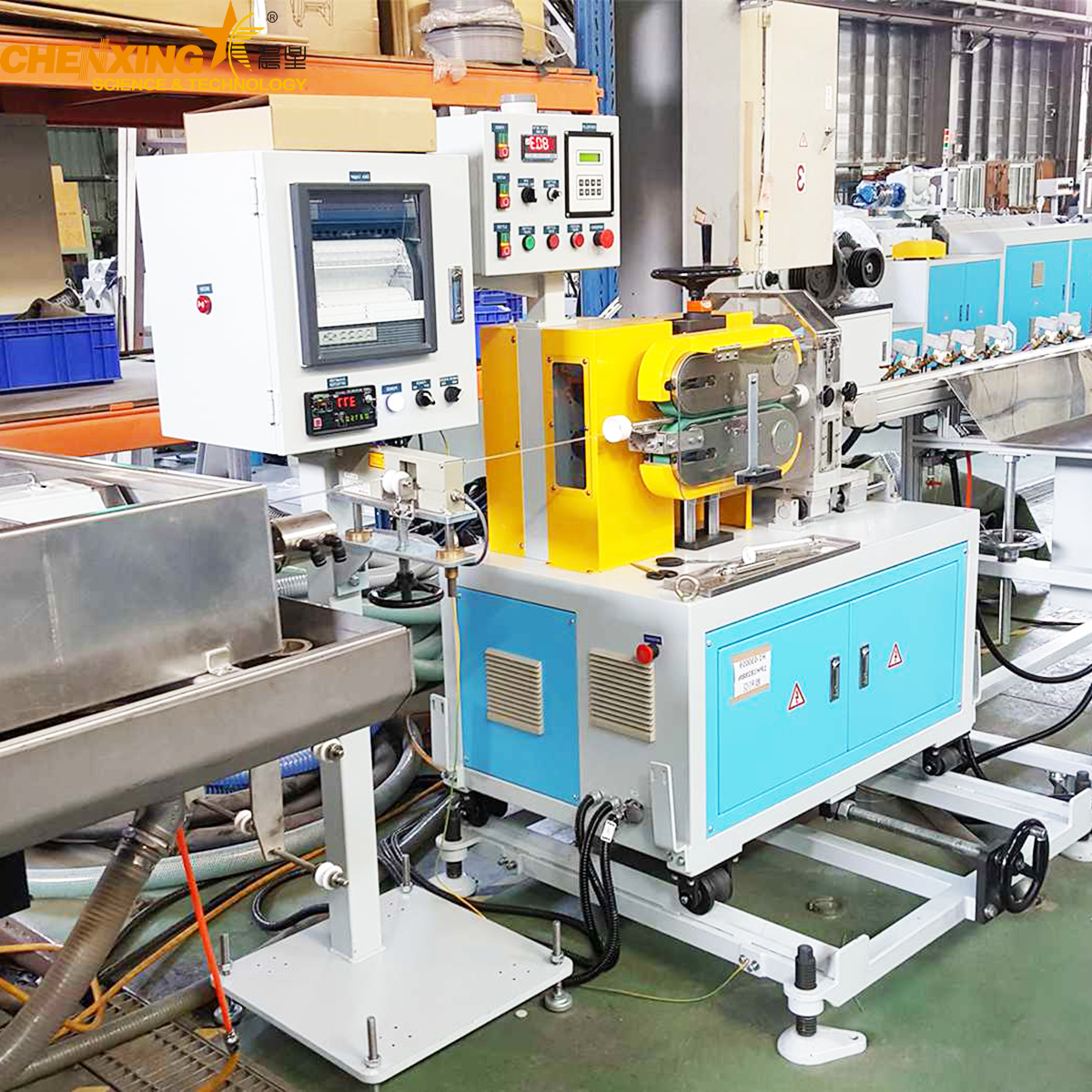

Precision Haul-off: Independent haul-off unit with imported 90W motor for accurate traction speed control.
Automatic Winding: Interval drive design enables automatic winding and tube arrangement for high efficiency.
Medical tubing (infusion tubes, catheter tubes, oxygen tubes)
Chemical fluid transfer tubes
Food and beverage flexible hoses
Industrial precision soft tubing
Q1: What types of medical tubes can this extrusion line produce?
A1: It can produce single tubes, striped tubes, co-extruded tubes, and multi-layer tubes with high precision and stability.
Q2: How is the extrusion quality controlled?
A2: Both the extruder and color marking machine use frequency converters for stable speed, while the cooling tank ensures automatic water level and temperature control.
Q3: Can this line print markings on the tubes?
A3: Yes, the oil ink printing unit before cooling provides clear and permanent text or marking on medical and industrial tubes.
Q4: Is it suitable for continuous production?
A4: Yes, the extrusion line supports long-term continuous operation with automatic feeding, traction, and winding systems.
Q5: What is the advantage of the dual-tube extrusion?
A5: Dual-tube extrusion allows simultaneous production, improving output efficiency while maintaining consistent quality.
