Product Description

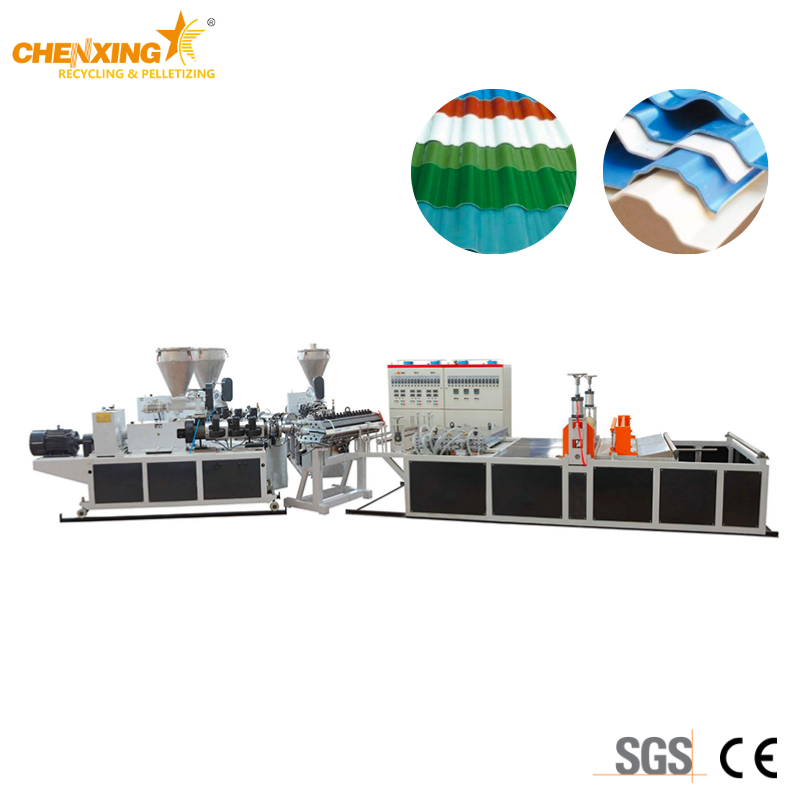

The PVC Corrugated Roof Tile Extrusion Line is specially designed for producing high-grade PVC floor sheets, wall sheets, and roofing base materials with thickness of 4.5mm and 5.5mm.
This production line integrates automatic weighing system, closed-type high efficiency mixer, precision calendaring machine and advanced roll temperature control technology, ensuring stable sheet thickness, smooth surface finish and consistent product quality.
It is widely applied in industrial roofing panels, decorative wall sheets, building floor underlayment, waterproof construction boards and corrugated roofing base materials production.
This PVC roofing sheet production line is suitable for manufacturing:
PVC corrugated roof tiles
PVC roofing base sheets
Decorative wall panels
Industrial floor sheet substrates
Waterproof building sheet materials
Construction board underlayer materials
Typical sheet thickness range: 4.5mm – 5.5mm
Ensures accurate material formulation
Improves product consistency and batch stability
Excellent plasticizing performance
Uniform material dispersion
Dust-free and environmentally friendly operation
Easy operation
Low maintenance cost
Stable continuous production
Superior wear resistance
Long service life
Minimal surface temperature deviation
D precision double-row tapered roller bearing (1:12 inner hole)
Product thickness error controlled within ±0.01mm
High centering accuracy
Single motor drives single roll with DC controller
Ensures smooth sheet surface
Stable and reliable production performance
| Model | Roll Diameter | Line Speed | Product Thickness | Calendaring Width | Motor Power |
|---|---|---|---|---|---|
| SY4L560×1680 | 560×1680 mm | 0–35 m/min | 0.8–2.5 mm | 1350 mm | 77.2 kW |
| SY4L610×1830 | 610×1830 mm | 0–40 m/min | 0.8–2.5 mm | 1500 mm | 85.2 kW |
Customized specifications are available based on customer production requirements.
Raw material automatic weighing and feeding
Closed mixer plasticizing
Material conveying to calendaring unit
Dual roll sheet forming
Thickness calibration
Cooling and shaping
Cutting and stacking
Finished product packaging
20+ years plastic extrusion equipment manufacturing experience
Stable mechanical structure design
High production efficiency
Low operational cost
Precise thickness control
Custom production line configuration support
Global installation guidance and technical support
Roofing sheet factories
Construction material manufacturers
PVC board processing plants
Industrial building material suppliers
Export-oriented building material factories
This line is designed mainly for PVC compound materials, suitable for roofing sheets, wall panels and floor base sheets production.
Standard production thickness range is 0.8mm to 5.5mm, adjustable according to customer mold and configuration requirements.
Yes. Calendaring width and production capacity can be customized based on factory layout and output demand.
The system supports automatic weighing, material mixing, continuous calendaring and stable extrusion, reducing labor cost and improving consistency.
Yes. We provide installation guidance, commissioning support, operator training and after-sales technical service for overseas customers.
