Product Description
The PVC Hose Making Machine / PVC Garden Water Hose Machine (also known as grid pipe or snake skin pipe production line) is designed for producing PVC fiber-reinforced hoses. These hoses are widely used for conveying medium-pressure or corrosive gas and liquid in various industries, including mechanical engineering, coal mining, petroleum, chemical plants, agriculture irrigation, and civil applications such as solar water heaters and gas canisters.
In recent years, it has become the preferred choice for garden and lawn irrigation pipes due to its durability, flexibility, and resistance to pressure and corrosion.

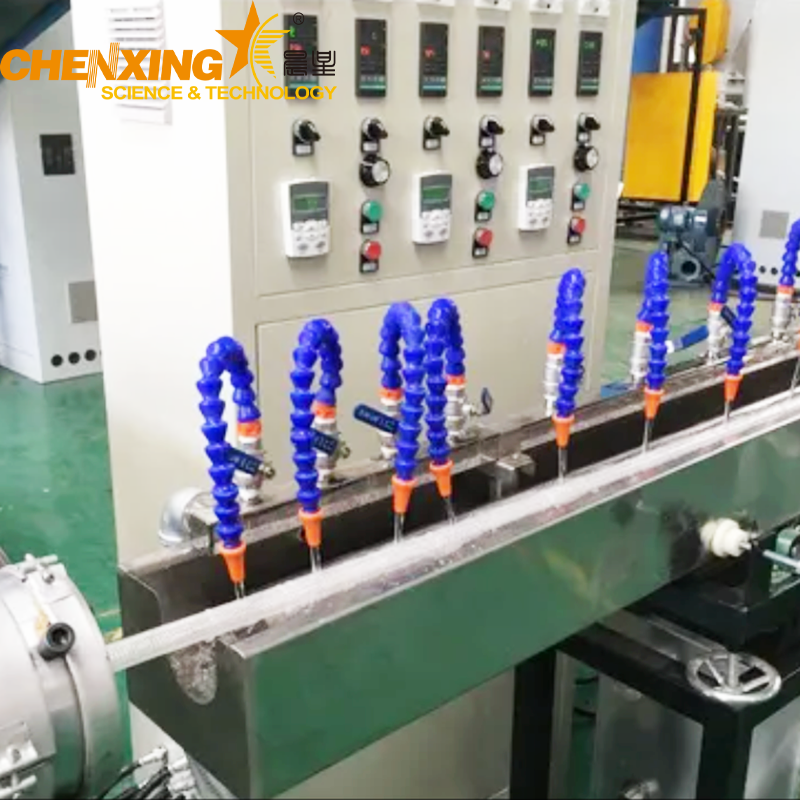

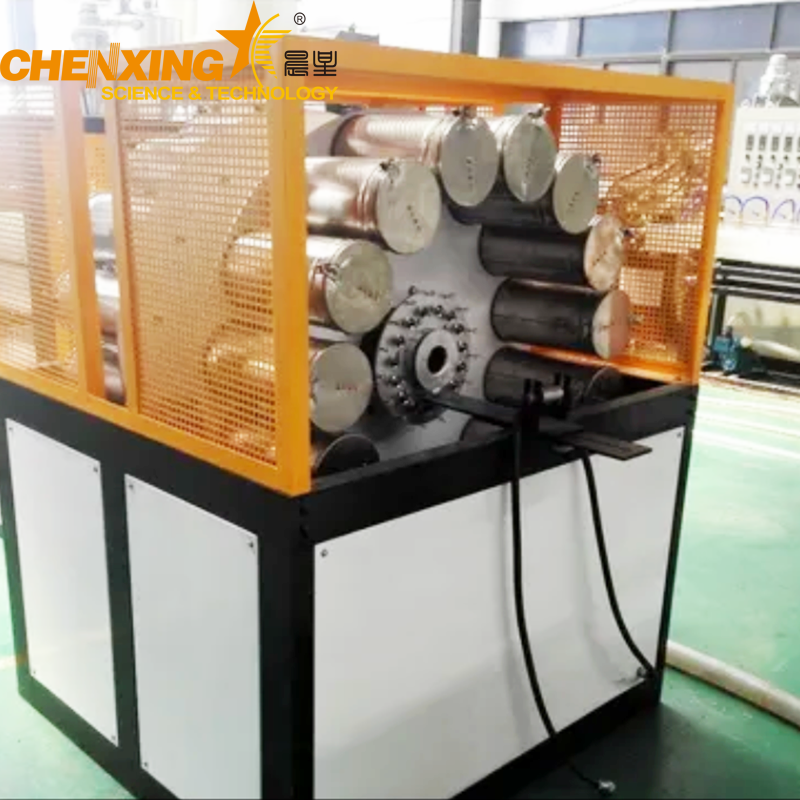

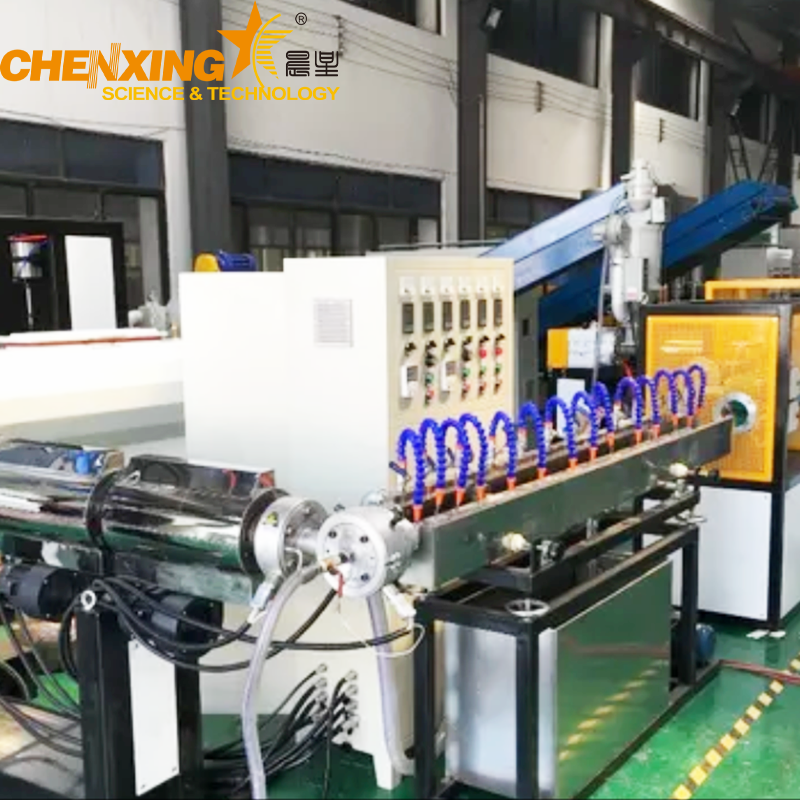

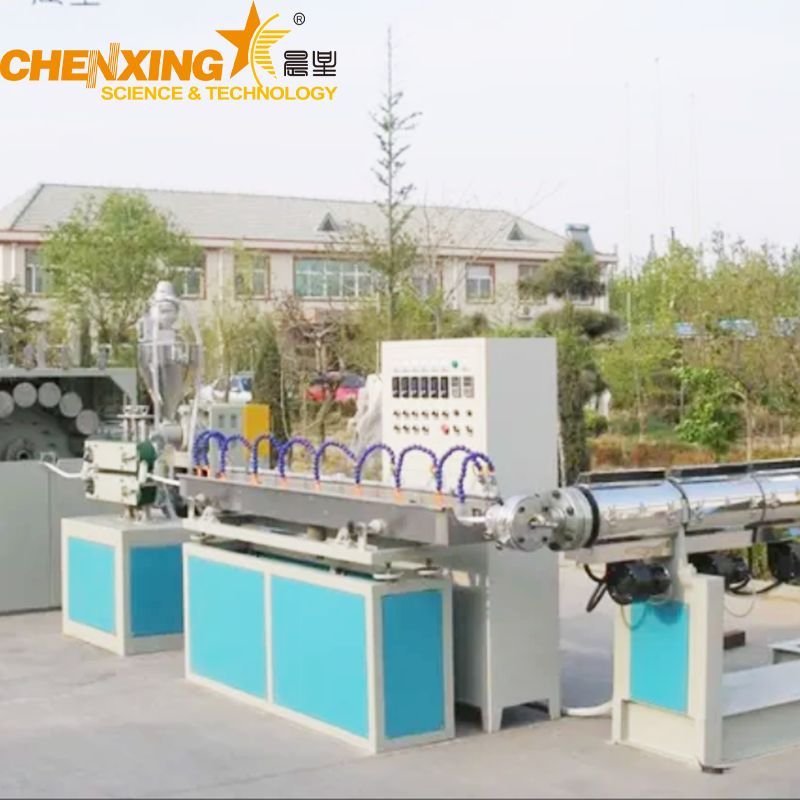

Conveying feeding → Single screw extruder → Extruding mould → Spray cooling water tank → Belt haul-off → Fibre winder → Warm-up oven → Single screw extruder → Mould → Spray cooling water tank → Belt haul-off → Meter measuring → Winder → Finished product inspection & packing
Reinforced Structure – Inner and outer layers made of PVC, middle layer reinforced with high-strength terylene fiber net.
Corrosion Resistant – Suitable for transporting corrosive gases and liquids.
Wide Applications – Used in machinery, coal mining, petroleum, chemical plants, agricultural irrigation, construction, solar water heating, and coal gas distribution.
Versatile Production – With minor adjustments, the line can also produce PVC screw thread colored pipes (shower pipes) with PET film inside, offering high aesthetics and reliability.
High Efficiency – Advanced extruding and cooling systems ensure stable production and high output.
| Model | L/D Ratio | Screw Structure | Material | Screw Diameter (mm) | Main Frame Power (kW) | Total Power (kW) | Center Height (mm) | Production Scale (mm) | Practical Area (m) |
|---|---|---|---|---|---|---|---|---|---|
| 45/30 | 30:1 | Separative style | 38CrMnAl | 45 | 11 | 26 | 1000 | Φ6–16 | 11 × 3.5 |
| 65/30 | 30:1 | Separative style | 38CrMnAl | 65 | 18.5 | 36 | 1000 | Φ16–50 | 12 × 4 |
Garden irrigation hoses
Agricultural water pipes
Industrial hoses for corrosive liquid/gas transport
Solar water heater pipes
Gas canister and building application hoses
Colored shower pipes with PET film
Q1: What types of hoses can this machine produce?
A1: It mainly produces PVC fiber-reinforced hoses, but with slight modifications, it can also manufacture PVC screw thread colored pipes (such as shower hoses with PET film).
Q2: What industries commonly use PVC garden hose machines?
A2: These hoses are widely used in agriculture irrigation, garden watering, chemical transport, coal mining, petroleum, and civil applications.
Q3: What is the typical hose diameter range?
A3: The production line can produce hoses with diameters ranging from Φ6mm to Φ50mm, depending on the model.
Q4: What is the reinforcing structure of the hose?
A4: The hose has a three-layer structure: PVC inner layer, terylene fiber reinforced net, and PVC outer layer for enhanced strength and flexibility.
Q5: Can the machine be customized?
A5: Yes, we can customize the extruder screw, molds, and winding systems based on specific diameter, color, and application requirements.
