Product Description

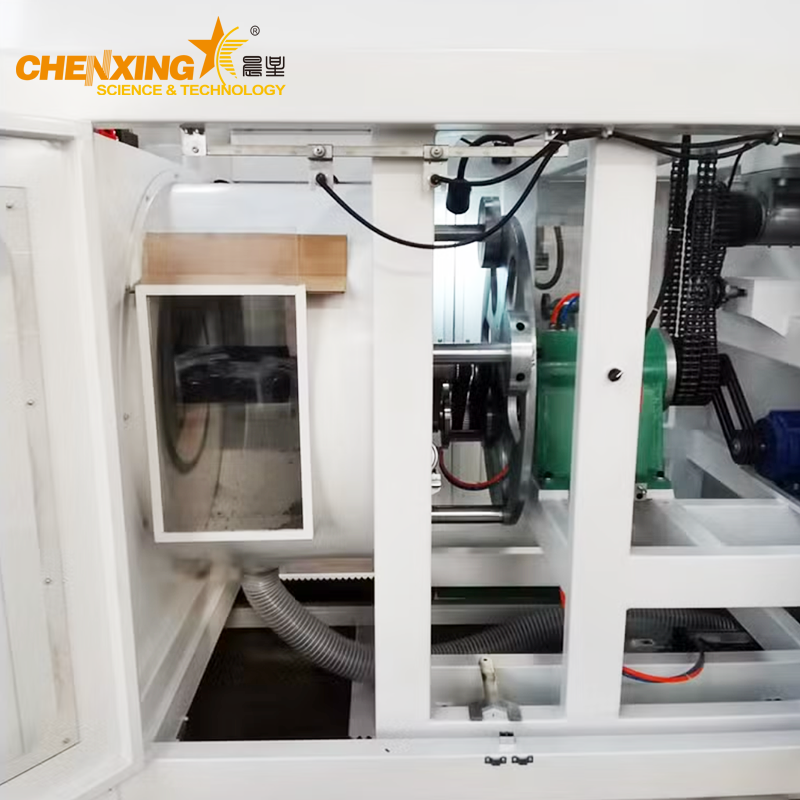

The SKG-63 PVC Pipe Threading Machine is designed for automatic thread forming on PVC pipes with diameters from 40mm to 400mm. Integrated seamlessly with PVC pipe extrusion lines, this machine provides stable performance, high efficiency, and consistent threading quality.
With an advanced automatic threading system, the SKG-63 can process pipes with wall thickness up to 5mm, achieving cycle times of 30–180 seconds per pipe depending on diameter and specification. In many applications, it can also replace traditional automatic belling machines, offering greater flexibility for threaded pipe production.
This machine is widely used in water supply, drainage, electrical conduit, industrial piping, and customized PVC pipe production.
Direct connection with PVC pipe extrusion line
Fully automated thread forming process
Continuous production workflow
Pipe diameter range: 40mm – 400mm
Suitable for various pipe wall thicknesses (up to 5mm)
Custom thread types available
Stable mechanical structure ensures consistent thread accuracy
Reliable performance for long-term industrial operation
Thread forming cycle: 30–180 seconds per pipe
Suitable for medium and large-scale PVC pipe production
Adjustable machine height by electric control
Customized pipe length, color, and threading standards supported
| Item | Specification |
|---|---|
| Model | SKG-63 |
| Pipe Diameter | 40mm – 400mm |
| Working Voltage | 380V / 50Hz / 3 Phase (Customizable) |
| Center Height | 950–1050mm (Adjustable) |
| Pipe Length | 3000mm – 6000mm |
| Compressed Air Pressure | 0.6 MPa |
| Total Power | 8 kW |
| Main Motor Power | 3 kW × 2 Sets |
| Rotation Motor Power | 0.75 kW |
| Machine Height Adjustment | Electric Button Control |
| Overall Size | 8600 × 1700 × 2300 mm |
| Machine Color | Standard or Customized |
| Thread Type | Customized According to Requirement |
PVC pipe exits extrusion and cooling line

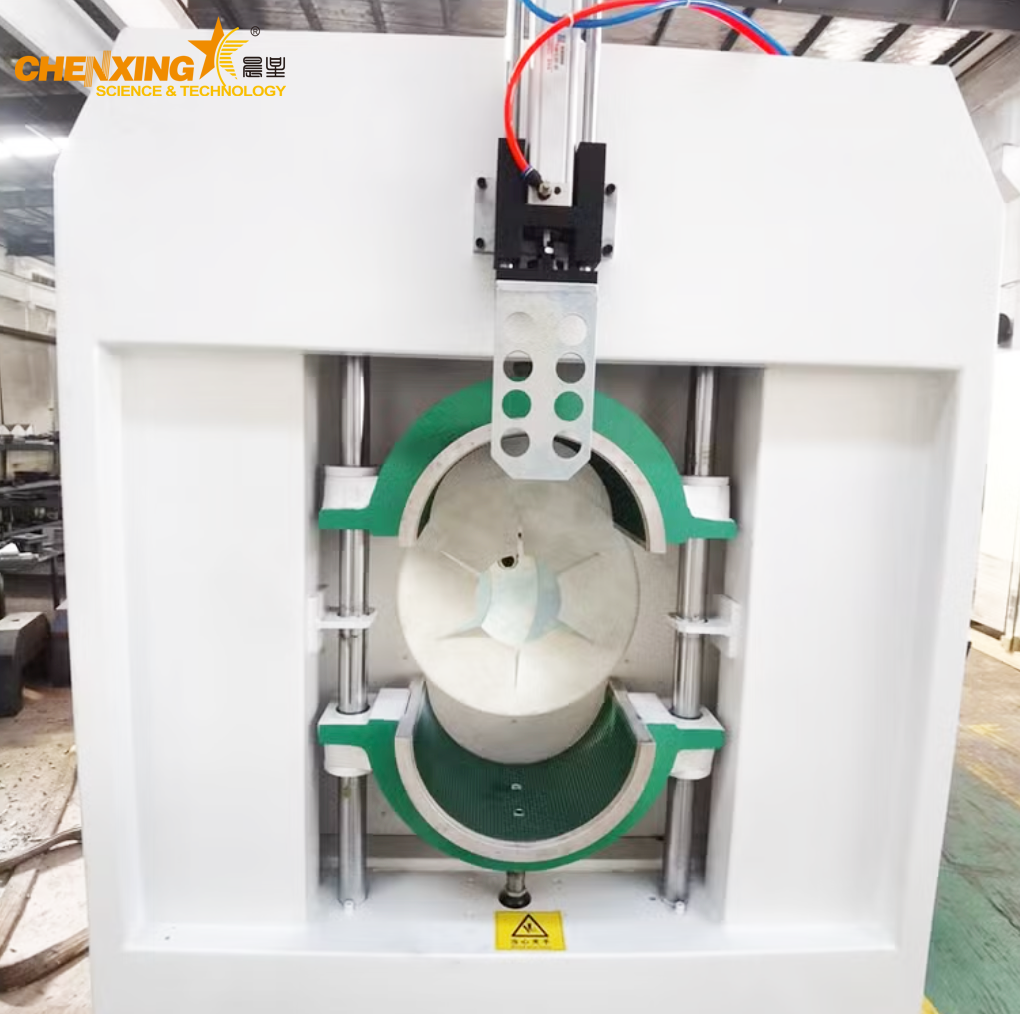

Pipe positioning and automatic clamping

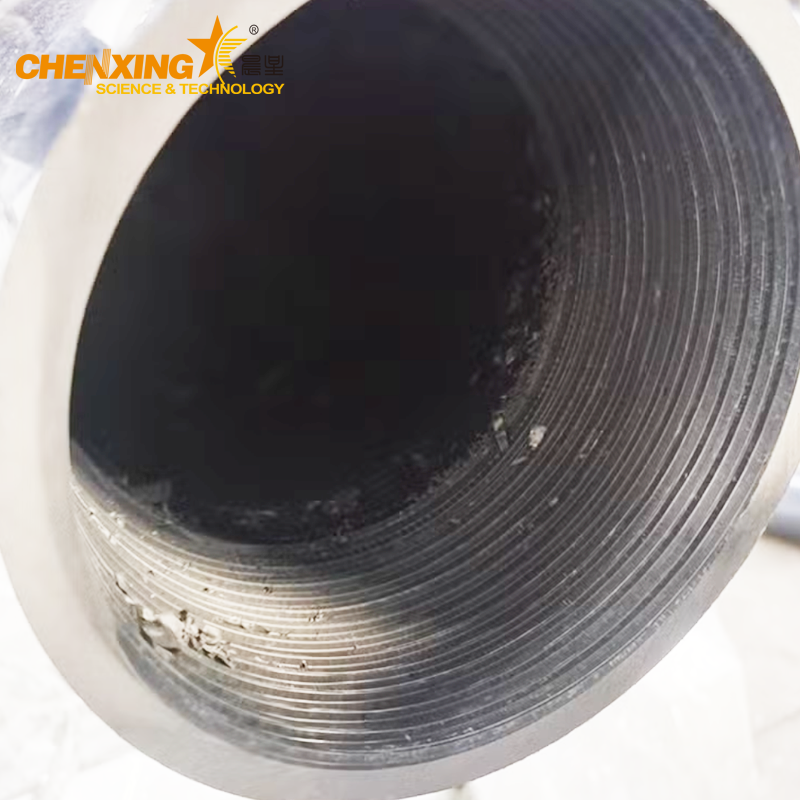

Precision rotation and thread forming
Automatic release and output transfer
Ready for stacking or next processing stage
PVC water supply pipe threading
Drainage and sewage pipe systems
Electrical conduit pipe processing
Industrial pipeline connections
Construction piping systems
Reduces manual labor requirements
Improves production consistency
Ensures uniform thread quality
Enhances overall extrusion line automation
Low maintenance and stable operation
The SKG-63 supports PVC pipes from 40mm to 400mm, covering most industrial and construction pipe standards.
Yes. It is designed for direct integration with PVC pipe extrusion production lines and can be customized according to your line layout.
Thread forming time is approximately 30 to 180 seconds per pipe, depending on pipe diameter, wall thickness, and thread type.
In many applications, yes. This threading machine can replace automatic belling machines when threaded pipe connections are required.
Yes. Thread standards, pitch, and profile can be customized based on customer requirements and target market standards.
20+ years plastic machinery manufacturing experience
Professional engineering integration support
Stable long-term operation design
Customizable solutions for global markets
Reliable after-sales technical service
Request Your PVC Pipe Threading Solution
Submit your pipe diameter, production capacity, and extrusion line layout.
Our engineers will provide a customized machine configuration and technical proposal.
