| High-quality PP/PE hookah hose extrusion line for producing single-wall corrugated pipes. Suitable for shisha hoses, ventilation tubes, washing machine pipes, and more. Available in multiple models for different diameters. | |||||||||
Chenxing
Product Description

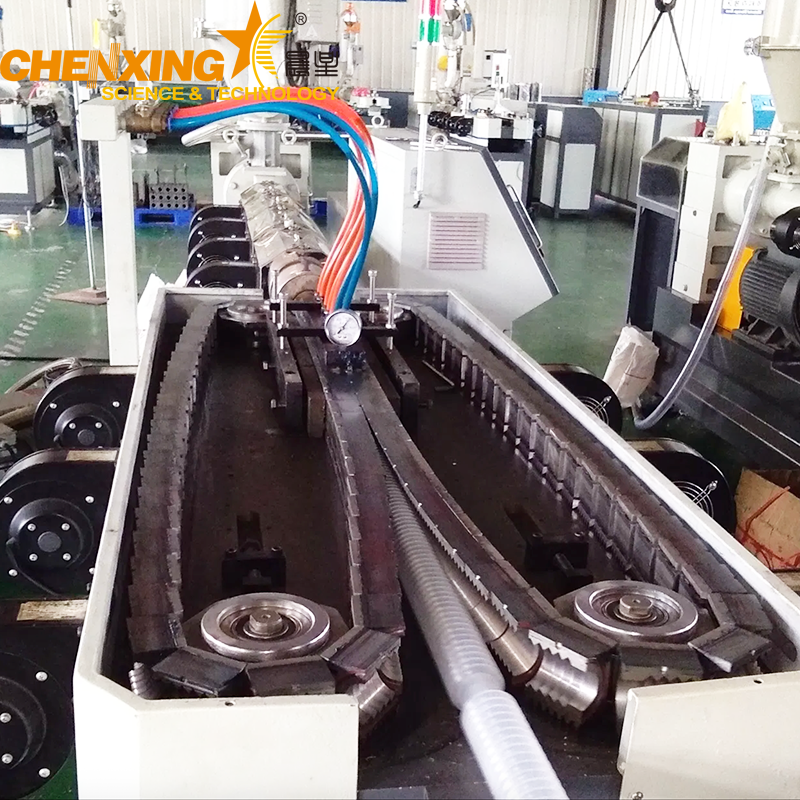

The PP/PE Hookah Hose Extrusion Line is designed for continuous production of compromise joint single-wall corrugated pipes, widely used for shisha hookah hoses, air conditioner pipes, washing machine drain pipes, medical ventilation tubes, and more.
This extrusion line is self-developed based on advanced single-wall corrugated pipe technology, ensuring high stability, excellent forming accuracy, and consistent production quality.
Suitable for multiple raw materials including PP, PE, EVA, and PA, this machine provides flexibility to meet different customer requirements.
Application: Hookah hoses, automotive pipes, kitchen drainage, toilet pipes, ventilation ducts, and medical tubing.
Materials: PP, PE, EVA, PA
Pipe Range: 10mm–75mm (depending on model)
Structure: Compact design with easy operation and low energy consumption.
| Model | Pipe Diameter | Production Speed | Extruder Model | Motor Power |
|---|---|---|---|---|
| CXBGZ-32 | 10–25mm | 5–10m/min | 50/30 | 15kW |
| CXBGZ-50 | 16–40mm | 4–8m/min | 65/30 | 30kW |
| CXBGZ-63 | 16–48mm | 4–8m/min | 65/30 | 30kW |
| CXBGZ-110 | 32–75mm | 2–6m/min | 65/33 | 37kW |
✅ High Efficiency: Continuous production with stable speed up to 10m/min.
✅ Wide Application: Suitable for hookah hoses, medical ventilation pipes, and domestic drainage systems.
✅ Material Flexibility: Compatible with PP, PE, EVA, and PA.
✅ Compact & Energy-Saving: Low power consumption with optimized extrusion process.
✅ Precision Forming: Uniform wall thickness and excellent pipe roundness.
Q1: What materials can this extrusion line process?
A1: The machine supports PP, PE, EVA, and PA materials for versatile pipe applications.
Q2: What is the maximum pipe diameter and speed?
A2: The maximum pipe diameter is 75mm, and production speed ranges from 2–10m/min depending on the model.
Q3: Is the machine suitable for continuous production?
A3: Yes, it is designed for 24/7 continuous operation, ensuring high productivity.
Q4: Can I customize the line for different pipe sizes?
A4: Yes, we offer different models and can customize molds based on your requirements.
Q5: What is the typical application of the produced pipes?
A5: Common applications include hookah hoses, air-conditioning pipes, washing machine drain pipes, medical ventilation tubes, and car tubing.
