| Discover the Tubular Chain Conveyor System, designed for dust-free horizontal, inclined, and vertical conveying of powders, granules, and bulk materials. Ideal for plastics, chemicals, food, and construction industries. | |||||||||
Chenxing
Product Description

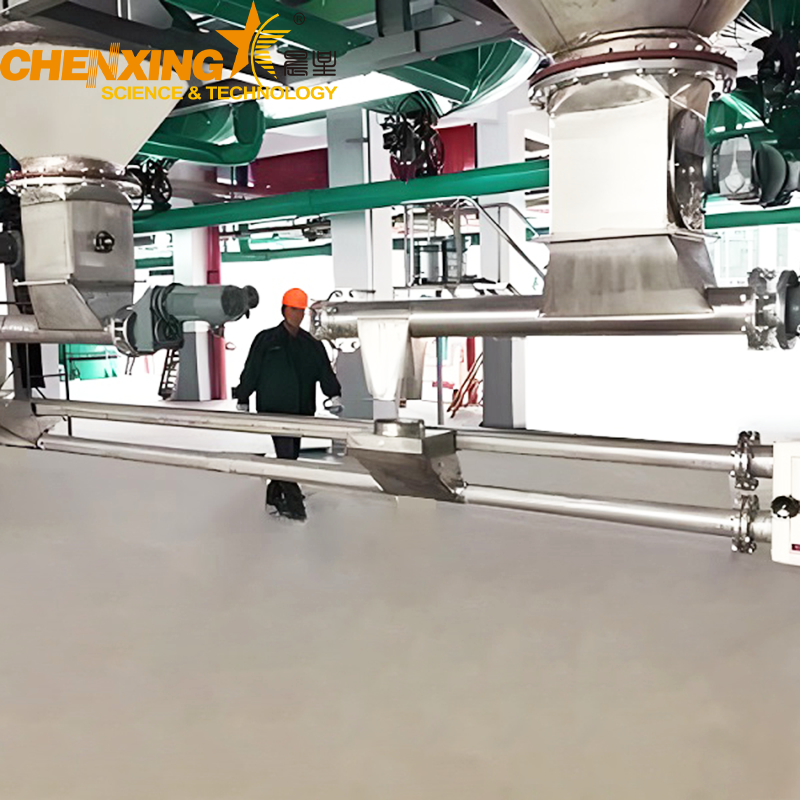

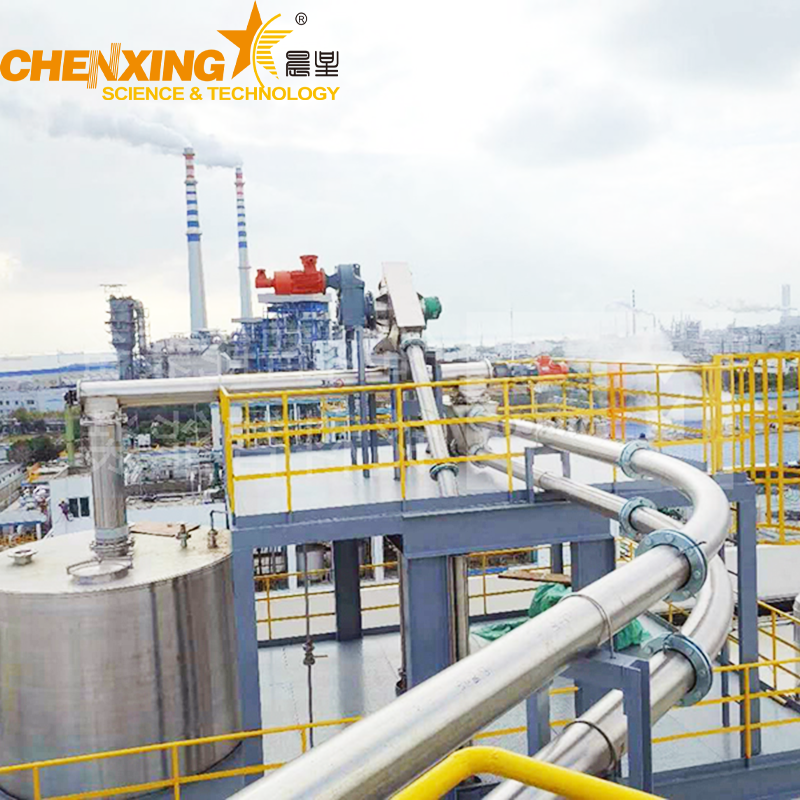

The Tubular Chain Conveyor System is a highly efficient continuous conveying solution designed for transporting powder, small granules, and bulk materials. It allows horizontal, inclined, and vertical conveying in a closed pipeline, ensuring dust-free and safe operation.
Inside the sealed tube, the conveyor chain with discs (chain plates) serves as the driving component, moving materials smoothly along the pipeline. During horizontal conveying, the material is pushed forward by the chain discs when the internal friction between particles exceeds the external friction against the tube wall, forming a stable material flow.
During vertical conveying, the chain discs generate upward thrust, while the material at the bottom prevents the upper material from sliding down. This creates lateral pressure, which increases internal friction between particles. When the internal friction is greater than the external friction and the self-weight of the material, continuous vertical conveying is achieved.
Versatile conveying directions: Supports horizontal, inclined, and vertical conveying.
Sealed pipeline system: Ensures dust-free, clean, and safe material transportation.
Continuous and stable flow: Utilizes chain disc mechanics to form a consistent material flow.
Efficient for bulk handling: Handles powders, granules, and small bulk materials reliably.
Space-saving design: Flexible installation with minimal footprint.
Energy-efficient & low maintenance: Reduced wear and extended equipment lifespan.
Chemical Industry – Powdered chemicals, additives, catalysts.
Plastics Industry – Resin, masterbatch, and pellets.
Food Industry – Flour, grains, coffee powder, sugar, and spices.
Pharmaceuticals – Fine powders and raw ingredients.
Building Materials – Cement, lime, fly ash, and construction powders.
Q1: What materials can the Tubular Chain Conveyor handle?
A1: It is suitable for powders, granules, and small bulk materials across various industries.
Q2: Can it operate in different directions?
A2: Yes, it supports horizontal, inclined, and vertical conveying in one integrated system.
Q3: How does the system ensure dust-free operation?
A3: The conveyor operates in a sealed pipeline, preventing material leakage and environmental pollution.
Q4: Is the system energy-efficient?
A4: Yes, it features low energy consumption and requires minimal maintenance.
Q5: Which industries use this conveyor system most often?
A5: It is widely used in plastics, chemicals, food, pharmaceuticals, and building materials industries.
