Product Description

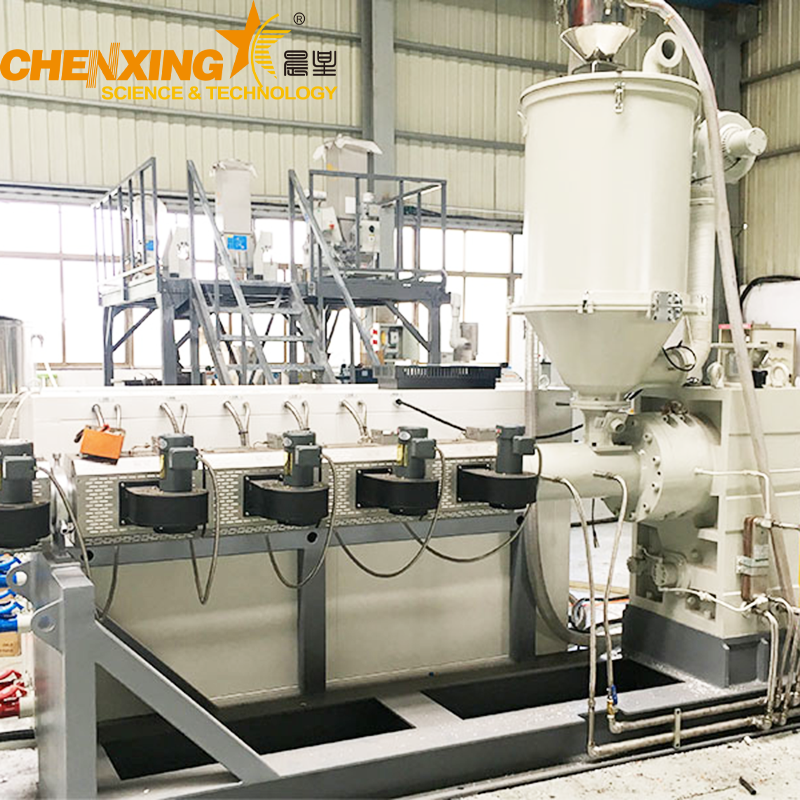

The PPR Pipe Extrusion Line is designed with a high-efficiency single screw extruder and a PLC automatic control system, ensuring stable extrusion, high output, and fully automatic operation. By changing specific units, this line can produce PPR, PE-RT, and PB pipes with various diameters and wall thicknesses, widely applied in water supply, gas supply, drainage systems, and electrical conduit wiring.
This advanced plastic pipe production line is suitable for agricultural irrigation, building construction, and municipal engineering projects.
| Model | Pipe Specification (mm) | Extruder | Max Output (kg/h) | Main Motor Power (kw) |
|---|---|---|---|---|
| GW63-PPR | Φ16–Φ63 | SJ65/33 | 120–200 | 104 |
| GE110-PPR | Φ50–Φ110 | SJ65/38 | 150–200 | 146 |
| GW160-PPR | Φ75–Φ160 | SJ75/33 | 200–250 | 176 |
High-efficiency extrusion: Special screws for polyolefin ensure excellent plasticization and stable extrusion.
Automatic operation: Equipped with auto vacuum charger and constant temperature dryer hopper for consistent feeding.
Optimized die head design: Helical and basket type die heads guarantee uniform melting pressure and smooth material flow.
Precision cooling system: Advanced vacuum calibration and high-speed sprinkling cooling water tank ensure pipe surface hardness and cleanliness.
Durable haul-off system: Caterpillar haul-off uses anti-abrasion alloy material for long service life and stable traction.
Water supply pipes (hot and cold water distribution)
Gas supply pipes
Drainage systems
Electrical conduit pipes
Agricultural irrigation pipes
Heating system pipes (PE-RT, PB, PE-X)
Q1: What types of pipes can this extrusion line produce?
A1: It can produce PPR, PE-RT, PB, and PE-X pipes with different diameters and wall thicknesses.
Q2: What is the maximum pipe diameter supported?
A2: The line supports pipe diameters up to Φ160mm, depending on the model.
Q3: What industries use PPR pipes produced by this line?
A3: PPR pipes are widely used in water supply, gas supply, drainage, agriculture, heating, and electrical conduit applications.
Q4: What is the production capacity?
A4: Depending on the model, the maximum output ranges from 120–250 kg/h.
Q5: Does the machine support automatic operation?
A5: Yes, it is equipped with a PLC control system for automatic feeding, extrusion, cooling, and haul-off, ensuring efficiency and stability.
