Product Description
The SPC PVC Flooring Tile Production Line is a twin-screw sheet extrusion line built for one specific product: SPC flooring tile — the rigid-core, dimensionally stable plank that has replaced laminate and LVT floors in a large part of the export housing and commercial-fit-out market.
The line is engineered around the two things that decide whether an SPC program is profitable: rigid-core dimensional stability and consistent output in kg/h. SPC core is a highly filled rigid PVC formulation, and a general-purpose sheet line cannot hold the thickness tolerance, the surface flatness or the production rate the product requires.
What this line is designed for:
A double-screw (twin-screw) extrusion platform. The extruder is a twin-screw, full-intermeshing, deep-screw, vented (exhaust) machine — the configuration that gives the mixing and conveying action a filled rigid PVC formulation needs, with devolatilising to remove moisture and volatiles from the compound.
Rigid sheet output at flooring width. The line is built around a 980 mm flooring width, which is the working width the SPC tile and plank market is cut from.
Thickness range of 2 – 8 mm. That single range covers the whole commercial SPC range — from thin 2 mm commercial tile up to 8 mm heavy-duty plank.
Output matched to the model, not guessed. The published model range runs from 650 kg/h on the smallest extruder up to 5000 kg/h on the largest, so production capability is selected against your required annual volume rather than assumed.
Automatic, computerised control. The line is supplied as an automatic, computerized set with a PLC-based control system, integrated extruder frame, and an internationally sourced main motor and inverter.
What it produces: SPC flooring tile — and, on the same extruder platform, LVT floor board and wood-plastic tile, so one line can serve more than one product family.
The figures below are transcribed from the manufacturer's own published data in two separate places on the source page. Where the two places state different figures for the same line, both are shown with their source labelled — one is the model-by-model product table, the other is the product attribute panel. They are not merged, and no third value has been introduced to reconcile them.
| Item | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 | Model 6 |
|---|---|---|---|---|---|---|
| Extruder | 92 / 188 | 110 / 220 | 114 | 135 | 145 | 175 |
| Capacity | 650 kg/h | 1100 – 1500 kg/h | 1100 kg/h | 1750 – 2200 kg/h | 3000 kg/h | 5000 kg/h |
| Size of flooring | 980 mm | 980 mm | 980 mm | 980 mm | 980 mm | 980 mm |
| Thickness | 2 – 8 mm | 2 – 8 mm | 2 – 8 mm | 2 – 8 mm | 2 – 8 mm | 2 – 8 mm |
The extruder figure is expressed as a screw diameter pair (for example 92 / 188), which is the standard way of designating a parallel twin-screw extruder — the first value being the screw diameter and the second the barrel diameter that the twin screws run in.
| Attribute | Published value |
|---|---|
| Customization | Available |
| Type | Sheet extruder |
| Plastic processed | PVC |
| Product type | Extrusion moulding machine |
| Extruder | Double-screw (twin-screw) extruder |
| Screw | Twin-screw |
| Engagement system | Full intermeshing |
| Screw channel structure | Deep screw |
| Exhaust | Exhaust (vented) |
| Feeding mode | One feed |
| Assembly structure | Integral type extruder |
| Automation | Automatic |
| Computerized | Computerized (PLC control) |
| Main motor | Internationally sourced brand-name motor |
| Inverter | Internationally sourced brand-name inverter |
| Voltage | 380 V |
| Power | 75 kW |
| Motor capacity | 90 kW / 110 kW |
| Capacity | 400 – 700 kg/h (published as "700-400kg/H") |
| Production capacity | 600 – 700 kg/h |
| Line size | 25 × 3 × 3 m |
| Weight | 25 tons |
| Certification | CE, ISO 9001 |
| HS code | 84778000 |
| Transport package | Plywood package, export standard |
| Warranty | One year |
| After-sales service | For life |
| Model numbers covered | 92 188, 110 220, 114, 135 |
| MOQ | 1 set |
| Price | US$780,000.00 per set (reference, as published) |
Reading the capacity figures together. The product table (Table 1) gives the capacity that belongs to each extruder model — 650 kg/h for the 92/188 machine, for example. The attribute panel (Table 2) gives two further line-level figures, 400 – 700 kg/h and 600 – 700 kg/h. These describe the line rather than a single extruder model, and they bracket the 650 kg/h entry of the smallest model. When you request a quotation we will state the figure that applies to the exact configuration quoted.
Entry / mid-volume SPC production — the 92/188 or 110/220 extruder, giving 650 kg/h and 1100 – 1500 kg/h respectively
High-volume single-line production — the 114, 135 or 145 extruder, from 1100 kg/h up to 3000 kg/h
Very large flooring programs — the 175 extruder at 5000 kg/h
Thin commercial tile vs thick heavy-duty plank — all models are published with a 2 – 8 mm thickness capability and a 980 mm flooring width, so the choice of model is driven by output, and the plate / roller and die set is what is trimmed to the thicker or thinner end of the range
Mixed product family — if the same plant will also produce LVT floor board or wood-plastic tile, tell us at enquiry stage so the extruder, the die and the downstream forming sections are specified together
The full equipment range around this line is described under Board / Sheet Extrusion Line, PVC UV Marble Sheet Making Line, Profile Extrusion Line, Profile Extrusion Line Solution, PC LED Light Cover Extrusion Line and Extruder.

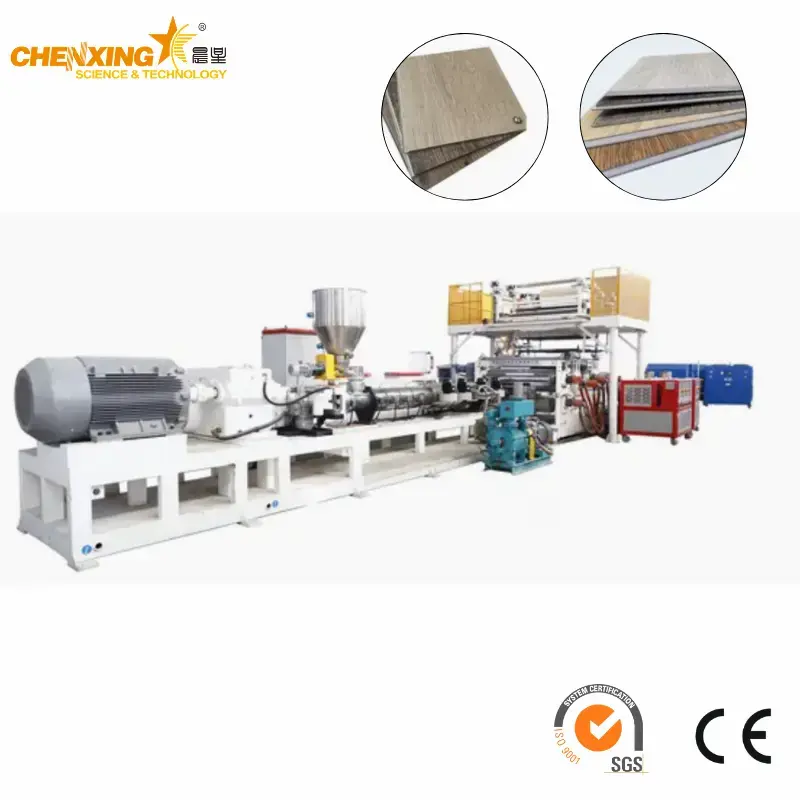

The line is a one-feed, integral-type arrangement: PVC compound is fed into the extruder through a single feed system and processed inside a common, integral frame. Because SPC core is a filled rigid PVC formulation, the feed section and the extruder intake are designed to deliver a consistent, uninterrupted stream — an interrupted feed shows up directly as thickness variation in the finished plank. Powder handling, mixing and material conveying equipment can be quoted with the line from the same factory.
This is the core of the line. The extruder is a twin-screw, full-intermeshing, deep-screw machine:
Twin-screw, full intermeshing — the two screws intermesh completely, giving positive conveying and mixing, which is what a highly filled rigid PVC compound requires in order to be melted and homogenised without dead spots
Deep screw channel — a deeper channel gives the volumetric capacity needed for a filled formulation and reduces the shear the compound sees, which protects the material from thermal degradation
Vented (exhaust) design — volatiles and residual moisture are removed through the vent, which is what keeps the extruded core free of bubbles and holds the density of the plank consistent
Drive and control — a 75 kW line power with an internationally sourced brand-name main motor and inverter, operating on 380 V, under automatic, computerized PLC control

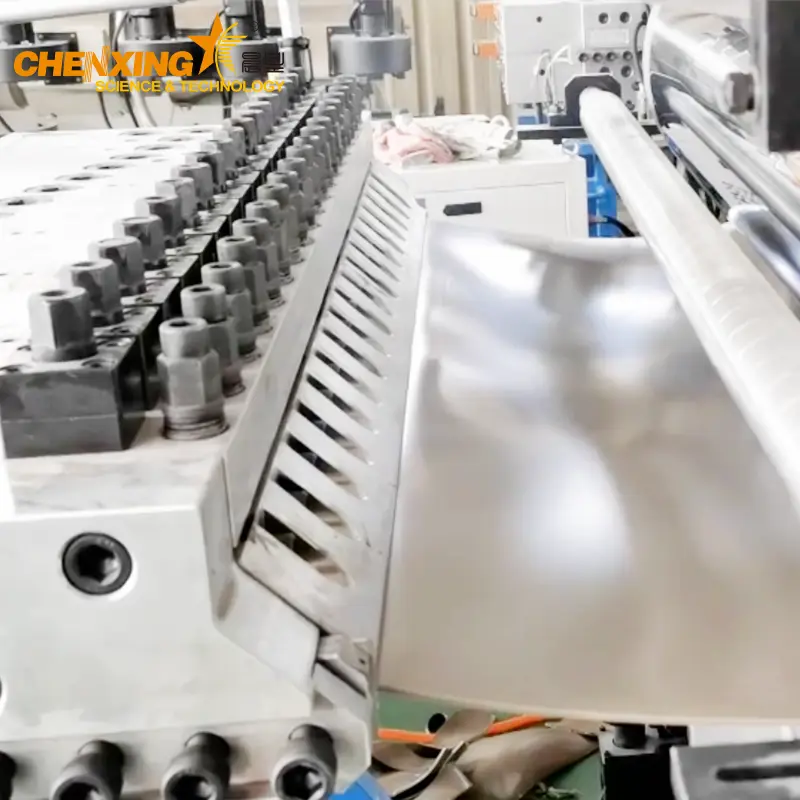

The extruder discharges into a sheet die set sized for the flooring width. The die set and the downstream forming rolls are selected together with the extruder model so that the melt is spread evenly across the full width before it is formed — an unmatched die is the most common cause of edge-to-centre thickness variation on an SPC line.

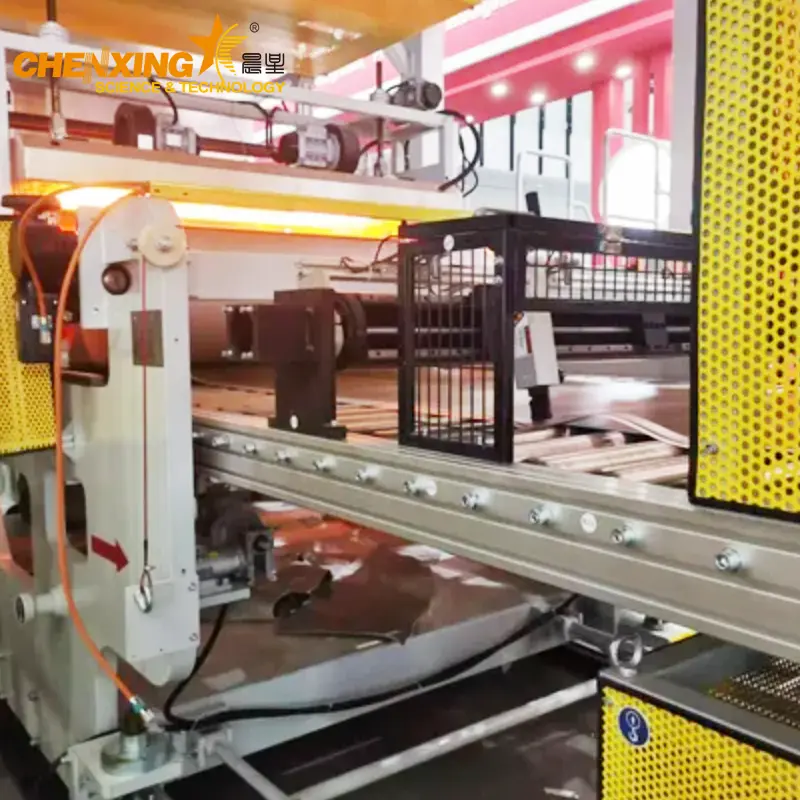

The line is a sheet extruder, and the sheet is calibrated to the required thickness and surface while it is still formable. The published product range is 2 – 8 mm thick and 980 mm wide; the forming equipment is set to your thickness and surface requirement, and to the embossed or smooth finish your market asks for.
Cooling is what locks the flatness in. On a rigid PVC sheet line the cooling section is matched to the line speed and sheet thickness, so a thicker plank or a faster line is compensated by cooling length rather than by running the line slower. The cooling section is part of the quoted scope and its configuration is agreed against the model you select.

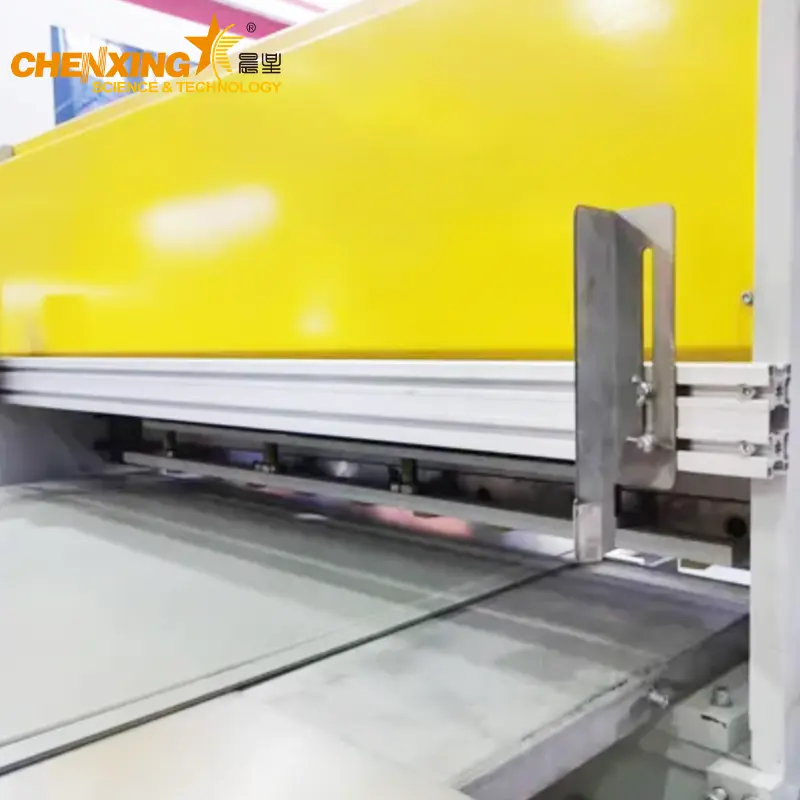

After cooling, the sheet is pulled through at a speed synchronised to the extruder output, cut to the required plank length, and stacked for the downstream press, coating and profiling operations of an SPC flooring plant. Take-off and cutting units are included in the line scope.
The line runs as an automatic, computerized set with a PLC-based control system, from a single control cabinet covering extruder temperature zones, drive speeds and the take-off synchronisation. Operators work from one control point for the whole line.
| Market / industry | Typical product from this line | Why the line fits |
|---|---|---|
| Residential flooring | SPC rigid-core plank and tile, 2 – 8 mm, 980 mm working width | Twin-screw extrusion of filled rigid PVC gives stability and flatness |
| Commercial fit-out | Commercial-grade SPC tile, heavy-duty plank | Same extruder platform, thicker end of the 2 – 8 mm range |
| Export housing and renovation | Standard SPC flooring programs at volume | Model range from 650 kg/h to 5000 kg/h matches program size |
| LVT and flexible flooring | LVT floor board | Published as a product of the same line |
| Wood-plastic flooring | Wood-plastic tile | Published as a product of the same line |
| Building decoration and interior products | Rigid PVC decorative sheet products | The underlying platform is a PVC / WPC board and sheet extrusion line |
| Furniture and construction board production | Rigid PVC board and construction board | Adjacent product families from the same extrusion technology |
Working conditions. The line is installed as a set — feed system, twin-screw extruder with integral frame, sheet die, forming and calibration section, cooling section, haul-off and cutting — on a levelled industrial floor with a footprint of about 25 × 3 × 3 m and a machine weight of about 25 tons, so the floor loading and the foundation should be checked against that. It requires a 380 V three-phase supply sized for the main power and the motor capacity, cooling water for the cooling section, compressed air for the plant and a dust-controlled area for the powder handling section. Floor plan and layout drawings are supplied in advance so that the foundation, wiring, piping and material flow can be prepared before the line arrives.
Extruder model and output — select from the published model range: 92/188, 110/220, 114, 135, 145 and 175, covering 650 – 5000 kg/h
Product format — SPC flooring tile, LVT floor board and wood-plastic tile on the same extruder platform
Thickness — the published capability is 2 – 8 mm; the die set, forming and cooling sections are configured for the thickness band you actually run
Flooring width — the published working width is 980 mm; other widths are discussed at enquiry stage against the die and forming equipment
Surface finish — smooth or embossed finishes, matched to the downstream press and coating process of your plant
Voltage — 380 V as published, adapted to your plant supply where required
Drive and electrical components — main motor and inverter supplied as internationally sourced brand-name components; the make is confirmed on the order, and alternatives are available on request
Control configuration — automatic and computerized control as standard, with the degree of automation agreed at quotation stage
Upstream and downstream equipment — mixing unit, material conveying, powder handling, and recycling and pelletising equipment for line scrap
Line layout — the line is an integral-type arrangement with a standard 25 × 3 × 3 m footprint; layout adjustment is discussed against your available floor area
OEM service — available
Certification — CE and ISO 9001; tell us at enquiry stage if your market needs further certification
Twin-screw, full-intermeshing, deep-screw, vented extruder principle — this is not selectable, it is the reason the line can run a filled rigid PVC formulation
Sheet (flat) extrusion rather than profile or pipe extrusion — the line is a sheet extruder, with sheet take-off, cooling and cutting
PVC as the processed plastic — the line is published for PVC, including the filled SPC and WPC compounds built on PVC
The automatic, computerized control architecture — PLC-based, integrated frame, single control point
Plywood export-standard packing — as published, for a machine of this size and weight
Related plant equipment that can be quoted with the line: High Speed Mixing Unit, Auxiliary Machines, Automatic Compounding System, Automatic Compounding System Solution, Powder Suction Machine, Crushing Material Suction Machine, Continuous Powder Suction Machine, SMF Series Grinding Machine, Plastic Agglomerator, Two Stage Recycling Machine and Plastic Pelletizing Line.
CE and ISO 9001 — the line is published with CE and ISO 9001 certification; our quality management system covers the design and manufacture of the line
Twin-screw construction — full-intermeshing, deep-channel screws and a vented barrel in a heavy, integral frame, selected for a filled rigid PVC formulation
Internationally sourced drive and electrical components — the main motor and inverter are brand-name international components, matched to the extruder model
25-ton machine weight as a quality indicator — an SPC line is a heavy machine by nature; the 25-ton machine weight and the rigid integral frame are what keep the extruder and the forming section stable under continuous three-shift running
Compliance-ready export build — built for export markets with plywood export-standard packing, and documentation prepared for the importing country
Pre-delivery running test — the line is assembled, wired and run before shipment, and a test production can be arranged for reference so the buyer sees the sheet before the line is dispatched
Layout and plant engineering support — we supply layout drawings for foundation and plant preparation and advise on the building works for power supply, cooling water, compressed air and material flow
Documentation — a detailed user manual is supplied with the line; technical files are collected under Downloads and application articles are posted on Company News
After-sales service for life — after-sales service is provided for life, alongside a one-year warranty, with engineer-level support for installation, commissioning and operator training
Capabilities in other product families are described under Board / Sheet Extrusion Line, PVC UV Marble Sheet Making Line, Pipe Extrusion Line, Pipe Extrusion Line Solution, PVC Pipe Extrusion Line Solution, 3-Layer High Speed PE/PPR/HDPE Pipe Extrusion Line, HDPE Pipe Production Line 16-1600 mm, ABS Pipe Production Line, Plastic Drainage Pipe Machine, PVC Shelf Label Strip Extrusion Line, plus our advanced material processing EPC project service.
MOQ — 1 set
Payment terms — T/T, L/C and D/P; other methods on request
Incoterms — FOB, CIF, CFR
Lead time — within 15 working days for both peak season and off season, as published; for a customised scope the schedule is confirmed at order stage
Scope of supply per set — feed system, twin-screw (double-screw) extruder with integral frame, sheet die set, forming / calibration section, cooling section, haul-off and cutting unit, control cabinet and standard spare parts
Packing — plywood package, export standard, for a machine of approximately 25 tons; the loading plan and container fixing arrangement are prepared and verified before dispatch
Shipping — sea freight from China; the line is fixed inside the container against movement in transit and the container is checked before closing
Warranty — one year, with after-sales service for life
Installation and commissioning — our engineers provide installation, commissioning and operator training support; a test production can be arranged for reference before shipment
SPC PVC flooring tile — rigid-core SPC flooring plank and tile, 2 – 8 mm thick, at a 980 mm working width. The same extruder platform is also published for LVT floor board and wood-plastic tile, so one line can serve more than one product family in a flooring plant.
Because SPC core is a highly filled rigid PVC compound. The extruder is a twin-screw, full-intermeshing, deep-screw, vented (exhaust) machine: full intermeshing gives positive conveying and thorough mixing of the filled compound, the deep screw channel provides volumetric capacity without excessive shear, and the vent removes moisture and volatiles so the core is free of bubbles and holds a consistent density. A single-screw machine does not give that combination.
Capacity is model-dependent. The published product table gives 650 kg/h for the 92/188 extruder, 1100 – 1500 kg/h for 110/220, 1100 kg/h for 114, 1750 – 2200 kg/h for 135, 3000 kg/h for 145 and 5000 kg/h for 175. The line attribute panel separately states a line-level capacity of 400 – 700 kg/h and a production capacity of 600 – 700 kg/h, which bracket the smallest model. The applicable figure is confirmed in the quotation for the exact configuration.
Select on output: 92/188 or 110/220 for entry and mid-volume programs (650 kg/h and 1100 – 1500 kg/h), 114 135 145 for high-volume single-line production (1100 – 3000 kg/h), and the 175 extruder for very large flooring programs (5000 kg/h). Send us your annual square-metre target and plank specification and we will match the model to it.
Thickness: 2 – 8 mm and flooring width: 980 mm, both published identically across all six extruder models. This covers the commercial SPC range from thin commercial tile to heavy-duty plank. The die set, forming section and cooling section are configured for the thickness band and surface finish you actually run.
380 V, with a line power of 75 kW and a motor capacity of 90 kW / 110 kW as published. Cooling water for the cooling section and compressed air for the plant are also required. Please confirm your plant supply when enquiring, and the electrical configuration will be matched to it.
MOQ is 1 set. Payment is by T/T, L/C or D/P, and we quote FOB, CIF or CFR as you prefer. The final price follows the extruder model, the die and forming equipment and the automation scope you select.
The published lead time is within 45 working days in both peak and off season; a customised scope is scheduled at order confirmation. Packing is plywood, export standard, and the machine — approximately 25 tons — is secured inside the container and checked before dispatch.
The line is an integral-type arrangement with a published size of 25 × 3 × 3 m and a weight of 25 tons, so the floor loading and the foundation should be designed against that. We supply layout drawings in advance so the foundation, power supply, cooling water, compressed air and material flow routes can be prepared before the line arrives.
The warranty is one year, and after-sales service is provided for life. Our engineers support installation, commissioning and operator training, and a test production can be arranged for reference before shipment. A detailed user manual is supplied with the line. For general questions, see the FAQ list.
Please include the following so that the quotation is accurate on the first reply:
Product — SPC flooring tile, LVT floor board, wood-plastic tile, or a combination of these
Plank specification — thickness (within the 2 – 8 mm capability), working width, and surface finish required
Target output — kilograms per hour and/or annual square metres, so the extruder model (92/188, 110/220, 114, 135, 145 or 175) can be matched
Compound — your PVC formulation, filler loading and whether recycled material will be used
Automation scope — the degree of automatic, computerized control you require
Electrical supply — voltage, frequency and phase at your plant
Plant conditions — available floor area against the 25 × 3 × 3 m footprint, floor loading for a 25-ton line, cooling water and compressed air availability
Downstream process — the press, coating, UV and profiling equipment the sheets will feed into, so take-off and cutting are matched
Commercial terms — Incoterm (FOB CIF CFR), destination port, payment method and required documents
Certification requirement — whether CE or additional certification is needed for your market
Service requirement — whether you need engineer attendance for installation, commissioning and operator training
What you get back: a written quotation for the complete line — feed system, twin-screw extruder with integral frame, sheet die set, forming / calibration section, cooling section, haul-off and cutting unit, control cabinet and standard spare parts — stating the extruder model, the capacity it will deliver, the thickness and width setting, the lead time, the packing plan and the trade terms, together with our engineers' recommendation on the die and forming configuration for your plank specification.
Send us your plank specification, your annual volume and your destination port, and we will confirm the extruder model, the line configuration and the complete scope of supply in a written quotation. If you would like to see how this SPC flooring tile line is presented in more detail first, view more machine details. Company background is on About Us; application cases are collected under Application Cases, the product catalogue under Products and the full range of solutions under Solutions.
