Product Description
The PVC artificial marble profile extrusion line by Chenxing Machinery is engineered to produce decorative PVC profiles with high-fidelity marble-look surface finishes. Designed as a cost-effective and lightweight alternative to natural marble and solid wood trim, this line delivers waterproof, fire-rated, and rapidly installable profiles for interior decoration — including crown molding, baseboards, door frames, wall trims, window casings, and corner beads.

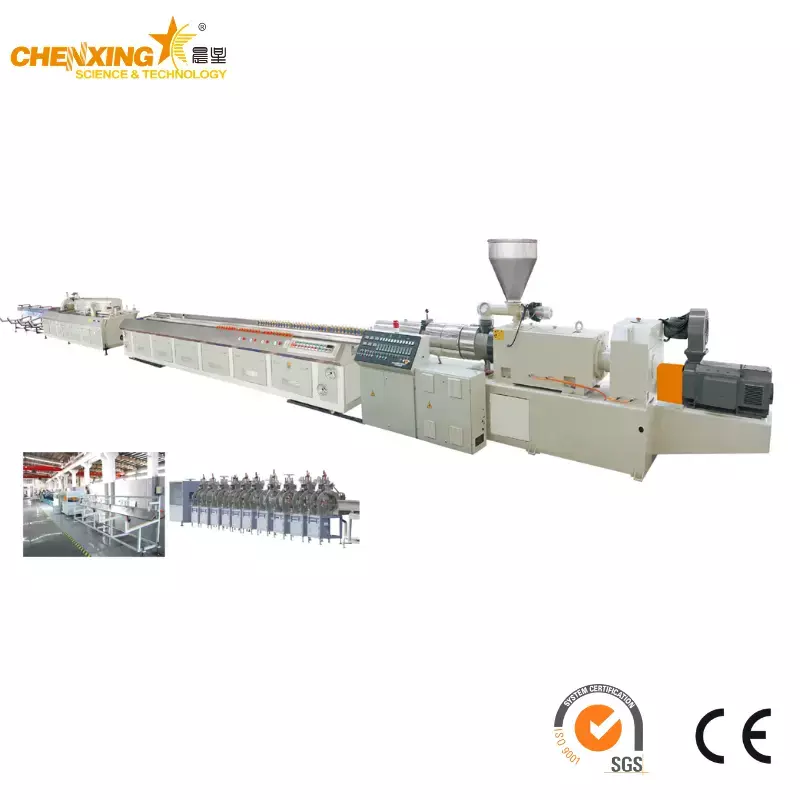

Built around the SJS series single screw extruder platform, the line is available in four models with main motor power spanning 15 kW to 55 kW, auxiliary heating power from 180 kW to 600 kW, and line footprint from 16 m × 2.5 m to 21 m × 2.5 m. Marble surface patterns are achieved via either inline heat transfer printing (160–200°C, 2–5 m/min) or co-extruded ASA/PMMA marble-effect cap layer, accommodating the full spectrum of classic stone aesthetics — white Carrara, black Marquina, brown Emperador, grey travertine, and beige Botticino.
Browse our complete product catalog for complementary auxiliary machines and explore integrated solutions for your entire PVC processing plant.
| Parameter | SJS251 | SJS255 | SJS285 | SJS250 |
|---|
| Extruder Model | SJS251 | SJS255 | SJS285 | SJS250 |
| Main Motor Power | 15 kW | 22 kW | 37 kW | 55 kW |
| Auxiliary Equipment Power | 180–240 kW | 180–300 kW | 180–400 kW | 180–600 kW |
| Vacuum Pump Power | 5.5 kW | 5.5 kW | 5.5 kW | 7.5 kW |
| Haul-off Power | 1.5 kW × 2 | 1.5 kW × 2 | 1.5 kW × 2 | 4 kW × 2 |
| Cutting Machine Power | 1.5 kW | 1.5 kW | 1.5 kW | 2.2 kW |
| Line Dimension (L × W) | 16 m × 2.5 m | 17 m × 2.5 m | 20 m × 2.5 m | 21 m × 2.5 m |
| Profile Type | Application | Width Range | Thickness Range |
|---|
| Flat Trim | Wall panel edging, decorative flat strips | 15–150 mm | 5–30 mm |
| Crown Molding | Ceiling-wall junction trim | 30–120 mm | 8–25 mm |
| Baseboard | Floor-wall junction skirting | 40–200 mm | 8–20 mm |
| Corner Bead | External corner protection | 20–60 mm (per leg) | 5–20 mm |
| Window Casing | Window frame surround trim | 40–150 mm | 8–25 mm |
| Door Frame | Door jamb and architrave profiles | 50–180 mm | 10–40 mm |

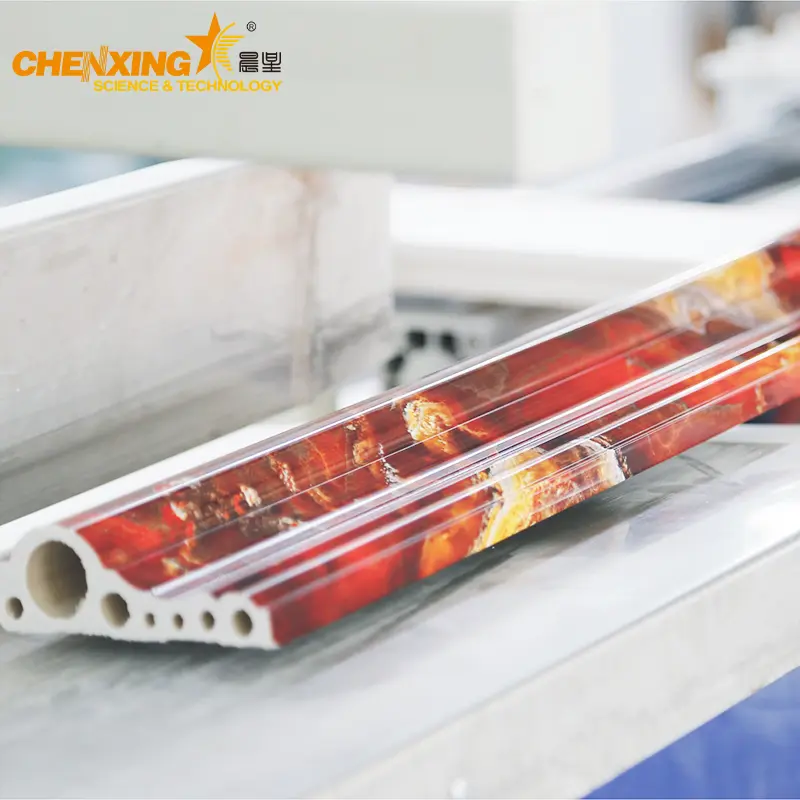

All profiles support solid or foam-core construction. Product profile width range: 15–200 mm; height/thickness range: 5–50 mm.
| Pattern Name | Stone Reference | Visual Character |
|---|
| White Carrara | Carrara White Marble | Bright white base with fine grey veining |
| Black Marquina | Nero Marquina / Black Gold | Deep black base with bold white veining |
| Brown Emperador | Emperador Dark Marble | Rich brown base with irregular lighter veins |
| Grey Travertine | Silver Travertine | Warm grey with characteristic pitted texture effect |
| Beige Botticino | Botticino Classico | Cream-beige with subtle linear veining |
Patterns are applied through heat transfer film or co-extrusion cap layer technology, with film changeover completed in under 10 minutes between designs.
| Component | Description |
|---|
| Single Screw Extruder | SJS series, 15–55 kW, optimized L/D ratio for rigid PVC processing, bimetallic barrel with nitride-hardened screw |
| High Output Single Screw Extruder (optional upgrade) | High-throughput variant for SJS250 model, enhanced plastication capacity |
| PVC Profile Die Head | Custom-engineered flow channel, chrome-plated flow surfaces, interchangeable die lips per profile shape |
| Vacuum Calibration Table | Multi-zone vacuum calibration, ∮50–200 mm profile envelope, quick-change clamp system (mold changeover: 30–60 min) |
| Plastic Heating Mixer | High-speed hot/cool mixing unit, PVC dry blend preparation with thermal stabilization |
| Hopper Dryer | Hot-air hopper dryer for raw material dehumidification before extrusion |
| Component | Description |
|---|
| Heat Transfer Printing Station | Inline marble-pattern film transfer, 160–200°C heated roller, 2–5 m/min throughput, ±0.5N film tension control, ±0.5 mm registration |
| Co-Extrusion Unit (optional) | Secondary extruder for applying ASA/PMMA marble-effect cap layer, 0.1–0.5 mm top layer thickness |
| Haul-off Unit | Dual-belt caterpillar type, 1.5 kW × 2 or 4 kW × 2 motor, synchronized speed control |
| Cutting Machine | Precision saw cut, 1.5 kW or 2.2 kW, servo length control, dust extraction port |
| Chiller | SML series industrial water chiller, closed-loop cooling for calibration table and die temperature regulation |
| Vacuum Conveyor Loader | Automatic material conveying from storage to extruder hopper |
| Pellet Vacuum Loader | Dedicated pellet/resin loading station with filter protection |
| Stacking & Packaging Station | Automatic profile stacking, bundling, and shrink-wrap packaging |
Authentic Marble Surface Reproduction Achieve stone-look finishes indistinguishable from natural marble through precision heat transfer printing (film registration ±0.5 mm, temperature PID ±1°C) or co-extruded ASA/PMMA cap layer. Five classic marble patterns available with fast film changeover. The plastic embossing machine option adds tactile wood-grain or stone-texture embossing for multi-sensory realism.
Superior Water & Moisture Resistance PVC substrate exhibits near-zero water absorption (<0.1% per ASTM D570), making these profiles ideal for high-humidity environments such as bathrooms, kitchens, and basements where natural wood warps and natural marble suffers efflorescence.
Lightweight Construction Solid PVC profiles at 1.40–1.50 g/cm³ density weigh approximately 60–70% less than equivalent natural marble sections, simplifying transportation, handling, and on-site installation without heavy lifting equipment. Foam-core variants at 0.55–0.75 g/cm³ density further reduce weight by an additional 50%.
Fire-Rated B1 Classification Achieves B1 flame-retardant rating per GB 8624-1997 (equivalent to EN 13501-1 B-s1,d0), meeting stringent building code requirements for interior wall and ceiling materials in commercial and residential construction.
Formaldehyde-Free & Low VOC PVC formulation is inherently formaldehyde-free with low volatile organic compound emissions, compliant with indoor air quality standards including GB 18580 and California CARB Phase 2, contributing to green building certifications (LEED, BREEAM).
Fast Installation Workflow Profiles can be cut on-site with standard woodworking tools, attached via construction adhesive or mechanical clips — eliminating wet trades (cement mortar mixing, grouting) required for natural stone installation. Installation speed is typically 3–5× faster than natural marble trim.
Wide Processing Window Single formulation runs both solid and foam-core profiles by adjusting blowing agent content and die temperature profile. The SJS extruder's optimized screw design maintains melt homogeneity across a broad PVC compound viscosity range, minimizing formulation sensitivity.
PVC Formulation & Dry Blending — PVC resin, CaCO₃ filler, stabilizers, lubricants, impact modifiers, and pigments are metered and mixed in a plastic heating mixer at 110–120°C, then cooled to 40°C for storage-ready dry blend.
Single Screw Extrusion — Dry blend is fed through a hopper dryer into the single screw extruder, where it is plasticated at barrel temperatures of 155–195°C and forced through a profile die to form the continuous profile shape.
Vacuum Calibration & Cooling — The hot profile enters a multi-zone vacuum calibration table, where external vacuum and internal air pressure shape the profile against precision calibrators. Water spray cooling from the chiller sets the final dimensions within ±0.3 mm tolerance.

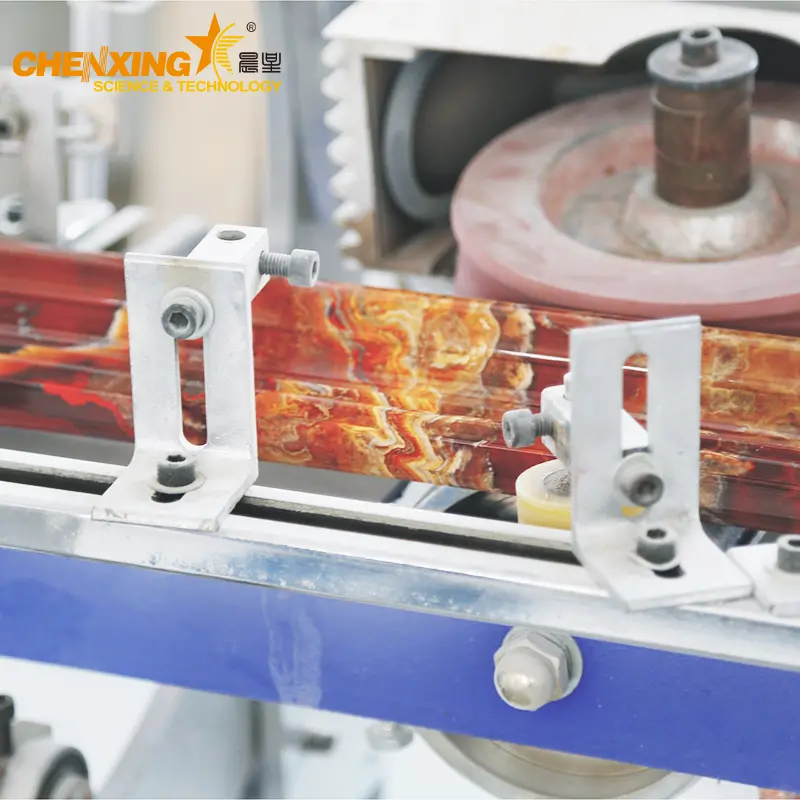

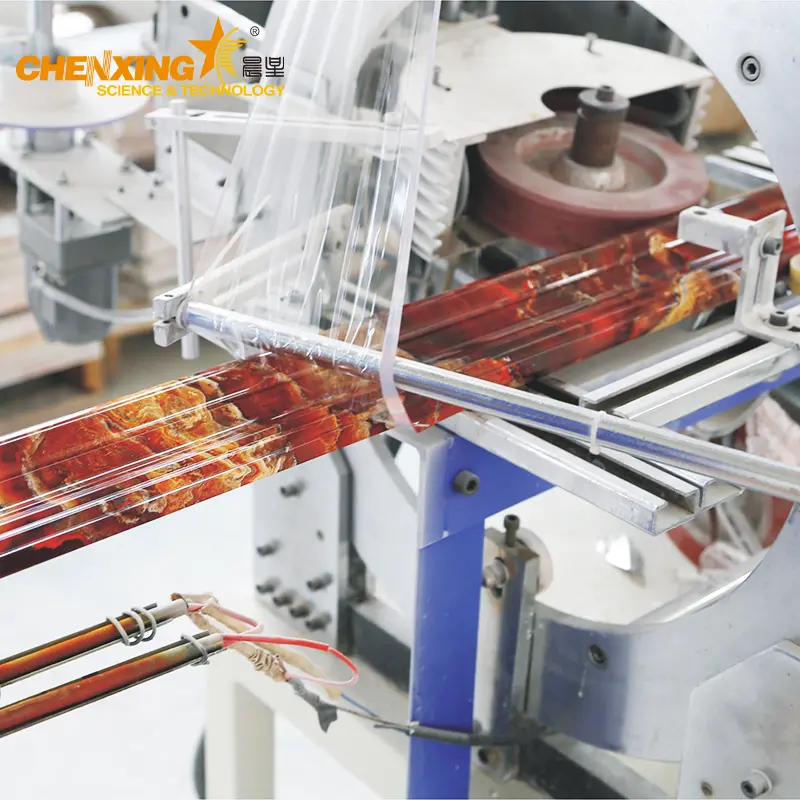

Marble Surface Application — The cooled profile passes through either a heat transfer printing station (160–200°C roller transfers marble pattern from PET film at 2–5 m/min) or a co-extrusion die (ASA/PMMA marble-effect cap layer applied by a secondary extruder). For textured finishes, an optional plastic embossing machine embosses synchronous wood-grain or stone texture.
Haul-off & Precision Cutting — Dual-belt caterpillar haul-off unit pulls the finished profile at controlled speed. An automatic cutting machine with servo length control cuts profiles to programmed lengths, with cut-length accuracy of ±1.0 mm.
Stacking & Packaging — Cut profiles are automatically stacked, counted, and packaged in protective shrink-wrap or cartons, ready for warehouse storage or container loading.
For material recycling integration, explore our shredder extruder recycling and plastic pelletizer machine products. Related extrusion lines include the PVC pipe extrusion line and PVC roof tile extrusion line.
Two proven technologies are available. Heat transfer printing uses a heated silicone roller (160–200°C, PID-controlled to ±1°C) to transfer marble patterns from pre-printed PET film onto the profile surface at linear speeds of 2–5 m/min. This method is cost-effective for interior applications, delivering a durable surface with 15+ years indoor service life. Co-extrusion applies a 0.1–0.5 mm ASA or PMMA cap layer compounded with marble-effect pigments directly during extrusion, forming a UV-stable, weather-resistant surface suitable for 5–8 years of outdoor exposure. For indoor decorative profiles, heat transfer printing is recommended for its lower capital investment and faster pattern changeover.
A single line can produce all six standard profile shapes (flat trim, crown molding, baseboard, corner bead, window casing, door frame) within a profile envelope of ∅50–200 mm. Die and calibrator changeover takes 30–60 minutes per profile type. For efficient multi-shape production, we recommend batching: run a minimum of 2,000–3,000 linear meters per shape before changeover to amortize setup time. The quick-change clamp system on the vacuum calibration table reduces mechanical alignment time by approximately 40% compared to traditional bolt-down calibrator mounting.
Based on a solid profile cross-section of 12 mm × 80 mm (960 mm²) at PVC density 1.45 g/cm³ (1.392 kg/m), and an 8-hour shift:
| Model | Motor Power | Typical Output | Per-Hour Output | Daily Output (8h) |
|---|
| SJS251 | 15 kW | ~40 kg/h | ~29 m/h | ~230 m |
| SJS255 | 22 kW | ~65 kg/h | ~47 m/h | ~375 m |
| SJS285 | 37 kW | ~105 kg/h | ~75 m/h | ~600 m |
| SJS250 | 55 kW | ~160 kg/h | ~115 m/h | ~920 m |
Actual output varies with profile cross-section, foam/solid ratio, and marble surface process speed. Larger hollow profiles and foam-core structures increase linear meter output proportionally.
The cost advantage is substantial across three dimensions:
| Cost Factor | PVC Artificial Marble | Natural Marble |
|---|
| Raw Material | PVC compound: $0.8–1.2/kg | Cut stone: $15–50/linear meter |
| Installation Method | Adhesive or clip fixing — no wet trades | Cement mortar — requires skilled masons |
| Installation Labor | ~0.15–0.25 h/m | ~0.5–1.0 h/m |
| Weight (per m, 80×12 mm) | ~1.1 kg/m | ~3.8 kg/m |
| Transport Cost | Lightweight, high-density packing | Heavy, fragile, high breakage loss |
Total installed cost for PVC marble profiles is typically 30–50% lower than natural marble, with the added benefit of faster project completion and reduced structural load on partition walls.
Three interlocking control systems ensure consistency throughout multi-shift production runs:
Film Tension Control: Closed-loop servo maintains heat transfer film tension at ±0.5 N, preventing pattern stretching or compression across the profile surface.
Temperature PID Accuracy: Multi-zone silicone roller heating with ±1°C PID control eliminates hot spots that cause uneven ink transfer or film scorching.
Film Registration: Automatic edge-guide alignment maintains lateral film position within ±0.5 mm, ensuring vein patterns align consistently along the profile length.
For high-volume export orders, we also offer an inline CCD vision inspection option that captures 30 frames/m and compares each frame against a golden-sample reference, automatically flagging deviations exceeding preset thresholds. For ongoing operational insights, follow our news page for case studies and technical articles.
Proven Extrusion Platform Our SJS series single screw extruder has been deployed in over 500 production lines across 40+ countries since 2005. The bimetallic barrel and nitride-hardened screw deliver a service life exceeding 30,000 operating hours on standard rigid PVC formulations, minimizing downtime and replacement costs.
Integrated Turnkey Delivery From plastic heating mixer and vacuum conveyor loader through chiller, pipe coiler, and packaging — every component is sourced, tested, and commissioned by our engineering team. You receive a single point of accountability for the entire line.
Custom Die Engineering Our in-house die design team creates profile dies tailored to your exact cross-section specification. Flow channel simulation software optimizes melt distribution before steel is cut, reducing trial-and-error iterations and bringing new profiles to production faster.
Global After-Sales Support Remote troubleshooting via live video, on-site commissioning by experienced engineers, and a comprehensive spare parts inventory ensure your line maintains maximum uptime regardless of your location. For inquiries, contact us.
Start your PVC artificial marble profile manufacturing project in 4 steps:
Step 1 — Define Your Profile Send us your target cross-section drawings (PDF or CAD), desired marble pattern, and estimated monthly output volume.
Step 2 — Receive Customized Proposal Our engineering team evaluates your requirements and returns a complete line configuration with quotation within 48 hours, including extruder sizing, die design proposal, and factory layout drawing.
Step 3 — Factory Visit & Trial Run Visit our manufacturing facility in Zhangjiagang, China, to witness a live trial run producing your actual profile with your selected marble pattern, or join via remote video demo.
Step 4 — Production, Delivery & Commissioning Standard lead time: 45–60 days. Our commissioning engineers arrive on-site for installation, training, and first-article sign-off.
