Product Description
In modern plastics processing, efficient material handling is just as important as extrusion, mixing, and dosing accuracy. Manual feeding methods often lead to labor inefficiencies, material contamination, dust pollution, inconsistent feeding rates, and increased operating costs.

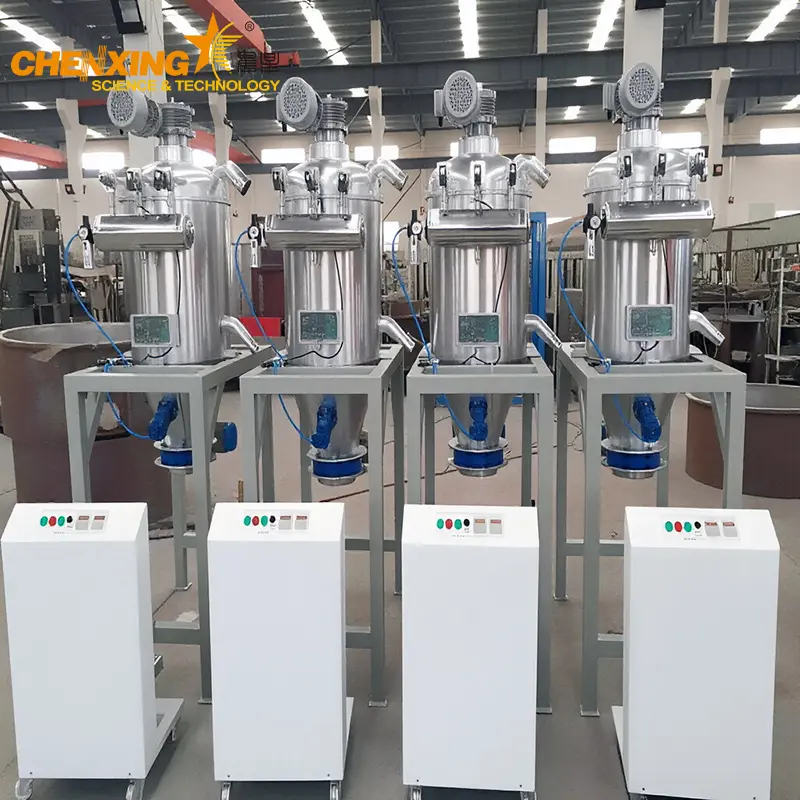

The Vacuum Conveyor Loader, also known as a Negative Pressure Vacuum Loader, is designed to automatically transport plastic powders, pellets, granules, and blended materials from storage points to mixers, batching systems, extruders, and processing equipment through a fully enclosed vacuum conveying system.
Manufactured by Zhangjiagang Chenxing Machinery Co., Ltd., this intelligent conveying solution significantly improves production automation, reduces labor costs, and creates a cleaner and safer manufacturing environment.
A Vacuum Conveyor Loader is a negative-pressure pneumatic conveying system that uses vacuum suction generated by a blower to transport materials through pipelines to designated destinations.
The system is widely used for:
Plastic powder conveying
Plastic pellet conveying
PVC resin feeding
Compound material transportation
Automatic batching systems
Extrusion production lines
Chemical powder handling
Centralized feeding systems
Unlike traditional manual feeding, vacuum conveying enables fully enclosed and dust-free transportation of materials throughout the production process.
Many factories still rely on manual feeding methods, which often result in:
High labor costs
Dust pollution
Material loss
Feeding inconsistencies
Production interruptions
Workplace safety concerns
As labor costs continue rising globally, manufacturers are increasingly adopting automated conveying solutions to improve efficiency and production consistency.
A Vacuum Conveyor Loader eliminates these challenges while supporting smart factory automation initiatives.
The system operates based on vacuum negative-pressure conveying technology.
A high-efficiency vacuum blower creates negative pressure inside the conveying pipeline.
Plastic powders, pellets, or blended materials are drawn from storage silos, bags, hoppers, or containers.
Materials travel through enclosed pipelines to the target equipment.
A multi-stage filtration system separates materials from conveying air.
Materials are automatically discharged into:
Mixers
Batching systems
Storage hoppers
Extruders
Processing machines
The entire process is automated and requires minimal operator intervention.
The system adopts a completely enclosed conveying structure.
Benefits include:
Cleaner workshops
Improved employee safety
Reduced material waste
Environmental compliance
This feature is particularly important when handling PVC powder, calcium carbonate, additives, and other fine materials.
According to application requirements, the system can achieve conveying capacities from:
Depending on:
Material characteristics
Conveying distance
Blower configuration
Pipeline design
This makes the system suitable for both small-scale and large-scale production facilities.
Suitable for:
PVC resin powder
Calcium carbonate
Additives
Fillers
Pigments
Chemical powders
PE pellets
PP pellets
ABS granules
PET flakes
Recycled plastic pellets
Masterbatch materials
PVC dry blends
Compound formulations
Customized plastic formulations

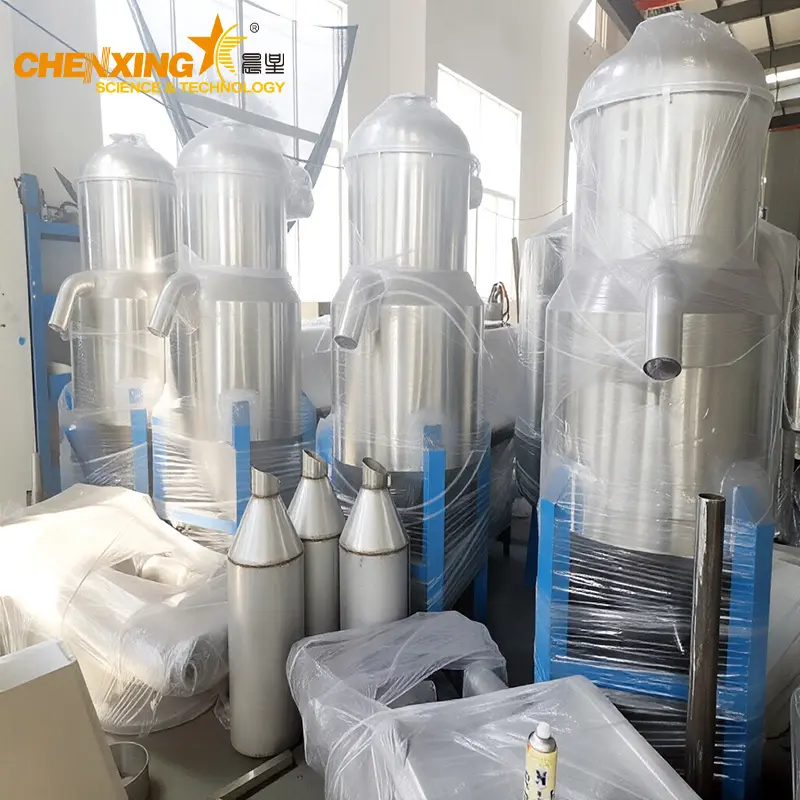

The system utilizes:
Six-stage filtration design
Special filter cartridge protection
Large filtration area
Advantages include:
Superior dust collection efficiency
Extended filter lifespan
Stable vacuum performance
Reduced maintenance requirements
The filter assembly adopts a quick-open structure for:
Fast cleaning
Easy inspection
Reduced downtime
Simplified maintenance
This is especially beneficial in facilities processing fine PVC powders and dusty materials.
The vacuum loader can be integrated with:
Automatic weighing systems
Gravimetric dosing systems
Mixing units
Extrusion lines
Centralized feeding systems
Achieving a fully automated material handling process.
| Item | Specification |
|---|---|
| Material Type | Powder, Granules, Mixed Materials |
| Particle Size | ≤300 Mesh |
| Conveying Capacity | 0–3 T/H |
| Blower Power | 5.5kW / 7.5kW / 11kW / 15kW / 18kW / 22.5kW |
| Air Pipe Diameter | 63mm |
| Material Pipe Diameter | 51mm |
| Vacuum Pump Type | Regenerative Blower / Roots Blower |
| System Configuration | Single Station or Multi-Station |
| Control System | Integrated Electrical Control Cabinet |
Suitable for:
Small and medium conveying capacities
Lower operating costs
Flexible installation
Available power options:
5.5kW Single Stage
5.5kW Double Stage
7.5kW Single Stage
7.5kW Double Stage
11kW Double Stage
Suitable for:
Long-distance conveying
Large-scale production
Centralized feeding systems
Available configurations:
One-to-Two Stations – 7.5kW
One-to-Three Stations – 7.5kW
One-to-Four Stations – 11kW
One-to-Five Stations – 11kW
One-to-Six Stations – 15kW
One-to-Seven Stations – 15kW
Automatically conveys PVC resin powder and additives into:
High-speed mixers
Cooling mixers
Batching systems
Reducing dust emissions and labor dependency.
Ensures continuous material feeding to:
Mixing systems
Extrusion equipment
Dosing units
Improving production stability.
Efficiently handles:
Wood flour
PVC powder
Additives
Coupling agents
Providing accurate and consistent material transportation.
Suitable for conveying:
Recycled pellets
Plastic flakes
Regrind materials
Masterbatch additives
Supporting automated recycling operations.

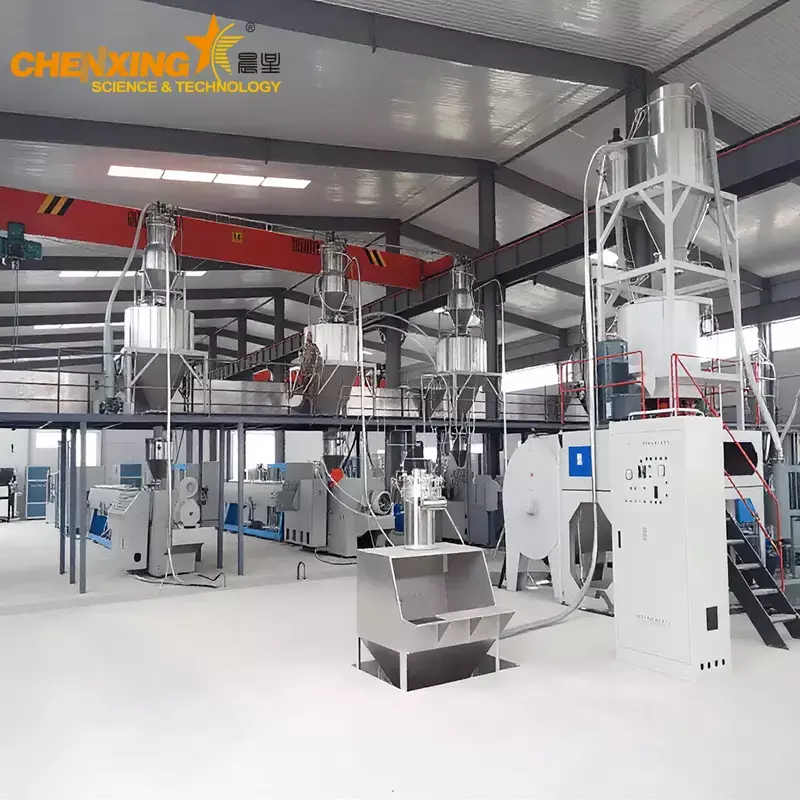

Ideal for factories implementing:
Smart manufacturing
Centralized raw material storage
Multi-machine feeding networks
Helping create a highly automated production environment.
| Feature | Manual Feeding | Vacuum Conveyor Loader |
|---|---|---|
| Labor Requirement | High | Low |
| Dust Pollution | High | Minimal |
| Material Loss | Higher | Very Low |
| Production Efficiency | Moderate | High |
| Automation Level | Low | High |
| Product Consistency | Variable | Stable |
| Workplace Safety | Lower | Improved |
With more than two decades of experience in plastic processing and material handling equipment manufacturing, Chenxing Machinery provides customized vacuum conveying solutions tailored to customer production requirements.
Our strengths include:
Turnkey material handling solutions
Custom conveying capacity design
PLC automation integration
Multi-station feeding systems
Global project experience
International after-sales support
OEM and customized manufacturing
We serve customers in:
North America
South America
Europe
Middle East
Southeast Asia
Africa
The system can handle powders, granules, pellets, dry blends, additives, fillers, and many other plastic processing materials.
Yes. The Vacuum Conveyor Loader is specifically designed for PVC powder conveying and is widely used in PVC pipe, profile, sheet, and flooring production plants.
The standard system supports capacities up to 3 tons per hour, with customized solutions available for larger projects.
Yes. Roots blower configurations support one-to-multiple station feeding systems, making them ideal for centralized feeding applications.
Yes. Depending on blower selection and pipeline design, the system can efficiently transport materials over long distances within industrial facilities.
Absolutely. The enclosed conveying design and advanced filtration system significantly reduce dust emissions and improve workplace cleanliness.
Whether you are building a new PVC production facility, upgrading a plastic recycling line, or implementing a centralized feeding system, Chenxing Machinery can provide a customized Vacuum Conveyor Loader solution tailored to your material characteristics, plant layout, and production capacity.
Contact our engineering team today for a professional consultation and customized quotation.
