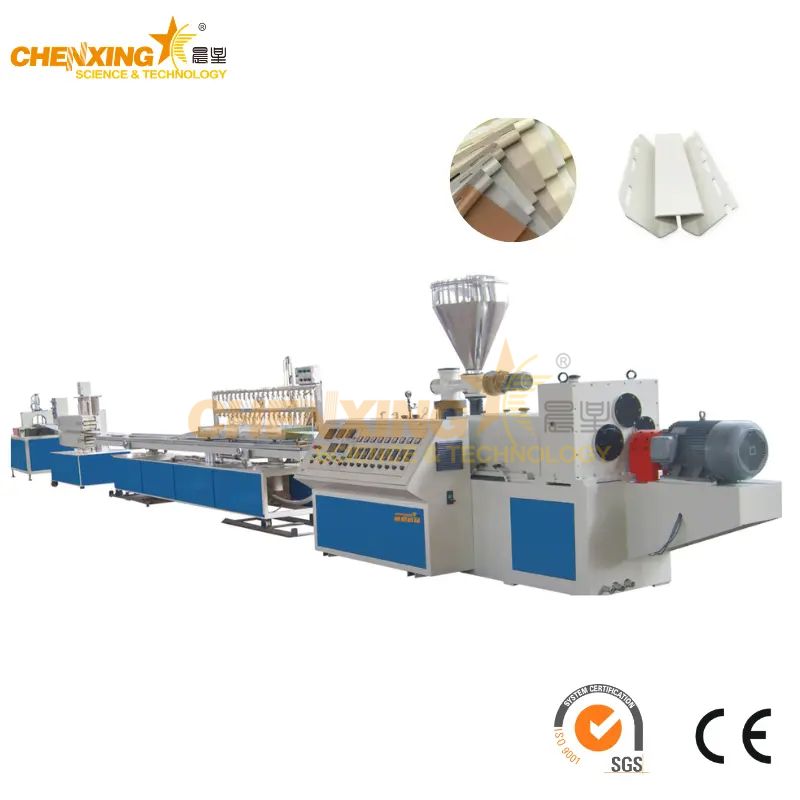

A PVC soffit panel extrusion line differs fundamentally from a standard profile extrusion setup in that it must integrate surface texturing, multi-pattern inline punching, and precision lamination into a single continuous production sequence — all while maintaining a total line length under 29 meters and processing a CaZn-stabilized, highly filled NPI formulation at 220–250 kg/h. In a conventional PVC pipe production line or window profile line, the post-extrusion stations are relatively straightforward: calibration, cooling, haul-off, and cutting. For soffit panels used in exterior eave and overhang applications, the product must simultaneously meet structural rigidity, weather resistance, ventilation performance, and aesthetic surface finish — four requirements that pull equipment design in competing directions.
The global PVC soffit panel market is projected to grow at a compound annual rate exceeding 5% through 2030, driven by residential construction activity in North America, Southeast Asia, and the Middle East. As building codes increasingly mandate continuous soffit ventilation for attic moisture management, demand for ventilated PVC soffit panels with precise full-vent and center-vent slot patterns continues to rise. This creates a clear market incentive for extrusion plants to invest in integrated, high-automation production lines — rather than piecing together separate embossing and punching stations from multiple vendors, which introduces synchronization risk and extends commissioning timelines.
This technical guide deconstructs the engineering decisions behind a complete PVC soffit panel extrusion line, using real-world configuration parameters as a reference framework. Each section examines not just what the equipment specification is, but why that choice was made and how it impacts production outcomes.
The conical twin screw extruder, designated 65/132 (65 mm screw diameter at the feed section tapering to 132 mm at the discharge end), represents a deliberate engineering trade-off between processing stability and output capacity. For a target throughput of 220–250 kg/h processing an NPI soffit formulation with 50–70 phr CaCO₃ loading, this extruder size sits in an optimal operating window.
Thermal sensitivity of CaZn formulations. CaZn (calcium-zinc) stabilizer systems, now mandated in most export markets as lead-based alternatives are phased out, exhibit narrower thermal processing windows than traditional lead-stabilized PVC compounds. The degradation onset temperature for CaZn-stabilized rigid PVC typically falls in the 190–200 °C range — roughly 15–20 °C lower than lead-stabilized equivalents. A conical twin screw geometry provides inherently better shear rate distribution across the screw profile compared to a parallel twin screw of equivalent L/D, reducing localized shear heating that could push melt temperature toward the degradation threshold. The comparatively larger flight depth at the feed section (corresponding to the 132 mm discharge diameter) ensures gentle material intake with minimal frictional pre-heating before the compound enters the compression zone.
Throughput-to-torque ratio. At 220–250 kg/h output, the 65/132 conical configuration operates at approximately 65–75% of its mechanical torque capacity, leaving meaningful headroom for formulation variations without risking screw stall. This is important when running NPI (new product introduction) formulations — the first production batches often require process parameter adjustments as operators dial in the optimal barrel temperature profile, screw speed, and back-pressure settings. A right-sized extruder with capacity buffer avoids the scenario where the machine becomes the bottleneck before the formulation is fully optimized.
Why not a 55/110 or an 80/156? A 55/110 conical twin screw would be pushed to 90%+ of its capacity at 250 kg/h, leaving almost no headroom and increasing susceptibility to output fluctuation from minor feed inconsistencies. An 80/156 would comfortably handle the throughput but represents over-investment in capital cost, higher energy consumption per kilogram of output, and — critically — a longer thermal residence time for the melt, which is detrimental when processing heat-sensitive CaZn formulations. The 65/132 sits at the intersection of adequate throughput, thermal gentleness, and capital efficiency. For complete extrusion line solutions including conical twin screw configurations for various PVC profiles, Chenxing Machinery provides engineered-to-order systems with screw geometry optimized per formulation.
The configuration calls for two embossing rollers: one with a wood grain texture pattern, the other with a plain surface — both positioned inline after the calibrator and before the punching station. This dual-roller architecture addresses a specific market reality: soffit panel buyers often require the option to switch between wood-grain aesthetic panels for visible eaves and smooth-finish panels for less prominent installations, without investing in two separate production lines.
Process sequencing and thermal window. Embossing must occur while the PVC profile surface is still above its glass transition temperature (Tg ≈ 80–85 °C for rigid PVC), but below the point where the profile's internal geometry collapses under roller pressure. This typically means an embossing zone temperature of 105–125 °C at the profile surface. The calibrator exit temperature is normally around 40–60 °C depending on cooling tank configuration, which means the profile must be re-heated to the embossing window. The inline configuration uses residual core heat from extrusion plus a targeted infrared or hot-air pre-heating zone immediately before the embossing nip — more energy-efficient than a complete offline re-heating cycle.
Wood grain roller engineering. A quality wood grain texture roller for PVC soffit applications requires engraving depths of 0.15–0.35 mm with uniform pattern repeat across the full roller width (typically 400–600 mm for soffit panel tooling). Shallow engraving (<0.10 mm) produces a "printed" look that wears off within months of outdoor exposure; excessively deep engraving (>0.40 mm) risks tearing the profile surface at high line speeds. The roller material is typically hardened chrome-plated steel (58–62 HRC) with a mirror-polished land area surrounding the engraved pattern — the contrast between matte wood texture valleys and glossy land areas is what creates the realistic wood grain visual effect.
Plain surface roller for laminating. The second roller with a flat polished surface serves a different function: it applies uniform pressure across the full profile width for applying decorative or protective film lamination. In laminating mode, the film is fed from an unwind station with tension control (±2 N accuracy), pre-heated to 80–90 °C by an infrared panel, and pressed onto the profile surface by the plain roller at 2–5 bar nip pressure. The smooth roller finish prevents film wrinkling and ensures bubble-free adhesion. Film changeover between wood grain textured and laminated plain finish products can be accomplished by simply engaging the appropriate roller and adjusting the unwind station — no mechanical disassembly required.
Soffit panels serve a dual architectural purpose: they enclose the underside of roof overhangs (eaves) while providing ventilation pathways for attic air circulation. Building codes in North America (IRC 2018/2021 Section R806) and many international standards require a net free ventilating area of at least 1/150 to 1/300 of the attic floor area, depending on vapor barrier configuration. This functional requirement drives the need for two distinct punching patterns.
Full Vent pattern. Full vent slots span a larger portion of the panel width, typically producing an open area ratio of 12–18% of the visible surface. The punch tooling for full vent uses multiple staggered rows of rectangular punches (typically 3 mm × 25 mm slots at 5–8 mm pitch) arranged to maximize airflow while maintaining the panel's longitudinal bending stiffness. The critical engineering challenge is punch synchronization — at line speeds of 2.5–3.5 m/min (corresponding to 220–250 kg/h for a typical soffit profile weighing 1.2–1.8 kg/m), the punching head must cycle at 60–120 strokes per minute. Servo-driven punch actuation with position feedback from the haul-off encoder is essential; pneumatic systems lack the repeatability for consistent slot geometry at these cycle rates.
Center Vent pattern. Center vent concentrates ventilation slots along a narrow central band (typically 40–80 mm wide), leaving wider solid margins on both sides for structural integrity and fastener placement. The open area ratio for center vent is typically lower — 6–10% — prioritizing panel strength over maximum airflow. This pattern is specified for applications where the soffit runs parallel to the roof joists and additional structural fastening points are needed at the panel edges. Center vent tooling uses a single punch row aligned with the profile's longitudinal centerline, which simplifies punch head design but requires tighter lateral guidance to prevent drift of the slot pattern from the centerline.
Quick-change tooling interface. The specification implies the ability to switch between full vent and center vent patterns with minimal downtime. A practical implementation uses a modular punch cassette system where each pattern is pre-mounted on a standardized base plate with locating dowels and quick-release hydraulic clamps. Cassette changeover time is typically under 30 minutes, compared to 3–4 hours for traditional bolted tooling changes that require re-alignment with dial indicators. For manufacturers producing both vent pattern types in alternating production runs, this difference translates to approximately 15–20 additional production days per year.
Punch quality considerations for CaZn formulations. CaZn-stabilized PVC tends to exhibit slightly higher brittleness at the punching station compared to lead-stabilized equivalents, particularly if the formulation's impact modifier content was not adjusted to compensate for the different stabilizer chemistry. This manifests as micro-cracking at the punch hole edges — visually invisible but creating stress concentration points that can propagate under thermal cycling. Mitigation strategies include: (1) heated punch tooling maintained at 40–50 °C to locally soften the material during penetration, (2) optimized punch-to-die clearance of 3–5% of material thickness, and (3) punch geometry with a slight shear angle (2–3°) on the cutting face to reduce peak punching force by 20–30%.
The tooling package — T-die, calibrator, and tooling for three soffit product sections — defines the boundary between extruder output and finished product geometry. Each component imposes different constraints that must be resolved collectively.
T-Die design for highly filled PVC. A T-die (also called a coat-hanger die) distributes melt from the extruder outlet — a circular cross-section — into a wide, thin rectangular flow suitable for profile formation. For a formulation with 50–70 phr CaCO₃, the die flow channel geometry must account for significantly higher melt viscosity compared to unfilled PVC. The flow channel is typically designed with a compression ratio of 2.5:1 to 3.5:1 and a manifold cross-section that narrows progressively from the center inlet toward the die edges to maintain uniform flow velocity across the full width. Manifold sizing follows the principle that the pressure drop across the die lips should dominate (>80% of total die pressure drop) to ensure flow distribution is insensitive to minor melt temperature or viscosity variations.
Die lip material selection also changes with CaCO₃ loading: at 50 phr and above, abrasive wear on die lip surfaces accelerates, particularly at the exit edges where melt emerges at maximum velocity. Hard chrome plating (minimum 20 μm thickness, 850–1000 HV hardness) or nitrided steel (62–65 HRC surface) is recommended over standard tool steel to achieve acceptable die lip service life of 12–18 months between refurbishment.
Calibrator — fixing the geometry. The calibrator (dry calibration sleeve or vacuum calibration tank) locks the extrudate into its final cross-sectional dimensions using a combination of external vacuum (typically -0.3 to -0.6 bar) and water-cooled contact surfaces that rapidly cool the profile skin below Tg. For a soffit panel with three distinct cross-sectional sections (each section corresponding to a different product width or profile geometry), the calibrator must be a multi-cavity design with independent vacuum channels per cavity. This prevents cross-talk where a vacuum fluctuation in one cavity disturbs the calibration of adjacent cavities.
Calibrator length is determined by the cooling rate required: at 250 kg/h output with a 50 phr CaCO₃ formulation, the specific heat capacity of the compound is approximately 1.2–1.4 kJ/(kg·K), and the melt must drop from approximately 185 °C (die exit) to below 85 °C (Tg) before exiting the calibrator. This requires extracting roughly 250–300 MJ of thermal energy per hour, distributed across calibrator water channels with a temperature differential of 10–15 °C. A calibrator length of 1.5–2.0 meters per section is typical.
3-section tooling strategy. The reference to "3 sections" indicates that a single production line is tooled to produce three different soffit panel geometries — for example, a 300 mm solid soffit, a 400 mm full-vent soffit, and a 500 mm center-vent soffit. Rather than fabricating three completely independent die-and-calibrator sets (prohibitively expensive at 30,000 per set), the engineering approach uses a modular die body with interchangeable lip inserts and a calibrator housing that accepts swappable cavity inserts. The T-die body and calibrator frame remain mounted on the line; only the geometry-specific inserts are changed during product changeover. This reduces tooling cost by approximately 40–50% compared to three independent sets and cuts changeover downtime by a similar proportion.
The NPI soffit profile formulation specified — CaZn stabilizer system with 50–70 phr CaCO₃ — represents the current industry trajectory for rigid PVC building products. Understanding how this formulation interacts with processing equipment is essential for preventing production defects and achieving consistent output.
CaZn stabilizers function through a fundamentally different mechanism than traditional lead stabilizers. Lead-based systems neutralize HCl evolved during PVC thermal degradation by forming stable lead chlorides; the reaction is rapid and the stabilizer consumption rate is relatively predictable across processing temperatures. CaZn systems rely on a more complex synergistic mechanism: the zinc component rapidly scavenges initial HCl release (forming ZnCl₂), while calcium soaps act as secondary stabilizers that regenerate the zinc species and prevent the autocatalytic degradation cascade that ZnCl₂ would otherwise trigger. This two-step stabilization is kinetically more temperature-sensitive than lead stabilization — a 5 °C overshoot in melt temperature that would be tolerable with lead stabilizer can push a CaZn formulation past the point where zinc consumption outpaces calcium regeneration, leading to sudden degradation onset ("zinc burning").
Equipment design implications for CaZn processing:
Barrel temperature profile must be flatter. With lead stabilizers, a distinct temperature ramp from feed zone (160–170 °C) to metering zone (180–190 °C) is standard. CaZn formulations benefit from a flatter profile (170–175 °C across all zones) to avoid localized thermal spikes.
Screw cooling is essential. A temperature-controlled screw core (oil circulation at 120–140 °C) prevents screw surface overheating at high compression ratios, which would otherwise create a thin layer of degraded material on the screw root.
Residence time must be minimized. The 65/132 conical twin screw configuration discussed earlier — with its shorter axial length for equivalent output compared to a parallel twin screw — provides inherent residence time advantage for CaZn processing.
Calcium carbonate at 50–70 phr loading is not merely a cost-reduction filler; it fundamentally alters the rheology, mechanical properties, and processing behavior of the PVC compound. At 50 phr (approximately 33% by weight), the compound cost is reduced by roughly 15–20% compared to an unfilled formulation, while flexural modulus increases by 30–50% — a beneficial property for soffit panels that must span between rafter tails without sagging. Impact strength, however, drops proportionally, requiring compensation through impact modifier content (typically acrylic or CPE at 4–8 phr).
Processing challenges at high filler loading:
The melt viscosity of a 60 phr CaCO₃ rigid PVC compound is approximately 40–60% higher than an unfilled equivalent at the same temperature. This affects every downstream unit operation:
Extruder motor load increases proportionally; the main motor rating for a 65/132 conical twin screw must be at minimum 37 kW (ideally 45 kW) to maintain 250 kg/h throughput without overcurrent trips.
Die pressure at the T-die manifold rises by 30–50%, requiring robust die body construction (minimum 30 mm wall thickness for a 500 mm wide die) to prevent die lip deflection that would cause thickness variation across the panel width.
Calibrator vacuum may need to be increased to -0.5 to -0.7 bar because the higher filler content reduces the melt's tendency to conform to calibration surfaces under vacuum — the filler particles resist flow even in the semi-molten state.
Punching force increases approximately 20–30% at 70 phr versus 50 phr because CaCO₃ acts as an abrasive that dulls punch edges faster and because the filled compound exhibits higher resistance to shear during punch penetration.
Feeding system adaptation. At 50–70 phr, the compound's bulk density is significantly higher (approximately 0.75–0.85 g/cm³ for dry blend versus 0.55–0.65 g/cm³ for unfilled PVC), which affects volumetric feeder calibration. Gravimetric feeding with loss-in-weight measurement is recommended over volumetric screw feeding to maintain consistent extruder throughput despite bulk density variations between compound batches. Upstream, the high-speed mixer must achieve discharge temperatures of 120–130 °C to ensure complete absorption of liquid stabilizers and lubricants onto the PVC primary particles before CaCO₃ is incorporated; insufficient hot mixing results in filler agglomeration that manifests as surface roughness and reduced impact strength in the finished profile.
A recurring theme in NPI profile production is that the formulation and the equipment cannot be developed independently. The T-die compression ratio, calibrator vacuum channel design, embossing roller temperature setpoint, and punching tool clearance must all be dialed in for a specific compound composition. When Chenxing Machinery engineers a complete plastic extrusion machinery line for a customer's proprietary formulation, the process includes material characterization trials — measuring melt flow rate, thermal stability time, and fusion behavior — before finalizing equipment specifications. This co-design approach prevents the all-too-common scenario where a well-built extrusion line fails to produce acceptable product simply because it was designed around a generic PVC formulation that differs from the customer's actual compound.
The electrical specification calls for Fuji Electric (Japan) frequency inverters driving all motors, controlled by a Siemens S7-1200 PLC as the central automation controller. This pairing reflects a deliberate "best-of-breed" component selection strategy that optimizes both drive performance and system integration capability.
Frequency inverters (variable frequency drives, VFDs) in an extrusion line govern the rotational speed of the main extruder motor, the embossing roller drives, the haul-off (puller) unit, the punching machine servo, and various auxiliary motors (vacuum pumps, cooling water circulation, film unwind). Inverter selection impacts three operational dimensions: speed accuracy, torque response, and energy efficiency.
Fuji Electric inverters — models such as the FRENIC-Ace or FRENIC-Mini series — offer several characteristics aligned with extrusion line requirements:
Speed regulation accuracy of ±0.01% (with encoder feedback in vector control mode), which translates to haul-off speed stability within ±0.03 m/min at a typical soffit line speed of 3 m/min. Speed variation is the dominant cause of longitudinal thickness deviation in extruded profiles; every 1% speed fluctuation in the haul-off produces a corresponding 1% thickness variation.
Torque control mode for the main extruder drive, allowing the PLC to maintain constant melt pressure at the die by modulating screw speed in response to pressure transducer feedback — a closed-loop control strategy that reduces output variation from ±3–5% (open-loop speed control) to ±1–2%.
Built-in PID functionality in the inverter itself for subordinate control loops (e.g., maintaining embossing roller temperature through IR heater power modulation), reducing PLC scan cycle loading.
Extensive fieldbus connectivity (PROFIBUS-DP, PROFINET, Modbus RTU/TCP) enabling direct data exchange with the Siemens S7-1200 without protocol converters.
The S7-1200 is Siemens' mid-range PLC platform positioned for standalone machine control and small-to-medium automation cells. For a complete soffit panel extrusion line with 5–8 drive axes, 20–30 temperature control zones, and 50–80 digital I/O points, the S7-1200 (likely a CPU 1215C or 1217C with distributed I/O modules) provides:
Native PROFINET communication to Fuji inverters equipped with PROFINET option cards, enabling drive parameter read/write, alarm monitoring, and speed setpoint transmission over a single industrial Ethernet cable rather than discrete analog I/O wiring.
Scalable I/O through ET 200SP distributed modules located at each major machine station (extruder, embossing unit, punching station, haul-off, cutter), reducing field wiring by running a single PROFINET trunk cable with local I/O drops.
Integrated web server functionality, allowing plant managers to monitor line status, temperature profiles, production counters, and alarm logs from any browser on the factory network or remotely via VPN.
Recipe management built into the PLC, storing process parameters for each of the three soffit product sections — when the operator selects "Product Section 2" from the HMI, the PLC loads the corresponding barrel temperatures, screw RPM, line speed, embossing roller temperature, and punch pattern selection, reducing changeover setup errors.
A secondary benefit of the Fuji + Siemens combination is the ability to track specific energy consumption (kWh per kilogram of finished soffit panel) in real time. Fuji inverters report motor current, voltage, and power factor over the fieldbus; the S7-1200 accumulates these values into production shift reports. This data enables operators to detect energy efficiency drift — for example, a gradual 5–10% increase in extruder specific energy over several weeks may indicate screw wear or compound formulation changes requiring investigation. At current industrial electricity rates in most markets (1,080–2,025 per year in avoidable cost.
The requirement to keep the entire extrusion line under 29 meters total length imposes a spatial constraint that ripples through every equipment layout decision. In a typical PVC profile extrusion line without space restrictions, the sequence — extruder, die, calibrator, cooling tanks (often 3–4 tanks totaling 12–18 meters), embossing unit, punching machine, haul-off, cut-off saw, and stacking table — can easily exceed 35 meters. Reducing this to under 29 meters requires deliberate design compression without sacrificing the cooling capacity or functional station spacing needed for quality production.
Strategy 1: Integrated calibrator-cooling section. Instead of a separate calibrator block followed by discrete water tanks, an integrated vacuum calibration and cooling section combines the calibrator, spray cooling, and immersion cooling into a single compact module. By routing cooling water through a counter-flow configuration (coldest water at the module exit, progressively warmer water toward the calibrator inlet), the thermal gradient is managed within a 4–5 meter module versus 6–8 meters for separate units. This alone recovers 2–3 meters.
Strategy 2: Embossing immediately after calibration. The conventional layout places the embossing unit after the cooling tanks, requiring the profile to be at near-ambient temperature and then re-heated to embossing temperature (105–125 °C). By positioning the embossing unit between the calibrator exit and the first cooling tank — where the profile surface is still at 55–70 °C — the re-heating energy requirement is reduced by approximately 60%, and the auxiliary heating zone can be shortened from 1.5 meters to 0.8 meters. This compacts the embossing station footprint.
Strategy 3: Vertical stacking of auxiliary equipment. Water temperature control units, vacuum pumps, film unwind stands, and pneumatic supply systems are floor-standing units that consume significant footprint alongside the line. Mounting these on elevated platforms or mezzanine structures above the main line recovers 2–4 meters of floor length. The trade-off is more complex piping and slightly reduced accessibility for maintenance — a compromise that must be explicitly evaluated with the plant engineering team.
Strategy 4: Combined haul-off and punching station. The haul-off (caterpillar puller) and the inline punching machine can be integrated into a single frame where the haul-off belts provide the product transport through the punching zone, eliminating the gap between separate haul-off and punching stations. The punching head is mounted on a bridge structure above the haul-off belts, with the anvil integrated into the lower belt support plate. This integration saves 1.5–2 meters but requires precise synchronization between the haul-off encoder (which tracks product position) and the punch servo (which triggers at the correct slot interval).
Strategy 5: Compact cut-off and stacking. The cut-off saw and stacking table at the line exit are often the most space-inefficient stations, with long run-out tables for product accumulation before manual bundling. A flying cut-off saw with synchronized product clamping cuts panels to length without stopping the line, and an automatic stacking robot with a compact footprint (2–3 meters) replaces a 4–6 meter manual stacking table. This recovers 2–3 meters at the line exit.
| Station | Conventional (m) | Optimized (m) | Saving (m) |
|---|---|---|---|
| Extruder + Die | 5.0 | 5.0 | 0 (fixed) |
| Calibrator + Cooling | 12.0 | 8.5 | 3.5 |
| Embossing + Laminating | 3.5 | 2.5 | 1.0 |
| Punching + Haul-off | 5.0 | 3.5 | 1.5 |
| Cut-off + Stacking | 6.0 | 4.0 | 2.0 |
| Inter-station gaps | 4.5 | 4.5 | 0 |
| Total | 36.0 | 28.0 | 8.0 |
The optimized layout at 28 meters provides approximately 1 meter of contingency within the 29-meter limit — sufficient for minor adjustments during installation while still meeting the constraint.
The engineering decisions documented in this guide are not academic — they translate directly to measurable production outcomes that affect profitability, product quality, and operational flexibility.
Production economics. At 250 kg/h output with 90% overall equipment effectiveness (OEE), a single line produces approximately 1,620 metric tons of soffit panel annually (assuming 7,200 operating hours). At a typical value-add of 650,000–970,000 in annual contribution margin. A 5% throughput loss from poorly matched equipment — easily caused by an undersized extruder, misaligned calibrator, or unreliable punching synchronization — erodes $32,000–48,000 per year. The capital cost premium for right-sized, integrated equipment pays back within months, not years.
Quality consistency. Soffit panels are architectural products — end-use customers (homeowners, contractors) judge quality visually. Surface defects (die lines, embossing inconsistencies, punch burrs) and dimensional variation (width tolerance >±1 mm, thickness tolerance >±0.2 mm) directly cause customer rejections and warranty claims. The equipment selections described — from the 65/132 extruder's gentle processing of CaZn compounds to the servo-driven punching with position feedback — are chosen to minimize the root causes of these defects before they reach the finished product.
Product changeover efficiency. The modular tooling (quick-change T-die inserts, swappable calibrator cavities, punch cassette system) and PLC recipe management mean that switching between the three soffit product sections requires hours, not days. For a manufacturer running weekly product rotation, reducing changeover from 8 hours to 2 hours recovers 312 production hours per year — equivalent to gaining 13 additional production days without capital expenditure.
Single-source integration. When the extruder, embossing unit, punching machine, calibrator, and control system come from multiple suppliers, the system integrator role falls to the customer — who must manage compatibility, communication protocols, mechanical interfaces, and commissioning coordination across vendors with different service response times. A single-source supplier offering the complete PVC sheet line and plastic extrusion machinery package eliminates this burden. All mechanical interfaces are pre-engineered, all electrical components communicate on a unified PROFINET network, and commissioning is handled by one team with end-to-end responsibility for line performance. This alone can reduce commissioning time by 40–60% compared to multi-vendor integration.
Yes, with formulation adjustments. Soffit panel production lines built on a conical twin screw extruder 65/132 platform can accept post-industrial PVC regrind at incorporation rates of up to 30% without significant mechanical property degradation, provided the regrind is from the same CaZn-stabilized compound family. Post-consumer PVC recyclate is more challenging — it typically contains mixed stabilizer chemistries, higher contamination levels, and unknown filler content that can disrupt the carefully balanced CaZn stabilization mechanism. For operations planning to use significant recycled content, we recommend a dedicated PVC recycling and re-compounding system upstream of the extrusion line to homogenize the recycled feedstock to a consistent quality before feeding. The extruder screw geometry should also be specified with a vented barrel section to allow volatiles (moisture, residual processing aids from recycled material) to escape, preventing surface defects and internal voids in the finished soffit panel.
The total installed power for a line configured as described — extruder 65/132 (main motor 37–45 kW), calibrator vacuum pump (5.5–7.5 kW), cooling water circulation (4–5.5 kW), embossing unit heating (6–8 kW), punching machine servo (3–5 kW), haul-off (2.2–3 kW), cut-off saw (2.2–3 kW), and auxiliary systems (conveying, controls, lighting: 5–8 kW) — is approximately 65–85 kW. Actual power draw at steady-state production is typically 55–70% of installed power, or roughly 36–60 kW continuous. At 7,200 operating hours annually and 26,000–43,000. Specific energy consumption — the metric that matters for cost per kilogram produced — is 0.16–0.24 kWh/kg, which compares favorably with industry benchmarks for rigid PVC profile extrusion (0.20–0.30 kWh/kg). The Fuji Electric inverters with vector control contribute to this efficiency by operating motors at optimal flux levels rather than fixed voltage-to-frequency ratios that waste energy at partial load conditions.
A realistic commissioning timeline spans 4–6 weeks from equipment arrival at the factory to stable full-rate production. Week 1 covers mechanical installation — positioning equipment, connecting utilities (electricity, water, compressed air), and verifying motor rotation directions. Week 2 is cold commissioning — PLC I/O check, drive parameter configuration, HMI screen verification, and safety system validation. Week 3 begins hot commissioning with actual compound — starting at 50% output and systematically increasing to rated 250 kg/h while tuning barrel temperatures, screw RPM, calibrator vacuum, and haul-off speed to achieve dimensional specification. Weeks 4–5 address fine-tuning — optimizing embossing depth, punching alignment, and cut-off length accuracy — and training operator teams. By week 6, the line should achieve 85–90% OEE with the customer's operators running independently. For customers who need faster ramp-up, Chenxing Machinery provides on-site engineer support beyond the standard commissioning period and offers operator training programs conducted at the Zhangjiagang factory using the customer's actual formulation before equipment shipment, which typically reduces on-site commissioning by 1–2 weeks.
The three most frequent defect categories are: (1) Surface defects — die lines (longitudinal scratches from die lip imperfections), sharkskin (periodic surface roughness from melt fracture at excessive output rates), and burn marks (brown/black discoloration from thermal degradation). Prevention: hard-chrome die lips with 0.05 μm Ra surface finish eliminate die line sources; screw design with optimized compression ratio prevents melt fracture at 250 kg/h; and the flat temperature profile suited for CaZn formulations avoids degradation hot spots. (2) Dimensional defects — thickness variation across the panel width (from die lip deflection or uneven calibrator cooling) and longitudinal thickness waves (from haul-off speed oscillation). Prevention: die body stiffness calculations that limit deflection to <0.02 mm at maximum die pressure, independent calibrator vacuum channels per cavity, and Fuji inverter speed regulation of ±0.01% with encoder feedback. (3) Punching defects — burrs at slot edges, incomplete punch-through, and pattern drift from centerline. Prevention: heated punch tooling (40–50 °C) for CaZn compounds, servo-driven punch actuation with encoder-based position triggering, and self-centering product guides at the punching station inlet. Regular preventive maintenance — cleaning die lips weekly, checking punch blade sharpness every 500 operating hours, and verifying calibrator vacuum seal integrity monthly — catches developing issues before they produce defective product.
Yes, colored soffit panels — tan, beige, gray, brown, and other architectural colors — are producible on the same line configuration with two equipment additions: a gravimetric dosing unit at the extruder feed throat for metering color masterbatch (typically 2–4% by weight, pellet form) into the main PVC dry blend stream, and a dedicated high-speed mixer for pre-blending the color concentrate with a small quantity of base compound to improve dispersion homogeneity. The color changeover process — purging the extruder, die, and calibrator of the previous color — takes approximately 2–4 hours and generates 30–60 kg of transition scrap that can be ground and re-used in dark-colored products. For operations producing multiple colors, a second complete plastic mixing system dedicated to colored compound preparation eliminates cross-contamination risk and reduces changeover time. The embossing unit and punching machine are color-agnostic — they function identically regardless of pigment — but the wood grain visual effect is generally more pronounced on lighter base colors where the shadow contrast from embossing depth is more visible. A plastic pelletizer can be incorporated offline to convert color changeover purge material into reusable pellets, reducing material waste cost.
The space-optimized 29-meter configuration achieves the same rated output (220–250 kg/h) as an unrestricted installation — the constraint is resolved through equipment integration and layout compression, not throughput reduction. However, there are two operational trade-offs to acknowledge: First, the compact cooling section means less thermal buffer capacity — if cooling water temperature fluctuates (e.g., from variations in the plant's central chiller system), the line has less thermal mass to absorb the transient, and the calibrator exit temperature may drift slightly more than on a longer line. A dedicated water temperature control unit with ±1 °C regulation (rather than relying on plant-wide chilled water) mitigates this. Second, the integrated haul-off/punching station provides less space for product inspection and manual intervention between the embossing zone and the cut-off saw. This is compensated by adding in-line vision inspection cameras that automatically detect surface defects and dimensional deviations, alerting operators before defective product reaches the stacking station. For plants evaluating whether to implement a space-constrained layout, the economic analysis should compare the cost of the additional engineering and instrumentation needed for compaction (typically a 5–8% premium on total line cost) against the cost of expanding the factory building — in most industrial real estate markets, the equipment premium is recovered within 18–36 months from avoided construction expenditure.
A complete production plant requires several supporting systems: (1) Material handling — a central vacuum conveying system for transporting PVC resin, CaCO₃, and compound from storage silos or bulk bags to the plastic mixing system and from the mixer to the extruder feed hopper. (2) Compounding — a plastic pelletizer or compounding line if the plant formulates its own compound rather than purchasing pre-compounded material. (3) Scrap recovery — a plastic crusher for start-up scrap, edge trim, and off-spec panels, and a disc grinding pulverizer for reducing crushed scrap to powder for re-incorporation into the extrusion feed stream. A high-efficiency pulverizing system can process 150–300 kg/h of rigid PVC scrap into 40–80 mesh powder, suitable for direct blending with virgin compound. (4) Quality control laboratory — equipment for measuring melt flow rate, thermal stability time, impact strength, weatherometer accelerated weathering, and dimensional inspection. (5) Packaging and warehousing — automatic panel bundling, stretch-wrapping, and forklift-accessible storage racks. For plants implementing closed-loop plastic recycling solutions, the combination of an in-line crusher and pulverizer can recover over 95% of production scrap — reducing virgin material cost by $120,000–180,000 annually at 1,600-ton output with 5% scrap rate, based on typical rigid PVC compound pricing.
The PVC soffit panel extrusion line configuration detailed in this guide — conical twin screw 65/132, inline dual-roller embossing and laminating, servo-driven dual-pattern punching, 3-section modular tooling, CaZn-compatible thermal architecture, Fuji/Siemens electrical system, and sub-29-meter space-optimized layout — represents an engineering synthesis of process knowledge, formulation science, and automation integration. Every parameter discussed — from the 50–70 phr CaCO₃ loading driving higher calibrator vacuum to the 40–50 °C heated punch tooling compensating for CaZn brittleness — is the product of real production experience, not theoretical extrapolation.
