SMP Series Knife Pulverizer for PET Waste — Bottle Flake & Post-Consumer Recycling

The Business Case for PET Waste Recycling — High-Volume Bottle-to-Bottle Recovery

PET is the world's most recycled plastic — over 25 million tons of PET bottles are collected and processed annually. But this metric masks the reality: while PET bottle collection rates are high (50-90% depending on region), the collected bottles are washed, ground to flake (8-12mm), and sold as commodity flake — a low-value intermediate. The value step — grinding flake to powder for re-compounding, or grinding to fine powder for chemical/enzymatic recycling — is the opportunity.

The economics of flake-to-powder grinding are compelling. Washed PET bottle flake sells for 1.00-1.30/kg. The value uplift of 1-2 million in annual revenue — from the same feedstock.

PET's grinding characteristics are unique. Unlike tough, deformable polymers (PE, PP, ABS) that must be cut, PET is a brittle material at grinding temperatures. It fractures rather than deforms — and this makes it amenable to both knife cutting (SMP) and disc grinding (SMF). The choice between the two technologies depends on throughput requirements and feed form: the SMP excels at high-volume, continuous processing of flake feedstock with its larger cutting chamber and higher blade count, while the SMF disc grinder is optimal for pellet feed and smaller-scale operations.

The SMP knife pulverizer from Chenxing Machinery delivers the throughput that PET recycling demands. The SMP-1000, with its 40-blade rotor and 90kW motor, processes PET bottle flake at up to 800 kg/h — sufficient to handle the output of a mid-size bottle recycling plant. And when paired with an STG-U hopper drier for moisture-controlled output, the SMP delivers powder ready for direct re-processing.

SMP Series Models & Technical Specifications

Capacity for PET bottle flake at 40-60 mesh. PET is brittle at grinding temperatures, allowing high throughput relative to motor power. Throughput may be higher than for tough polymers (PE, ABS) at the same power rating.

Model Selection for PET Waste Recycling

How Knife Pulverizing Works for PET Waste — Brittle Fracture Advantage

PET's brittleness makes it the most energy-efficient material in the SMP's portfolio — and fundamentally different from grinding tough polymers.

Step 1 — Flake Feeding: Washed, dried PET bottle flake (typically 8-12mm) or PET sheet edge trim feeds into the SMP via screw feeder. The flake is free-flowing and meters uniformly — no feed surging or bridging.

Step 2 — High-Speed Fragmentation: As the rotor spins at 2950-3800 RPM, the knives impact the PET flake. Unlike PE or PP — where each blade impact must cut through tough, deformable material — PET fractures. The impact initiates a crack that propagates through the brittle PET particle, breaking it into smaller fragments. Each successive blade impact further reduces these fragments until they pass through the screen.

Step 3 — Energy Advantage of Brittle Fracture: The physics of brittle fracture in PET translates to lower energy consumption per kilogram of powder produced. While PE absorbs impact energy through plastic deformation (heat), PET absorbs impact energy through crack propagation (new surface creation) — and the energy to create new surface area per kilogram is lower for brittle materials than the deformation energy for tough materials. This is why PET grinding throughput (kilogram per kilowatt) exceeds PE, PP, or ABS throughput at the same motor power.

Step 4 — Screening: A vibrating screen classifies the powder. For PET re-compounding into bottle preforms or sheet, 40-60 mesh is standard. For PET chemical recycling (glycolysis, methanolysis, enzymatic depolymerization), finer powder (60-100 mesh) increases the surface area for depolymerization reactions — the SMP achieves this by screen selection.

Step 5 — Sealed Collection and Moisture Management: Negative-pressure pneumatic conveying to cyclone and air-lock discharge. PET is hygroscopic — freshly ground powder will absorb ambient moisture. The collection system should minimize exposure to ambient air. For moisture-critical applications, the powder should be conveyed directly to an STG-U hopper drier or sealed container.

Step 6 — Cooling: Air and water cooling. PET processes at 260-280°C — far above grinding temperatures. Cooling is for machine protection and dimensional stability, not to prevent melting.

Key Advantages of SMP for PET Waste Recycling

High Throughput for Brittle PET — More Kilograms per Kilowatt

• Feature: Combined high RPM (2950-3800) and high blade count (20-40) taking advantage of PET's brittle fracture behavior.

• Advantage: PET fractures under impact — it does not deform, stretch, or absorb energy through plasticity. Each blade impact on PET flake initiates a crack that propagates through the particle, breaking it into smaller fragments with relatively low energy input. This is fundamentally different from PE, PP, or ABS grinding, where each blade impact must overcome material toughness through shear — a higher-energy process.

• Benefit: Higher throughput per kilowatt of motor power compared to tough polymers. The SMP-1000's 90kW motor delivers 500-800 kg/h for PET, versus 400-600 kg/h for ABS and 450-650 kg/h for PE at the same power. This translates to lower energy cost per ton of PET powder produced — important for recycling operations where energy is a significant operating expense.

SMP-1000 — Matching the Scale of PET Recycling

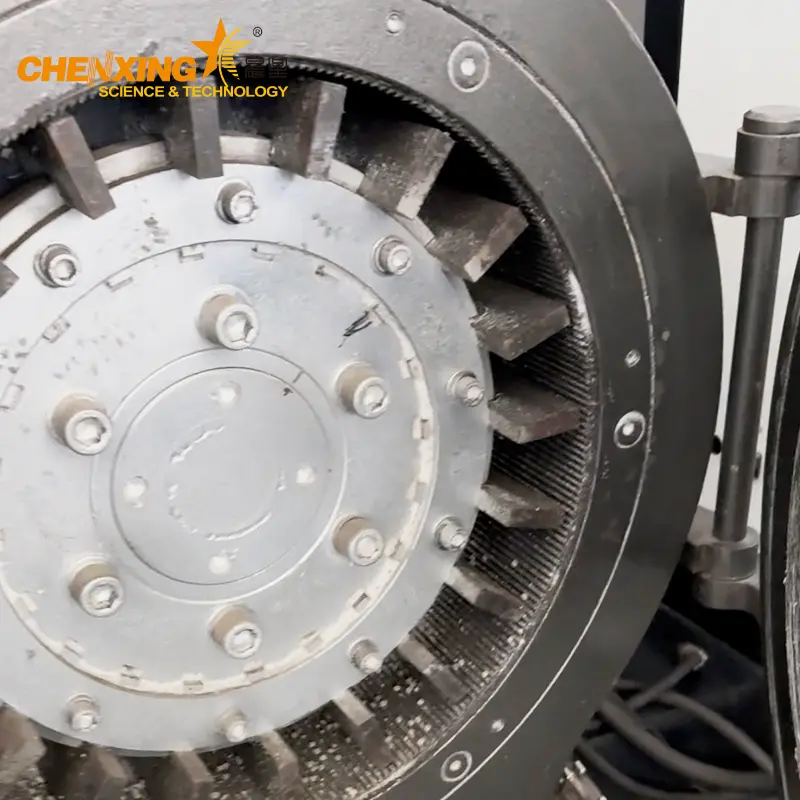

• Feature: 40-blade rotor powered by 90kW motor on a 5000kg machine with 4000×3500×4200mm footprint.

• Advantage: PET recycling is a high-volume industry. A commercial PET bottle washing line produces 1-3 tons of flake per hour. To grind this volume to powder, the pulverizer must operate at comparable throughput. The SMP-1000's 500-800 kg/h capacity — the highest in the SMP range — is sized to match the output of commercial washing lines.

• Benefit: Single-machine grinding for a complete washing line's output. No need to split the flake stream across multiple smaller grinders. Consistent powder quality from a single point of process control.

Compatibility with STG-U Dryer — Moisture-Controlled Output

• Feature: Sealed discharge integrating directly with the STG-U hopper drier for immediate moisture control of the ground powder.

• Advantage: PET's hygroscopic nature means freshly ground powder can absorb 0.1-0.3% moisture from ambient air within hours. This moisture, if the powder is subsequently processed (extruded, injection molded, or chemically recycled), causes hydrolysis — breaking PET polymer chains and reducing intrinsic viscosity (IV). The SMP's sealed discharge feeds directly into a STG-U dryer, maintaining the powder at <0.005% moisture — ready for immediate processing without IV loss.

• Benefit: Preserved PET molecular weight (IV) through the grinding cycle. Recycled powder that processes identically to virgin PET pellets. For bottle-to-bottle recycling where IV retention is critical for preform and bottle quality, this integration is not optional — it is the process standard.

Clean, Sharp Powder — Ready for Re-Extrusion

• Feature: Knife cutting produces angular, sharp-edged powder particles with clean fracture surfaces.

• Advantage: PET powder shape and surface character affect processing behavior. Clean-fractured particles flow uniformly in the extruder feed throat and melt predictably in the screw — the same as virgin PET pellets. Degraded or smeared particles (from overheating during grinding) melt differently, causing extrusion variability. The SMP's cool, sharp cutting produces particles with clean fracture surfaces and no thermal history.

• Benefit: Consistent extrusion — no feed bridging, no melt pressure variation from inconsistent particle morphology. The recycled powder blends at 10-50% letdown with virgin PET without process adjustment.

Versatility — Flake, Sheet, and Fiber

• Feature: Same SMP machine processes PET in multiple forms: bottle flake, sheet edge trim, and cut fiber waste.

• Advantage: PET recycling plants often handle multiple waste forms — washed bottle flake as the primary feedstock, plus sheet edge trim from their own or customers' extrusion lines, and fiber waste from textile recycling streams. The SMP's knife rotor accepts all three forms without mechanical adjustment — only feed rate may need optimization.

• Benefit: One machine handles all PET waste forms. No separate grinding lines for different feedstock forms. Operational simplicity.

Low Blade Wear — Long Service Life in PET

• Feature: Blade steel and geometry optimized for brittle material fracture at high throughput.

• Advantage: PET causes minimal blade wear compared to filled, abrasive materials (SPC, filled PVC) because it is unfilled and relatively soft (Rockwell R 110-120). The primary wear mechanism is mechanical fatigue of the cutting edge from the high-frequency impact of brittle fracture — not abrasion. Blade life in PET is among the longest in the SMP's material range.

• Benefit: Blade life of 800-1,500 hours — matching or exceeding unfilled PP. Low blade consumption cost per ton. Extended intervals between blade changes, reducing downtime in continuous operations.

Fully Automated — Continuous Grinding at Recycling Scale

• Feature: Integrated automatic feeding, cutting, pneumatic conveying, screening, and oversize return.

• Advantage: PET recycling lines operate 24/7 — flake from the washing line accumulates continuously and must be ground or stored. The SMP's automation matches the continuous output of the upstream washing line, feeding directly to the downstream dryer and storage silo.

• Benefit: Fully continuous flake-to-powder pipeline. No intermediate flake storage. One operator oversees the complete grinding and drying operation.

Sealed Design — Protecting PET Powder Quality

• Feature: Negative-pressure enclosure from feed to discharge, preventing contamination and moisture ingress.

• Advantage: PET powder for bottle-to-bottle recycling must meet food-contact standards. Contamination from ambient dust, fibers, or other plastics in the factory compromises the recycled material's quality and regulatory status. The SMP's sealed design prevents external contamination while also containing PET dust.

• Benefit: Clean, food-grade-quality PET powder. Reduced quality risk for bottle-to-bottle recycling. Contained combustible dust in a safe, sealed system.

PET Waste Preparation & Grinding Guide

Critical Process Steps for PET

1. Moisture Control — Non-Negotiable. PET must be dried before grinding to <50 ppm moisture. Wet flake — either from washing without adequate drying, or from ambient moisture absorption — grinds inconsistently and produces powder that will hydrolyze during subsequent processing (extrusion, injection). Pre-dry with an STG-U hopper drier at 160°C for 4-6 hours. Post-grind, store the powder in sealed containers or convey directly to a secondary dryer.

2. Metal Separation. PET bottle flake from post-consumer recycling may contain aluminum (caps, seals), steel (bottle cap rings), and non-ferrous metal fragments. A CJ magnetic frame captures ferrous metal. An eddy current separator (separate equipment) may be needed for aluminum removal if the flake source has high aluminum contamination.

3. IV Monitoring. For bottle-to-bottle recycling, measure incoming flake IV (intrinsic viscosity) and outgoing powder IV. A well-operated SMP grinding process should show IV loss of <0.02 dL/g — negligible for re-processing. If IV loss exceeds 0.05 dL/g, investigate: moisture in the feed, excessive grinding zone temperature, or extended powder residence time at elevated temperature.

Frequently Asked Questions

How does SMP differ from SMF for PET bottle recycling?

The SMP (knife) and SMF (disc) are both suitable for PET, but the choice depends on feed form and throughput. The SMP's knife rotor directly accepts PET flake (8-12mm) and cuts it through impact fragmentation — optimal for high-volume flake-to-powder conversion where the feedstock is already in flake form. The SMF's disc grinding works by shear between two rotating discs and is optimal for pellet-sized feed (3-5mm). For a PET bottle recycling plant receiving washed flake, the SMP is the natural choice — the flake feeds directly without pre-grinding to pellet size. For a PET compounding plant that already produces pellets and needs to convert some to powder, the SMF is the natural choice.

What capacity can SMP-1000 achieve for PET flakes?

The SMP-1000 delivers 500-800 kg/h for PET bottle flake at 40-60 mesh — sufficient to process the output of a mid-size washing line producing 3-6 tons of flake per 8-hour shift. At 800 kg/h continuous operation (24/7), the SMP-1000 processes approximately 7,000 tons of flake annually — matching a recycling plant processing 10,000+ tons of PET bottles per year. This throughput represents a single-machine solution: no need for multiple parallel grinders or a grinder farm. The SMP-1000's 90kW motor and 40-blade rotor are sized specifically for this industrial-scale recycling duty.

Do I need to pre-dry PET flakes before knife grinding?

Yes — PET must be dried to <50 ppm moisture before grinding. While the grinding process itself does not require dryness (PET is brittle at all practical moisture levels), the quality of the resulting powder for subsequent processing demands it. Moist PET powder, when extruded or injection-molded, undergoes hydrolysis — water attacks the ester linkages in the PET polymer chain, reducing molecular weight (measured as intrinsic viscosity, IV). An IV drop of >0.05 dL/g produces brittle preforms, weak bottles, and inconsistent sheet properties. Pre-drying with an STG-U hopper drier at 160°C for 4-6 hours before grinding, plus post-grind moisture protection, is the standard protocol for quality PET recycling.

What powder size for PET chemical/enzymatic recycling?

PET chemical recycling — glycolysis, methanolysis, hydrolysis, or enzymatic depolymerization — benefits from finer powder than mechanical recycling. The depolymerization reactions are surface-area-limited: the finer the powder, the greater the surface area exposed to the depolymerizing agent, and the faster and more complete the reaction. 60-100 mesh (150-250 microns) is the standard for chemical recycling applications. This finer mesh is achieved by screen selection on the SMP — the vibrating screen is fitted with a finer mesh, and the oversize return loop re-grinds until the target particle size is achieved. Throughput at 60-100 mesh may be 10-20% lower than at 40-60 mesh due to the additional grinding passes.

How does water content affect PET grinding quality?

Water content in the PET feed does not affect the grinding mechanics — PET fractures under knife impact regardless of moisture — but it critically affects the product quality. Wet PET powder undergoing subsequent thermal processing (extrusion at 260-280°C) experiences hydrolysis: water molecules attack the ester bonds in the PET chain, breaking the polymer into shorter chains. This reduces intrinsic viscosity (IV) — the measure of PET molecular weight that determines mechanical strength, clarity, and processability. The relationship is roughly: every 0.01% (100 ppm) moisture in the feed reduces IV by 0.02-0.04 dL/g during processing. For bottle-grade PET requiring IV 0.75-0.85 dL/g, moisture must be controlled to <50 ppm to keep IV within specification.

Can SMP handle post-consumer PET with labels?

It depends on label removal completeness. The PET bottle washing process should remove labels (typically PP or PE film) through hot washing and density separation. Residual label fragments — a few percent by weight — will pass through the SMP and become part of the powder. PP or PE label fragments in PET powder are contaminants: they do not melt at PET processing temperatures (260-280°C), creating visible defects in the finished product. For mechanical recycling (bottle-to-bottle, sheet extrusion), label contamination should be <0.1%. For chemical recycling, label polymers do not participate in PET depolymerization and must be filtered out as residue. The SMP grinds these fragments along with the PET; the burden is on the upstream washing process to achieve cleanliness.

What's the IV loss during knife grinding of PET?

When properly operated — dry feed, effective cooling, continuous throughput — IV loss through the SMP is typically <0.02 dL/g, which is negligible for mechanical recycling. The factors that increase IV loss are: moisture in the feed (causes hydrolysis during any elevated-temperature exposure), excessive grinding zone temperature (thermal degradation), and extended powder residence time at elevated temperature (cumulative thermal history). With the SMP's dual cooling and sealed discharge, these factors are controlled. For reference: acceptable IV loss for bottle-to-bottle recycling is <0.05 dL/g; the SMP typically achieves <0.02 dL/g — well within specification.

Start Recovering Your PET Waste Value Today

Step 1 — Characterize Your PET Feedstock: Source (post-consumer bottle flake sheet edge trim preform scrap), annual volume, current flake or scrap value, and target powder application (mechanical recycling / chemical recycling).

Step 2 — Select Your SMP Model: Base it on annual volume and target throughput. See the model selection table above. For high-volume bottle-to-bottle recycling, the SMP-1000 provides the highest capacity.

Step 3 — Contact Nicole for a Quote: Provide feedstock details, target mesh, and whether you need integrated drying with the STG-U hopper drier.

Step 4 — Install and Start Recovering: Installation support, commissioning, operator training, and spares kit included. We supply complete PET recycling line equipment — from plastic crushers for pre-crushing to twin screw PET sheet lines, APET PETG CPET sheet lines, and high-speed mixers.

For alternative grinding, explore the SMF disc grinding pulverizer for pellet feed and dual disc pulverizer.
