Plastic extrusion sits at the core of modern manufacturing—shaping everything from drainage pipes and window profiles to packaging films and cable insulation. With the global plastic extrusion machine market reaching $7.5 billion in 2025 and projected to climb to $10.21 billion by 2032 at a CAGR of 4.52%, understanding this process has never been more relevant for production managers, procurement specialists, and plastics engineers alike (PW Consulting, 2026).
This guide breaks down how extrusion works, the equipment involved, material considerations, and the latest trends reshaping the industry—giving you the insight needed to make smarter sourcing and operational decisions.
Plastic extrusion is a continuous manufacturing process that transforms raw plastic pellets, powders, or flakes into uniform, shaped products. The raw material is melted, forced through a precisely engineered die, and then cooled into its final profile.
Unlike injection molding—which produces discrete items in cycles—extrusion runs continuously. This makes it ideal for producing long, uniform profiles such as pipes, sheets, tubing, and window frames. The continuous nature offers significant advantages in throughput and cost efficiency, particularly in high-volume pipe extrusion line and profile extrusion line operations.
A complete plastic extrusion line comprises several integrated components working in precise synchronization.
| Component | Function |
|---|
| Hopper | Feeds raw plastic pellets or flakes into the barrel |
| Heated Barrel + Screw | Melts, mixes, and conveys material forward under controlled temperature and pressure |
| Screen Changer / Filter | Removes contaminants from the melt stream |
| Die | Shapes the molten plastic into the desired cross-sectional profile |
| Cooling Tank | Solidifies the extruded product using water or air |
| Haul-off Unit | Pulls the product at a consistent, controlled speed |
| Cutter / Winder | Trims to length or coils the final product |
The choice of extruder type fundamentally affects line capability and output quality.

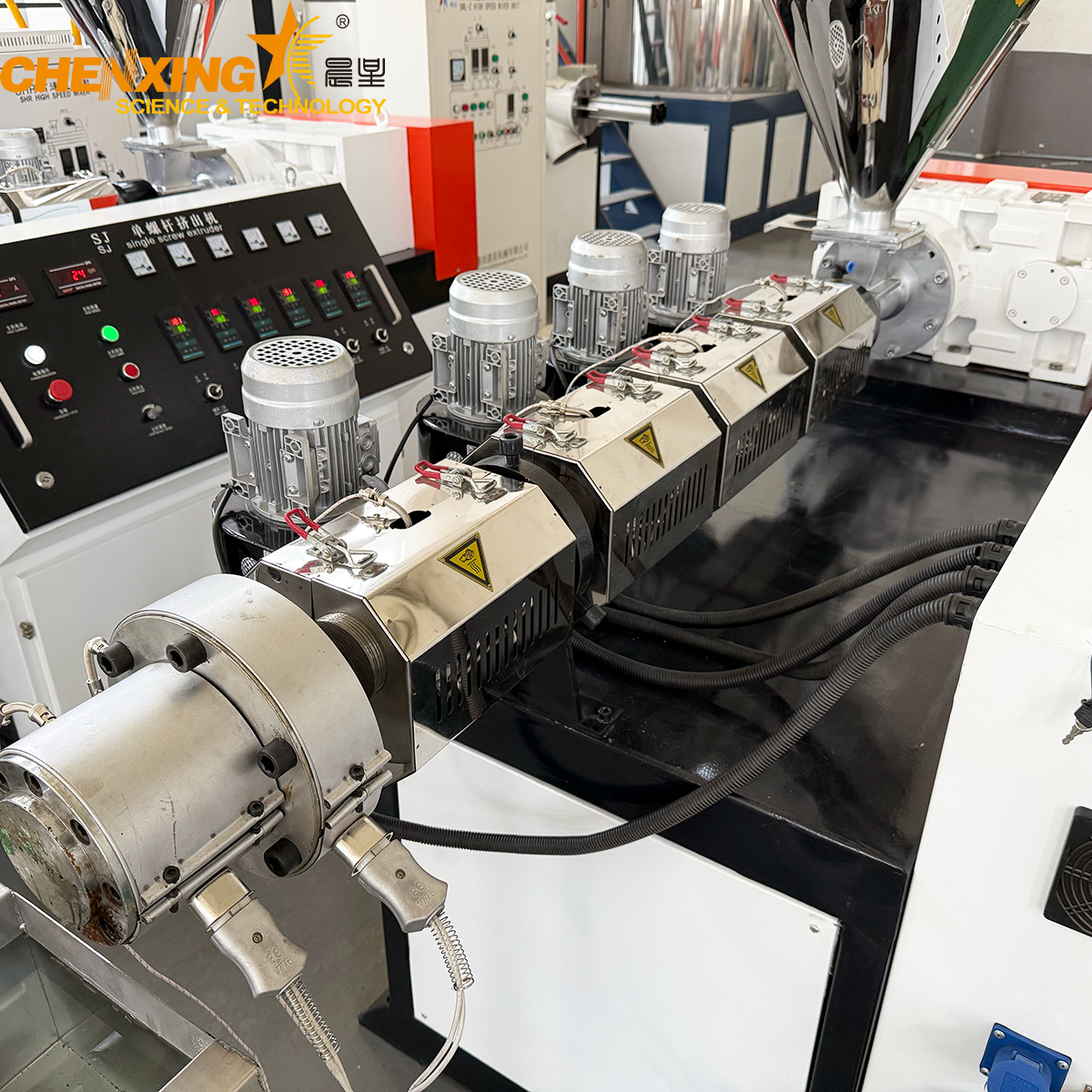

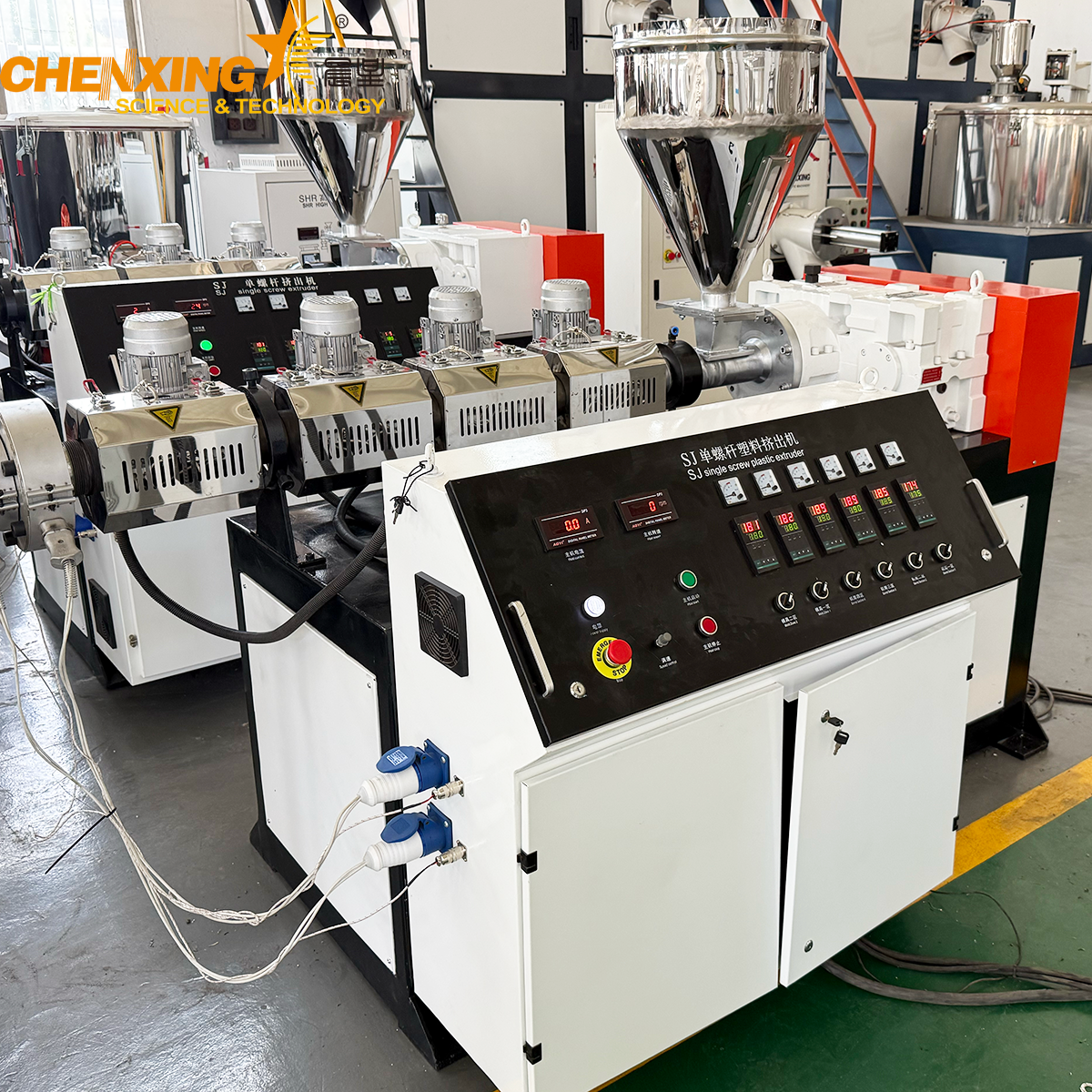

Single Screw Extruders dominate the market, accounting for approximately 50% of global extruder sales in 2025. They excel in straightforward applications—processing a single polymer through a simple profile. Their simpler design translates to lower upfront costs and easier maintenance.

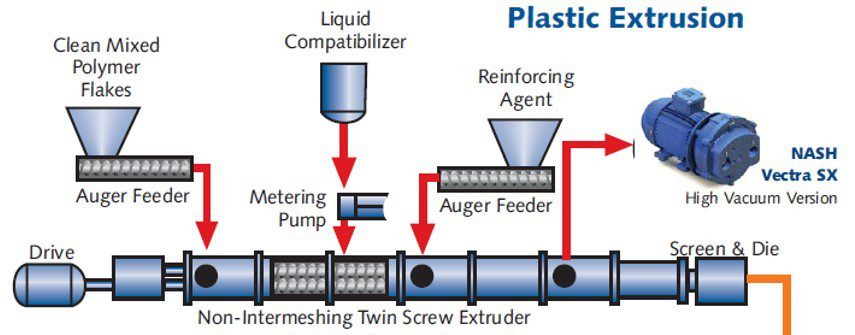

Twin Screw Extruders offer superior mixing, compounding, and devolatilization performance. They are the preferred choice when processing multiple materials, incorporating fillers, or handling recycled feedstocks with variable properties. For operations requiring precise formulation control—such as PVC compounding or engineering plastics—twin screw systems deliver unmatched consistency. Chenxing's automatic compounding system integrates twin screw technology for high-precision material preparation.
| Material | Key Properties | Typical Extrusion Applications |
|---|
| PVC | Rigid or flexible, chemical resistant, flame retardant | Pipes, window profiles, cable insulation |
| PE (HDPE/LDPE) | Tough, flexible, moisture resistant | Water pipes, packaging films, bottles |
| PP | Lightweight, fatigue resistant, high melting point | Automotive parts, living hinges, tubing |
| PS | Rigid, clear, easy to process | Sheets, foam insulation, food packaging |
| ABS | Impact resistant, good surface finish | Automotive trim, appliance housings, 3D printing filament |

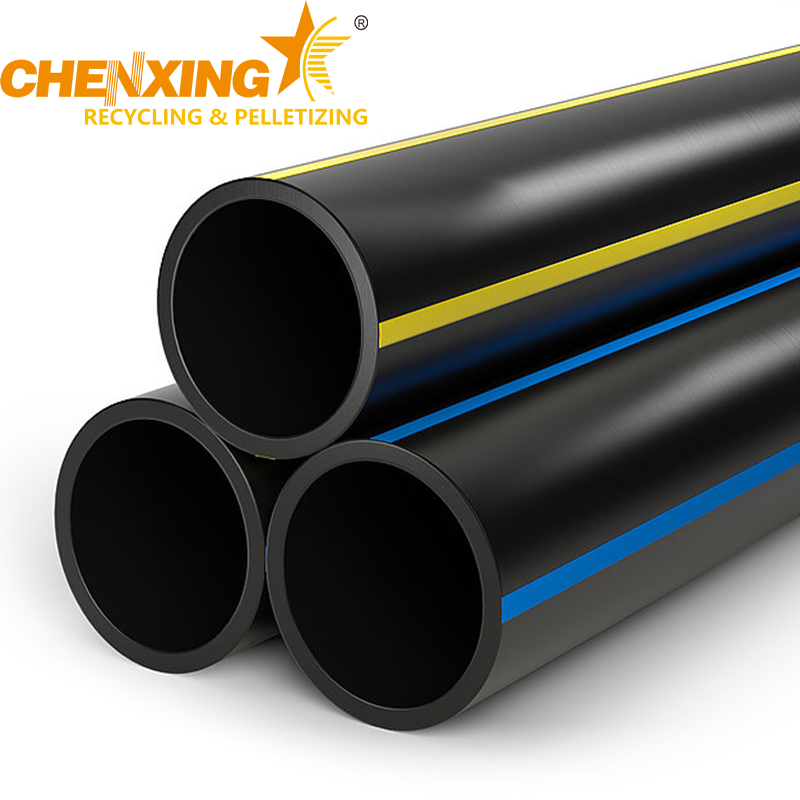

PE Pipe

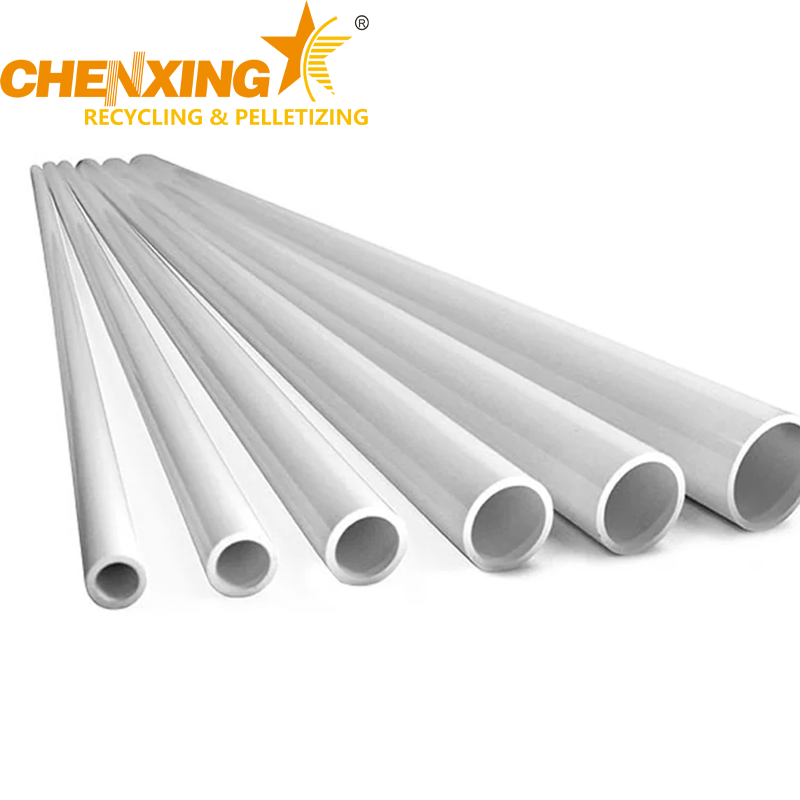

PVC Pipe
PVC Floor
The push toward sustainability has made recycled-content extrusion a mainstream requirement. Post-consumer and post-industrial plastic waste—properly sorted, cleaned, and processed—can be reintroduced into extrusion lines without sacrificing product integrity.
Chenxing's washing and recycling production line prepares recycled materials to extrusion-grade quality, enabling manufacturers to meet recycled-content mandates while controlling raw material costs. Complementing this, the SMF series grinding machine reduces plastic waste to uniform flakes ready for re-extrusion.
Raw material enters the hopper—typically pellets, but increasingly recycled flakes or regrind. Consistent feed rate is critical; gravimetric feeders ensure precise material delivery.
Inside the heated barrel, the rotating screw compresses, shears, and advances the material. Barrel temperature zones are independently controlled. By the time material reaches the metering zone, it is fully molten and homogenized.
A screen changer removes unmelted particles and contaminants before the melt enters the die, protecting die channels from blockage and ensuring surface quality.
The molten plastic exits through a precision-machined die, taking on the desired profile. Die design directly determines dimensional accuracy and surface finish—making it one of the highest-value engineering components in the line.
The hot extrudate passes through a cooling tank (typically water-based, sometimes air). Vacuum sizing calibrators maintain exact dimensions during solidification.
A caterpillar haul-off pulls the product at a precisely controlled speed. Downstream, a planetary cutter or saw trims the product to length, or a winder coils it for flexible products.
Barrel temperature, screw RPM, haul-off speed, and cooling rate form a tightly coupled system. Even minor deviations in one parameter can cause dimensional drift, surface defects, or inconsistent mechanical properties. Modern lines address this through closed-loop control and real-time monitoring—a cornerstone of the Industry 4.0 approach discussed below.
The extrusion industry is undergoing a digital transformation. Key technologies reshaping production floors include:
AI-Driven Process Optimization: Machine learning algorithms continuously adjust temperature, pressure, and screw speed to maintain target parameters, reducing scrap rates by up to 30%.
IoT-Enabled Predictive Maintenance: Sensors monitor vibration, temperature, and torque in real time, flagging anomalies before they become breakdowns—cutting unplanned downtime significantly (Chemica Times, 2025).
Infrared and Induction Heating: Replacing conventional resistance heaters, these technologies reduce energy consumption by up to 40% while offering faster heat-up and more uniform temperature distribution.
These innovations align with the capabilities of modern extruder systems, which increasingly feature PLC-based controls, remote diagnostics, and energy monitoring dashboards.
| Sector | Application | Typical Extrusion Method |
|---|
| Construction | PVC pipes, window profiles, decking | Pipe/profile extrusion |
| Packaging | Stretch film, shrink wrap, barrier sheets | Blown film / sheet extrusion |
| Automotive | Weather seals, trim, under-hood tubing | Profile / tubing extrusion |
| Electrical | Cable insulation, conduit | Wire coating / tubing extrusion |
| Agriculture | Irrigation pipes, greenhouse film | Pipe / film extrusion |
| Medical | IV tubing, catheter shafts | Precision tubing extrusion |
Cost Efficiency at Scale: Continuous operation delivers high throughput with minimal labor, spreading fixed costs across large production volumes. Automation further reduces per-unit cost.
Design Versatility: Custom dies enable virtually unlimited profile geometries. A single extrusion line can switch between products with relatively short changeover times.
Sustainability Alignment: Extrusion readily accommodates recycled content, and energy recovery systems (heat exchangers on cooling water, variable-frequency drives on motors) reduce environmental footprint. The process supports circular economy goals without compromising on output quality.
Consistent Quality: Once optimized, extrusion parameters produce highly uniform products—batch after batch—with tight dimensional tolerances.
| Challenge | Root Cause | Solution |
|---|
| Inconsistent dimensions | Fluctuating haul-off speed or melt pressure | Implement closed-loop speed control; calibrate sensors regularly |
| Surface defects (sharkskin, melt fracture) | Excessive shear stress at die exit | Adjust die temperature, reduce output rate, or use processing aids |
| Material degradation | Overheating or excessive residence time | Optimize barrel temperature profile; purge regularly |
| Die blockage | Contaminated feedstock or carbonized residue | Install fine-mesh screen pack; perform scheduled die cleaning |
| High energy consumption | Inefficient heaters, oversized motors | Retrofit with infrared/induction heating; right-size drive systems |
Proactive maintenance and material quality control are the two most cost-effective strategies for reducing extrusion-related scrap and downtime. The mixing unit plays an often-overlooked role here—properly premixed material feeds more consistently and reduces screw wear.
When evaluating extrusion equipment for your operation, consider these factors:
Application Fit: Does the supplier offer configurations specific to your product—pipe, profile, sheet, or compounding? A specialist in pipe extrusion will deliver better results than a generalist.
Material Capability: Confirm the line handles your target polymers, including any recycled content requirements.
Automation Level: For high-volume production, prioritize PLC-controlled lines with Industry 4.0 features.
After-Sales Support: Installation, training, spare parts availability, and remote diagnostics determine long-term total cost of ownership.
Certifications: CE, ISO 9001, and relevant safety standards indicate manufacturing rigor.
Explore Chenxing's full product range to compare configurations, or visit the application page to see extrusion solutions matched to specific industries.
Extrusion is a continuous process producing long, uniform profiles (pipes, sheets, films). Injection molding is a cyclic process producing discrete, often complex-shaped parts. Extrusion offers higher throughput for profile products; injection molding excels at intricate 3D geometries.
Yes. With proper cleaning, sorting, and filtration, post-consumer and post-industrial recycled plastics perform well in extrusion. Many manufacturers now blend virgin and recycled material to meet sustainability targets while maintaining product quality.
Screw diameter and design, barrel temperature profile, material viscosity, die resistance, and haul-off speed all influence throughput. Upgrading to an optimized screw design can increase output by 15–25% without changing the motor.
Die cleaning frequency depends on material type, processing temperature, and run length. For most thermoplastics, a scheduled cleaning every 300–500 operating hours prevents carbonized buildup. Visual inspection for surface defects should trigger unscheduled cleaning.
Not necessarily. Single screw extruders are cost-effective and sufficient for simple, single-material profiles. Twin screw extruders excel when mixing, compounding, devolatilization, or multi-material processing is required. The choice depends entirely on your specific application.
