Continuous Powder Suction Machine

Batch Loading Is the Hidden Stop in Your Line — Go Continuous

A large pelletizing line is a demanding consumer. A compounding extruder running a PVC hot-cutting pelletizing line or a high-throughput twin-screw system devours powder — PVC resin, calcium carbonate, masterbatch powder — at rates measured in tons per hour. The mixer feeding it works in continuous cycles. The extruder screw never stops. And the powder feeding station, all too often, is the one link in the chain that does.

Consider how a conventional batch powder loader operates. It runs a suction cycle, drawing powder from the source into its separation chamber; then it pauses to discharge the accumulated powder into the hopper below; then it suctions again. Each cycle has a discharge pause — a moment when the loader is not conveying. On a small line, that pause is invisible; the hopper buffer absorbs it. On a large line, it is a constraint: the mixer or extruder consumes powder faster than the loader's intermittent duty can replenish it, the hopper level drifts downward, and the process waits. The line's real capacity is capped not by the extruder — but by the feeding pause that starves it.

There is a second cost to batch loading at scale: equipment count. To feed a 5000 kg/h demand with 2000 kg/h batch loaders, you install three machines, three conveying lines, three sets of controls, and the floor space and pipework that go with them. Each machine still pauses to discharge. The complexity multiplies without ever fully eliminating the intermittent duty.

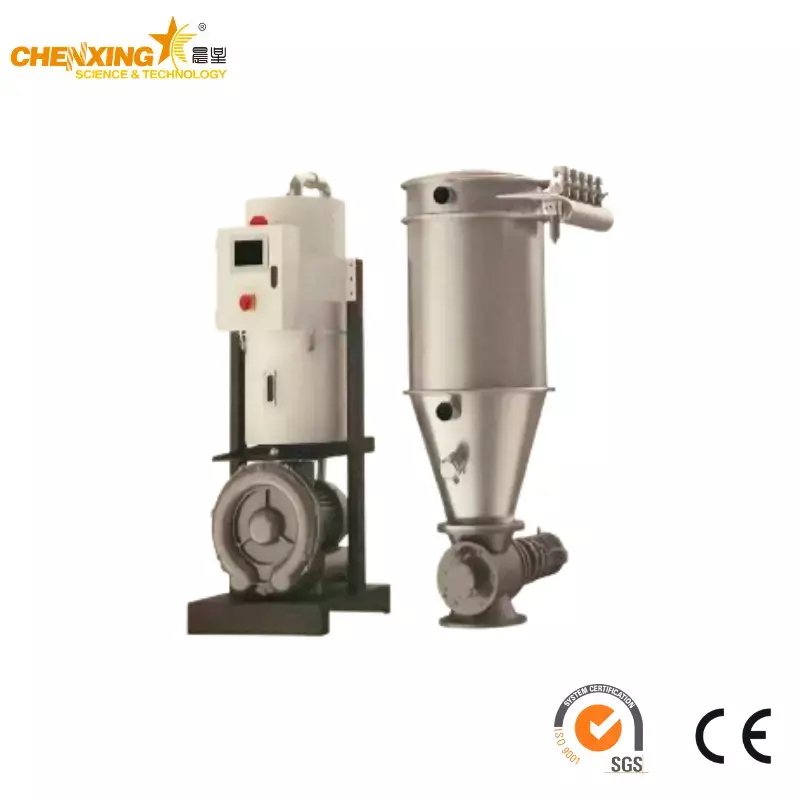

The engineering answer is a machine that never pauses: a continuous powder suction machine. Chenxing's CLF-L series keeps a steady negative pressure on the conveying line and discharges powder continuously — no suction/discharge cycle, no feeding gap, no starvation — with a maximum capacity of 5000 kg/h. It carries the same three field-proven features as the standard VLF powder suction machine — customized filter cartridge, reverse-pulse cleaning assembly, and maintenance-free design — and adds the fourth that defines the series: continuous discharging.

For a plant that compounds, pellets, or extrudes powder at high volume, the CLF-L is the difference between a line that waits for powder and a line that never does.

How the CLF-L Continuous Powder Suction Machine Works

The CLF-L operates on the same vacuum conveying physics as every powder suction machine — negative pressure pulls powder through a sealed line, the powder separates from the air, and the air is filtered before exhaust. What makes the CLF-L different is the flow pattern: instead of batch suction-and-discharge, it maintains a continuous material stream.

Vacuum source ── steady negative pressure maintained on the line         │         ▼ [1. Continuous Suction] ──── powder is drawn from silo, big bag, or         │          raw-material bag through the sealed intake         ▼ [2. Continuous Transport] ──── powder flows through the conveying         │          pipe as a stable dilute-phase suspension         ▼ [3. Continuous Separation] ──── powder falls out of the air stream         │          in the separation chamber without interrupting         │          the incoming flow         ▼ [4. Continuous Discharge] ──── powder flows out of the machine         │          into the receiving hopper, mixer, or central         │          feeding system without a discharge pause         ▼ [5. Filtration] ──── conveying air passes through the customized         │          filter cartridge; fine dust is captured         ▼ [6. Reverse-Pulse Cleaning] ──── timed air bursts clean the filter         │          while conveying continues — no stop, no manual         │          cleaning, no throughput loss         ▼ [Finished: powder delivered continuously, line never starves]

Continuous vs. Batch — What Actually Changes

In a batch loader, the machine alternates between two states: suction (drawing powder into the chamber) and discharge (emptying the chamber into the hopper). During discharge, the intake is closed and conveying stops. The downstream hopper must have enough buffer to survive the pause — and on a large line, that buffer runs out.

In the CLF-L continuous loader, the separation and discharge happen simultaneously. Powder enters the machine and leaves the machine in the same continuous flow; the incoming air stream is never interrupted by a discharge cycle. The downstream hopper receives a steady stream instead of periodic dumps, and the conveying line stays active around the clock. This is the "continuous discharging" that defines the series — and the reason a single CLF-L can keep a 5000 kg/h consumer fully fed.

Station-by-Station Detail

1. Continuous Suction — Steady Draw. The vacuum source maintains continuous negative pressure in the conveying line. The intake draws powder from a storage silo, big bag (FIBC), raw-material bag, or mill discharge without cycling. Where a batch loader would stop suctioning to discharge, the CLF-L keeps drawing — the powder flow into the machine is unbroken.

2. Continuous Transport — A Stable Stream. The powder travels through the conveying pipe as a dilute-phase suspension at a controlled, stable velocity. For the high capacities of the CLF-L, the conveying line is sized generously so that the powder flows without slugging or settling, even over longer distances from a central powder store to the process.

3. Continuous Separation — Flow That Doesn't Stop. In the separation chamber, the air velocity drops and the powder falls out of suspension. The chamber geometry is designed for simultaneous inflow and outflow — powder can enter, settle, and discharge at the same time, so there is no point at which the machine must "close the door" to empty itself.

4. Continuous Discharge — No Feeding Gap. The separated powder flows steadily out of the machine into the destination: a high-speed mixer / industrial mixer hopper, an extruder feed throat, or the receiver of a central feeding system. Because discharge is continuous, the receiving hopper is replenished at the same rate the process consumes it — the level stays stable, and the downstream machine never waits.

5. Filtration — The Customized Filter Cartridge. The conveying air, after separation, still carries fine dust — the same challenge every powder system faces. The CLF-L filters it through a customized filter cartridge, selected for the specific powder: filter media, pore size, and filtration surface matched to the particle size distribution of the material. Whether the duty is PVC powder, calcium carbonate filler, carbon black, or masterbatch powder, the cartridge captures the fine dust so it does not escape into the plant.

6. Reverse-Pulse Cleaning — Self-Cleaning While Running. Continuous conveying means continuous dust loading on the filter — so the CLF-L's reverse-pulse cleaning assembly works continuously too. At timed intervals, a short burst of compressed air fires through the cartridge from the clean side, dislodging the dust cake, which falls back into the process. The cleaning happens in seconds, automatically, while powder keeps flowing — the filter stays clear, suction stays strong, and there is no maintenance stop in the production schedule.

CLF-L Series — Key Specifications

The CLF-L series continuous powder suction machine is offered in a range of capacities, with the largest configuration rated for a maximum throughput of 5000 kg/h.

Because every high-capacity installation differs — powder type, conveying distance, line routing, destination height, and continuous demand — Chenxing sizes each CLF-L unit for the specific application. The CLF-L series is available in multiple capacities up to 5000 kg/h, with custom sizing on request. Tell our engineers your powder, your line's continuous consumption rate, and your plant layout, and we will specify the conveying line, vacuum source, filter cartridge, and control integration to keep your line fed at full speed.

Key Advantages of the CLF-L Continuous Loader

1. Continuous Discharging — The Line Never Starves

• Feature: The CLF-L machine separates and discharges powder simultaneously, maintaining a steady material stream into the receiving hopper instead of cycling through suction-and-discharge pauses.

• Advantage: A batch loader stops conveying every time it empties its chamber; the CLF-L never does. The receiving hopper is replenished continuously, at the same rate the process consumes it.

• Benefit: The feeding pause disappears from the production schedule. The mixer, extruder, or pelletizing line runs at full speed because powder is always available — the plant's output is set by the process, not by the loader's duty cycle. For a large line, eliminating the feeding gap can mean the difference between 80% and 100% utilization.

2. Up to 5000 kg/h — One Machine Replaces a Bank of Batch Loaders

• Feature: The CLF-L series is rated for a maximum conveying capacity of up to 5000 kg/h of powder.

• Advantage: A 5000 kg/h demand previously required multiple 2000 kg/h batch loaders — three machines, three lines, three control systems, and three times the floor space. One CLF-L meets the same demand with a single machine and a single conveying line.

• Benefit: Lower equipment investment, less floor space, simpler pipework, and fewer components to maintain. The plant achieves high-capacity powder feeding with less capital and less complexity — while the continuous flow keeps the downstream process better fed than any batch arrangement.

3. Customized Filter Cartridge — Filtration Matched to Your Powder

• Feature: The CLF-L is equipped with a filter cartridge customized for the powder being conveyed — filter media, pore size, and filtration surface selected according to the material's particle size distribution.

• Advantage: PVC powder, calcium carbonate, carbon black, and masterbatch powder filter very differently. A cartridge engineered for the actual material conveys longer between pulses, captures more dust, and resists blinding — instead of a generic element that compromises on every powder.

• Benefit: Whatever powder your high-capacity line consumes, the fine dust stays in the process and out of the plant air. Higher filtration efficiency means a visibly cleaner plant, no fine-powder haze, and better conditions for the operators — even at 5000 kg/h of continuous duty.

4. Reverse-Pulse Cleaning Assembly — Self-Cleaning at Full Speed

• Feature: A reverse-pulse cleaning assembly fires timed bursts of compressed air through the filter cartridge from the clean side, automatically dislodging accumulated dust — while the machine keeps conveying.

• Advantage: Continuous conveying loads the filter continuously. Without automatic cleaning, a high-capacity loader would blind its filter within hours and force a stop. The reverse-pulse assembly keeps the filter clear in real time, with no manual cleaning and no interruption.

• Benefit: Continuous production without filter-maintenance stops — exactly what a continuous machine must deliver. The filter lasts longer, the suction stays strong, and the loader runs 24 hours a day without anyone opening the machine to clean it.

5. Maintenance-Free Design — Set It Up, Let It Run

• Feature: The CLF-L is engineered for maintenance-free operation — simplified structure, minimal wearing parts, and no routine filter cleaning or element replacement cycles.

• Advantage: Maintenance is the hidden tax on powder handling. Every cleaning task, every worn-part replacement, and every troubleshooting call costs production time. The maintenance-free design removes these recurring tasks from the operating schedule.

• Benefit: Lower labor cost, no unplanned stops, and no dependence on specialist technicians to keep the loader running. For a machine that runs continuously at high capacity, reliability is everything — and a maintenance-free design is how that reliability is delivered.

6. Sealed Vacuum Conveying — Dust Stays in the Pipe at Every Ton

• Feature: The CLF-L conveys powder through a fully sealed line under continuous negative pressure, from the intake to the discharge point.

• Advantage: Negative pressure is inherently leak-proof — if a joint is not perfectly sealed, air leaks inward, not dust outward. Even at 5000 kg/h, nothing escapes the conveying circuit.

• Benefit: No powder dust in the air, no powder waste on the floor, and a plant that meets the dust and hygiene expectations of modern manufacturing. The material that used to be lost to spills and drifts now reaches the process — a direct raw-material saving that compounds with every ton conveyed.

7. Automatic Integration — Continuous Feeding on Demand

• Feature: The CLF-L can be integrated with the mixer, extruder, or central feeding system control — typically through PLC linkage — for automatic, continuous on-demand feeding.

• Advantage: Coordinated with a high-speed mixer, extruder, or a multi-point central feeding system, the loader delivers powder exactly when the process needs it, at the rate it needs, with no operator monitoring. In a central system, one CLF-L can serve as the high-capacity feed for a large consumer while other loaders handle smaller stations.

• Benefit: Consistent, repeatable powder supply batch after batch — the same filler ratio, the same mixer load, the same melt behavior. Operators are freed from material-watching duty, and the powder feeding step becomes a transparent, dependable part of the automated line.

8. Robust Construction — Built for High-Volume, Abrasive Powders

• Feature: The CLF-L is built with durable construction — available in carbon steel and stainless steel configurations for the contact and storage elements — to withstand the abrasion and corrosion of fine, high-load powders.

• Advantage: Mineral fillers are abrasive, and at 5000 kg/h they pass through the machine at high velocity. Heavy-duty construction resists this wear, and stainless steel adds corrosion resistance where hygiene or moisture demands.

• Benefit: A long, dependable service life in the most demanding powder duties. The CLF-L is not a consumable — it is a capital asset that serves the line for years, which is the right economics for a machine that runs every shift at high capacity.

Continuous Powder Feeding in Large-Scale Production

The CLF-L is built for the high-capacity end of the powder handling spectrum. Understanding where it fits — and where it does not — makes the choice clear.

The High-Capacity Powder Feeding Chain

[Powder Storage Silos / Big Bags / Raw-Material Bags]         │         ▼ [CLF-L Continuous Powder Suction Machine] ── up to 5000 kg/h,         │          continuous sealed vacuum conveying         ▼ [High-Speed Mixer / Extruder Feed / Central Feeding System]         │         ▼ [Pelletizing Line / Extrusion Line / Compounding Line]

Step 1 — Powder Supply. The powder source for a large line is usually a storage silo, a big bag station, or a raw-material bag station — possibly fed by a pulverizer or PVC disc pulverizer producing the powder in-house. From this source, the CLF-L draws continuously.

Step 2 — Continuous Conveying. The CLF-L maintains a steady negative pressure and delivers powder to the consumer without pause. Because the flow is continuous, the distance from a central silo to the process is no longer a constraint on feeding rate — the line stays active regardless of how far the powder travels.

Step 3 — Continuous Consumption. The powder reaches a large high-speed mixer, an extruder feed hopper, or the receiver of a central feeding system. The continuous stream keeps these consumers topped up at full consumption rate — the mixer never waits, the extruder never starves.

Step 4 — Downstream Processing. The mixed or extruded material proceeds to the pelletizing or extrusion line — a PVC hot-cutting pelletizing line, a PVC UV marble sheet making line, a PVC shelf label strip extrusion line, or a parallel co-rotating twin screw extruder compounding the material. Every one of these consumers benefits from a powder supply that never pauses.

Continuous vs. Batch — Choosing the Right Powder Loader

Chenxing supplies both continuous and batch powder conveying, so the machine can be matched to the real demand:

The rule is simple: powder at high continuous volume → CLF-L; powder at standard batch volume → VLF; crushed regrind → FSP; pellets → screw feeder. Each material and duty gets the machine that matches its behavior, and the plant avoids both under-feeding and over-engineering.

Working with the Rest of the Chenxing Line

The CLF-L plugs into the complete Chenxing material handling ecosystem. Where powder must be dried before processing, a STG-U hopper drier plastic resin dryer conditions the material. Where metal contamination is a risk in the powder stream, a CJ magnetic frame hopper magnet protects the process at the feed point. Where oversized or agglomerated powder must be removed, a vibrating screen classifies the material. Where in-house powder production is part of the plant, SMF disc grinding pulverizers, SMP knife pulverizers, and dual disc pulverizers produce the powder that the CLF-L delivers. And where the line reprocesses its own scrap, plastic crushers and the agglomerator / film densifier complete the loop.

Whatever the configuration, the CLF-L's role is the same: deliver powder continuously, dust-free, and without pause — so the large line can run at its designed speed.

Frequently Asked Questions

What is the difference between the continuous CLF-L and the standard VLF powder suction machine?

The CLF-L is the continuous, high-capacity version of the VLF series. The standard VLF powder suction machine operates in batch mode: it suctions powder into its separation chamber, then pauses to discharge it into the hopper, then suctions again. The CLF-L separates and discharges simultaneously, maintaining a continuous material stream with no discharge pause — and it is rated for up to 5000 kg/h versus the VLF's 2000 kg/h. Both share the customized filter cartridge, reverse-pulse cleaning, and maintenance-free design. The choice is driven by demand: standard mixers and medium lines are well served by the VLF; large pelletizing lines, high-throughput mixers, and central feeding systems benefit from the continuous CLF-L.

Can the CLF-L truly discharge powder continuously without stopping?

Yes. Continuous discharging is the defining feature of the series. The CLF-L's separation chamber is designed for simultaneous inflow and outflow: powder can enter from the conveying line and discharge to the receiving hopper at the same time, so the machine never has to close its intake to empty itself. The vacuum source maintains steady negative pressure, the conveying line stays active around the clock, and the receiving hopper receives a steady stream instead of periodic dumps. This is what makes it a continuous powder suction machine — and why a single CLF-L can keep a high-consumption line fully fed.

What capacity is available for a large pelletizing or compounding line?

The CLF-L series is available in multiple capacities up to 5000 kg/h, with custom sizing on request. For a large pelletizing or compounding line, the correct capacity depends on the line's continuous powder consumption, the conveying distance from the powder source, and any future capacity plans. As a practical guide: measure the line's powder consumption per hour at full speed, add a safety margin for peak demand, and account for the conveying distance and height. Chenxing engineers size the complete system — conveying line diameter, vacuum source, filter cartridge, and controls — from your production data, so the machine matches your line's real demand with room to grow.

How does the reverse-pulse cleaning keep the filter working during continuous operation?

Continuous conveying loads the filter with dust continuously, so the cleaning must be continuous as well. The CLF-L's reverse-pulse cleaning assembly fires short bursts of compressed air through the filter cartridge from the clean side, at timed intervals, in the reverse direction to normal conveying flow. Each pulse flexes the filter media and dislodges the dust cake, which falls back into the separation chamber and down into the process. The cleaning cycle takes seconds and happens automatically while conveying continues — the filter stays clear, suction stays strong, and there is no throughput loss and no manual cleaning during the production run.

Can it be integrated into a central powder feeding system with multiple machines?

Yes. The CLF-L is designed for integration into a central powder feeding system. Through PLC linkage, it can be coordinated with the central control so that it delivers powder to a high-capacity consumer on demand, while other loaders — VLF batch loaders for medium stations, FSP crushing material suction machines for regrind, or screw feeders for pellets — serve the other stations. In a central system, the CLF-L typically handles the largest powder consumer, operating continuously so the main line is never starved. Chenxing provides the control interface to connect the CLF-L to your existing central control architecture.

Is the CLF-L suitable for calcium carbonate, PVC powder and masterbatch powder?

Yes — these are the most common duties for the CLF-L series. Calcium carbonate, the workhorse filler in PVC compounding, is conveyed routinely even though it is fine and abrasive; PVC powder (suspension and emulsion grades) conveys well under vacuum; masterbatch powder and carbon black are handled with the customized filter cartridge tuned to their very fine particle size. The key is the customized filter cartridge: filter media and pore size are selected for the specific powder, so fine fillers are captured without escaping into the air and without blinding the filter. If you convey other powders, tell us the material and particle size, and the CLF-L is configured accordingly.

How much maintenance does a continuous powder loader require?

The CLF-L is built around a maintenance-free design — one of its defining features. Because the reverse-pulse assembly cleans the filter automatically while the machine runs, there is no routine filter cleaning to schedule and no element replacement cycle to budget for. The structure uses minimal wearing parts, and the robust carbon-steel or stainless-steel construction resists the abrasion of fine, high-load powders. Maintenance is limited to routine checks — confirming the compressed-air supply to the cleaning assembly, inspecting the conveying line connections, and verifying the vacuum source — on the same schedule as the rest of the line. The machine is designed to run continuously, shift after shift, with the minimum of attention.

Keep Your Line Running Non-Stop — Request a Quote

Step 1 — Tell Us Your Powder and Your Demand: Share the powder type (PVC powder, calcium carbonate, masterbatch powder, carbon black, or other), the particle size if you know it, your line's continuous powder consumption per hour, and the conveying distance from source to destination. If the loader feeds a high-speed mixer, extruder, or central feeding system, tell us the consumption profile and hopper sizes.

Step 2 — Get a Sized Recommendation: Chenxing specifies the complete system: CLF-L capacity (from the range up to 5000 kg/h), conveying line diameter and routing, vacuum source, the customized filter cartridge matched to your powder, and the control mode (manual, automatic, or PLC-integrated into your central system). You receive a clear equipment list, layout drawing, and utility requirements — sized for continuous operation, not for a duty cycle.

Step 3 — Request a Quote from Nicole: Contact Nicole at +8615951187228 or ceo@cxsljx.com with your powder details and plant layout. We respond within 24 hours with a formal quotation, delivery schedule, and freight options. Chenxing provides installation guidance, commissioning support, and operator training on the continuous suction, separation, filtration, and reverse-pulse cleaning operation.

Step 4 — Convey Powder Continuously, from Day One: After installation, the CLF-L starts delivering a steady powder stream immediately — continuous discharge, filter self-cleaning, feed automatic. The feeding pause disappears, the line runs at full speed, and powder handling becomes a background process that never interrupts production.

For the complete powder and material handling ecosystem, Chenxing also supplies: the VLF powder suction machine for standard batch powder conveying, the FSP crushing material suction machine for regrind flakes, screw feeders automatic feeding machines for pellet conveying, STG-U hopper driers for moisture control, PVC disc pulverizers and SMP PVC waste pulverizers for powder production, plastic pelletizers for reprocessing, vibrating screens for classification, CJ magnetic frames hopper magnets for metal protection, and complete lines from PVC shelf label strip extrusion to PVC UV marble sheet making. As a single-source partner, Chenxing Machinery supports every step from powder to finished product.
