The global plastic compounding machine market is undergoing a significant transformation. Valued at USD 445.61 million in 2025 and projected to reach USD 851.23 million by 2032 at a CAGR of 9.68%, according to Research and Markets, this sector is being reshaped by three converging forces: the automation imperative, energy cost pressures, and increasingly stringent quality requirements from end-use industries including automotive, packaging, building materials, and electronics.
At the center of this evolution is a fundamental question every compounder faces: how do you increase throughput and consistency while reducing per-kilogram energy costs? The answer increasingly points to self-friction heating technology—and the SRL-Z Series Vertical-Type Mixing Unit from Chenxing Machinery stands at the forefront of this innovation.
The plastic compounding machine sector is experiencing robust growth across all segments:
Single-screw and twin-screw extruders continue to dominate throughput-critical applications, but vertical high-speed mixers are claiming an expanding share of the pre-compounding and dry-blending stage—precisely where the SRL-Z operates.
Fully automatic systems are the fastest-growing segment, driven by demand for consistent throughput, batch traceability, and reduced labor dependency. The SRL-Z's PLC/HMI interface and pneumatic unloading option position it squarely within this trend.
Mid-to-high capacity solutions (500L–2000L effective) are seeing the strongest demand growth, as manufacturers serving automotive, construction, and packaging sectors scale up to meet global supply commitments.
The mixing unit is no longer viewed as a commodity purchase. It is a strategic asset that directly impacts product quality, energy expenditure, and production line uptime. This shift in perception is driving compounders toward purpose-engineered solutions rather than generic mixers adapted from other industries.
Energy typically represents 15–25% of total operating costs in a PVC or thermoplastic compounding facility. With electricity prices rising across Europe, South Asia, and parts of the Americas, every percentage point of energy efficiency translates directly to margin preservation.
Traditional heated mixers rely on external energy sources—electric jacket heaters, thermal oil circulation, or gas burners—to raise material temperature to the 100–130°C window required for proper plasticizer absorption and additive dispersion. These systems suffer from inherent inefficiencies:
Heat transfer losses: Energy must travel through vessel walls before reaching the material, with unavoidable thermal losses to the surrounding environment.
Temperature gradients: Material near the vessel wall heats faster than material at the core, creating non-uniform thermal profiles that compromise batch consistency.
Slow response: External heating systems have significant thermal inertia, making precise temperature control difficult and extending cycle times.
The SRL-Z vertical-type mixing unit addresses all three problems simultaneously through its core innovation: self-friction heating.
In a conventional mixer, the rotating blades serve a single purpose: mechanical agitation to disperse additives, fillers, and pigments throughout the polymer matrix. Heat is supplied externally and must penetrate from the outside in.

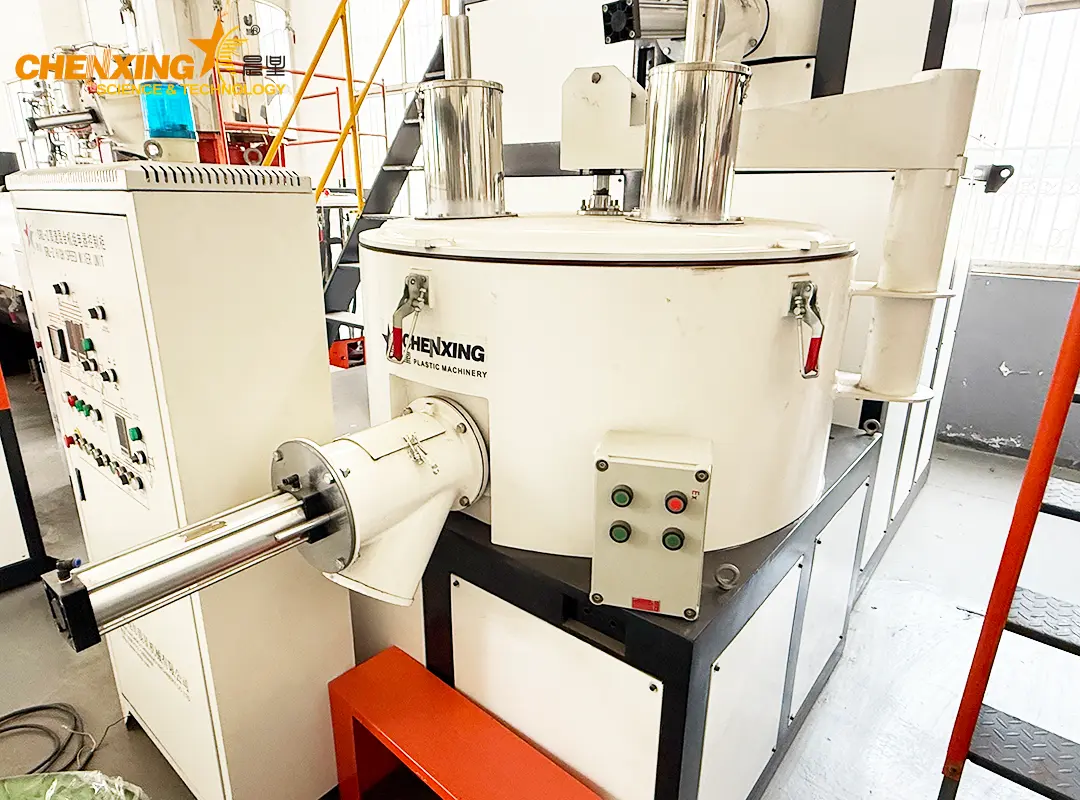

In the SRL-Z series, the specially designed mixing blades serve a dual purpose. Operating at screw speeds ranging from 30 to 250 r/min depending on the model, the blades generate intense shear forces within the material mass. This mechanical energy is converted directly into thermal energy through intermolecular friction—heat generated from within the material itself.
The physics is elegantly efficient: the kinetic energy that is already being expended to achieve mixing simultaneously heats the material, eliminating the need for external heating as the primary thermal source. Research and industry case studies indicate that self-friction heating can reduce external energy consumption by 30–50% compared to conventional heated mixers of equivalent capacity.
The SRL-Z series does not abandon external heating entirely. An optional electric heating system provides supplemental heat when formulations require higher initial temperatures or when processing materials with lower friction coefficients that generate less self-heating.
This dual-mode approach gives operators unprecedented flexibility:
| Operating Mode | Best For | Energy Profile |
|---|
| Pure self-friction | Standard PVC dry-blend compounding | 30–50% lower electricity consumption |
| Self-friction + electric assist | High-temperature formulations, masterbatch, filled compounds | Supplemental heat only when needed |
| Electric primary (low-speed mixing) | Heat-sensitive additives requiring gentle processing | Full external control with PLC precision |
This flexibility makes the SRL-Z suitable for a wide range of applications beyond PVC, including thermoplastic compounding, masterbatch production, and additive incorporation.
Energy efficiency is only valuable if the equipment delivering it remains operational. The SRL-Z series incorporates multiple design features that extend service life and reduce maintenance frequency—directly impacting total cost of ownership.
Every blade assembly undergoes rigorous dynamic and static balance testing before leaving the Chenxing factory. Unbalanced blades are not merely a quality issue—they are a reliability threat. Even minor imbalance at 250 r/min generates oscillating forces that accelerate bearing wear, induce shaft fatigue, and create vibrations that propagate through the entire machine frame.
Balanced blades produce several compounding benefits:
Uniform mixing: Material follows a consistent flow pattern without dead zones where additives can accumulate unmixed.
Extended bearing life: Reduced radial loads mean bearings operate within design specifications, extending replacement intervals.
Lower noise levels: Vibration-free operation creates a quieter, safer working environment.
Reduced frame stress: The free construction design works as intended only when dynamic loads are balanced.
The cooling phase is often the bottleneck in batch mixing cycles. After reaching 100–130°C during the heating/mixing phase, the compound must be rapidly cooled to prevent thermal degradation and prepare for downstream processing.

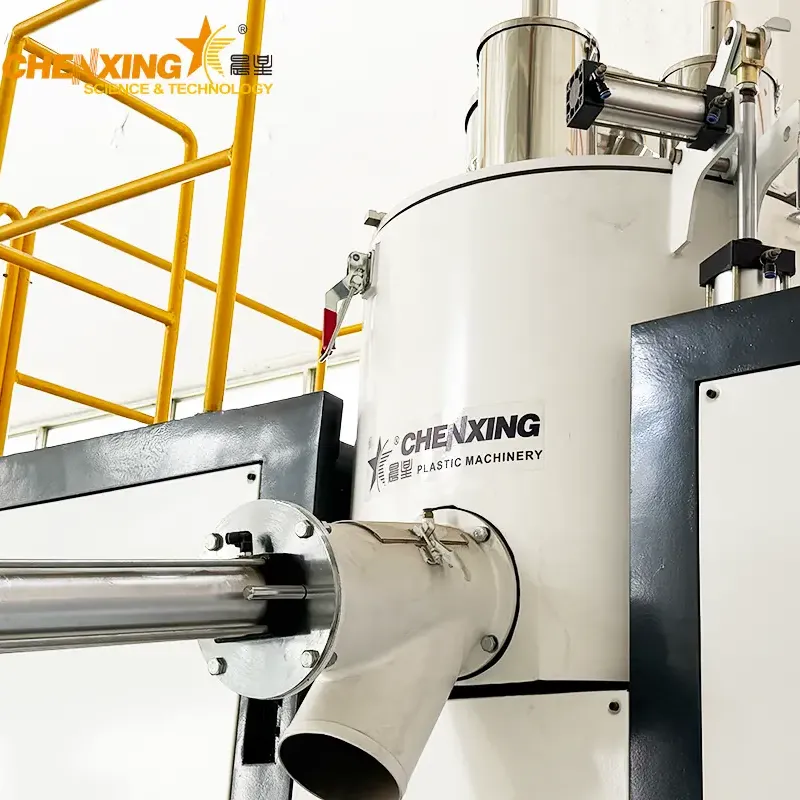

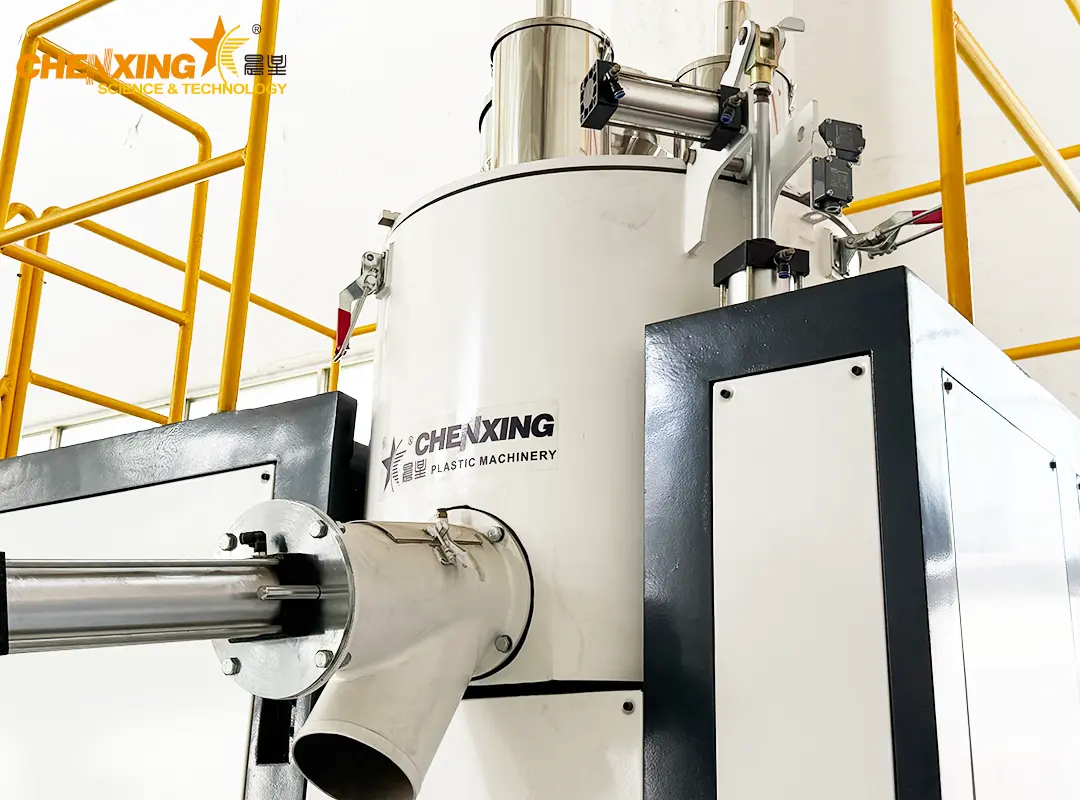

The SRL-Z's dual-layer pot cover integrates cooling channels within an arch-shaped structure. Coolant circulates through the cover, extracting heat directly from the material surface while the blades continue slow rotation to ensure uniform cooling. The arch shape is not merely aesthetic—it resists thermal deformation that would otherwise distort a flat cover during repeated heating-cooling cycles, maintaining consistent chamber geometry batch after batch.
Cooling time ranges from 6–10 minutes per batch, depending on model size and target discharge temperature. This rapid cycling enables high daily throughput even on single-unit installations feeding a pipe extrusion line or profile extrusion line.
The SRL-Z's free-standing structural design eliminates the need for extensive foundation work or custom mounting frames. The heavy-duty base frame with integrated vibration dampening absorbs operational forces internally, allowing installation on standard reinforced concrete floors. This reduces both installation time and facility modification costs—valuable considerations for plants expanding capacity within existing footprints.
One of the most persistent inefficiencies in compounding operations is running oversized equipment at partial capacity. An oversized mixer not only consumes more energy per batch than necessary but also introduces challenges in maintaining consistent thermal profiles with smaller material volumes.
The SRL-Z series spans 9 models covering effective capacities from 100L to 2000L, allowing precise matching of equipment to production requirements:
| Model | Effective Cap. (L) | Motor (kW) | Screw Speed (r/min) | Dimensions (mm) |
|---|
| SRL-250/100 | 100 | 15/8 | 35/70 | 2000×1800×1900 |
| SRL-2100/200 | 200 | 22/7.5 | 30/50 | 2500×2000×2200 |
| SRL-2300/350 | 350 | 45/9 | 50/100 | 4300×2400×2700 |
| SRL-2300/500 | 500 | 55/11 | 50/130 | 4800×2700×3000 |
| SRL-2300/1000 | 1000 | 75/15.5 | 55/150 | 6000×3200×3500 |
| SRL-2500/1100 | 1100 | 90/18.5 | 60/165 | 6600×3300×3700 |
| SRL-2500/1600 | 1600 | 110/20 | 60/200 | 6800×3600×3700 |
| SRL-2800/1400 | 1400 | 110/22 | 65/180 | 6250×4200×4400 |
| SRL-2800/2000 | 2000 | 130/25 | 65/250 | 6800×5200×5500 |
This graduated sizing means a manufacturer feeding a single pipe extrusion line can start with a mid-range model like the SRL-2300/500 and later add larger units as they expand into an automatic compounding system serving multiple extruders.
The Research and Markets report highlights that fully automatic compounding systems represent the fastest-growing segment, driven by demand for consistent throughput and batch traceability. The SRL-Z series is engineered to integrate seamlessly into this automation paradigm.
The control panel on every SRL-Z unit features programmable logic controller (PLC) and human-machine interface (HMI) capabilities. Operators can develop, save, and recall precise processing recipes for different material formulations. Each recipe captures:
Target screw speed profile (ramp-up, hold, ramp-down)
Temperature setpoints for heating and cooling phases
Mixing duration per phase
Cooling cycle parameters
Unloading sequence timing
Once a recipe is validated, it can be locked to prevent unauthorized parameter changes, ensuring batch-to-batch consistency regardless of which operator is running the shift. This is particularly valuable for compounders serving customers with tight specification tolerances or for multi-product facilities where changeover must be fast and error-free.
The pneumatic unloading option on the SRL-Z series enables direct material transfer to intermediate storage silos or hopper loaders feeding downstream extruders. In a fully integrated automatic compounding system, the SRL-Z discharges directly into a pneumatic conveyor that transports the cooled, dry-blended compound to the extruder feed system—eliminating manual material handling, reducing contamination risk, and enabling near-continuous production flow.
For smaller operations not yet ready for full automation, the manual discharge option provides a cost-effective entry point with a clear upgrade path.
Chenxing Science & Technology, the manufacturing division of Zhangjiagang Chenxing Machinery Co., Ltd., has been designing and building compounding equipment for over 20 years. The company's comprehensive product portfolio includes mixing units, single and twin-screw extruders, complete pipe and profile extrusion lines, and turnkey automatic compounding systems.
With CE certification for European market compliance and ISO 9001 quality management certification, Chenxing equipment meets the regulatory requirements of more than 30 export destinations spanning North America, Europe, the Middle East, Southeast Asia, and Africa. This global presence means SRL-Z units are supported by an international network of service partners and spare parts distribution.
| Feature | SRL-Z Series | Conventional Heated Mixer |
|---|
| Primary heating method | Self-friction (internal) | External jacket/coil |
| External energy reduction | 30–50% | Baseline |
| Heating flexibility | Dual-mode (friction + optional electric) | Single-mode external only |
| Blade balancing | Dynamic + static tested | Often static only |
| Cooling cover design | Dual-layer arch-shaped (anti-deformation) | Single-layer flat |
| Unloading options | Manual + pneumatic | Typically single-mode |
| Automation readiness | PLC/HMI with recipe storage | Basic controls |
| Model range | 9 models (100L–2000L) | Often limited to 3–5 sizes |
Industry data and manufacturer specifications indicate energy savings of 30–50% on the heating portion of the compounding cycle compared to conventional externally heated mixers. Actual savings depend on material formulation, target temperature, batch size, and ambient conditions. The SRL-Z's dual-mode design ensures you can always fall back on electric heating when formulations require it.
Self-friction heating is most effective with materials that generate sufficient frictional heat under shear—PVC, rigid thermoplastics, and filled compounds are ideal candidates. For heat-sensitive materials or formulations requiring gentle low-temperature mixing, the SRL-Z's optional electric heating mode provides precise external temperature control without relying on self-generated heat.
Dynamically balanced blades significantly reduce radial loads on main bearings and shaft seals. This extends bearing replacement intervals, reduces unplanned downtime, and minimizes vibration-related wear on the machine frame and mounting hardware. Over a 5–10 year operating life, the maintenance savings can be substantial.
Yes. Calcium carbonate (CaCO₃) is one of the most common fillers in PVC pipe and profile compounding. The SRL-Z's high-shear mixing action and self-friction heating are well-suited to dispersing fine mineral fillers uniformly throughout the polymer matrix. The robust blade design withstands the abrasion associated with filled compounds.
Chenxing Machinery provides remote installation guidance, on-site commissioning by factory-trained engineers (subject to regional availability), operator training, and ongoing technical support. Spare parts are stocked at the Zhangjiagang headquarters and can be shipped internationally. For customers integrating the SRL-Z into a larger automatic compounding system, Chenxing offers complete system design and integration services.
