SMF Series Disc Pulverizer for PET — From Flakes To Fine Powder

Why Grind PET — Beyond Bottle-to-Bottle Recycling

PET recycling has traditionally focused on mechanical recycling — washing, grinding, and re-extruding bottle flakes into fiber or sheet. But the value chain is shifting. Chemical recycling (depolymerization to monomers), powder-based compounding, and advanced filler dispersion all demand PET in powder form — not as an intermediate processing step, but as a deliberate material specification.

PET's molecular structure makes it an interesting grinding target: it is a crystalline polymer that behaves as a brittle material at room temperature, grinding more efficiently than PE or PP. However, PET is also hygroscopic — it absorbs moisture from ambient air (typically 0.2–0.4% by weight), and grinding moisture-containing PET can cause hydrolytic degradation that reduces intrinsic viscosity (IV) and compromises mechanical properties. For chemical recycling applications, where depolymerization efficiency depends on particle surface area, fine and consistent PET powder accelerates the reaction rate and improves monomer yield.

The SMF series from Chenxing Machinery addresses PET's unique processing requirements — its need for pre-drying, its brittle fracture behavior that enables efficient grinding, and its application-specific particle size targets. For operations that integrate pre-drying with grinding, the SMF pairs seamlessly with the STG-U hopper drier to deliver dry, consistent PET powder.

SMF-PET Technical Specifications

PET throughput is at 40–80 mesh with properly dried material. Moisture-containing PET reduces grinding efficiency and risks IV degradation. Capacity assumes well-dried feed.

Model Selection for PET Processing

How Disc Grinding Works for PET — Brittle and Efficient

PET's crystalline nature and glass transition temperature above room temperature (Tg ≈ 70–80°C) make it behave as a brittle material at grinding temperatures. This is an advantage: PET fractures under disc shear with minimal energy absorption, enabling higher throughput at lower specific energy than tough materials like PE or ABS.

Step 1 — Pre-Drying (Essential): Before entering the grinding chamber, PET must be dried to <0.005% moisture content. The STG-U hopper drier or an equivalent desiccant dryer operating at 160–170°C for 4–6 hours achieves this. Grinding undried PET risks hydrolytic degradation — the moisture in the polymer reacts with ester linkages at elevated grinding temperatures, reducing molecular weight and intrinsic viscosity.

Step 2 — Metered Feeding: Dried PET flakes or pellets enter the grinding chamber through a screw feeder. As with other materials, consistent feed rate is essential for stable grinding conditions.

Step 3 — Brittle Fracture Grinding: At 2950–3800 RPM disc speed, PET particles fracture cleanly. Because PET is brittle at room temperature, the grinding energy is concentrated in fracture propagation rather than absorbed by material deformation — the ideal grinding mechanism. The dual-disc configuration provides primary size reduction and finishing.

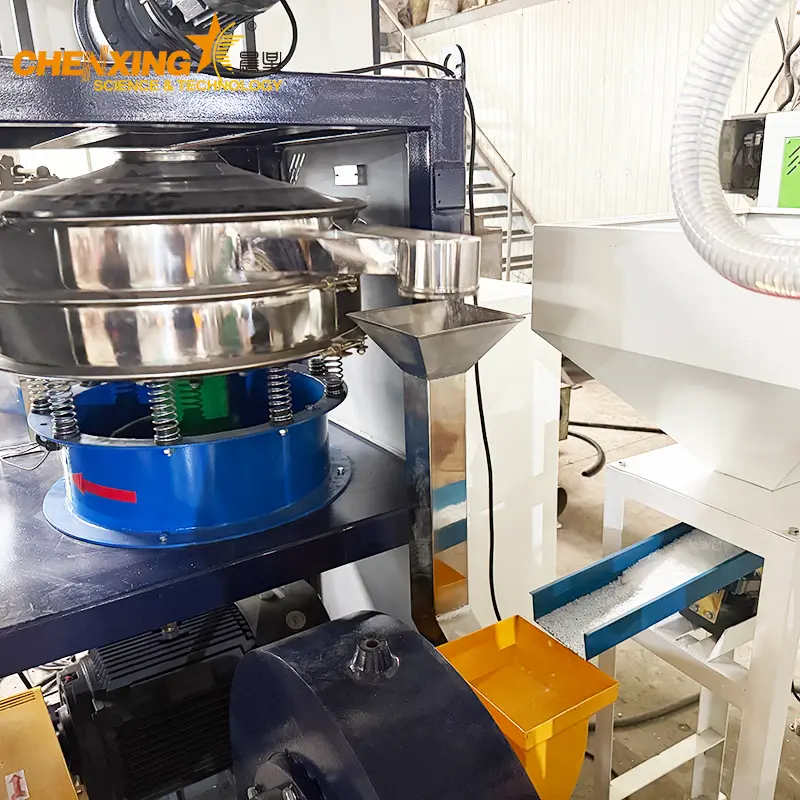

Step 4 — Screening & Classification: Ground powder passes through a vibrating screen. For chemical recycling, 60–80 mesh powder maximizes surface area for depolymerization. For compounding, 40–60 mesh provides uniform additive dispersion. Oversize automatically returns for regrinding.

Step 5 — Sealed Collection (Moisture-Protected): Negative-pressure pneumatic conveying and air-lock discharge prevent re-absorption of ambient moisture. Dry PET powder will absorb moisture from the air within hours; collection and packaging should be designed to maintain dryness.

Key Advantages of SMF for PET Grinding

Brittle Fracture Efficiency — More Powder Per Kilowatt

• Feature: Optimized disc speed and tooth geometry for PET's brittle fracture characteristics, maximizing throughput at moderate power consumption.

• Advantage: PET fractures cleanly — unlike PE or PP, which absorb impact energy through deformation, PET's rigid molecular structure transmits impact energy directly to bond breakage. This means the SMF converts a higher percentage of motor energy into size reduction and a lower percentage into waste heat. The result is higher throughput per kilowatt of installed power compared to grinding tough materials.

• Benefit: Lower energy cost per ton of PET powder produced. The SMF-600 grinding PET at 200 kg/h consumes approximately 52.5 kW total (45kW main + 7.5kW blower) — about 263 kWh per ton. At industrial electricity rates, this works out to $30–40 per ton, which is 20–30% lower than the specific energy for grinding PE or ABS at the same throughput.

Pre-Drying Integration — Protecting PET's Intrinsic Viscosity

• Feature: SMF feeds seamlessly from a STG-U hopper drier or other desiccant drying system, enabling a continuous dry-to-grind workflow.

• Advantage: PET's hydrolytic degradation during grinding is a function of moisture content × temperature × residence time. Even 0.1% moisture can cause measurable IV reduction if the grinding temperature is elevated. The integrated drying-to-grinding workflow eliminates the moisture variable — dried PET enters the grinding chamber at <0.005% moisture, and the short residence time at grinding temperature (seconds, not minutes) prevents any degradation.

• Benefit: Preserved PET intrinsic viscosity and mechanical properties. Powder that meets the IV specification for its downstream application — whether chemical recycling (where IV is irrelevant but consistency matters) or re-compounding (where IV directly affects bottle or fiber quality). The integration eliminates the risk of grinding moisture-containing PET that a stand-alone grinder cannot control.

Precision Screening — Particle Size for Chemical Recycling

• Feature: Interchangeable screen mesh and adjustable disc gap, enabling target particle sizes from 20 to 120 mesh for different PET powder applications.

• Advantage: Chemical recycling processes — glycolysis, methanolysis, hydrolysis — are surface-area-limited reactions. The rate of depolymerization is directly proportional to the available PET surface area. Reducing PET flake (mm-scale) to 80-mesh powder (180 microns) increases surface area by approximately 100–1000x, which can reduce reaction time by 50–70% depending on the specific depolymerization chemistry. The SMF's precision screening ensures that every particle is below the target size, maximizing reaction efficiency.

• Benefit: Faster depolymerization cycles. Higher monomer yield per batch. Lower catalyst consumption (because the reaction proceeds more efficiently with fine powder). For a chemical recycling facility processing 10,000 tons of PET annually, reducing reaction time by 50% doubles effective reactor throughput — a capital efficiency gain worth potentially millions in avoided reactor investment.

Dual Cooling — Consistent Grinding Without Thermal Degradation

• Feature: Air cooling (chamber ambient) and water cooling (internal disc hub circuits) maintaining grinding zone temperature below PET's thermal degradation threshold.

• Advantage: While PET is brittle at room temperature, it softens above its glass transition temperature (70–80°C) and can degrade above 280°C. The SMF's dual cooling maintains grinding zone temperature in the 50–70°C range — cool enough for brittle fracture, far below degradation. This is particularly important for recycled PET, which may have a broader molecular weight distribution and a lower thermal stability than virgin resin.

• Benefit: Consistent powder quality without thermal degradation. No yellowing or IV loss from grinding heat. The ability to grind recycled PET with variable thermal stability — a material that would challenge a poorly cooled grinder.

New Disc Design — Wear Resistance for Recycled PET

• Feature: Disc tooth geometry and wear-resistant alloy optimized for PET's crystalline abrasiveness and the potential contaminants in recycled material.

• Advantage: Recycled PET bottle flakes inevitably contain trace contaminants — label adhesive residues, cap material (PP or PE), and occasionally silica or alumina from coatings. These contaminants accelerate disc wear beyond what virgin PET would cause. The SMF's disc alloy balances hardness for abrasion resistance from contaminants with toughness to avoid brittle fracture of the disc material itself.

• Benefit: Longer disc life in recycled PET service. More consistent powder quality as discs wear uniformly rather than developing grooves. Reduced spare parts cost per ton of recycled PET powder produced.

Fully Automated — Unattended Operation from Dryer to Powder

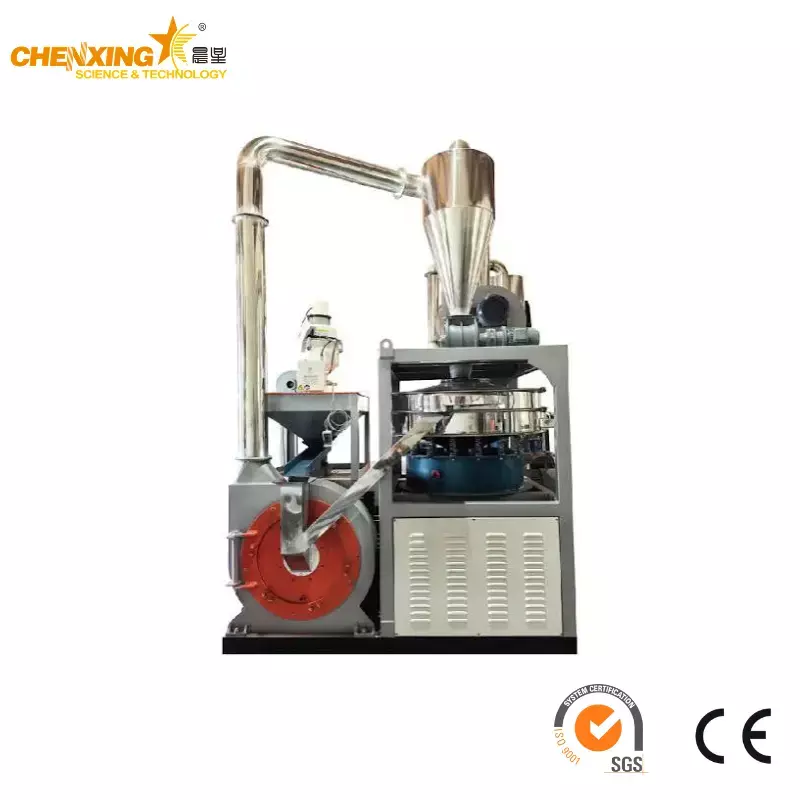

• Feature: Integrated automatic feeding, grinding, pneumatic evacuation, screening, and oversize return — connect a dryer outlet to the SMF inlet, and powder emerges at the collection point.

• Advantage: PET powder production for chemical recycling or compounding is inherently continuous — the dryer operates continuously, and the grinder should match. Manual intervention (adjusting feed, clearing screens) breaks continuity and introduces variability. The SMF's automation enables the dryer-to-grinder-to-powder workflow to run unattended.

• Benefit: Labor efficiency — the dryer operator manages the grinding as well. Continuous throughput — no breaks, no shift-change gaps. Consistent powder because parameters are machine-controlled. For a 24/7 chemical recycling operation, unattended grinding is essential to match reactor feed requirements.

Sealed Dust-Free Design — Containing PET Fines

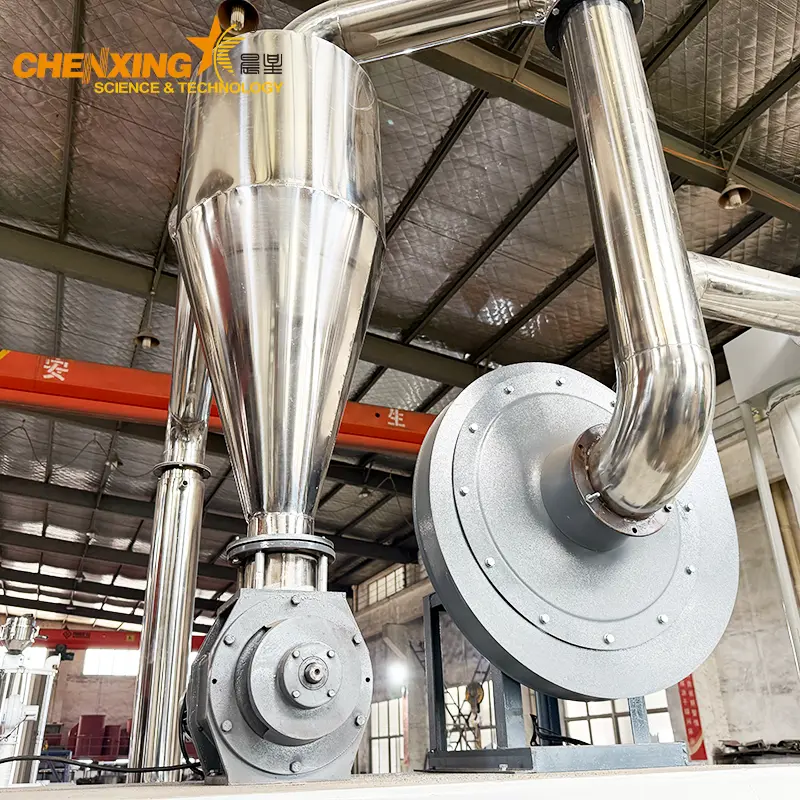

• Feature: Fully enclosed grinding, conveying, screening, and collection under negative pressure with air-lock discharge.

• Advantage: PET dust is combustible and creates a housekeeping burden. In food-grade PET recycling operations, airborne dust can also become a contamination vector if it settles on clean flake or finished product. The SMF's sealed design contains all dust within the system.

• Benefit: Cleaner facility. Reduced explosion risk. In food-grade operations, reduced risk of dust cross-contamination. Compliance with combustible dust safety standards.

PET-Specific Processing Guide

Critical Pre-Grinding Protocol for PET

1. Always pre-dry PET. This is non-negotiable. PET with >0.01% moisture will undergo hydrolytic degradation during grinding. The STG-U hopper drier models STG-U125 through STG-U800 provide drying capacities matched to the SMF throughput range.

2. Transfer dried PET to the grinder immediately. Do not store dried PET in open containers — it will re-absorb moisture within hours. Use a closed conveying system or feed directly from the dryer hopper.

3. Install a magnetic separator. A CJ magnetic frame captures ferrous metal from recycled PET — bottle cap rings, can fragments, etc. — before they damage the discs.

4. Pre-crush if processing whole bottles or large scrap. PET bottle preforms, thick-walled trays, or fiber bales must be reduced to <10mm flake by a plastic crusher before entering the SMF.

Frequently Asked Questions

Why is pre-drying critical for PET before grinding?

PET absorbs moisture from ambient air, typically reaching 0.2–0.4% moisture content. When moisture-containing PET is heated during grinding, the water reacts with the ester linkages in the PET polymer chain in a process called hydrolysis — literally breaking the polymer into shorter chains. This reduces intrinsic viscosity (IV), which is the key quality parameter for PET: lower IV means weaker mechanical properties, poorer bottle performance, and reduced fiber strength. Grinding undried PET can reduce IV by 0.02–0.05 dL/g — a significant loss for bottle-grade PET where IV is tightly specified. Pre-drying to <50 ppm moisture prevents this degradation entirely. The SMF integrates with the STG-U hopper drier to establish a continuous dry-grind workflow.

What powder size is suitable for PET chemical recycling?

For chemical recycling processes — glycolysis, methanolysis, or hydrolysis — 60–80 mesh (180–250 microns) is recommended. This particle size increases the surface area available for reaction by approximately 100–1000x compared to millimeter-scale flake, which directly accelerates the depolymerization rate. The specific optimal size depends on the depolymerization chemistry: glycolysis, being a heterogeneous reaction (PET solid in liquid glycol), benefits most from fine powder; methanolysis, operating at high pressure and temperature, is less surface-area-sensitive. The SMF's interchangeable screen mesh allows targeting the optimal particle size for any depolymerization process.

Can SMF process both bottle-grade and fiber-grade PET?

Yes. Bottle-grade PET (IV ≈ 0.80 dL/g) and fiber-grade PET (IV ≈ 0.64 dL/g) grind with similar behavior because their mechanical properties at room temperature are dominated by crystallinity rather than molecular weight. Fiber waste presents a different physical form — continuous filaments or staple fiber that must be pre-cut or shredded — but once reduced to <10mm lengths, it grinds similarly to bottle flake. Fiber-grade PET may require slightly finer powder (60–80 mesh) if destined for re-extrusion into fiber, to ensure complete melting in the short residence time of fiber spinning.

How fine can SMF grind PET flakes?

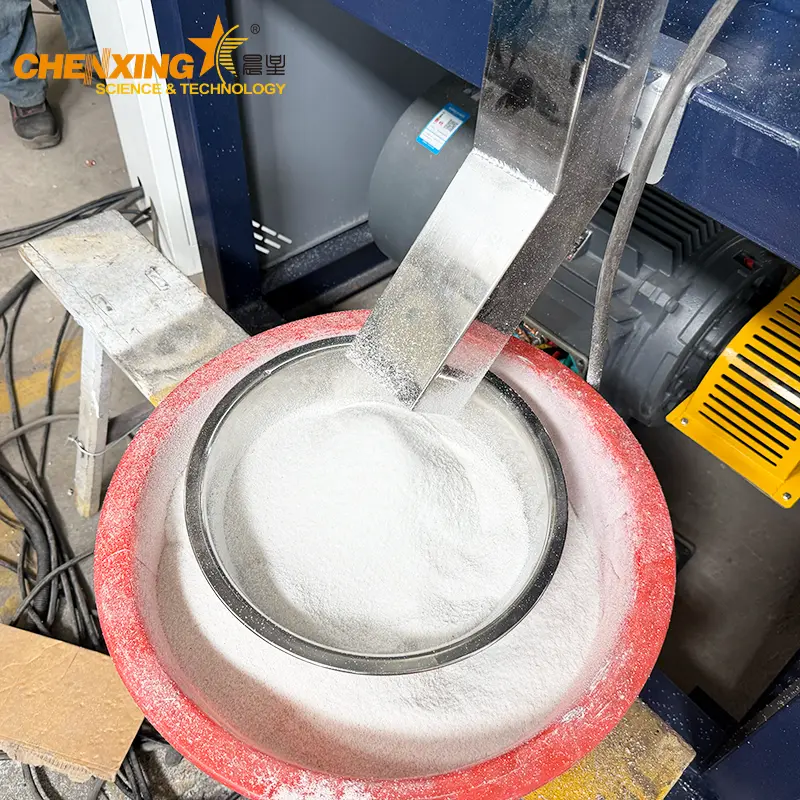

With the adjustable disc gap and appropriate screen mesh, the SMF series can produce PET powder from 20 mesh (coarse, ~840 microns) to 120 mesh (fine, ~125 microns). For most applications, 40–80 mesh is the practical range. Below 120 mesh, the energy cost per ton increases significantly and throughput decreases proportionally. For sub-100-micron PET powder (e.g., for powder coating or specialized filler applications), alternative milling technologies (cryogenic or jet milling) may be more economical — though the SMF can serve as the primary size reduction stage before these finishing mills.

Does PET grinding generate dust hazards?

Yes. PET dust is classified as a combustible dust, and accumulations in a factory environment present an explosion risk if they reach the minimum explosible concentration (MEC) and encounter an ignition source. The SMF's fully sealed, negative-pressure design addresses this by containing all dust within the system — from grinding chamber through pneumatic conveying, cyclone separation, and air-lock discharge. No open transfer points, no vented collection bins. This design helps facilities comply with combustible dust safety standards while maintaining a clean, low-housekeeping production environment.

What is the difference between grinding virgin and recycled PET?

Virgin PET pellets grind with the most predictable behavior — consistent molecular weight, no contaminants, uniform pellet size. Recycled PET bottle flake introduces variability: trace label adhesive can cause disc gumming at elevated temperatures; cap material (PP/PE) does not grind at the same rate and can appear as larger particles in the powder; occasional metal fragments from cap rings or can tabs can damage discs. The SMF's dual cooling (controlling temperature to prevent adhesive softening), magnetic separation (capturing ferrous metal), and robust disc alloy (tolerating occasional non-ferrous contaminants) are all designed with recycled PET's variability in mind.

How to integrate STG-U hopper drier with SMF for PET processing?

The integration is straightforward: the STG-U drier outlet is connected to the SMF's feed hopper inlet. Dried PET exits the drier at 160–170°C — this temperature must be reduced before grinding to avoid disc surface overheating. A short conveying section (1–2 meters) with ambient air cooling, or a dedicated cooling hopper between the drier and grinder, reduces the PET temperature to 40–60°C. The SMF's screw feeder then meters the cooled, dried material into the grinding chamber. For the throughput ranges of the SMF series, the STG-U125 (125L, up to 50 kg/h), STG-U250 (250L, up to 100 kg/h), or STG-U400 (400L, up to 160 kg/h) provide appropriately matched drying capacity. Chenxing Machinery can supply both the drier and the grinder as an integrated package.

Upgrade Your Grinding Efficiency Today

Step 1 — Define Your PET Processing Requirements: PET source (virgin recycled fiber), application (chemical recycling, compounding, re-extrusion), target mesh, and throughput.

Step 2 — Select Your SMF + Drier Combination: Use the model selection and PET processing guide above. For most PET applications, the SMF is paired with an STG-U drier sized to match the grinder's throughput.

Step 3 — Contact Nicole for a Quote: Provide your PET type, throughput, and mesh target. We will recommend the optimal SMF model and matching STG-U drier, with pricing and lead time for both.

Step 4 — Install and Start Producing: Installation support and commissioning guidance are included for both the grinder and drier. Integrated startup ensures the dry-grind workflow is operational from day one.

For complete PET processing solutions, Chenxing Machinery also supplies APET PETG CPET sheet extrusion lines, twin screw dryer-free vented PET sheet lines, plastic crushers for pre-crushing, vibrating screens for classification, and industrial chillers for enhanced cooling.
