Product Description

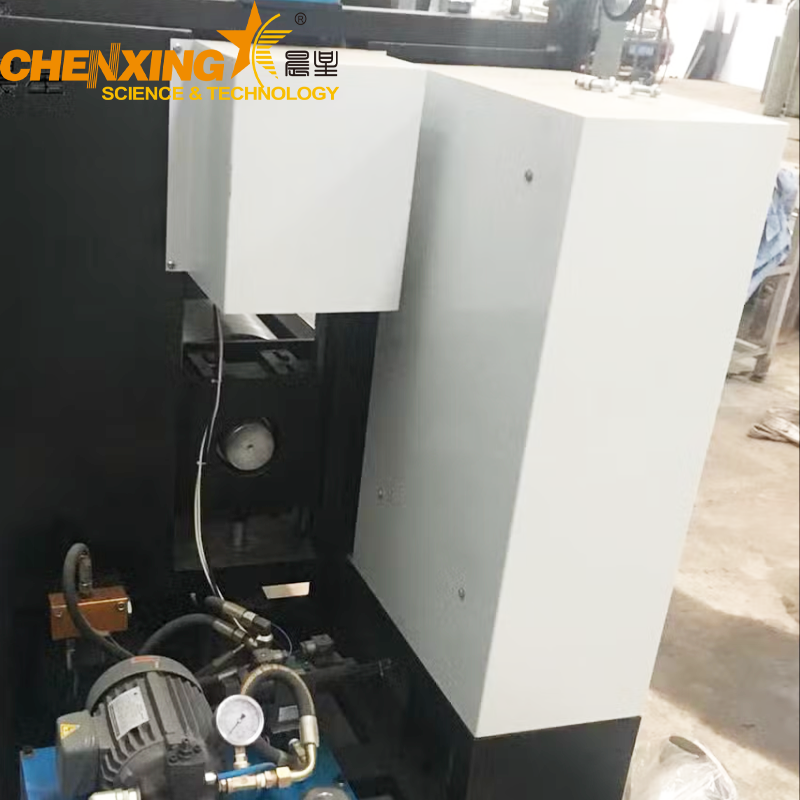

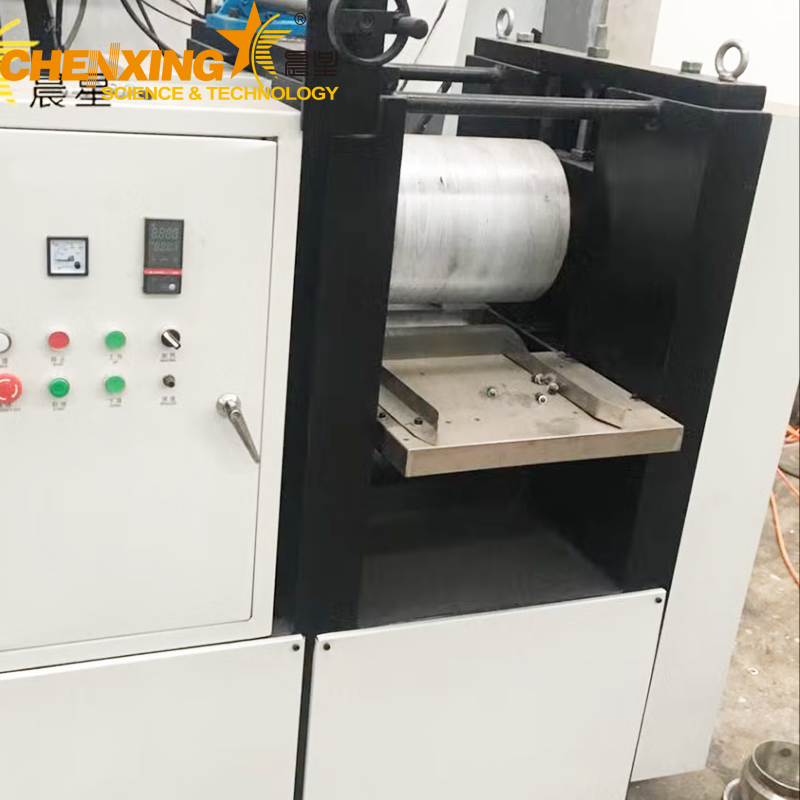

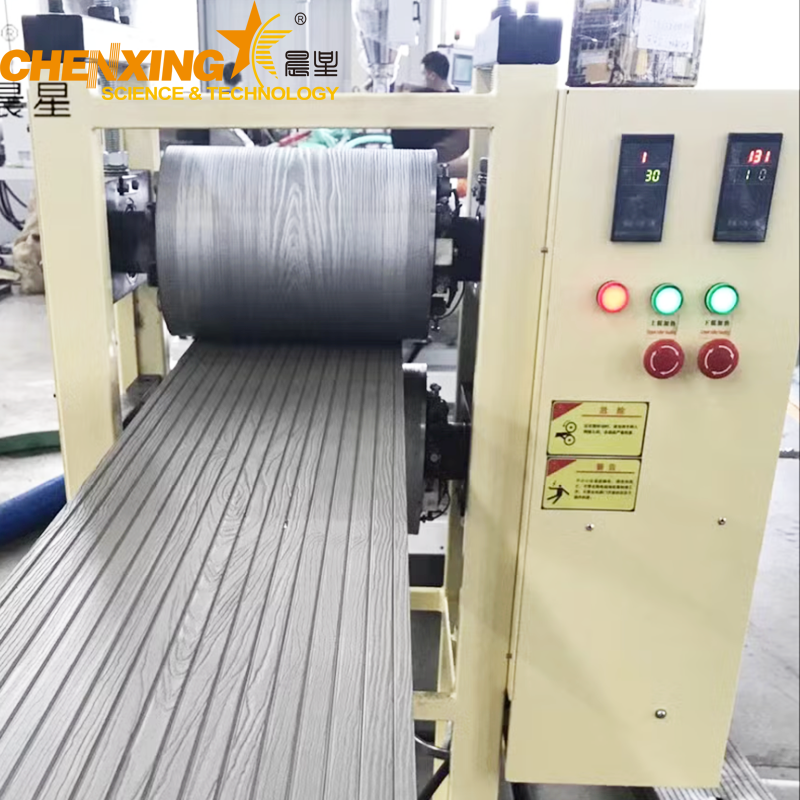

The Plastic Embossing Machine is designed for surface embossing of PVC, PE, WPC panels, bamboo panels, composite boards, wood panels, MDF, and foam boards. By applying precise embossing pressure and heat, the machine creates three-dimensional textures and patterns that enhance the aesthetic appeal, surface quality, and market value of the final product.
This machine is widely used in the production of indoor and outdoor decorative panels, WPC flooring, wall cladding, and furniture boards. It consists of a conveying rack, embossing rollers, hydraulic system, heating parts, and a digital control meter, ensuring accurate operation and high productivity.
Embossing Materials: PVC, PE, WPC, bamboo panels, composite boards, wood panels, fiberboard, foam boards
Embossing Method: Hydraulic pressure with heating
Thickness Range: 0.5mm – 60mm
Embossing Speed: 0.5 – 15 m/min
Applications: Decorative panels, furniture, flooring, wall cladding, WPC surface embossing
Automatic Feeding – Ensures continuous and stable material input.
Hydraulic Pressure Adjustment – Allows easy control of embossing depth and material thickness.

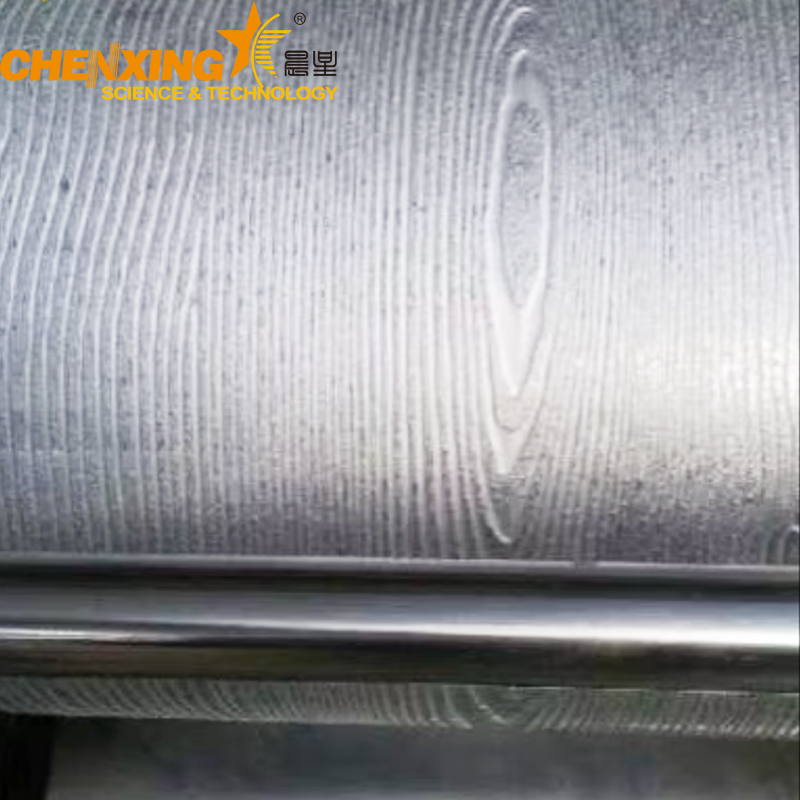

High-Quality Rollers – Made of 45#40C2 steel with PC-carved veins and chrome plating for durability.
Precise Heating System – Provides uniform heat distribution for consistent embossing.
Safety Devices – Includes feeding buffer and emergency stop button.
Customizable Width – Embossing width can be tailored according to customer requirements.
Technical Parameters:
Max embossing width: Customized
Embossing speed: 0 – 10 m/min
Working pressure: 1 – 5 Mpa
Main motor power: 4 KW
Heating power: 5 KW
Creates realistic 3D embossed textures for improved aesthetics.
Handles multiple materials including PVC, WPC, wood, and composites.
Adjustable embossing depth via hydraulic and manual fine-tuning.
High efficiency and consistency with automatic feeding and digital control.
Durable embossing rollers with long service life.
Safe and user-friendly operation with emergency stop and buffer devices.
Q1: What materials can the Plastic Embossing Machine process?
A1: It is suitable for PVC, PE, WPC panels, bamboo, composite panels, MDF, wood boards, and foam boards.
Q2: What is the maximum thickness the machine can emboss?
A2: The machine can process material thicknesses from 0.5mm to 60mm.
Q3: Can the embossing depth be adjusted?
A3: Yes, embossing depth can be adjusted using the hydraulic pressure system and manual fine-tuning device.
Q4: What is the typical embossing speed?
A4: The speed ranges from 0.5 to 15 m/min, adjustable according to production needs.
Q5: Is the embossing roller customizable?
A5: Yes, the embossing rollers can be customized with specific patterns and widths to meet customer requirements.
