Product Description
The Cable Trunking Online Punching Machine is a high-efficiency, fully automatic punching solution specifically designed for PVC cable trunking and profile extrusion lines. Integrated with a hydraulic punching system and PLC control, this machine enables continuous online punching, significantly improving production efficiency and consistency.
Compared to traditional punching systems, this upgraded design supports bilateral and bottom punching simultaneously, increasing efficiency by 3–6 times while ensuring stable, precise hole positioning.
It is the ideal solution for manufacturers producing:
PVC cable trunking
Electrical conduit profiles
Decorative PVC channels
Custom perforated plastic profiles

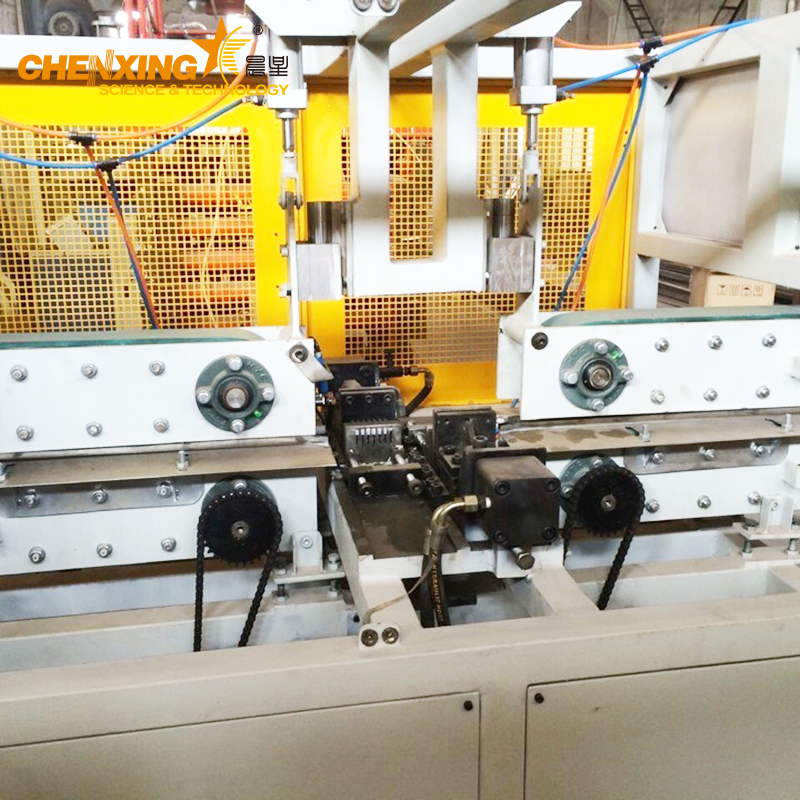

Supports three-side punching (bilateral + bottom)
Adjustable punching speed for different production needs
Continuous inline operation with extrusion line
Upgraded mold structure compared to traditional single-side punching
Simultaneous multi-hole punching improves output significantly

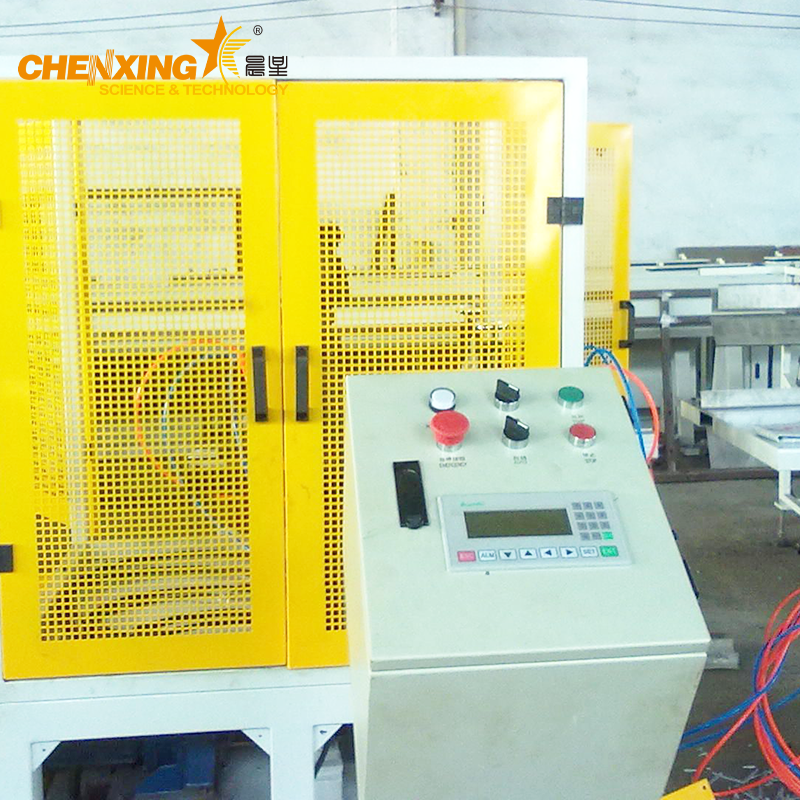

Integrated Chinese & English interface
Real-time control and synchronization with extrusion line
Automatic feeding system for continuous operation
Stable punching performance with minimal vibration
Accurate positioning ensures consistent hole quality
Optimized mechanical structure reduces noise
Compatible with roll-type haul-off machine for synchronized operation
| Parameter | Specification |
|---|---|
| Slide Stroke | 70 mm |
| Punching Speed | 3–4 m/min |
| Slide Block Adjustment | 45 mm |
| Motor Power | 1.5 kW |
| Punching Method | Bilateral + Bottom Piercing |
| Machine Dimensions (L×W×H) | 3200 × 1500 × 2000 mm |
This machine is widely used in:
PVC cable trunking production lines
Electrical wiring channel manufacturing
PVC profile extrusion plants
Building material and infrastructure projects
20+ years experience in plastic extrusion & auxiliary equipment
Customized solutions based on your profile design & output requirements
Proven performance in global markets (North America, Southeast Asia, Middle East)
Full support: installation, training, and after-sales service
Yes. It is designed for online operation, synchronized with extrusion speed for continuous production.

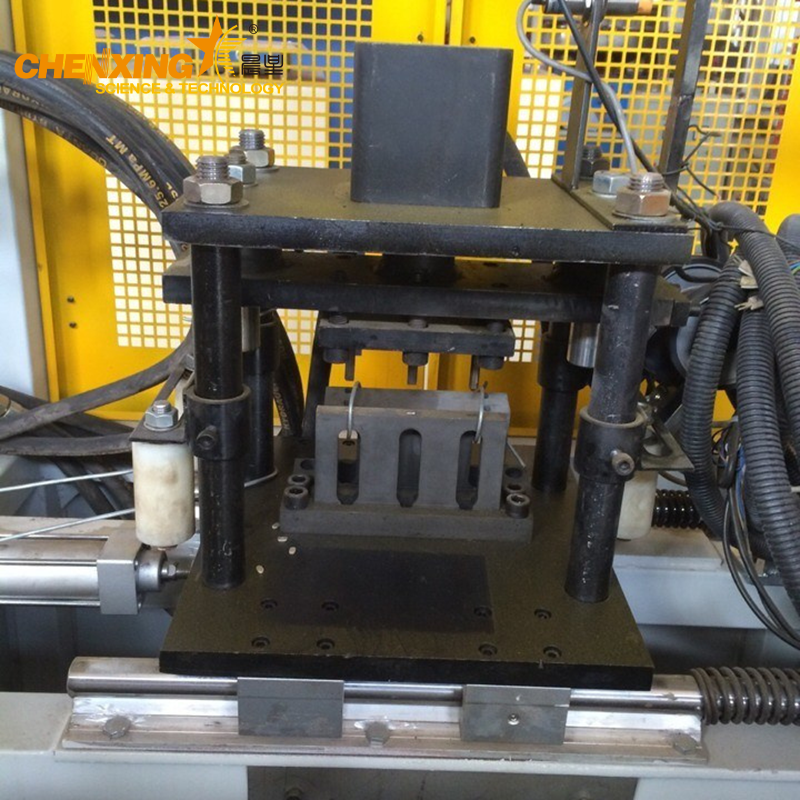

We provide custom molds for different hole shapes, sizes, and spacing based on your product design.
Yes, the punching speed can be adjusted between 3–4 m/min, depending on production requirements.
Yes. The machine is equipped with an automatic feeding system for continuous operation.
Primarily PVC profiles, but it can also be adapted for similar plastic materials.
