Product Description

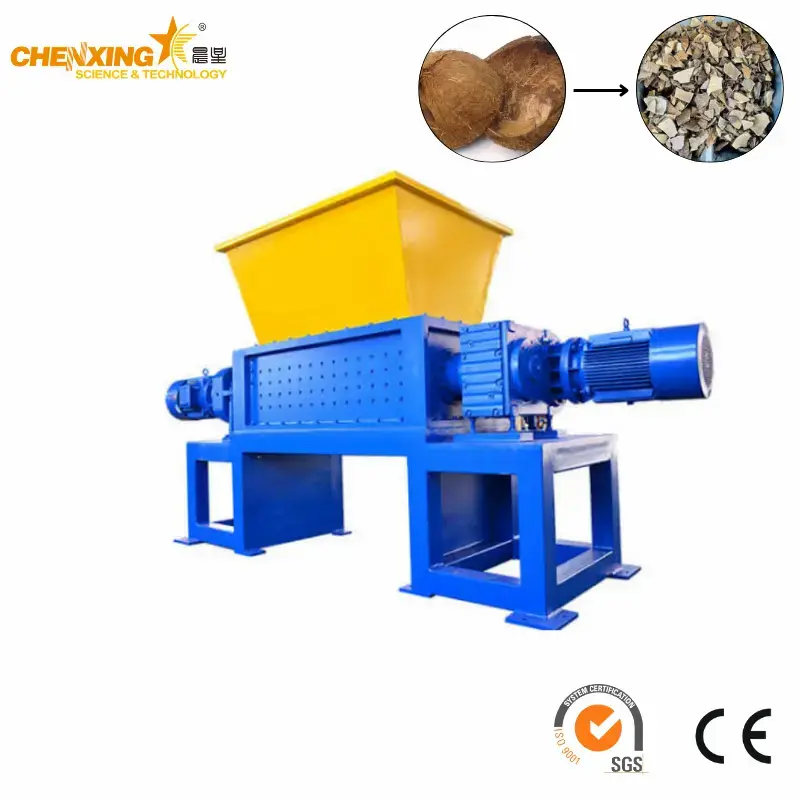

The Chenxing double shaft shredder is a low speed, high torque size reduction machine that tears tough and fibrous materials, including whole coconut shells, coconut husk, plastic pipe, film, woven bags, tires, wood pallets and drums, into granulate for recycling or further processing. The BQX series is published with models from 600 kg/h to 1000 kg/h capacity and an integrated PLC control package.
Coconut shell is one of the hardest natural materials a shredder can meet, and coconut husk is one of the most fibrous. A single shaft crusher that relies on impact tends to bounce off a hard shell or wrap around on long husk fibre. The double shaft design works differently. Two counter-rotating shafts with interlocking blades grip the material, tear it against the fixed knives and pull it into pieces, so a hard shell is held and sheared rather than struck. That is why the BQX double shaft shredder is a practical answer for coconut waste.
The machine also covers the waste stream that a recycling plant sees every day:
Coconut shells and coconut husk, whole or pre-broken, including coir fibre
Plastic pipe, PVC film, food bags, foam, jumbo bags and small PET bottles
Woven bags and sack scrap
Waste tires, wood pallets, metal drums and similar bulky items
Hard and difficult items such as computer hard disks, small engineering plastic parts, household appliance housings and glue head material
The working principle is simple and continuous. Material enters the main frame through the feeding skip. The rotating shafts generate an airstream inside the chamber that carries the material against the blades and the fixed knives, where it is sheared and torn. After size reduction the material is conveyed out through the reclaiming fan blower into a dust-collecting bagging station, so the process runs as one continuous loop.
Positioning in short:
Machine type: double shaft shredder, BQX series
Published models: BQX-D600, BQX-D800 and BQX-D1000
Published capacity range: 600 kg/h to 1000 kg/h, values as published in the source catalogue and subject to confirmation at enquiry
Drive concept: low speed, high torque, with start, stop, reversal and overload automatic reversal control
Control: integrated PLC control package with frequency inverter display
Target materials: coconut shell and husk, plastics, tires, wood, drums and bulky scrap
The shredder sits at the front of a recycling plant, and the rest of the line is covered under plastic recycling line solution, washing and recycling production line and plastic pelletizing line.
The BQX series is published in three models. Every value in the table below is taken from the source catalogue and is subject to confirmation at enquiry; no figure has been added or changed.
| Item | BQX-D600 | BQX-D800 | BQX-D1000 |
|---|---|---|---|
| Rotary blade diameter | 255 mm | 255 mm | 300 mm |
| Number of rotating knives | 60 pieces | 78 pieces | 96 pieces |
| Rotary knife speed | 60 rpm | 60 rpm | 60 rpm |
| Number of fixed knives | 4 pieces | 4 pieces | 4 pieces |
| Crushing capacity | 600 kg/h | 800 kg/h | 1000 kg/h |
| Feed inlet size | 1200 x 1400 mm | 1300 x 1500 mm | 1300 x 1500 mm |
| Main motor power | 18.5 kW x 2 | 22 kW | 30 kW |
| Feeding motor power | 1.5 kW | 1.5 kW | 1.5 kW |
| Outlet motor power | 1.5 kW | 1.5 kW | 1.5 kW |
| Reducer type | PSH5-10-C | PSH7-10-C | PSH9-10-C |
| Machine weight | 400 kg | 500 kg | 500 kg |
| Frequency display | Integrated frequency inverter display | Integrated frequency inverter display | Integrated frequency inverter display |
| PLC control | Integrated PLC control package | Integrated PLC control package | Integrated PLC control package |
The core selection numbers, side by side:
| Selection point | BQX-D600 | BQX-D800 | BQX-D1000 |
|---|---|---|---|
| Crushing capacity | 600 kg/h | 800 kg/h | 1000 kg/h |
| Feed inlet size | 1200 x 1400 mm | 1300 x 1500 mm | 1300 x 1500 mm |
| Main motor power | 18.5 kW x 2 | 22 kW | 30 kW |
| Number of rotating knives | 60 | 78 | 96 |
| Machine weight | 400 kg | 500 kg | 500 kg |
BQX-D600 suits smaller throughput and tighter floor space, with a 1200 x 1400 mm feed inlet and a twin 18.5 kW drive arrangement.
BQX-D800 steps up to an 800 kg/h published capacity and a 1300 x 1500 mm feed inlet.
BQX-D1000 is the top published model at 1000 kg/h, with a 300 mm rotary blade diameter and 96 rotating knives for heavier work.
For coconut shell and husk, the practical capacity depends on shell condition, moisture and how the material is fed. The source catalogue lists the general capacity figures above; a coconut-specific figure is confirmed at enquiry based on your shell condition.
Electrical supply is 380V, 50Hz, 3 phase as standard, and can be customized as per your requirement.
Related shredding and grinding equipment in the same family: two stage recycling machine, plastic agglomerator, SMF series grinding machine and crushing material suction machine.
Coconut shell and husk processing. This is the application this page leads with. Whole coconut shells are hard, thick and brittle, while coconut husk is tough, fibrous and stringy. The low speed, high torque double shaft action grips both types of material and tears them into granulate without wrapping the rotor. Typical work includes:
Whole coconut shells reduced before further grinding into coconut shell powder or charcoal feedstock
Coconut husk and coir fibre opened up for composting, bedding or fibre recovery
Shell and husk mix from copra processing plants and coconut oil mills
Dry and green coconut waste, fed as it comes from the yard
Because the source catalogue does not publish a dedicated coconut capacity figure, the throughput for your shell condition is confirmed at enquiry. The machine is quoted with blade configuration and feed arrangement matched to the shell size and moisture you actually handle.
Plastics and film. The BQX series is a general plastic shredder first. The source catalogue lists PET material, aluminum plastic pipe, PVC film, food bags, foam, jumbo bags, plastic pipe and small PET bottles as everyday feed. The machine can be fed continuously, which keeps a plant's scrap stream moving without batch interruptions.
Bulky and hard waste. The same machine is suitable for materials that are difficult to break: waste tires, computer hard disks, small engineering plastic parts, household appliance housings and glue head material. Wood pallets, metal drums and woven bag scrap also go through the double shaft chamber.
| Application | Typical material | Why the BQX machine fits |
|---|---|---|
| Coconut processing plants | Whole shells, husk, coir fibre | Low speed, high torque tearing handles hard and fibrous material without wrapping |
| Plastic recycling plants | PET, aluminum plastic pipe, PVC film, food bags, foam, jumbo bags | Continuous feeding with start, stop, reversal and overload automatic reversal control |
| Pipe plants | Plastic pipe and small PET bottles | Feed inlet up to 1300 x 1500 mm takes bulky line scrap |
| Tire and bulky waste yards | Waste tires, wood pallets, drums | Double shaft grip tears tough sections that single shaft crushers bounce off |
| E-waste and engineering plastic | Hard disks, appliance housings, glue head material | Designed for hard and thick material that is difficult to break |
| Agriculture and fibre | Coconut husk, coir, fibrous plant waste | Tearing action opens up long fibre instead of jamming |
Working conditions. The machine is installed as a floor level unit with a feeding skip, the main frame, the reclaiming fan blower and the control cabinet. It needs a level, load-bearing floor and a three-phase supply, 380V 50Hz as standard or customized voltage and frequency. Bearing design is the opening type, which makes dismounting and blade change straightforward, and the low speed, high torque operation keeps noise low during continuous running.
The line that follows the shredder is covered under washing line machines, PE PP film recycling washing line, PET bottle crushing washing line and powder suction machine.
This is a built to order machine, and the BQX series is customized around the material and the plant.
What we will change
Voltage and frequency. The standard supply is 380V, 50Hz, 3 phase; the machine can be built for your local supply.

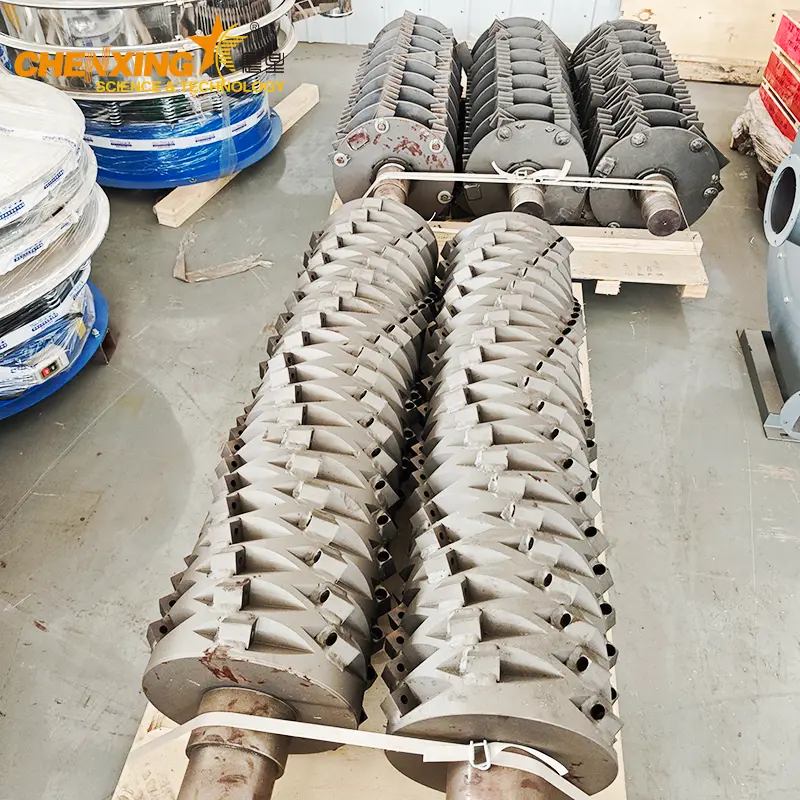

Blade configuration. Blade material, count and edge geometry are selected for the material you feed, including hard coconut shell or abrasive husk.
Feeding arrangement. The feeding skip and the feed method are adapted to your material size and how you load the machine.
Discharge and collection. The outlet and the reclaiming fan blower arrangement are matched to your bagging or downstream conveying.
Color and finish. Machines can be designed according to your requirements for material, power and color.
Complete line integration. The shredder can be quoted as the first stage of a washing and pelletizing line.
What is fixed by the platform
The BQX series model structure: BQX-D600, BQX-D800 and BQX-D1000, with the published parameter table as the reference.
The double shaft, low speed, high torque operating concept and the start, stop, reversal and overload automatic reversal control functions.
The opening type bearing design that makes blade dismounting and change straightforward.
The 60 rpm rotary knife speed published for the series.
No capacity or output-size figure is invented on this page. Anything not published in the source catalogue, including a coconut-specific throughput, is confirmed at enquiry and written into the quotation.
Downstream recovery equipment is listed under the washing and recycling production line and plastic pelletizing line pages, together with continuous powder suction machine. Auxiliary units under auxiliary machines, mixing unit, automatic compounding system and automatic compounding system solution.
Quality on a shredder is about how the machine holds up when hard material keeps coming.
Structure. The main frame and cutting chamber are built as a heavy welded unit sized for the published models, so the shafts and knives stay aligned under continuous load.
Drive and control. The machine is supplied with start, stop, reversal and overload automatic reversal control, with an integrated PLC control package and frequency inverter display as published for the series.
Bearing and blade maintenance. The opening type bearing design is specified so blades can be dismounted and changed without a full strip-down.
Testing. The machine is run and checked before delivery, and running video can be sent so you see the machine working before it ships.
Documentation. Delivery includes the machine documentation needed for installation and operation.
Chenxing Machinery was established in 2002 and has worked in plastic machinery for more than 20 years. The company started from the predecessor workshop and now operates as a progressive enterprise integrating new product development, manufacturing, sales and trade, with an independent technical team that builds the machines in-house. The main product range covers pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and auxiliary machines such as loading machines, mixers, formulators, grinding machines, mould temperature machines and chillers. Manufacturing follows ISO9001 quality management, and products are supplied with CE certification for export markets. Chenxing is based in China and exports worldwide.
The wider extrusion and recycling range appears on pipe extrusion line, pipe extrusion line solution, board sheet extrusion line, profile extrusion line and Profile Extrusion Line Solution, with the full service offered under the advanced material processing EPC project.
MOQ. One set. The BQX series is built to order, so a single machine is the normal starting quantity.
Scope of supply. Main shredder with feeding skip, reclaiming fan blower, frequency inverter display, integrated PLC control package and blades as specified.
Payment terms. T/T, L/C and Western Union.
Incoterms. FOB, EXW, CFR, CIF and CIP.
Lead time. Confirmed at order; ordering earlier in the year avoids peak season pressure.
Packing. Export packing suitable for sea transport, with the main machine fixed on a reinforced base and accessories packed separately.
Shipping. The machine is shipped as one consignment, with the loading plan confirmed before dispatch.
Installation and training. Our engineers guide installation, test the machine and offer technology guidance and worker training at the customer's factory. We can also send a video of the running machine on request.
Technical documents and machine files are collected under download; machine news and application articles are posted on news. Application cases are collected under application cases and company background under about us.
Can this double shaft shredder process coconut shells?
Yes. Whole coconut shells are hard and brittle, and the low speed, high torque double shaft action grips the shell and tears it apart instead of bouncing off it. The blade configuration is selected for your shell condition at enquiry.
What coconut materials can be fed, whole shell or husk?
Both. Whole coconut shells, pre-broken shell pieces, coconut husk and coir fibre can all be fed to the machine. The tearing action handles hard shell and fibrous husk without wrapping the rotor.
What is the capacity of the coconut shell shredder?
The BQX series is published with 600 kg/h to 1000 kg/h general capacity across the three models. A coconut-specific figure is confirmed at enquiry, because it depends on your shell condition, moisture and feed method.
What is the output size of the shredded coconut shell?
Output size is designed as per the special requirement of your application. The source catalogue does not publish a fixed output size, so the target granulate size is confirmed at enquiry together with the blade and screen arrangement.
Which other materials can the BQX series shred?
The source catalogue lists PET material, aluminum plastic pipe, PVC film, food bags, foam, jumbo bags, plastic pipe and small PET bottles, plus waste tires, computer hard disks, small engineering plastic parts, household appliance housings and glue head material.
Can the machine handle woven bags and wood pallets?
Yes. Woven bag scrap and wood pallets are typical bulky feed for a double shaft shredder, and the feed inlet sizes up to 1300 x 1500 mm on the published models.
Is the voltage customizable?
Yes. The standard supply is 380V, 50Hz, 3 phase, and the machine can be customized to your voltage and frequency. State your plant supply with the inquiry.
What kind of certification do you have?
Products have obtained ISO9001 and CE certification. Chenxing Machinery was established in 2002 and has worked in plastic machinery for more than 20 years.
Because the BQX series is built to order, a complete inquiry allows an accurate quotation on the first reply. Please include:
Material and condition. What you will feed, especially whether it is coconut shell, coconut husk, plastic, tires, wood or a mix, and the moisture and size.
Target output size. The granulate size you need, so the blade and screen arrangement can be quoted.
Required throughput. The kg/h target for your plant planning; this is confirmed as a project value.
Feed size. The largest piece the machine must accept, which checks the feed inlet model.
Plant information. Available floor area and power supply, voltage, frequency and phase.
Downstream requirement. Whether you need washing, drying, conveying or pelletizing after the shredder, so the whole line can be quoted together.
Commercial expectations. Preferred Incoterm, destination port and required documents.
Certification requirements. Whether CE marking or other documentation is required for your market.
What you get back: a written quotation with the complete configuration for the BQX double shaft shredder, main machine, feeding skip, fan blower, control package and blades, together with the packing plan, delivery schedule and Incoterm. The engineering team confirms the machine against your material before the order is finalised.
