Understanding Co-Rotating and Counter-Rotating Extruders for PVC Processing and Plastic Compounding

Twin screw extrusion is an important technology in modern plastic manufacturing. Compared with conventional single screw extrusion, a twin screw extruder uses two rotating screws inside a specially designed barrel to transport, melt, mix and process polymer materials.


Depending on the screw arrangement and rotation direction, twin screw extruders can be designed for different processing requirements, including PVC pipe and profile extrusion, plastic compounding, polymer modification, masterbatch production and filled material processing.


The two main configurations are co-rotating and counter-rotating twin screw extruders. Parallel and conical screw designs provide additional options for matching the machine to specific materials and production processes.


Understanding these differences helps manufacturers select suitable extrusion equipment for their materials, product specifications and production targets.

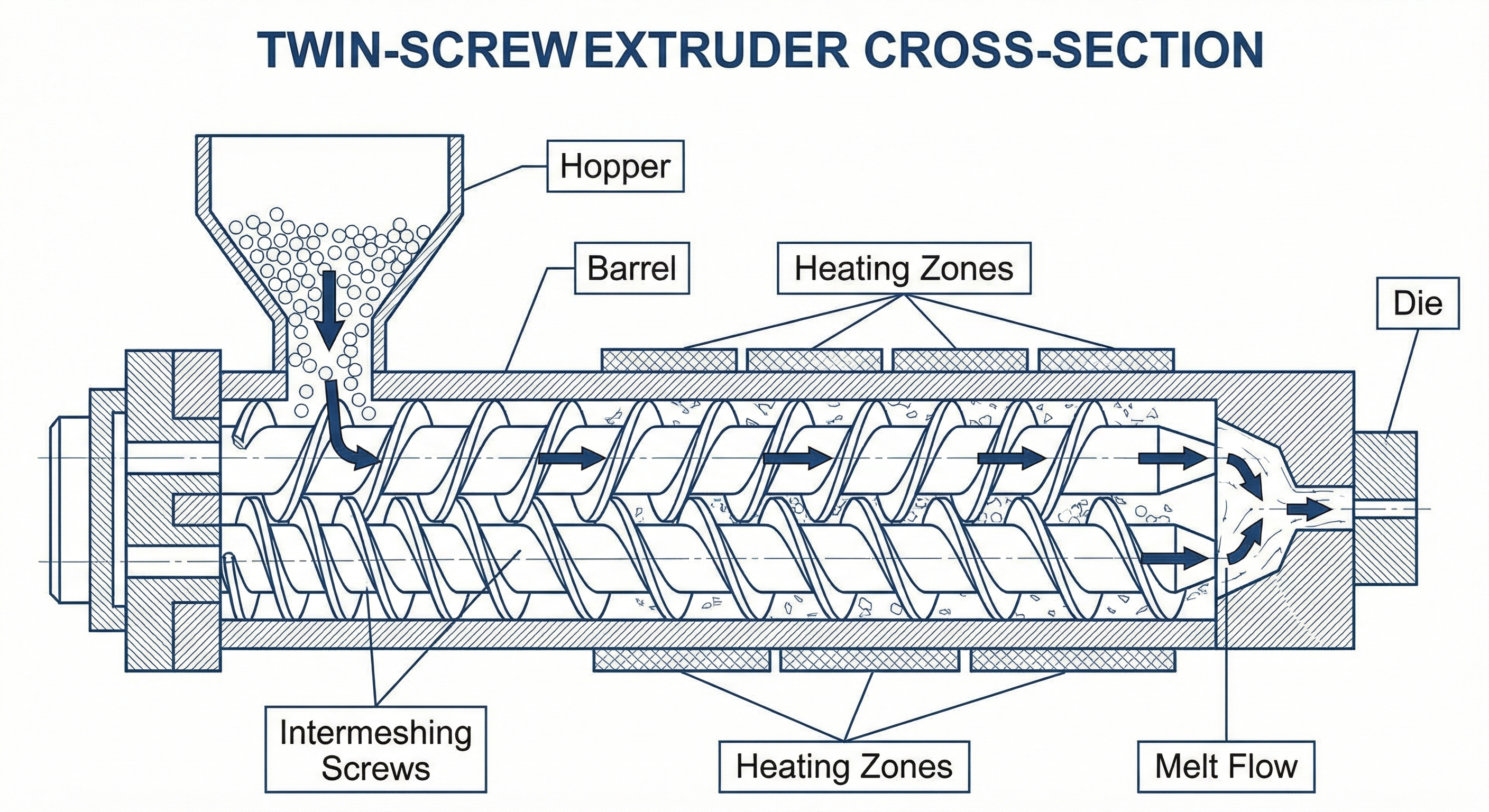

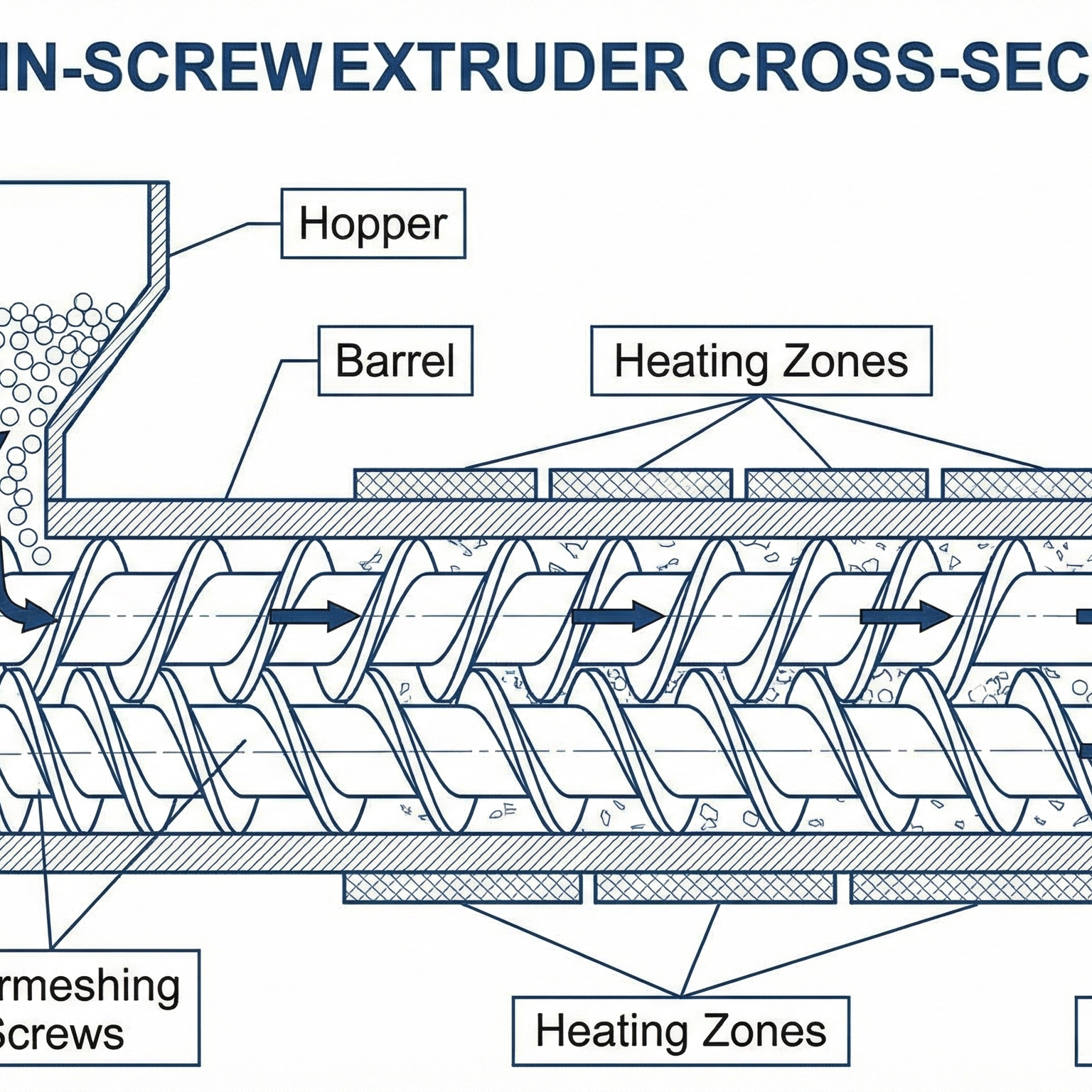

Engineering cross-section illustration showing twin-screw extruder internal components including co-rotating screw elements, kneading blocks, and material flow pathways


1. What Is a Twin Screw Extruder?

A twin screw extruder is a plastic processing machine equipped with two screws rotating inside a common barrel.

The screws work together to convey material from the feeding section toward the die while applying mechanical energy and heat to support plasticization and processing.

Depending on the screw design, the machine can perform several functions:

  • Material conveying and feeding

  • Polymer melting and plasticization

  • Distributive mixing

  • Dispersive mixing

  • Filler and additive incorporation

  • Venting and devolatilization

  • Melt pressurization and extrusion

Twin screw extruders are widely used in applications where material mixing, formulation flexibility or specific processing characteristics are important.

The machine configuration must be selected according to the polymer type, formulation, required output and final product.

conical twin screw extruder
Conical twin screw extruder with Siemens Beide motor and ABB inverter
SJSZ65 conical twin-screw host with vented barrel feeding the trunking die head



2. How Does a Twin Screw Extruder Work?

The working principle of a twin screw extruder is based on the coordinated rotation of two screws inside a heated barrel.

Although the detailed processing mechanism varies between co-rotating and counter-rotating designs, the general process includes material feeding, conveying, plasticization, mixing and extrusion.

Step 1: Material Feeding

Raw materials enter the extruder through the feeding system.

Depending on the application, the feed may include:

  • Virgin plastic resin

  • Recycled plastic pellets

  • Mineral fillers

  • Color masterbatch

  • Functional additives

  • Glass fiber and other reinforcement materials

For multi-component formulations, additional side feeders or liquid injection systems can be incorporated where required.


Step 2: Material Conveying

As the screws rotate, the screw flights transport material along the barrel.

The screw geometry and rotation arrangement determine the material conveying behavior, filling conditions and residence time.


Step 3: Melting and Plasticization

Heat is supplied through barrel heating zones, while mechanical energy generated by screw rotation contributes to material heating and melting.

The polymer gradually changes from solid material into a molten or plasticized state.

The actual temperature profile depends on the material formulation, screw configuration, output and processing conditions.


Step 4: Mixing and Compounding

The two screws provide material movement and mixing.

Different screw elements can be used to create different mixing effects:

Conveying Elements

These elements move the material forward and help control material transport.

Kneading Blocks

Kneading blocks are commonly used in co-rotating twin screw extruders. Their arrangement affects distributive and dispersive mixing, shear intensity and residence time.

Mixing Elements

Specialized elements can improve material distribution and support the incorporation of additives and fillers.

The screw element combination should be designed according to the material system and required compound properties.


Step 5: Venting and Devolatilization

Some twin screw extruders include venting sections to remove moisture, air or volatile components from the melt.

Vacuum venting may be used when the material and process require more effective devolatilization.


Step 6: Melt Extrusion

The processed material is transported toward the die or downstream equipment.

Depending on the application, the extruded material may be formed into profiles, pipes, sheets or strands, or transferred to a pelletizing system.



3. Main Components of a Twin Screw Extruder

A twin screw extrusion system consists of several interconnected components.

Feeding System

The feeding system supplies raw materials to the extruder.

Depending on production requirements, it can include a vacuum loader, hopper, loss-in-weight feeder, volumetric feeder or side feeder.

Accurate feeding is particularly important for multi-component compounding processes.


Twin Screw Assembly

The screw assembly is the main processing component.

Its geometry, diameter, length, flight design and element arrangement determine the material conveying, mixing and plasticization characteristics.


Barrel

The barrel houses the screws and provides the processing space.

It is normally divided into several temperature-control zones to support the required processing conditions.


Drive and Gearbox

The drive system provides the rotational power required by the screws.

Motor power, gearbox design and torque capacity must be matched to the material, screw speed and production output.


Heating and Cooling System

The barrel temperature is controlled through heating and cooling arrangements.

Different temperature zones can be configured according to the polymer and processing requirements.


Venting System

A venting port or vacuum system can be installed to remove moisture and volatile substances from suitable materials.


Die and Downstream Equipment

The final processing equipment depends on the product.

A twin screw extruder may be connected to a pelletizing system, profile die, pipe die or other forming equipment.



4. Co-Rotating vs. Counter-Rotating Twin Screw Extruders

The rotation direction of the two screws is one of the most important factors in twin screw extruder design.

Co-Rotating Twin Screw Extruder

In a co-rotating twin screw extruder, both screws rotate in the same direction.

Intermeshing screw designs are widely used in polymer compounding because they provide effective material transport and mixing.

Typical applications include:

  • Plastic modification

  • Color and additive masterbatch

  • Mineral-filled compounds

  • Glass fiber reinforced plastics

  • Polymer blending

  • Recycled plastic compounding

The screw elements can be configured to adjust conveying, mixing intensity and residence time according to the material formulation.


Counter-Rotating Twin Screw Extruder

In a counter-rotating twin screw extruder, the two screws rotate in opposite directions.

Counter-rotating designs are commonly used in PVC processing, particularly in applications requiring controlled plasticization and stable material conveying.

Typical applications include:

  • PVC pipe extrusion

  • PVC profile extrusion

  • PVC sheet and board extrusion

  • Rigid PVC compounding and processing

Conical counter-rotating twin screw extruders are widely used for processing rigid PVC powder formulations.


Comparison Table

Comparison Co-Rotating Twin Screw Counter-Rotating Twin Screw
Rotation Direction Same direction Opposite directions
Common Configuration Parallel Parallel or conical
Typical Applications Polymer compounding and modification PVC processing and extrusion
Mixing Characteristics Flexible screw element configurations for intensive mixing Depends on screw geometry and intermeshing design
Material Feeding Often configured for multiple feeding points Commonly configured for PVC powder feeding
Typical Products Masterbatch, filled compounds, reinforced polymers PVC pipes, profiles, sheets and boards

The table describes common industrial applications rather than absolute limitations. The appropriate configuration depends on the machine design and processing requirements.



5. Parallel vs. Conical Twin Screw Extruders

Twin screw extruders can also be classified according to screw geometry.

Parallel Twin Screw Extruder

A parallel twin screw extruder has two screws with the same nominal diameter along the processing section.

Parallel twin screw designs are available in both co-rotating and counter-rotating configurations.

Co-rotating parallel twin screw extruders are commonly used in polymer compounding, while counter-rotating parallel designs can be used in selected PVC processing applications.

Key characteristics include:

  • Modular screw element configurations in many co-rotating designs

  • Flexible feeding and venting arrangements

  • Multiple options for screw length and processing configuration

  • Applications in polymer modification and compounding

CX-TSE65B parallel co-rotating twin screw extruder — modular segmented screw with kneading blocks for masterbatch, filling, and GF compounding

Conical Twin Screw Extruder

A conical twin screw extruder has two tapered screws whose diameters decrease along the screw length.

Conical counter-rotating twin screw extruders are widely used for rigid PVC processing.

Typical applications include:

  • PVC pipe production

  • PVC ceiling panels

  • PVC window and door profiles

  • PVC cable trunking

  • PVC foam boards

  • Other rigid PVC extrusion products

The screw geometry and rotation arrangement provide a processing solution suited to the characteristics of rigid PVC powder formulations.


Parallel vs. Conical Comparison

Comparison Parallel Twin Screw Conical Twin Screw
Screw Geometry Two parallel screws Two tapered screws
Common Rotation Configurations Co-rotating and counter-rotating Commonly counter-rotating
Typical Applications Plastic compounding and modification Rigid PVC extrusion
Screw Configuration Often modular in compounding designs Designed around the conical screw geometry
Typical Downstream Equipment Pelletizing systems and compounding dies PVC pipe and profile dies

When selecting between the two designs, manufacturers should consider the polymer, formulation, required output and final product specifications rather than relying on screw geometry alone.



6. Applications of Twin Screw Extruders in Plastic Processing

Twin screw extruders serve different purposes across the plastic manufacturing industry.

PVC Processing

Counter-rotating conical twin screw extruders are commonly used for rigid PVC processing.

They can be integrated into production lines for:

  • PVC water and drainage pipes

  • PVC electrical conduits

  • PVC ceiling panels

  • PVC wall panels

  • PVC cable trunking

  • PVC window and door profiles

  • PVC foam boards

The extruder is normally connected to a customized die and downstream calibration, cooling, haul-off and cutting equipment.


Plastic Compounding

Co-rotating twin screw extruders are widely used for compounding different polymers and additives.

Typical applications include:

  • Mineral-filled PP and PE compounds

  • Glass fiber reinforced polymers

  • Polymer blends

  • Functional masterbatch

  • Color masterbatch

  • Flame-retardant compounds, subject to formulation requirements

The screw configuration and feeding system should be selected according to the material composition and required dispersion quality.


Recycled Plastic Processing

Twin screw technology can also be applied to selected recycled plastic compounding processes.

It can support the incorporation of fillers, additives and modifiers into suitable recycled polymer materials.

The feedstock must be properly sorted, cleaned, dried and prepared according to the material and extrusion requirements.



7. Twin Screw Extruder vs. Single Screw Extruder

Both single screw and twin screw extruders are important in plastic manufacturing, but their functions and typical applications are different.

Comparison Single Screw Extruder Twin Screw Extruder
Screw Quantity One Two
Main Processing Functions Melting, conveying and extrusion Conveying, melting, mixing and compounding
Typical Materials PE, PP and other thermoplastics PVC compounds, polymer blends, filled compounds and masterbatch
Mixing Capability Depends on screw design and mixing sections Generally offers greater configuration flexibility for mixing
Feeding Options Commonly main feed Main feed, side feed and liquid addition options
Typical Applications Pipe, profile, sheet and film production PVC processing and plastic compounding

A single screw extruder is often a suitable choice for continuous extrusion of relatively consistent raw materials.

A twin screw extruder is generally preferred when the process requires more extensive mixing, multiple material feeding points or specific compounding functions.

Neither design is universally better. The selection should be based on the material and product requirements.



8. Key Factors When Selecting a Twin Screw Extruder

Choosing a suitable twin screw extruder requires an evaluation of the entire production process.

Material Type

Identify the main polymer and all additives, fillers or reinforcing materials.

PVC powder processing, PP compounding and glass fiber reinforcement have different requirements.


Required Production Capacity

Determine the target output in kilograms per hour.

The extruder output must be evaluated together with material properties, screw configuration and downstream equipment capacity.


Screw Configuration

Choose between co-rotating and counter-rotating designs according to the processing purpose.

For compounding applications, the screw element arrangement is particularly important.

For rigid PVC pipe and profile extrusion, a suitable conical counter-rotating design may be considered.


Screw Diameter and L/D Ratio

Screw diameter influences the machine's processing capacity and mechanical design.

The length-to-diameter ratio affects the available processing length and the arrangement of feeding, mixing and venting sections.

The appropriate values depend on the application rather than following one universal specification.


Motor Power and Torque

The drive system must provide sufficient torque and power for the selected material and processing conditions.

Motor power alone is not enough to determine the suitability of an extruder. Torque capacity, gearbox design and screw speed should also be considered.


Feeding and Automation

For multi-component compounding, accurate feeding and dosing are important.

A complete system may include:

  • Vacuum feeding

  • Gravimetric dosing

  • Volumetric feeding

  • Side feeding

  • Liquid additive dosing

  • PLC control and process monitoring

The required automation level depends on the formulation and production management requirements.



9. Frequently Asked Questions

Q1: What is the main difference between a single screw and a twin screw extruder?

A single screw extruder uses one rotating screw and is commonly used for continuous plastic melting and extrusion. A twin screw extruder uses two interacting screws and offers additional options for mixing, feeding and compounding.


Q2: What is a co-rotating twin screw extruder used for?

Co-rotating twin screw extruders are widely used for polymer compounding, masterbatch production, filler incorporation, glass fiber reinforcement and plastic modification.


Q3: What is a counter-rotating twin screw extruder used for?

Counter-rotating twin screw extruders are commonly used for PVC processing. Conical counter-rotating models are particularly common in rigid PVC pipe and profile extrusion.


Q4: What is the difference between a parallel and a conical twin screw extruder?

Parallel twin screw extruders use two screws with parallel geometry, while conical twin screw extruders use tapered screws. Both designs have different configurations and application characteristics.


Q5: Can a twin screw extruder process recycled plastic?

Yes, selected twin screw configurations can process properly prepared recycled polymers and incorporate suitable additives or fillers. The feedstock quality and processing requirements must be evaluated first.


Q6: What does the L/D ratio mean?

L/D represents the screw length divided by its nominal diameter. It is one of the design parameters affecting the processing length and configuration of an extruder.


Q7: Does a higher L/D ratio always mean better mixing?

No. Mixing performance depends on screw geometry, element arrangement, screw speed, material properties and operating conditions. A longer screw does not automatically produce better compound quality.


Q8: How do I select the right twin screw extruder?

The selection should consider the material, processing purpose, required capacity, screw configuration, motor and torque requirements, feeding system and downstream equipment.



10. Chenxing Twin Screw Extrusion and Compounding Solutions

Chenxing Machinery supplies plastic extrusion and compounding equipment for different polymer processing applications.

Our equipment portfolio includes:

  • Conical counter-rotating twin screw extruders for rigid PVC processing

  • Parallel twin screw extrusion solutions for selected plastic compounding applications

  • PVC pipe and profile extrusion lines

  • Automatic weighing and dosing systems

  • Plastic mixing equipment

  • Auxiliary feeding and conveying equipment

For a suitable equipment proposal, customers should provide the material type, formulation, target output, final product dimensions and required production process.

Our engineering team can evaluate the appropriate extruder configuration and supporting equipment according to the project requirements.

Contact Chenxing Machinery to discuss your twin screw extrusion or plastic compounding project.


Contact Us

Fill in your material type, product specification and capacity requirement. Our engineer will contact you within 24 hours.

Related Articles

More >>
      Contacts
Phone:+8615951187228
Email:ceo@cxsljx.com
  Address:No.188,Zhenbei Road, Leyu                             Town, Zhangjiagang City,                               Jiangsu Province
Social Media
© Copyright 2026 Chenxing Machinery All Rights Reserved.
We use cookies to enable all functionalities for best performance during your visit and to improve our services by giving us some insight into how the website is being used. Continued use of our website without having changed your browser settings confirms your acceptance of these cookies. For details please see our privacy policy.
×
