SMF Series Disc Pulverizer for ABS — High-Impact Resin Grinding Solution

Why ABS Powder — Dispersion Starts at the Particle Level

ABS (acrylonitrile butadiene styrene) is a workhorse engineering thermoplastic, valued for its impact resistance, dimensional stability, and surface finish in applications from automotive interiors to appliance housings. But ABS's very strength — its rubber-toughened butadiene phase — is what makes it challenging to grind to powder.

ABS compounding and masterbatch production depend on uniform dispersion of additives — pigments, flame retardants, impact modifiers — throughout the resin matrix. When ABS arrives as pellets, the additive must be distributed onto pellet surfaces and blended in the melt phase, which limits homogeneity and demands high shear mixing. ABS powder, with its 100–1000x greater surface area, enables pre-compounding dispersion: additives coat every powder particle before the material ever enters the extruder, resulting in superior color consistency, flame retardant distribution, and mechanical property uniformity.

Recycling ABS — from post-industrial automotive trim scrap, appliance housing waste, or electronic equipment — adds another dimension. These materials must be ground, classified, and re-compounded, often with virgin ABS, to restore processing characteristics and mechanical properties. A grinder that cannot handle ABS's impact resistance will produce inconsistent powder, suffer accelerated wear, and deliver low throughput relative to its rated capacity.

The SMF series from Chenxing Machinery is engineered for this high-torque, abrasive duty. With main motors up to 75kW in the SMF-800, wear-resistant discs, and dual cooling, the SMF series matches ABS's grinding demands with the power and durability to sustain commercial throughputs.

SMF-ABS Technical Specifications

ABS throughput is at 40–80 mesh. Glass-filled or flame-retardant ABS grades reduce throughput and increase disc wear. Capacity figures assume standard unfilled grades.

Model Selection for ABS Processing

How Disc Grinding Works for ABS — Power Meets Toughness

ABS's toughness comes from its butadiene rubber phase — microscopic rubber particles dispersed in a styrene-acrylonitrile (SAN) matrix. When a grinding disc impacts an ABS pellet, the SAN matrix transmits stress to the butadiene particles, which absorb energy through cavitation and shear yielding. This is exactly the mechanism that gives ABS its impact resistance — and exactly the mechanism that resists size reduction.

Step 1 — Metered High-Torque Feeding: ABS pellets or pre-crushed scrap enter through a screw feeder. The feeder must maintain a consistent load on the grinding discs — overfeeding causes the motor to stall; underfeeding wastes energy.

Step 2 — High-Torque Grinding: The SMF's main motor delivers the torque required to fracture ABS. The SMF-800's 75kW motor ensures that even at the large disc diameter, the torque at the disc surface is sufficient to break ABS's rubber-toughened structure. The dual-disc configuration provides primary reduction followed by finishing in a single pass.

Step 3 — Dual Cooling: ABS softens at approximately 100–110°C. If the disc temperature exceeds this, ABS begins to gum the disc surface. The SMF's water cooling circuit keeps disc surface temperature safely below this threshold, even during extended runs.

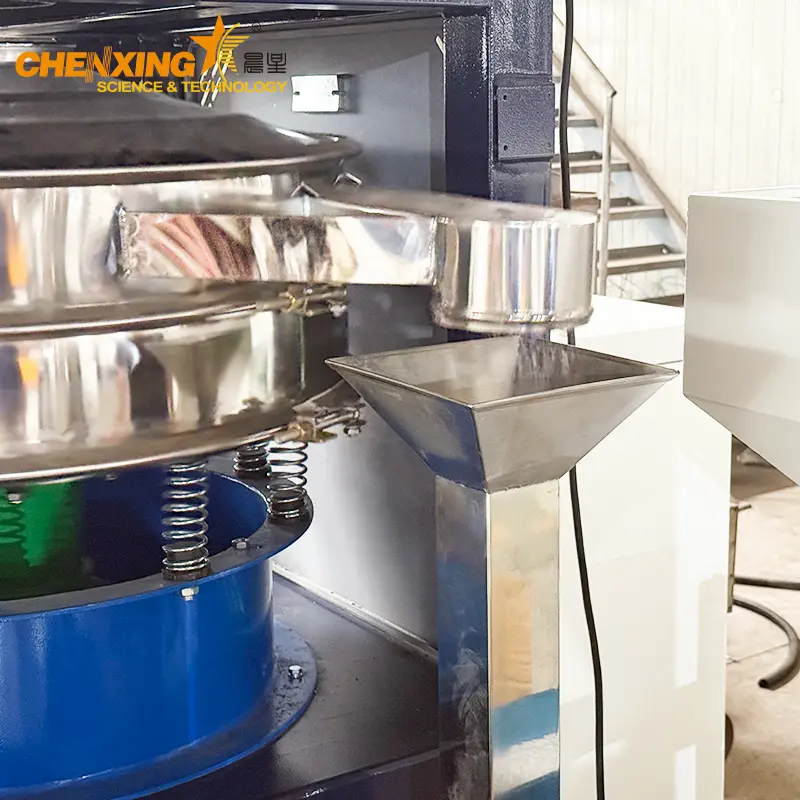

Step 4 — Precision Screening: The vibrating screen classifies powder. For ABS compounding, 40–60 mesh provides the particle size for uniform additive dispersion. Oversize automatically returns to the grinding chamber.

Step 5 — Sealed Collection: Negative-pressure pneumatic conveying and air-lock discharge maintain a dust-free collection environment. ABS dust is combustible; the sealed design addresses this safety consideration.

Key Advantages of SMF for ABS Grinding

High-Torque Motor — Power to Fracture Impact-Resistant Resin

• Feature: Main motor outputs from 30kW (SMF-400) to 75kW (SMF-800), delivering the continuous torque required to overcome ABS's rubber-toughened fracture resistance.

• Advantage: ABS absorbs impact energy through its butadiene phase. Grinding ABS is not a matter of speed alone — it requires sustained torque to drive the discs through material that resists fracture at every rotation. An underpowered grinder stalls under ABS load, or worse, operates at reduced speed where the material deforms rather than fractures. The SMF's motor sizing — scaled specifically for engineering resins — ensures the discs maintain rated speed under full ABS load.

• Benefit: Consistent throughput at rated capacity when grinding ABS — not the 30–50% derating that underpowered machines require. Stable disc speed means consistent powder quality, batch after batch. For an ABS compounder, this means production schedules that are met, not missed due to grinder limitations.

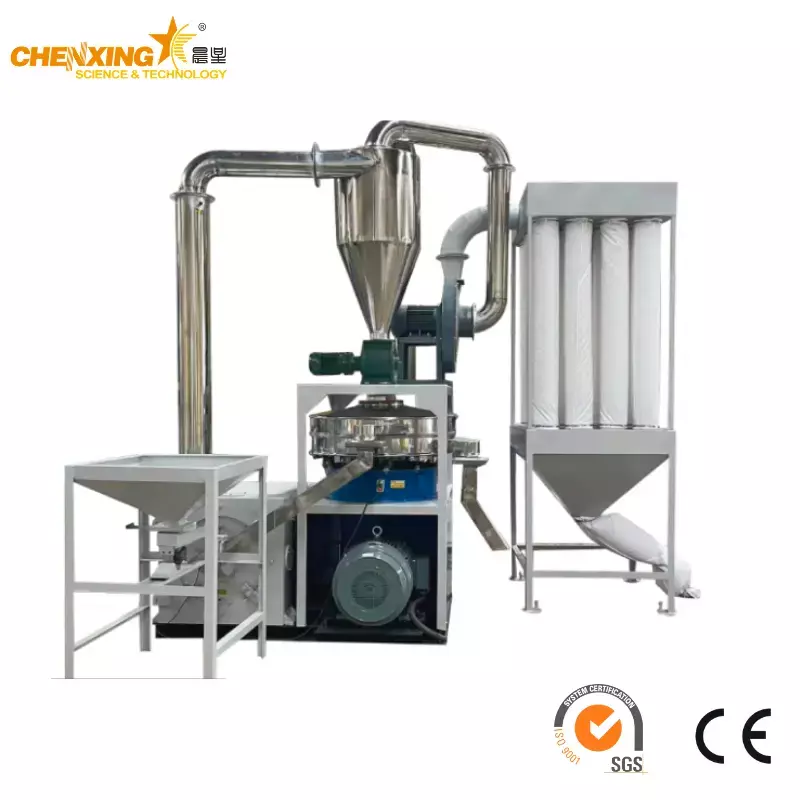

Wear-Resistant Discs — Engineered for Abrasive Duty

• Feature: Disc tooth geometry and alloy composition optimized for the combined mechanical and chemical wear of ABS grinding.

• Advantage: ABS is moderately abrasive in unfilled grades and highly abrasive in glass-filled or mineral-filled grades. The butadiene phase can also cause chemical adhesion wear — microscopic rubber residues adhere to disc surfaces and pull material away on the next rotation. Standard disc materials degrade rapidly under this combined wear regime. The SMF's disc alloy is selected and tested specifically for ABS duty, balancing hardness (for abrasion resistance) with toughness (for impact resistance of the disc material itself).

• Benefit: Extended disc life in ABS service. More predictable maintenance scheduling — disc changes planned around production schedules, not forced by unexpected wear. Lower total cost of ownership through reduced spare parts consumption.

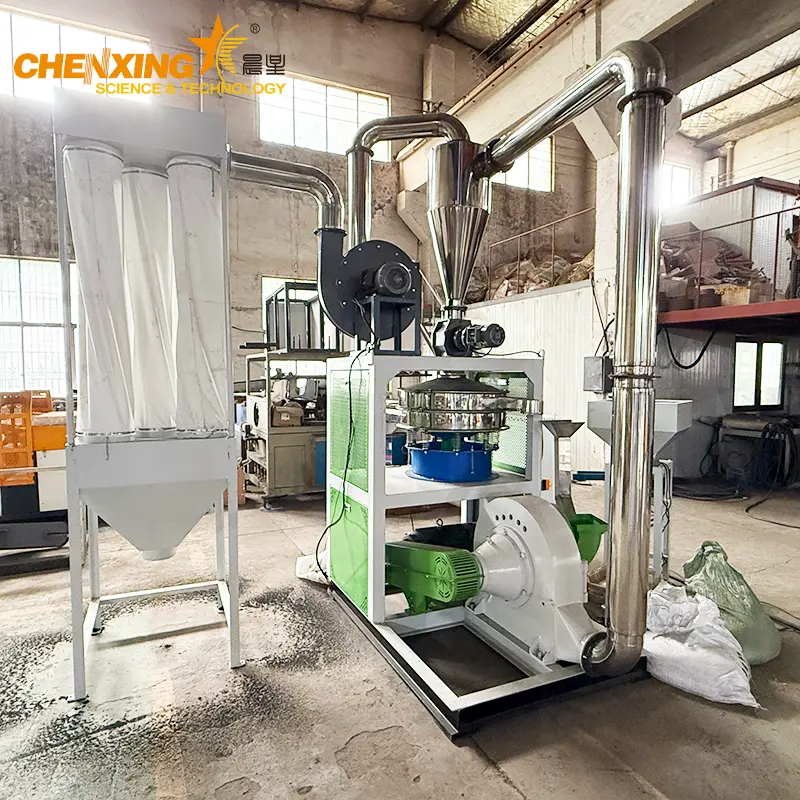

Precision Particle Size — The Foundation of Uniform Compounding

• Feature: Adjustable disc gap with feeler-gauge precision, combined with interchangeable screen mesh, providing two independent control points for particle size distribution.

• Advantage: ABS compounding and masterbatch production depend on uniform dispersion of additives. Coarse, irregular powder creates melt inhomogeneity — areas of high pigment concentration next to areas of none. The SMF's precision gap adjustment ensures every batch of ABS powder has the same particle size distribution, which translates directly to consistent additive dispersion.

• Benefit: Fewer color streaks and specks in compounded ABS. Consistent flame retardant distribution for UL 94 compliance. Reduced scrap from dispersion-related quality issues. For a masterbatch producer, consistent powder quality from the grinder eliminates a variable from the quality control equation.

Dual Cooling — Critical for ABS's Narrow Processing Window

• Feature: Simultaneous air cooling (chamber ambient) and water cooling (internal disc hub circuits), maintaining grinding zone temperature below ABS's softening point.

• Advantage: ABS begins to soften at approximately 100°C — a temperature easily reached by frictional heating during sustained grinding if cooling is inadequate. Once the disc surface exceeds this threshold, ABS particles begin to adhere, forming a gummy layer that increases motor load, reduces grinding efficiency, and degrades powder quality. Unlike PE or PP, where cooling prevents melting, with ABS the cooling prevents surface adhesion that compromises the grinding process itself.

• Benefit: Continuous operation without adhesive buildup. Consistent grinding efficiency throughout the production run. No quality-degrading softened ABS particles in the powder output.

New Bearing Design — Reliability Under High Load

• Feature: High-load-rated bearing assembly with forced lubrication and simplified inspection access through the hinged cabinet door.

• Advantage: Grinding ABS places high radial loads on the main shaft bearings — the combination of high torque and tough material generates bearing forces beyond those in PE or PVC service. The new bearing design addresses this with larger bearing surfaces, high-load-rated bearing types, and active lubrication that maintains the oil film under load.

• Benefit: Extended bearing service life in ABS duty. Reduced risk of bearing-related downtime. The simplified inspection procedure encourages regular preventive checks, catching bearing wear before it becomes a failure.

Fully Automated Operation — Consistent Throughput, Less Labor

• Feature: Integrated automatic feeding, grinding, pneumatic evacuation, screening, and oversize return — all controlled from a single operator station.

• Advantage: ABS grinding requires parameter consistency — feed rate, disc speed, cooling flow — to produce consistent powder. Manual operation introduces variability from operator technique and attention. The SMF's automation maintains operating parameters within set ranges without requiring constant supervision.

• Benefit: One operator can oversee multiple SMF units and other compounding equipment simultaneously. Grinding continues through breaks and shift changes. Consistent powder quality from automated parameter control.

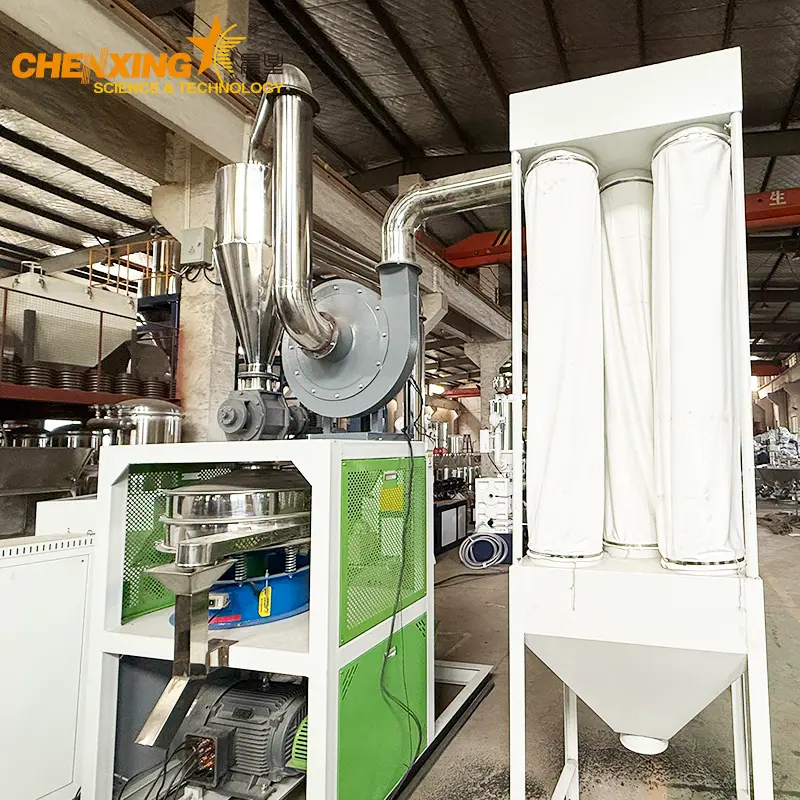

Open-Door Cleaning — Fast Changeovers Between ABS Grades

• Feature: Full-access hinged door on the grinding chamber. Tool-free access for cleaning and inspection.

• Advantage: ABS compounding operations frequently switch between natural, colored, glass-filled, and FR (flame retardant) grades. Cross-contamination between grades — black FR-ABS residue in a natural ABS powder batch, for example — creates visible defects or compromises the FR rating. Machines that are difficult to clean encourage shortcuts in the changeover procedure.

• Benefit: Complete cleanout in under 20 minutes. Confident changeovers between ABS grades. No cross-contamination complaints from customers.

ABS-Specific Processing Guide

Pre-Grinding Preparation for ABS

• Pre-dry ABS if necessary. ABS can absorb up to 0.3–0.5% moisture. While not as hygroscopic as PET or nylon, moisture in ABS can cause surface defects in molded parts. If your ABS is exposed to high humidity, dry it with an STG-U hopper drier at 80°C for 2–4 hours before grinding.

• Magnetic separation is mandatory for recycled ABS. A CJ magnetic frame captures ferrous contaminants from recycled automotive or electronics ABS before they damage the discs.

• Pre-crush large scrap. ABS appliance housings or automotive trim should be pre-crushed to <10mm flake using a plastic crusher before entering the SMF.

Frequently Asked Questions

Why does ABS require higher motor power to grind?

ABS's impact resistance — its defining performance characteristic — comes from microscopic rubber (butadiene) particles dispersed in the SAN matrix. When a grinding disc impacts ABS, these rubber particles absorb energy through cavitation and shear yielding, dissipating impact energy that would otherwise go into fracture. Overcoming this energy absorption requires sustained high torque. An underpowered motor cannot deliver enough torque to overcome ABS's toughness at commercial throughputs — it stalls, or operates at reduced speed where the material deforms rather than fractures. The SMF-800's 75kW motor is sized specifically for this demand, delivering the torque to fracture ABS at up to 450 kg/h.

What powder fineness is needed for ABS compounding?

For ABS compounding and masterbatch production, 40–60 mesh (250–420 microns) is the standard range. This particle size provides sufficient surface area for uniform additive coating while maintaining flowability through the compounding extruder's feed throat. For ABS color masterbatch, finer powder (60–80 mesh) may be specified to maximize pigment dispersion and minimize the masterbatch letdown ratio. The SMF's adjustable disc gap and interchangeable screen mesh accommodate all of these targets.

Can SMF grind ABS/PC alloy materials?

Yes. ABS/PC (polycarbonate) alloys combine ABS's processability with PC's heat resistance and impact strength, and the resulting material is tougher than either component alone. Grinding ABS/PC requires higher torque than standard ABS grinding. The SMF-600 (45kW) or SMF-800 (75kW) is recommended for ABS/PC alloys. Throughput is typically 10–20% lower than standard ABS at the same settings. The higher torque models maintain consistent speed under this increased load, delivering uniform powder rather than the inconsistent particle size that results from a machine operating at the edge of its torque capacity.

How does disc wear affect ABS powder quality?

Disc wear in ABS service has two effects on powder quality. First, worn discs have rounded tooth edges that produce a wider particle size distribution — more coarse particles (from incomplete fracture) and more fines (from crushing rather than shear). Second, worn disc surfaces develop grooves and roughness that increase friction and local heating, raising the risk of ABS softening and gumming. The combination degrades both the powder's particle size distribution and its thermal history. Monitoring motor load at constant feed rate is an effective indicator: an increase of more than 10% typically signals worn discs that should be replaced.

Is ABS powder suitable for injection molding directly?

No, not typically. ABS powder is an intermediate form for compounding, masterbatch production, or recycling — not a direct feedstock for injection molding. In injection molding, pellets are the standard feedstock because they feed uniformly through the hopper and melt predictably in the screw. ABS powder's low bulk density and variable flow characteristics cause feeding inconsistency in injection machines. If powder must be used (e.g., for re-compounding scrap), it should be re-pelletized using a plastic pelletizer to ensure consistent feed behavior.

What cooling setup is recommended for ABS grinding?

The SMF's integrated dual cooling (air + water) is sufficient for standard ABS grades. For extended high-volume ABS grinding (8+ hours continuous on SMF-600 or SMF-800), supplementing the water cooling circuit with a chilled water supply from an SML water-cooled chiller provides additional thermal headroom. Chilled water at 10–15°C, rather than ambient-temperature cooling water, can reduce disc surface temperature by an additional 5–10°C, which increases throughput potential and extends disc life by reducing thermal wear. This investment is most justified for operations running ABS grinding 16–24 hours per day.

How many hours can SMF discs last grinding ABS?

For unfilled standard ABS, expect 600–1000 operating hours of disc life. For FR-ABS (flame retardant), disc life drops to 400–700 hours due to increased chemical wear from brominated or phosphorus-based flame retardants. For glass-filled ABS, disc life is 200–400 hours — the glass fibers act as an abrasive against the disc surface, accelerating wear by 2–3x. These are general guidelines; actual disc life depends on operating conditions, target mesh, and maintenance practices. Keeping a spare disc set on hand and inspecting discs every 200 hours (or weekly for glass-filled) minimizes downtime when replacement is needed.

Upgrade Your Grinding Efficiency Today

Step 1 — Characterize Your ABS Material: Type (standard high-impact FR glass-filled alloy), form (pellets / pre-crushed scrap), target mesh, and required throughput.

Step 2 — Select Your SMF Model: Use the model selection and material guide above. For ABS/PC alloy, FR-ABS, or glass-filled ABS, the SMF-800 is the recommended platform.

Step 3 — Contact Nicole for a Quote: Provide your ABS type, throughput target, and mesh specification. We will confirm the optimal model, pricing, lead time, and shipping options.

Step 4 — Install and Start Producing: Installation support and remote commissioning guidance are included. Spare disc sets are available for immediate shipment to minimize changeover downtime.

For complete ABS compounding lines, Chenxing Machinery also supplies high-speed mixers for additive blending, STG-U hopper driers for pre-drying, and complete sheet extrusion lines. For alternative grinding configurations, explore the SMP knife pulverizer and dual disc pulverizer PNMF-Pro series.
