Product Description

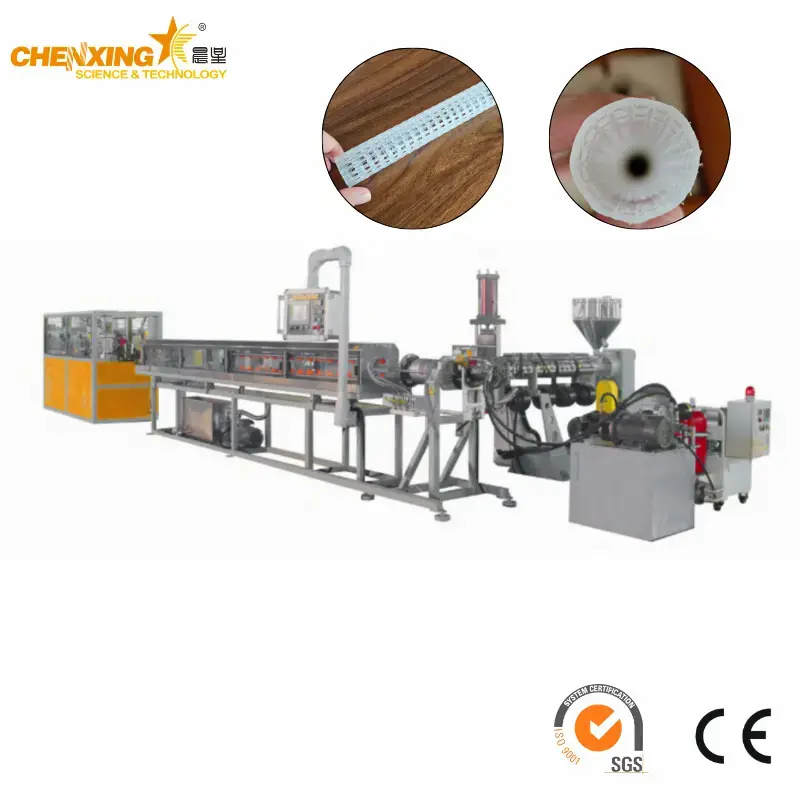

This is the Square Mesh Net Pipe Extrusion Line, built to run PE mesh tube, net pipe and filter mesh profiles in one continuous extrusion process. It is an extrusion molding machine with a single screw, a deep screw channel and an exhaust stage, and the whole unit is an integral type extruder with computerized automatic control.
The name is longer than the machine is complicated. Mesh tube, net pipe and filter mesh are different product names for the same family of open structure profiles, and one machine covers them by changing the die tooling. That is the reason the machine carries the combined name.
The net pipe produced by machines of this type carries two sets of properties at once. From soft permeable pipes it takes the large permeable area. From corrugated perforated pipes it takes high compressive strength. On top of that, the published description adds good reverse osmosis effect, strong weather resistance and long service life in the plastic net pipe production line.
Those properties are what make the pipe useful in ground engineering. The published engineering measures for this product family include discharging permeable water, reducing and controlling groundwater level, reinforcing soft soil, and preventing soil collapse and sliding. A net pipe with an open mesh structure drains water while it holds soil in place, which is why drainage engineers buy it rather than a solid wall pipe.
Where this machine sits in a plant: it is a pipe extrusion line, and it feeds the same downstream handling steps as other pipe lines. The wider equipment family is covered under extruder and pipe extrusion line, with the planning route under pipe extrusion line solution.
The following basic items are reproduced as published for the machine.
| Item | Published value |
|---|---|
| Model NO. | CX-WG |
| Type | Pipe Extruder |
| Plastic Processed | PE |
| Product Type | Extrusion Molding Machine |
| Feeding Mode | One Feed |
| Assembly Structure | Integral Type Extruder |
| Screw | Single-Screw |
| Screw Channel Structure | Deep Screw |
| Exhaust | Exhaust |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | ISO CE |
| Origin | China |
Three of those rows deserve a comment rather than silence.

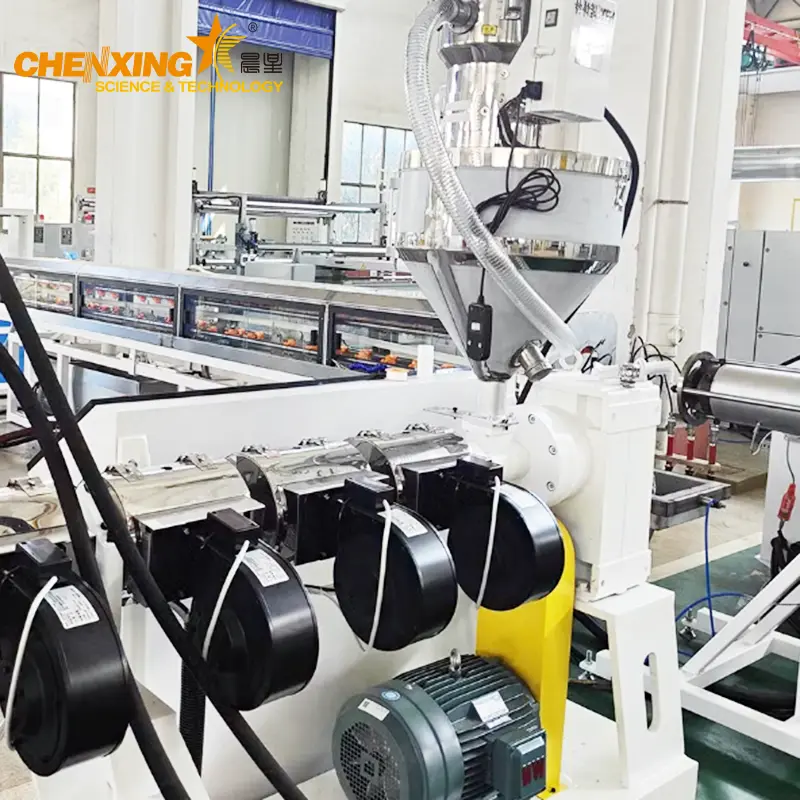

Single screw, deep channel, with exhaust. The screw carries a deep channel structure and the barrel has an exhaust stage. That combination matters for PE net pipe material, because volatile content has somewhere to leave the melt instead of becoming a surface defect in a thin wall mesh profile.
One feed, integral construction. The machine is fed in one position and built as one integral extruder rather than a modular train of separate units. Setup on the factory floor is shorter for that reason.

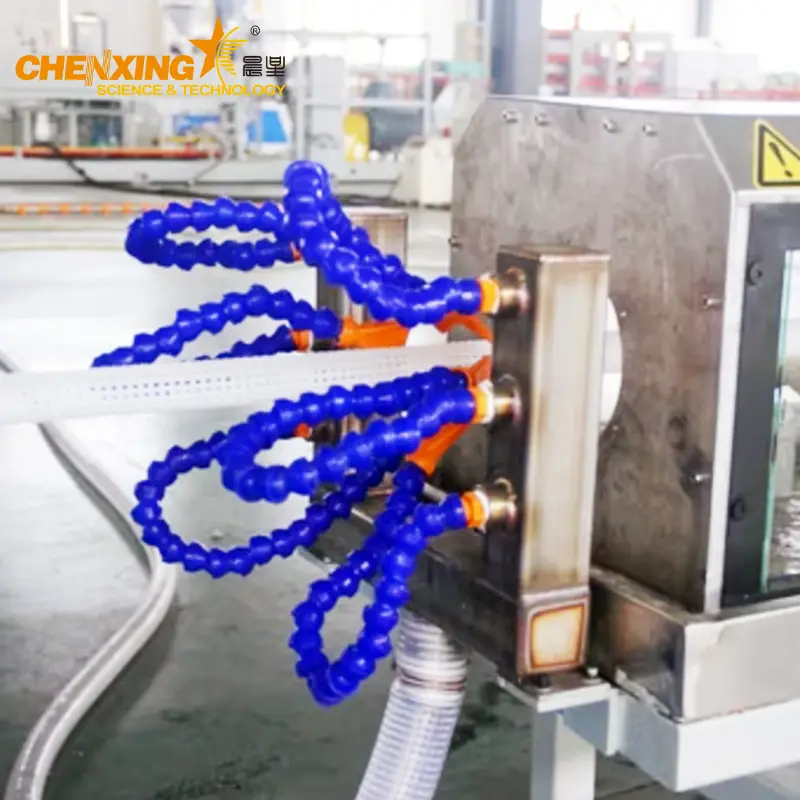

Computerized automatic control. The published description says computerized and automatic. Screw speed is set and held from the control system, and the machine runs unattended once the settings are dialled in.
Every figure below is reproduced exactly as published in the product material. Nothing has been rounded, averaged or converted.
| Model | CX-WG45 | CX-WG65 | CX-WG75 |
|---|---|---|---|
| Extruder | Ø45 | Ø65 | Ø75 |
| Screw speed r/min | 5-70 | 5-70 | 5-70 |
| Width of product mm | 30:1 | 30:1 | 30:1 |
| Installed capacity (approx) KW | 7.5 | 37 | 37 |
| Heating power(approx) KW | 20 | 30 | 45 |
| Dimensions (L×W×H)(approx) m | 18.5×1.5×2.2 | 20×1.5×2.2 | 20×1.5×2.2 |
Notes on the table, because some published cells need pointing at rather than smoothing over.
The "Width of product mm" row reads 30:1 for all three models. A ratio written as 30:1 is not a width in millimetres. It is published in that cell and it stays as published here. A width expressed as a ratio is most plausibly the L/D ratio of the extruder screw, but the source material labels the row as width, so we show the value exactly as it appears and flag the mismatch instead of moving it to a different row. The width range of the mesh tube product for your order is confirmed at enquiry.
Installed capacity differs sharply between CX-WG45 and the two larger models. CX-WG45 shows 7.5 KW installed and 20 KW heating, while CX-WG65 and CX-WG75 both show 37 KW installed with 30 KW and 45 KW heating. The gap is large enough that it is worth confirming the smaller model's figure on the order confirmation.
Heating power steps with screw size. 20 KW, 30 KW and 45 KW across the three models. Larger screws need more barrel heating surface, and the published figures step accordingly.
Screw speed is 5-70 r/min on all three models. Speed is published as a band, not a single figure, and it is the same band across the range.
Dimensions are approximate and stated per model. 18.5×1.5×2.2 m for CX-WG45 and 20×1.5×2.2 m for CX-WG65 and CX-WG75. The source material marks these as approximate.
Not published for these models: output rate in kg/h, product diameter range, wall thickness, voltage and frequency, and price. None of those have been invented on this page. They are confirmed at enquiry and written into the quotation.
Related lines in the same family: hdpe pipe extrusion line solution, pvc pipe extrusion line solution, ppr pipe extrusion line solution, single wall corrugated pipe extrusion line, double wall corrugated pipe extrusion line, corrugated pipe extrusion line solution, other type pipe extrusion line solution.
Materials and products. The published material is PE. The machine processes PE into mesh tube, net pipe and filter mesh profiles. Product names in the field include plastic mesh tube, plastic net pipe, filter mesh, drainage net pipe and soft permeable pipe. The open mesh structure is the product feature, not a side effect.
Drainage and ground engineering. This is where the machine's product ends up. The published applications are:
Discharging permeable water. Water in the ground moves through the open mesh instead of building up behind a solid barrier.
Reducing and controlling groundwater level. A buried net pipe drains the surrounding soil and holds the water table at the level the project needs.
Reinforcing soft soil. The pipe body carries compressive load while the mesh lets water pass, so the structure stays in place under soft ground conditions.
Preventing soil collapse and sliding. Draining water out of a slope or a fill reduces the driving force behind a slide. That is the engineering job this pipe family is sold for.
Product properties, as published. Large permeable area from soft permeable pipes, high compressive strength from corrugated perforated pipes, good reverse osmosis effect, strong weather resistance and long service life. Those are the published selling points, and they are the reason the mesh tube family survives in buried service where a solid wall pipe would sit wet and unused.
The drainage pipe side of the plant is covered under plastic drainage pipe machine. Where the plant also makes pipe for pressure service, the same screw and control technology appears on 3 layer high speed PE PPR HDPE pipe extrusion line and HDPE pipe production line 16-1600mm.
Drainage pipe producers adding a mesh product line to an existing extrusion plant. The machine is a pipe extruder, so it sits alongside existing pipe lines rather than needing a separate process.
Filter mesh and net pipe makers who currently buy mesh tube from outside and want the extrusion step in house. Ownership of the die and the screw settings is where the margin comes from.
Ground engineering contractors who specify drainage and soil reinforcement products and want the production side understood. The machine's product properties are the ones listed above, and they map directly to the specification sheets the contractor works to.
Plants with limited staffing. The published control description is computerized automatic, one feed and one operator routine, which keeps running cost down on a line that may run around the clock in drainage season.
This is a standard pipe extruder with a defined three model range, so customization is about fitting it to the product and the plant rather than redesigning it.
What we will change
Model selection by screw size. CX-WG45, CX-WG65 and CX-WG75 with Ø45, Ø65 and Ø75 screws. The deciding factor is the diameter range of the mesh tube you need to run.
Die tooling for the mesh pattern. Mesh tube, net pipe and filter mesh differ in the die and the downstream take off, and the die set is selected for your product. Die specifics are confirmed at enquiry.

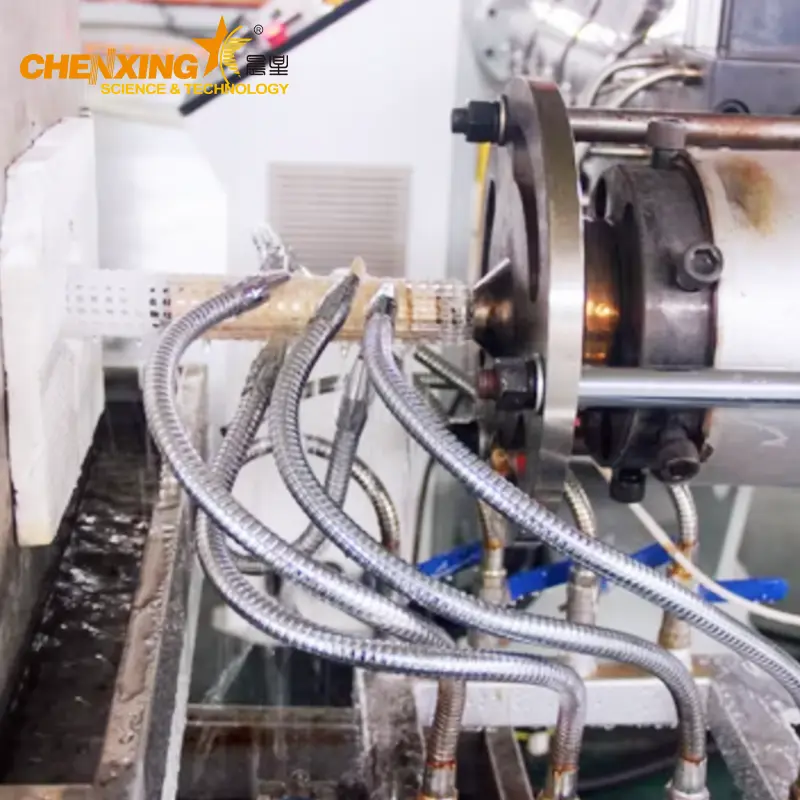

Take off and haul off arrangement. A net pipe line runs the mesh over a sizing and haul off section, and the layout is confirmed against the product you make.
Cutting and collection. Length control on the mesh product and the collection method are confirmed against your packing and site handling.
Electrical supply. Voltage, frequency and phase are confirmed against your site supply, because the published material for this machine does not state a voltage or frequency.
Colour and finish. Set to your requirement.
Invent output figures. No output rate in kg/h, product diameter range, wall thickness or line speed is published for this machine, and none is printed on this page. Those are confirmed on your material and your product.
Re-label the 30:1 cell. The source material prints "Width of product mm" as 30:1 for all three models. We print it exactly as published and flag it, and we confirm the actual width range at enquiry instead of guessing at the cell's meaning.
Print a voltage that is not in the source material. Electrical supply is confirmed at order stage.
Quote a price that is not published. Price is quoted against the model, the die set and the options you select.
Guarantee a ground engineering outcome. The machine produces the published product properties. The drainage result depends on the soil, the installation and the project design, and that is outside any machine supplier's promise.
The published certification for the machine is ISO CE.
A single screw with a deep channel and an exhaust stage is the published design. The screw is the part that sets melt quality in a thin mesh wall, and the deep channel keeps the feed stable on PE material.
Computerized automatic control is the published description. Screw speed is held by the control system, which matters when the mesh pattern needs a steady speed to form evenly.
The source material lists a 12 hour reply commitment, professional pre-sale service in fluent English, free design by professional engineers, and third party verification service providers for certificates. Those are kept as published.
OEM service, design service and buyer label are all provided. Technical staff provide support, and overseas assembly and equipment testing are available.
The machine ships with standard export documentation, and the user manual carries the detailed instruction for operation. Technical questions that the manual does not answer are handled by direct contact with the service team.
More technical documents under download. Application write-ups under news and application. General questions under the FAQ list.
Configuration. The model you select, with the die tooling, take off and cutting arrangement confirmed at order stage.
Scope. The machine as an integral type single screw extruder with exhaust, heating and control panel, with the transport package described below.
Minimum order. 1 set, or by negotiation, as published.
Lead time. Delivery 1 to 3 months, as published. Exact weeks are confirmed at order stage for your configuration.
Payment terms. As published: T/T, L/C, D/P, Western Union, Paypal, Money Gram.
Warranty. The machine is guaranteed for 18 months from the date of shipment, or 12 months from the date of starting installation and adjustment, whichever comes first. That is the published warranty wording and it is kept in full.
Packaging and shipping. Standard export packaging as published: anti rust oil is applied to the parts that rust easily, the machine is wrapped in stretch film, the control cabinet and other components are protected against shock with XPS foam board and EPE foam sheet, easy move parts are reinforced, and desiccant is placed before packing to avoid rusting during sea transportation. The bottom support uses New Zealand imported bluish pine wood or American Douglas fir wood, the side panels use 12mm multi layer plywood, and all wood is fumigated.
After sales service. 12 hour reply, OEM service, design service, buyer label, overseas assembly and equipment testing, and staff training, all as published.
Price. Quoted against the model and the options you select. No price is published for this machine, so none is printed on this page.
The published material does not state output rate, product diameter range, wall thickness, voltage, frequency, price or a specific HS classification beyond the one listed. Those are confirmed at enquiry and written into the quotation.
It extrudes PE plastic mesh tube, net pipe and filter mesh. The open mesh structure drains water in ground engineering, and the published product properties are large permeable area, high compressive strength, good reverse osmosis effect, strong weather resistance and long service life.
The machine is guaranteed for 12 months from the date of shipment, or 12 months from the date of starting installation and adjustment, whichever comes first.
1 set, or by negotiation, as published.
Anti corrosion oil is applied first, then plastic film, then a wooden box. Sea shipment packing uses stretch film, XPS and EPE foam protection, reinforcement of easy move parts, desiccant, and fumigated NZ pine or American Douglas fir wood framing, as published.
Yes. The user manual carries detailed instruction for the machine. If a problem is not solved by the manual, contact the service team directly for help.
Technical staff provide technical support, and can attend overseas assembly and equipment testing on site. That is the published service scope.
Yes. Technology support to the factory and training for the relevant personnel are provided.
T/T, L/C, D/P, Western Union, Paypal and Money Gram are accepted, as published.
Send the enquiry through the contact channel below. The sales team comes back with the model, the die arrangement for your product and a written quotation.
Send these and we can quote the right model rather than a range of them.
Product. Mesh tube, net pipe or filter mesh, and the diameter range you need to run.
Material. PE grade, and whether the material is virgin, recycled or a blend. Recycled PE changes the screw and temperature settings.
Output required. Your target rate. No output figure is published for this machine, so the number you give us is the starting point for the model selection.
Wall structure. Mesh density and wall thickness you are quoting against.
Site supply. Voltage, frequency and phase available at your site.
Take off and length. Continuous coil or cut lengths, and the packing you ship the product in.
Space available. Floor area and layout for a line with the published footprint of 18.5 to 20 m length by 1.5 m width by 2.2 m height.
Destination. Delivery port and the trade term you work on.
