Product Description

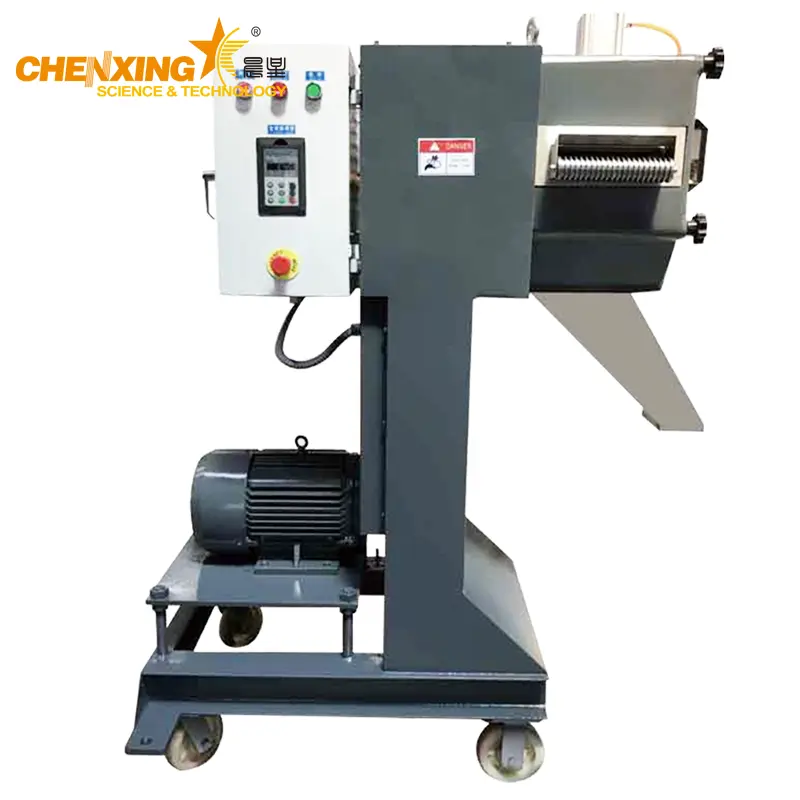

The Cantilever Pelletizer Machine (YLL Series) is a precision-designed strand cutting system widely used in plastic recycling, compounding, and extrusion pelletizing lines. It is specially engineered for cutting extruded plastic strands into uniform granules with high efficiency, stable operation, and low maintenance requirements.
This machine is suitable for processing a wide range of thermoplastics including PE, PP, PVC, and engineering plastic compounds, making it an essential downstream unit in modern plastic pellet production systems.
With a cantilever structure design, the machine offers easier maintenance, improved operational safety, and higher cutting stability compared with traditional pelletizing systems.
Plastic recyclers and compound manufacturers require pelletizing systems that are:
Stable in long-term continuous operation
Easy to maintain and clean
Capable of producing uniform pellet size
Energy efficient and durable
Safe for operators
The YLL Cantilever Pelletizer is designed exactly for these industrial requirements.
The system is designed for simplified operation:
Easy start/stop control
Stable feeding and cutting process
Low operator training requirement
One of the biggest advantages of the cantilever design:
Quick access to cutting chamber
Easy blade replacement
Reduced downtime during maintenance
Simplified cleaning process
This significantly reduces long-term operational cost.
Key components are designed with industrial durability:
High-hardness cutting blades
Wear-resistant rubber rollers
Anti-corrosion treated components
This ensures stable performance even under continuous operation.
The pelletizer produces:
Uniform strand cutting
Smooth pellet surfaces
Consistent granule size
Reduced powder and waste
Equipped with safety protection:
Safety control switch system
Emergency stop protection
Operator safety design
Ensures safe operation in industrial environments.
Depending on model configuration:
Stable output up to 300–500 kg/h
Continuous production capability
Optimized feeding and cutting speed synchronization

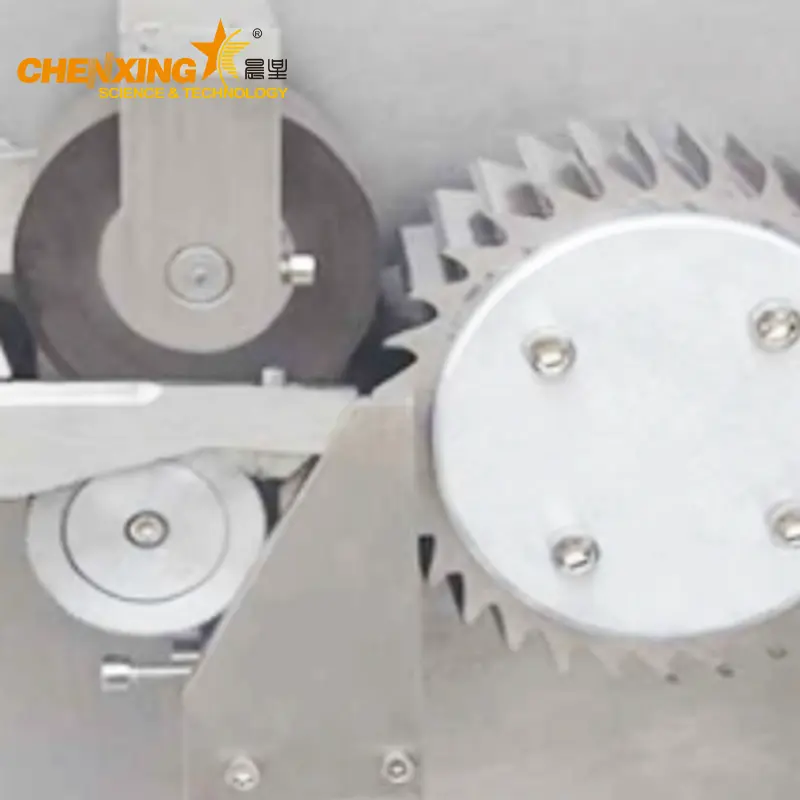

The machine operates through a coordinated strand cutting system:
Extruded plastic strands are guided into the cutting system.
The rubber rollers ensure stable traction and feeding speed.
High-speed rotating blades cut strands into uniform pellets.
Finished granules are discharged for cooling or further processing.
32-blade cutting rotor system
Stable rotation design
Consistent cutting geometry
Mechanical or variable frequency speed adjustment
Flexible operation for different materials
Optimized cutting speed control
Hardened alloy cutting blades
Rubber rollers (Φ120×100 / Φ120×200)
Long-life industrial bearings
Space-saving structure
Easy integration into extrusion lines
Stable frame design for vibration reduction
| Model | YLL-300 | YLL-500 |
|---|---|---|
| Motor Power | 3–4 kW | 5.5–7.5 kW |
| Speed Control | Slip or frequency conversion | Slip or frequency conversion |
| Noodle Capacity | ≤15 strands | ≤30 strands |
| Max Towing Speed | 96 m/min | 96 m/min |
| Pellet Size | Φ3×3 mm | Φ3×3 mm |
| Max Output | ≤300 kg/h | ≤500 kg/h |
| Cutter Roller Size | Φ200×100 mm | Φ200×200 mm |
| Blade Number | 32 | 32 |
| Rubber Roller Size | Φ120×100 mm | Φ120×200 mm |
The cantilever pelletizer is widely used in:
PE film recycling
PP woven bag recycling
PVC rigid recycling
Masterbatch production
Filled compounds
Modified plastics
Single screw extrusion lines
Strand pelletizing systems
PE (HDPE, LDPE, LLDPE)
PP (raffia, woven bags, injection scrap)
PVC rigid and soft materials
ABS, PS, PC compounds
Engineering plastic blends
Recycled plastic strands
✔ Stable industrial performance
✔ Low maintenance cost
✔ Easy operation
✔ High compatibility with extrusion systems
✔ Durable mechanical structure
✔ Cost-effective recycling solution
This machine is widely exported to Europe, South America, Southeast Asia, Middle East, Africa, and North America.
The cantilever pelletizer can be integrated with:
Plastic extruders (single/twin screw)
Water cooling tanks
Strand cooling troughs
Centrifugal dryers
Vibration drying systems
Storage silos
It can process PE, PP, PVC, ABS, PS and various recycled plastic strands.
It allows easier maintenance, faster blade replacement, and better operational accessibility.
The standard pellet size is Φ3×3 mm, which can be customized if required.
Yes, it is widely used in plastic recycling and compounding industries.
YLL-300 handles up to 15 strands, YLL-500 handles up to 30 strands.
No, it is designed for low-maintenance operation with wear-resistant components.
Yes, both slip control and frequency conversion options are available.
Yes, we provide customized configurations based on production capacity and material type.
