Underwater Pelletizing System — Premium Spherical Pellet Production for Demanding Polymers

When Strand Cutters Fail — The Cost of Processing Sticky and Heat-Sensitive Materials

A strand pelletizing line processing TPE at 300 kg/h looks efficient — until it isn't. The operator watches as strands exiting the water bath begin to stick to the haul-off rollers. Within minutes, strands tangle. The rotary cutter jams. Production stops. The line restarts, runs for 45 minutes, jams again. Over a 12-hour shift, the compounding plant loses 3 hours of production — not because the extruder cannot melt and mix the TPE, but because the pelletizing system cannot handle the material's inherent stickiness.

This is not a rare event. It is the defining operational reality of processing thermoplastic elastomers (TPE, TPU, TPR, TPV), hot melt adhesives (EVA-based), low-density polyolefins (LDPE, LLDPE), and certain engineering plastics (PA6, PET, PBT) on strand pelletizing lines. These materials share a common property: their softening point is close to their crystallization temperature, or they remain tacky well below their melting point. A strand that enters the water bath at 180°C and exits at 40°C is still tacky at the cut point. The cutter blade, rotating at 800-1,200 RPM, encounters a strand that wants to stick — not cut cleanly. The result is irregular pellets, fines generation, and — worst of all — cutter jams that halt the entire line.

Water ring pelletizing lines solve part of the problem by cutting at the die face with water quenching, eliminating the strand haul-off. But water-ring pellets are lenticular (lens-shaped), not truly spherical, and can still develop tails with tacky materials when the die-face temperature fluctuates. Side force feeder pelletizing lines are optimized for recycled film flakes — not for primary TPE/TPU compounding. PVC hot-cutting pelletizing lines use air cooling — insufficient for materials that remain tacky at ambient temperature.

Underwater pelletizing is the only industrial solution that fully decouples the cutting process from the material's stickiness. By cutting molten polymer inside a temperature-controlled water chamber — where every pellet is instantly water-quenched, hardened, and transported away before it can contact another pellet or any metal surface — the process produces perfect spheres from materials that strand pelletizers cannot run for more than an hour without jamming.

This is the CX-UWP Series: a single-screw extruder integrated with a submerged die-face cutting system, closed-loop water circulation, and centrifugal drying — purpose-built for the polymers that strand and water-ring systems struggle to pelletize.

How Underwater Pelletizing Works — Cutting Inside the Water Chamber

The Principle: Cut in Water, Never in Air

Underwater pelletizing inverts the conventional pelletizing sequence. In strand pelletizing, the polymer solidifies first — in a water bath or on a cooling belt — and is then cut mechanically. The solidification step creates the problem: the polymer must be rigid enough to cut cleanly, which sticky materials are not. In underwater pelletizing, cutting occurs while the polymer is still molten, but the cutting environment is water — so the pellet solidifies the instant it separates from the die face. The sequence is: extrude through die plate → cut by rotating blades in water → immediate water quenching → transport as water-pellet slurry to dryer → centrifugal separation → dry spherical pellets.

The Die Plate: Where Melt Meets Water

The die plate is the boundary between the molten polymer (inside the extruder, at process temperature and pressure) and the process water (inside the water chamber, at controlled temperature, typically 40-80°C depending on the polymer). The die plate has multiple precision-drilled holes — typically 20-200 holes depending on throughput and pellet size — arranged in concentric rings. Each hole diameter (typically 1.5-4.0 mm) determines pellet diameter after swelling and quenching.

The die plate is heated — independently of the extruder barrel — to maintain the polymer at processing temperature right at the exit point. If die plate temperature drops, the polymer freezes in the die holes, blocking flow — a "die freeze-off" that requires a shutdown to clear. The CX-UWP die plate uses PID-controlled cartridge heaters with the same ±1°C precision as the barrel heating, ensuring every die hole stays open at all throughput rates.

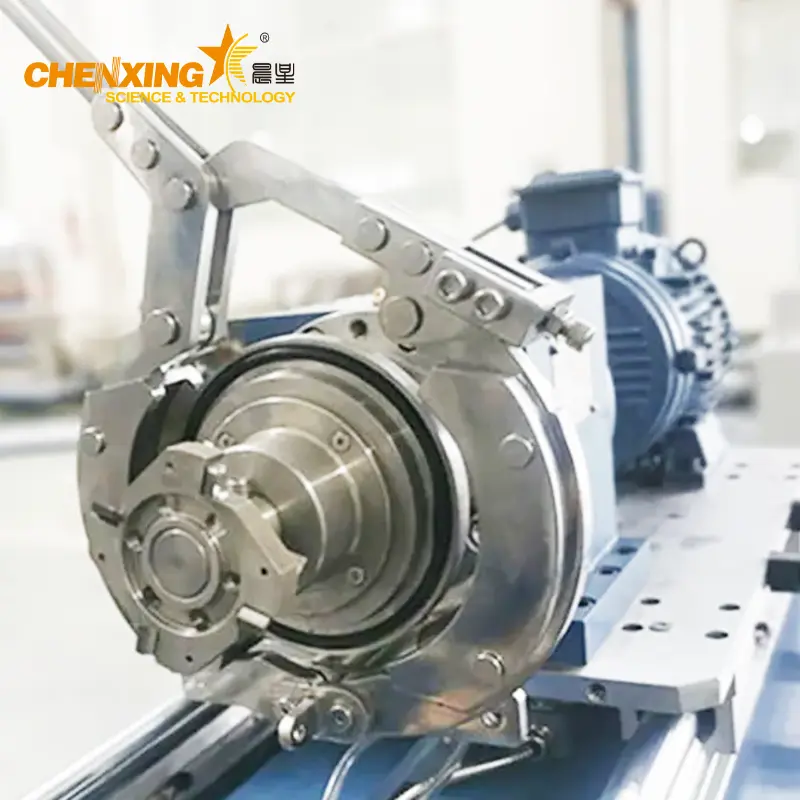

The Cutting Chamber: Rotating Blades Submerged

Inside the water chamber, a rotating knife hub — carrying 2-8 spring-loaded or hydraulically-actuated blades — presses against the die face. The blades rotate at 500-3,000 RPM (depending on throughput and pellet size), cutting each extruded polymer strand the moment it exits the die hole and before it has extended more than 1-2 mm into the water. The pellet — still molten at its core but with a rapidly solidifying skin — is immediately swept away by the cross-flow of process water entering the chamber tangentially, preventing pellet-to-pellet or pellet-to-die contact.

The blade material is tungsten carbide or high-speed tool steel, selected for the specific polymer's abrasiveness. For filled compounds (CaCO3, glass fiber), carbide blades provide 3-5x the service life of tool steel. Blade-to-die-face contact pressure is adjustable — enough to cut cleanly without excessive wear on the die face. The die face itself is hardened (58-62 HRC) and polished to a mirror finish to minimize friction and polymer adhesion.

The Water Loop: Coolant, Conveyor, and Quality Controller

Process water serves three simultaneous functions: it quenches the pellet (removing the heat of fusion and cooling the polymer below its softening point within milliseconds), it transports the pellets as a slurry through closed piping to the centrifugal dryer (typically 10-20 meters of transport distance), and it controls pellet temperature at the dryer inlet — critical because a pellet entering the dryer too hot will smear on the dryer rotor.

The CX-UWP water system is a closed loop: fresh process water enters the cutting chamber, carries pellets through transport piping to the centrifugal dryer, is separated from the pellets, passes through a fines filter and a heat exchanger (where it rejects absorbed heat to an external cooling tower or industrial chiller), and returns to the cutting chamber at the controlled temperature. Water temperature is the primary process variable controlling pellet morphology — higher water temperature produces rounder pellets (slower quenching allows surface tension to form spheres), but water that is too hot risks pellet agglomeration. The operator dials in the water temperature that balances sphericity and non-stick for each formulation.

The Centrifugal Dryer: From Slurry to Dry Pellets in Seconds

The water-pellet slurry enters the bottom of a vertical centrifugal dryer. A rotor with vertically-staggered lifting paddles spins at 800-1,200 RPM, throwing the slurry outward against a perforated screen basket. Water passes through the screen (0.5-1.5 mm perforations) and drains to the water return tank. Pellets, too large to pass through the screen, are lifted upward by the paddles along a helical path, exiting at the top through a discharge chute. Residence time in the dryer: 2-5 seconds. Residual surface moisture on the pellets: ≤0.05% by weight.

The dryer has no heating element — the mechanical energy of the rotor and the residual heat in the pellets (they enter at approximately 40-60°C) provide sufficient drying. For hygroscopic materials (PA6, PET), a post-dryer STG-U hopper drier removes the small amount of absorbed moisture that centrifugal drying cannot address.

The Full Process Flow

Feed hopper (pellets, powder, or pre-blend with high-speed mixer) → single-screw extruder (cast aluminum electromagnetic heating, ABB inverter drive, 38CrMoAlA nitrided screw, PLC control) → underwater die plate (PID heated) → water chamber cutting (rotating blade hub, temperature-controlled process water) → water-pellet slurry transport → centrifugal dryer (water separation, pellet lifting, surface drying) → vibrating screen classification (oversize/long rejects removed) → finished product silo or bagging station.

CX-UWP Series — Technical Specifications & Model Selection

Four models cover throughput from 120 to 2,750 kg/h, spanning pilot-scale R&D to high-volume continuous production.

Screw material: 38CrMoAlA nitrided steel — high surface hardness after nitriding (HV 900-1,100) for wear resistance, tough core for torsional fatigue resistance.
Heating: Cast aluminum electromagnetic heating — direct eddy-current induction, no thermal inertia, 20-30% lower energy consumption vs. resistance band heaters.
Drive: ABB vector frequency inverter — precise speed control from 50 to 600 RPM, constant-torque output across the range.
Control: PLC with HMI touchscreen — all process parameters (barrel temperatures, die plate temperature, water temperature, blade RPM, motor load, throughput) displayed and logged.

Model Selection Guide

Select based on your target throughput at 70-85% of rated capacity — running consistently at maximum rated throughput reduces blade and die plate service life and leaves no surge capacity for demand spikes.

Key Advantages of CX-UWP Underwater Pelletizing System

1. Submerged Cutting Eliminates Pellet Agglomeration — The TPE/TPU Problem Solved

• Feature: Rotating blades cut molten polymer strands inside a temperature-controlled water chamber. Each pellet is quenched (water at 40-80°C) within milliseconds of separating from the die face. The cross-flow water stream immediately transports each pellet away from the die face before it can contact adjacent pellets or the cutter hub.

• Advantage: TPE, TPU, and hot melt adhesives are sticky because their glass transition temperature (Tg) is below room temperature — they remain flexible and tacky even when "cold." In strand pelletizing, the cut occurs after water bath cooling, but the strand surface temperature at the cut point is still within the tacky range. The result: pellets stick to the cutter blade, to each other, and to the chute. Underwater cutting decouples the polymer from the cutting environment — the water is the release agent, the quench medium, and the transport vehicle simultaneously. No pellet touches another pellet or a metal surface until it is fully hardened.

• Benefit: A TPE compounding line that jammed 8-12 times per shift on strand pelletizing runs continuously for 24 hours on underwater pelletizing. Annual downtime reduction for a 3,000-ton TPE compounder switching from strand to underwater: approximately 600-900 production hours recovered. Pellets are individual, free-flowing spheres — no clumping in the silo, no bridging in the customer's hopper, no manual de-clumping labor.

2. Fully Enclosed System — Zero Oxidation, Consistent Color

• Feature: From the die plate exit to the centrifugal dryer discharge, the polymer is never exposed to air. The cutting chamber is water-filled and sealed. The transport piping is water-flooded. The dryer housing is sealed. The water layer acts as a continuous oxygen barrier throughout the pellet formation and transport process.

• Advantage: Polymer oxidation occurs primarily at the melt-air interface — the surface of a strand exiting a die, the surface of a pellet cooling in air. Oxidation causes: yellowing (visually detectable at delta-YI > 2), molecular weight reduction (measurable as melt flow index drift), and in severe cases, gel formation (visible as fisheyes in blown film). For natural/clear TPE, medical-grade TPU, and food-contact PA6, oxidation is not a cosmetic issue — it is a specification failure. Underwater pelletizing eliminates the melt-air interface. The pellet's surface never contacts oxygen while hot enough for oxidation kinetics to be significant.

• Benefit: Natural TPE pellets remain water-clear, not yellowed. Recycled PET pellets maintain intrinsic viscosity (IV) within 0.02 dl/g of the feedstock — the difference between bottle-grade and fiber-grade pricing. Food-contact compounders achieve compliance without adding antioxidant overpack that downstream customers must declare on their packaging.

3. Perfect Spherical Pellets — What Your Injection Molding Customer Actually Wants

• Feature: Underwater die-face cutting produces pellets that are truly spherical — not cylindrical (strand), not lens-shaped with tails (water ring). The spherical shape is a direct result of surface tension acting on the molten droplet the instant it separates from the die hole and before the water quenches the surface.

• Advantage: Pellet shape directly affects downstream processing economics. Cylindrical pellets (strand) have flat-cut ends that generate fines during pneumatic conveying and silo handling — fines that clog dryer filters, create dust in the molding shop, and cause feeding inconsistencies at the injection molding machine throat. Lenticular pellets (water ring) can interlock in hoppers, causing bridging and interrupted feed. Spherical pellets roll. They flow through pneumatic lines with minimal attrition. They fill a hopper uniformly without bridging. They meter through a gravimetric feeder with the highest accuracy — typically ±0.1-0.2% vs. ±0.3-0.5% for irregular pellets — because the feeder's weigh signal represents consistent, predictable mass per unit volume.

• Benefit: The injection molder running your spherical TPE pellets reports fewer short shots, less screw slippage, and 30-50% fewer feeder alarms in a month. They pay the premium for spherical pellets because it shows up in their OEE. For compounders, spherical pellets command $20-100/ton price premium in competitive markets — the morphological difference that the customer can see and feel before they ever melt a pellet.

4. Single-Line Throughput That Replaces Multiple Strand Lines

• Feature: The CX-UWP95 delivers up to 2,750 kg/h — equivalent to 3-5 strand pelletizing lines each running at 500-800 kg/h. The single-screw extruder with 95mm screw, L/D up to 60:1, and 550 kW motor provides the melting and pumping capacity to sustain this throughput for continuous 24/7 operation.

• Advantage: A compounding plant producing 15,000 tons annually of filled PP masterbatch with strand pelletizing needs 3-4 parallel lines, each with its own extruder, water bath, strand dryer, and pelletizer — each consuming floor space (approximately 40-60 m² per line), operator attention (1 operator per 1-2 lines), and utility connections (water, compressed air, power). One CX-UWP95 at 2,000 kg/h average throughput running 7,500 hours annually produces the same 15,000 tons from a single line occupying approximately 80-100 m² — a 50-60% reduction in floor space, 50% reduction in direct labor, and simplified utility infrastructure (one water loop, one dryer, one screen, one silo connection).

• Benefit: For a new compounding plant, choosing one CX-UWP95 instead of four strand lines saves approximately 30,000-60,000/year at typical compounding labor rates), and simplifies quality control (one pellet sample, not four, represents the day's entire production). For an existing plant, replacing 4 aging strand lines with one CX-UWP95 frees 200 m² of floor space for a second line — doubling capacity without expanding the building.

5. Cast Aluminum Electromagnetic Heating — Precision Without Inertia

• Feature: The CX-UWP extruder barrel is heated by cast aluminum shells with embedded induction coils. Alternating current through the coils induces eddy currents in the steel barrel wall — the barrel heats itself, rather than being heated by an external resistance element. No contact resistance, no air gap, no thermal lag.

• Advantage: Resistance band heaters have significant thermal inertia — the band heats up, transfers heat through an air gap (however small) to the barrel, and the barrel temperature responds seconds to minutes later. When the PID controller calls for cooling (because shear heating from the screw has raised the melt temperature above setpoint), the band must cool down first — heat already stored in the band continues transferring to the barrel even after the band's power is cut. Electromagnetic heating has near-zero inertia — cut the power, and heat generation stops instantly. The barrel responds to the controller within seconds, not minutes.

• Benefit: For an underwater pelletizing line processing heat-sensitive TPU (degradation onset ~200-220°C), ±1°C barrel temperature control is the difference between pellets with consistent Shore hardness and pellets with degraded, discolored streaks from brief temperature overshoots. Energy consumption is 20-30% lower than equivalent resistance heating — for a CX-UWP95 running 7,500 hours annually with 120 kW average heating load, that's approximately 180,000-270,000 kWh saved per year, worth $18,000-40,000 at typical industrial electricity rates.

6. ABB Vector Inverter Drive — Constant Torque, Precise Throughput Control

• Feature: ABB ACS series vector frequency inverter provides closed-loop speed control of the extruder's main drive motor. The inverter continuously monitors motor speed via encoder feedback and adjusts output frequency and voltage to maintain exact speed regardless of load variation.

• Advantage: In compounding, consistent throughput requires consistent screw speed — a 1% speed variation translates directly to approximately 1% throughput variation, which for a masterbatch means 1% variation in pigment concentration. Open-loop VFDs (voltage/frequency control without encoder feedback) can drift 2-5% under changing load conditions — as the screw encounters a higher-viscosity melt section, motor slip increases and actual speed drops below the commanded speed. The operator does not see this on the HMI (which shows commanded speed, not actual speed) until the pellet quality drifts. ABB vector control eliminates the slip — the encoder tells the inverter the actual speed, the inverter compensates in real time, and the operator sees actual speed on the HMI.

• Benefit: Pigment loading in masterbatch pellets stays within ±0.5% of target across a 24-hour production run. The customer's let-down ratio (masterbatch-to-natural ratio at the injection molding machine) produces consistent color — no streaks from concentration drift, no customer complaints traceable to extruder speed variation.

7. One-Step Centrifugal Drying — Dry Pellets Without a Separate Drying Line

• Feature: The centrifugal dryer receives the water-pellet slurry directly from the transport piping, separates water from pellets via centrifugal force against a perforated screen, and lifts the pellets vertically to the discharge chute. Residence time: 2-5 seconds. No heating. No compressed air. No additional process step.

• Advantage: Strand pelletizing requires a separate strand dryer — typically a heated forced-air unit — to remove surface moisture from the water bath before the pellets enter the silo. That air dryer consumes energy (typically 10-30 kW for a mid-size line), occupies floor space, and requires its own maintenance. The centrifugal dryer uses only the rotor's mechanical energy — the same motor that drives the pellet lifting also generates the centrifugal force that expels water through the screen. The process is self-contained and continuous.

• Benefit: Pellets exit the dryer at ≤0.05% surface moisture — dry to the touch, ready for immediate packaging or silo storage. Eliminating the separate strand dryer saves approximately $15,000-30,000 in capital equipment, 8-12 m² in floor space, and 50,000-150,000 kWh annually in dryer energy (for a line running 7,500 hours). For the compounder, this means one fewer piece of equipment to maintain, one fewer utility connection to install, and one fewer process variable to control.

Pelletizing Technology Comparison — Underwater vs. Strand vs. Water Ring

Choosing the right pelletizing technology means matching the machine's capabilities to your material portfolio's most demanding member — not the average. If 80% of your production runs cleanly on strand but 20% (the TPE, TPU, and hot melt adhesive contracts) causes daily jams and quality rejections, the strand line is the wrong choice — regardless of its lower capital cost.

When Underwater Pelletizing is the Correct Economic Choice

Underwater pelletizing carries a higher capital cost than strand or water ring — typically $60,000-200,000 more depending on model and configuration. The investment is justified when one or more of the following applies:

1. Sticky material is >20% of your production volume. The downtime savings alone (600-900 hours/year for a mid-volume TPE compounder) repay the cost premium within 12-18 months.

2. Your customer pays a premium for spherical pellets. In competitive masterbatch and engineering plastic markets, the pellet shape premium (30,000-150,000/year in additional revenue for a modest 1,500-ton line.

3. You need >1,500 kg/h from a single line. Strand pelletizing cannot economically scale to this throughput — you would need 2-4 parallel lines, with their multiplied capital, labor, and floor space costs.

4. Oxidation affects your product quality. Natural/clear TPE, food-contact compounds, and medical-grade TPU lose market value from even slight yellowing or molecular weight degradation.

For compounders whose material portfolio fits these criteria, underwater pelletizing is not a premium option — it is the only option that operates profitably at scale.

Material Compatibility Guide — What Can You Pelletize Underwater?

The CX-UWP processes virtually any thermoplastic whose melting point is above the maximum water chamber temperature (typically 80-95°C). Materials that melt below 80°C (certain waxes, low-melting EVA grades) risk softening in the water chamber and require chilled process water. Materials with very high melt temperatures (>350°C, some PEEK, PEI grades) require pressurized water chambers to prevent steam formation at the die face.

Thermoplastic Elastomers (TPE, TPR, TPU, TPV)

• Processing temperature: 160-220°C (TPE/TPR), 180-230°C (TPU), 170-210°C (TPV)

• Water chamber temperature: 50-70°C — warm enough for surface tension to form spheres, cold enough for instant skin solidification

• Blade speed: Medium (800-1,500 RPM) — higher speeds risk generating fines from the still-soft pellet core

• Key consideration: TPU is hygroscopic — pre-dry feedstock to <0.02% moisture or accept post-drying of pellets. TPU hardness (Shore 70A-75D) determines water temperature: softer grades need colder water for faster skin formation

• Typical pellet size: 3.0-4.0 mm diameter

Hot Melt Adhesives (EVA-based)

• Processing temperature: 140-180°C — lowest of all underwater-pelletizable materials

• Water chamber temperature: 30-50°C — colder water essential because the polymer's softening point is within the typical water chamber temperature range

• Blade speed: Low (500-800 RPM) — minimize shear heating in the water chamber

• Key consideration: EVA hot melt with high vinyl acetate content (>28%) has a softening point as low as 40-60°C — chilled process water (10-20°C from an industrial chiller) may be required. Pellets must be stored below 30°C to prevent blocking.

• Typical pellet size: 3.0-3.5 mm diameter

Polyolefins (PP, HDPE, LDPE, LLDPE)

• Processing temperature: 180-240°C (PP), 160-200°C (LDPE/LLDPE), 180-220°C (HDPE)

• Water chamber temperature: 60-80°C — polyolefins crystallize rapidly, so warmer water produces rounder pellets without blocking

• Blade speed: High (1,500-3,000 RPM) for maximum throughput

• Key consideration: LDPE and LLDPE, with their branched molecular structure, remain tackier than HDPE at the same temperature — use the upper end of the water temperature range (70-80°C) to improve sphericity without risking agglomeration. Filled PP compounds (CaCO3, talc) require carbide blades — the filler is abrasive.

• Typical pellet size: 3.0-4.5 mm diameter

Engineering Plastics (PA6, PET, PBT)

• Processing temperature: 230-280°C (PA6), 260-290°C (PET), 230-270°C (PBT)

• Water chamber temperature: 70-90°C — engineering plastics have high crystallization temperatures; adequately warm water prevents amorphous (glassy) pellet formation

• Blade speed: Medium-high (1,200-2,000 RPM)

• Key consideration: PA6 and PET are hygroscopic — moisture absorbed during underwater processing is surface moisture only (removed by centrifugal dryer), but pre-drying feedstock to <0.005% moisture is essential to prevent hydrolytic degradation. Post-drying pellets with an STG-U hopper drier is recommended for engineering plastics before packaging.

• Typical pellet size: 2.5-3.5 mm diameter

Filled Compounds & Masterbatches

• Processing temperature: 180-240°C (varies with carrier resin)

• Water chamber temperature: 60-80°C

• Blade speed: High (1,500-2,500 RPM)

• Key consideration: Abrasive fillers (CaCO3, TiO2, glass fiber, ceramic powder) accelerate die plate and blade wear. Carbide blades and hardened die face (HRC 60+) are mandatory for filler-loaded formulations. Die plate hole diameter should be 15-20% larger than the target pellet diameter — filler increases melt viscosity and die swell.

• Typical pellet size: 3.0-4.0 mm diameter

Frequently Asked Questions

Why do TPE and TPU pellets stick together with strand cutting but not underwater?

Strand cutting processes TPE/TPU by cooling the strand in a water bath, pulling it through haul-off rollers, and cutting it with a rotary blade. The problem: the strand surface at the cut point is still warm (40-60°C), and TPE/TPU remains tacky at these temperatures. The cut surface — freshly exposed and slightly heated by the cutter's friction — contacts the next pellet and bonds. Underwater pelletizing avoids this entirely: the molten strand is cut inside a water chamber, and the pellet is quenched to below its tacky temperature (typically <35°C) within milliseconds of separating from the die. Water also acts as a physical barrier — pellets are transported away from the cutter before they can contact each other. The result: individual, free-flowing pellets.

How much more does underwater pelletizing cost compared to strand pelletizing — and when is it worth it?

A complete underwater pelletizing line (CX-UWP65 or CX-UWP75 with extruder, water system, centrifugal dryer, and controls) typically costs 200,000 more than an equivalent-throughput strand pelletizing line. The investment is recovered when: (a) sticky materials (TPE, TPU, hot melt) represent >20% of production — downtime savings alone (600-900 hours/year for a mid-volume line) provide 12-18 month payback; (b) spherical pellets command a 30,000-100,000-30,000-$60,000/year in labor. For compounders whose material portfolio is >50% sticky polymers, underwater is not optional — it is the only technology that achieves profitable uptime.

What is the moisture content of pellets after centrifugal drying?

Surface moisture is ≤0.05% by weight — dry to the touch, acceptable for immediate packaging or silo storage. The centrifugal dryer removes essentially all free surface water. However, for hygroscopic materials (PA6, PET, TPU) that absorb moisture into the polymer during underwater contact, the internal moisture content will be 0.05-0.15% — above the <0.02% typically required for injection molding or extrusion. Post-drying with an STG-U hopper drier is recommended for hygroscopic engineering plastics before packaging if the customer's process does not include its own drying.

Can underwater pelletizing produce food-contact-grade or medical-grade pellets?

Yes — and the fully enclosed, water-sealed design is an advantage for these applications. Food-contact and medical-grade compounding requires: (a) no oxidative degradation (which generates low-molecular-weight species that can migrate into food or tissue), (b) no contamination from external sources (dust, airborne particles, machine lubricants), and (c) traceable, consistent quality. Underwater pelletizing's zero-air-exposure design eliminates oxidation during pellet formation. The closed water loop (with filtration and regular water changes) prevents external contamination. For medical-grade TPU and food-contact PP/PE, the CX-UWP system can be specified with stainless steel water-contact components, pharmaceutical-grade gaskets, and validated clean-in-place (CIP) capability. Chenxing works with compounders to document the system for FDA and EU food-contact compliance.

How does the spherical pellet shape benefit my downstream injection molding process?

Spherical pellets flow through pneumatic conveying lines with minimal attrition — generating fewer fines that clog dryer filters and create dust. In the injection molding machine's hopper, spherical pellets fill uniformly without bridging or rat-holing — the arching failure that interrupts feed when irregular pellets interlock. Most critically, the consistent mass of spherical pellets (the standard deviation of individual pellet weight is typically 1-2% vs. 5-10% for irregularly-shaped pellets) translates to more consistent gravimetric feeding and, ultimately, to more consistent shot weight. For the injection molder, this means fewer short shots, less screw slippage, reduced cycle-time variation, and fewer quality alarms. The molder's OEE improvement from switching to spherical feedstock is measurable — and it is why compounders who supply spherical pellets retain customers longer.

What maintenance does the underwater cutter head require, and how long do blades last?

The cutter head requires three maintenance activities: blade inspection/replacement, die face inspection, and water system cleaning. Blade life depends on the material's abrasiveness: for unfilled PP/PE, tool steel blades last 500-800 production hours; for 30% glass-fiber-filled PA6, carbide blades last 200-400 hours; for 80% CaCO3-filled PP, carbide blades last 150-300 hours. Blade replacement takes 30-45 minutes — the water chamber is drained, the blade hub is removed, individual blades are replaced, and the hub is reinstalled and adjusted for contact pressure. The die face should be inspected each blade change for wear grooves — a hardened, polished die face typically lasts 2,000-4,000 hours before requiring resurfacing. Process water should be filtered (screen filter at the dryer return) and replaced every 1-2 weeks in continuous operation to prevent fines accumulation and bacterial growth.

Can one underwater pelletizing line handle multiple materials (TPE one day, PP the next)?

Yes — the CX-UWP handles material changeovers, but the cleaning protocol is more involved than strand pelletizing because the water circuit must be flushed. A typical TPE-to-PP changeover: purge the extruder with PP (approximately 2-3 barrel volumes), drain the water chamber, flush the water circuit with clean water, refill, and resume production. Total changeover time: 1-2 hours. Color changes (black masterbatch to natural) are more demanding — the water circuit, centrifugal dryer, and piping retain pigment particles from the previous run. A full color-change protocol (water drain, circuit flush, component wipe-down, refill) takes 2-4 hours. For compounders running frequent color changes (3-5 per week), the changeover time is the primary operational consideration. For compounders running 1-2 formulations continuously, the changeover frequency is low enough that the throughput and quality advantages dominate the decision.

Elevate Your Pellet Quality — From Irregular Chips to Premium Spheres

Step 1 — Audit Your Current Pelletizing Pain Points: Identify which materials in your portfolio cause the most downtime, the most quality rejections, and the most customer complaints. If sticky polymers (TPE, TPU, hot melt adhesives) and oxidation-sensitive materials (natural/clear compounds, food-contact grades) dominate the list, underwater pelletizing addresses all of them.

Step 2 — Define Your Throughput and Pellet Specification: Determine your target annual output (tons), the materials you run, the pellet size and shape your customers demand, and your budget for capital and operating cost. Our engineering team maps these requirements to the optimal CX-UWP model and configuration — screw diameter, L/D, die plate hole count and diameter, blade material, water system capacity, and dryer size.

Step 3 — Request a Proposal from Nicole: Send your material portfolio, target throughput, and pellet quality requirements to Nicole. We will provide a complete line proposal with technical specifications, a process flow diagram, floor plan, utility requirements (power, water, compressed air), and pricing within 24 hours. For new formulations, we offer trial runs on our in-house CX-UWP50 pilot line — validate pellet quality before committing to a production system.

Step 4 — Install, Commission, and Produce Premium Spherical Pellets: Chenxing provides on-site installation supervision by our engineering team, full commissioning (extruder, water system, dryer, controls integration), screw and die plate optimization for your specific formulations, operator training (process control, changeover procedures, blade maintenance), and a comprehensive spares kit (blades, die plate, gaskets, screen basket). After commissioning, your CX-UWP line runs with 1 operator — producing consistently spherical, dust-free pellets that your customers will prefer over irregular strand or water-ring pellets.

For complementary equipment, explore Chenxing's downstream solutions: vibrating screens for fines removal and size classification, high-speed mixers for pre-blending additives before extrusion, STG-U hopper driers for post-drying hygroscopic pellets, and CJ magnetic frames for metal contamination protection at the feed throat and after the dryer. If your process includes size reduction before pelletizing, our plastic crushers, SMF disc grinding pulverizers, and SMP knife pulverizers handle the pre-processing stage. For extrusion applications beyond pelletizing, our parallel co-rotating twin screw extruder delivers modular compounding capability, while our pipe extrusion lines with caterpillar haul-off, dust-free pipe cutter, and pipe coiler complete the downstream processing chain.
