Product Description
The Chenxing plastic-coated elevator compensation chain is a welded anchor chain core wrapped in PVC, sized for low- and medium-speed elevators. It cuts the noise of old rope-type chains, costs less than a full plastic chain, and is supplied from about 0.62 kg/m to 5.95 kg/m with usable lengths up to 240 m.
Inside the coating is a welded anchor chain, the same class of chain used for anchoring and hauling work. Outside is a continuous PVC layer that protects the steel, reduces contact noise, and gives the chain a clean finished look in a choice of colors such as blue, red and black. The combination is a practical middle option: it keeps the strength of a steel chain while removing the rattle and the bare-metal look.
What does a compensation chain do in the elevator? It balances the hoist rope weight that changes as the car travels. At the top floor the rope weight concentrates on the counterweight side; at the bottom floor it concentrates on the car side. The chain hangs between the car and the counterweight and cancels that difference as the car moves, so the drive system runs evenly and the ride stays smooth. The principle is the same for every balance chain, and the plastic-coated version is the practical workhorse for low- and medium-speed lifts.
Positioning in short:
Product type: plastic-coated elevator compensation chain, welded anchor chain core with PVC cover
Reference series: WFUZ style reference range, published as industry reference values
Unit weight range: about 0.62 kg/m to 5.95 kg/m, reference values confirmed at enquiry
Usable length range: up to 240 m in the reference table, confirmed at enquiry
Speed fit: low and medium speed elevators, industry reference up to about 1.75 to 2 m/s

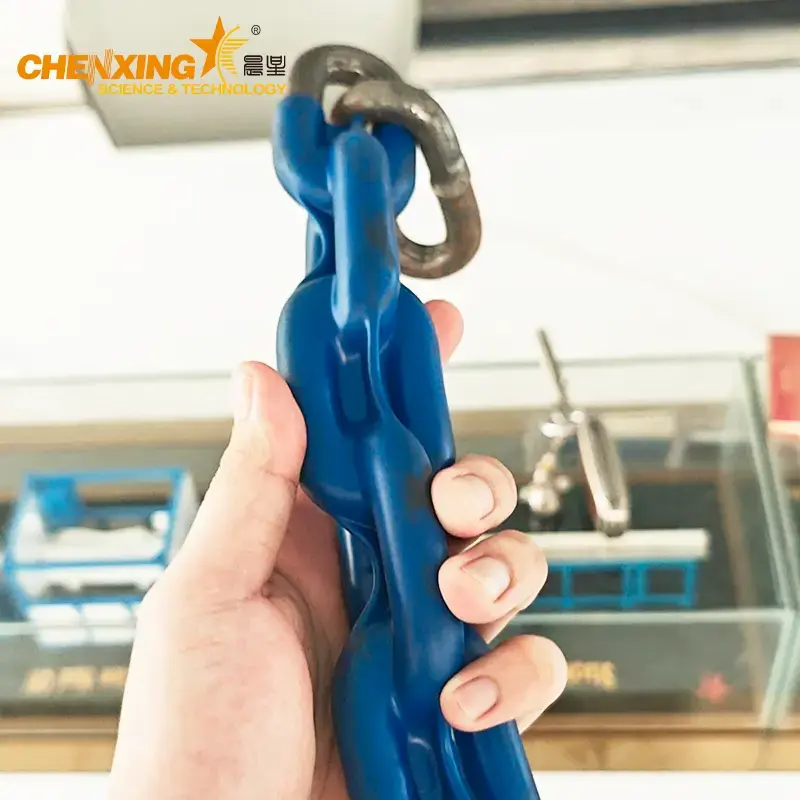

Finish: PVC coated, flat or round appearance, common colors blue, red and black
Price position: moderate, between rope-type chains and full plastic chains
The chain is a small but safety-relevant part of every lift, and it is supplied from the Chenxing factory with inspection documentation and export packing. The full product range is listed in the machinery catalogue and the company profile.

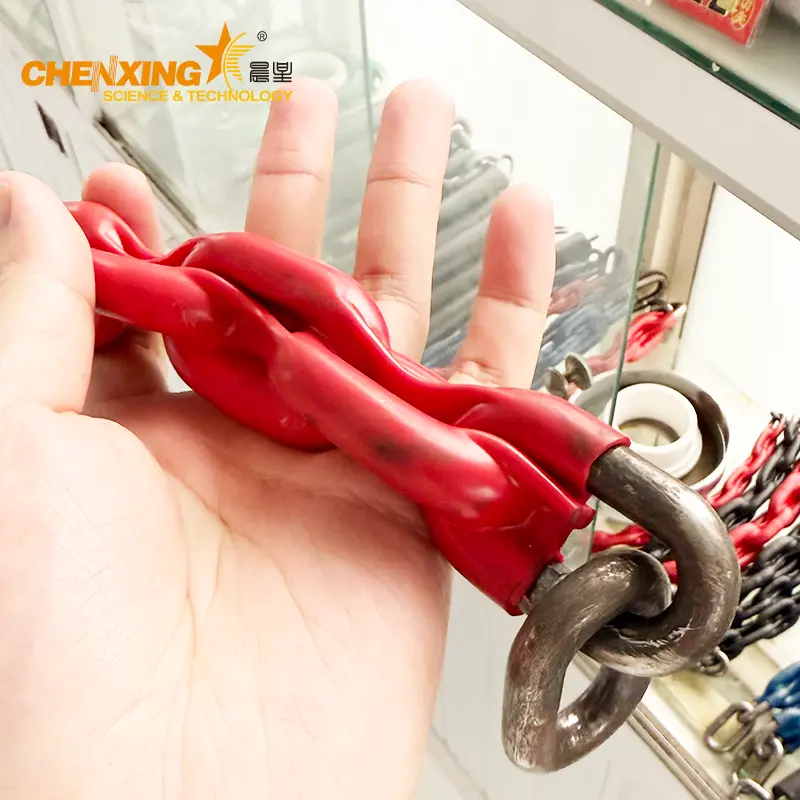

The plastic-coated chain is built in two layers. The core is a welded anchor chain that carries the mechanical load, and the outer PVC layer protects the steel, dampens noise and gives the chain a stable finish.
Reference characteristics of the plastic-coated chain:
Core: welded anchor chain, continuous links, mechanical strength from the steel core

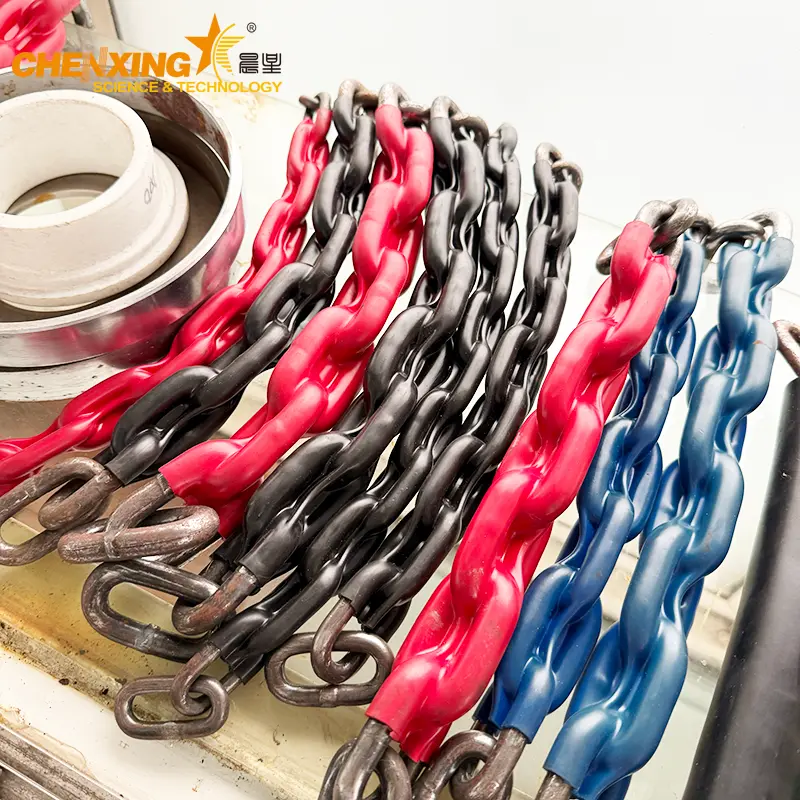

Cover: continuous PVC layer, common colors blue, red and black
Appearance: flat or round section depending on the size class
Noise: much quieter than rope-type chains, though not as silent as a full plastic chain
Cost: moderate, a lower first cost than the all-PVC cable form
Service: replace bare steel chains where appearance and noise matter
Fitting: supplied in coils, cut to length at installation, max usable length per the reference table
The table below is taken from industry published reference values for the WFUZ style plastic-coated series. Every figure is a typical industry reference value with the stated tolerance, and the final specification is confirmed at enquiry.
| Specification | Unit weight (kg/m) +/- 0.2 | Min. bending diameter (mm) | Breaking load (>= kN) | Max. usable length (m) |
|---|---|---|---|---|
| 5 | 0.62 | 260 | 9.0 | 180 |
| 6 | 0.89 | 260 | 13.0 | 180 |
| 7 | 1.28 | 260 | 18.0 | 185 |
| 8 | 1.50 | 260 | 23.5 | 190 |
| 9 | 2.03 | 280 | 30.0 | 190 |
| 10 | 2.39 | 280 | 37.0 | 230 |
| 11 | 2.95 | 300 | 44.5 | 230 |
| 12 | 3.33 | 300 | 52.0 | 240 |
| 13 | 3.80 | 320 | 62.23 | 240 |
| 14 | 4.46 | 320 | 70.0 | 240 |
| 16 | 5.95 | 320 | 94.5 | 240 |
The reference number follows the anchor chain size class. Smaller numbers such as 5 and 6 suit lighter lifts and shorter hoistways; larger numbers such as 14 and 16 carry heavier loads.
The max usable length climbs with the size class, from 180 m up to 240 m in the reference table. A coil is cut to the actual hoistway length at installation.
The min bending diameter grows from 260 mm to 320 mm across the range, so the guide sheave radius should be checked against the selected size.
An enhanced filled-core option is available on request: some plastic-coated structures add a PVC filling inside the links, which resists link displacement, improves pressure and twist resistance, reduces movement and cracking risk, and lowers noise further. Industry references place this variant at up to about 3 m/s, and suitability is confirmed at enquiry.
The supporting plastic processing equipment from the same factory is shown on single wall corrugated pipe extrusion line, double wall corrugated pipe extrusion line, plastic drainage pipe machine and HDPE pipe extrusion line solution.
Low and medium speed passenger lifts. The plastic-coated chain is the standard choice for lifts up to about 1.75 to 2 m/s by industry reference. It balances the hoist rope weight quietly enough for passenger service without the cost of an all-PVC cable.
Freight and service lifts. Where the load is heavy and the speed is moderate, the welded anchor chain core provides the strength and the PVC cover protects the steel from the damp and dusty environment of a machine room or pit.
| Application | Elevator type | Why the plastic-coated chain fits |
|---|---|---|
| Passenger elevators | Low and medium speed lifts, up to about 1.75 to 2 m/s | Moderate cost, quiet enough for passenger service |
| Freight elevators | Goods lifts with heavy load | Welded anchor chain core carries the load, PVC protects the steel |
| Medical elevators | Hospital lifts, lower speed ranges | Clean finish and lower noise than bare chains |
| Service and observation lifts | Building maintenance lifts | Coated surface protects the steel in wet or dusty pits |
| Construction elevators | Temporary site lifts | Durable PVC cover over a strong steel core |
| Retrofit projects | Replacement of rope-type chains | Direct noise and ride improvement at moderate cost |
Why it replaces rope-type chains. The old rope-type chain, a steel chain with rope threaded through it, rattles and makes the car shake. Most elevator companies have stopped using it. The plastic-coated chain is the natural upgrade: it keeps the steel strength, removes the rope wear, and dampens the noise with the PVC layer.
How it behaves in service. The chain hangs between the car and the counterweight and runs over the guide sheave at the bottom. The PVC cover keeps the chain quiet against the guide arrangement, and the coating should be checked for integrity during maintenance, especially where the chain bends at the sheave.
The same factory builds the pipes and profiles that carry this coating technology, shown on corrugated pipe extrusion line solution, PPR pipe extrusion line solution, HDPE pipe production line 16-1600 mm and PE PP film recycling washing line.
The plastic-coated chain is supplied to the project specification, and the WFUZ reference range is the starting point.
What we will customize
Length. Coils are cut to the exact hoistway length at installation, and pre-cut sets per lift are accepted.
Cover color. Blue, red and black are common finishes; other colors are confirmed at enquiry.
Size class. The anchor chain core and unit weight are selected from the reference range.
Filled-core structure. The enhanced filled-PVC-core option is available on request for quieter, more stable running.
Packaging and marking. Coils can be marked with size, length and batch information for site tracing.
Export packing. Packing and labelling follow your shipping instructions.
Whole lift matching. Supply can be coordinated with the guide sheave radius and suspension arrangement.
What is fixed by the reference platform
The WFUZ style reference series and the published size table, with tolerances as stated.
The two-layer structure: welded anchor chain core with continuous PVC cover.
The max usable length and min bending diameter reference values.
The low- and medium-speed fit, with the filled-core option as the higher-speed variant on request.
No Chenxing-specific model number is invented on this page. The table is published as typical industry reference values, and the final specification, including the exact breaking load and coating grade for your lift, is confirmed at enquiry.
Installation support is described under the installation FAQ list; machine documentation is collected on the machine documents page; product news is on machine news and product cases.
Quality on a coated chain is about two things: the steel core that carries the load, and the PVC cover that protects it.
Core quality. The welded anchor chain is the load-carrying element, and breaking load is checked against the reference table values, with the final value confirmed at enquiry.
Cover quality. The PVC layer is checked for uniform thickness, full coverage and stable color. A good chain runs quietly and evenly; a poor chain shows cover cracking, thickness variation and unstable strength.
Coating integrity. The cover must survive coiling, hanging and the repeated bend at the guide sheave. The filled-core option adds displacement and twist resistance.
Factory test. Coils are inspected for cover finish, weight consistency and length accuracy before packing.
Documentation. Each supply includes the inspection report and certificate of conformity.
Warranty. One year warranty is provided with the supply.
Installation guidance. Chenxing provides guidance covering relaxation, hanging and guide device alignment.
The installation points that matter. Before hanging, let the coil relax and clear the spiral and twist from winding. Hang one end under the car, run slowly to the top, cut to length, leave the chain hanging statically with the tail more than 1 m above the floor for about 24 hours, then connect the other end. The guide device center line should sit on the same vertical line as the suspension point, and the guide device should be about 1 m above the lowest bend of the chain so the bending radius stays safe. Check again after a few days of running.
Chenxing Machinery was established in 2002 and has worked in plastic processing for more than 20 years, under ISO9001 quality management with CE certification for export supply. The recovery and washing lines around the factory are on washing line machines and washing and recycling production line.
MOQ. One coil per size class, and pre-cut sets per lift project are accepted.
Lead time. Confirmed at order; common size classes ship faster than special colors or filled-core variants.
Packing. Coils are export packed, protected against crushing and moisture during sea transport.
Trade terms. FOB, EXW, CFR, CIF and CIP are available.
Payment. T/T, L/C and Western Union are accepted.
Shipping. Coil count, weight per coil and packing plan are confirmed before dispatch.
The wider ordering information is on products page 15 and the the site home page. Contact details are on the contact page.
It is a welded anchor chain core wrapped in a continuous PVC cover. It hangs between the elevator car and the counterweight to balance the changing hoist rope weight during travel.
The coated chain has a steel anchor chain core inside the PVC, so it costs less and suits low to medium speed lifts. The full plastic chain is one solid PVC cable, quieter and lighter, sized for medium and high speed lifts.
Industry reference places it at low and medium speed, up to about 1.75 to 2 m/s. The enhanced filled-core option is referenced at up to about 3 m/s, and suitability is confirmed at enquiry.
A welded anchor chain core. The steel links carry the mechanical load, and the PVC layer protects the steel, dampens noise and gives the chain a clean finish.
The reference range runs from about 0.62 kg/m up to 5.95 kg/m across eleven size classes from 5 to 16, with a tolerance of +/- 0.2 kg/m.
Blue, red and black are the common finishes. Other colors can be confirmed at enquiry.
The reference table lists max usable lengths from 180 m up to 240 m depending on the size class. The coil is cut to the actual hoistway length at installation.
The reference table lists breaking loads from 9.0 kN up to 94.5 kN depending on the size class. The exact value for your selected size is confirmed at enquiry.
The PVC cover is selected for the project climate, and the filled-core option improves displacement and crack resistance. The working environment should be stated at enquiry.
One coil per size class, and pre-cut sets per lift project are accepted. Lead time and packing are confirmed at order.
The reference knowledge on this page is shared on balance chain solutions; the material handling equipment appears on powder suction machine, continuous powder suction machine, crushing material suction machine and plastic agglomerator.
A complete inquiry lets Chenxing quote the right plastic-coated chain on the first reply. Please include:
Elevator type and speed. Passenger, freight, medical or construction, with the rated speed in m/s.
Hoistway data. Travel height, car and counterweight arrangement, and rope configuration.
Required size class. The reference size from 5 to 16 if already selected, or the load and hoist height so Chenxing can recommend.
Finish preference. Color, and whether the filled-core option is of interest.
Quantity. Number of sets and coils, with the length per lift if known.
Site environment. Moisture, dust and temperature, especially for pit or machine room conditions.
Certification requirement. Whether CE marking or other documentation is required.
Commercial expectations. Destination port, Incoterm and required documents.
What you get back: the confirmed specification for the plastic-coated elevator compensation chain, size class, unit weight, length per coil, breaking load confirmation, coating color and grade, packing plan and delivery schedule.
