Product Description
The PVC/PVG Coal Mine Conveyor Belt Production Line is a high-capacity, twin-screw extrusion system designed specifically for manufacturing flame-retardant, anti-static, and high-strength conveyor belts used in underground coal mining operations. This production line integrates advanced screw design, precise temperature control, and a reinforced processing structure tailored for PVC + rubber composite materials.
Engineered for continuous and stable output, the system ensures excellent belt strength, uniform thickness, and superior bonding between carcass layers, making it highly suitable for both PVC (solid woven) and PVG (rubber-covered) mining conveyor belts.
With belt width options ranging from 800 mm to 2000 mm and output capacity up to 1500 kg/h, this line meets the high replacement demand in global coal mining markets where conveyor belts are consumed rapidly due to harsh transport conditions.

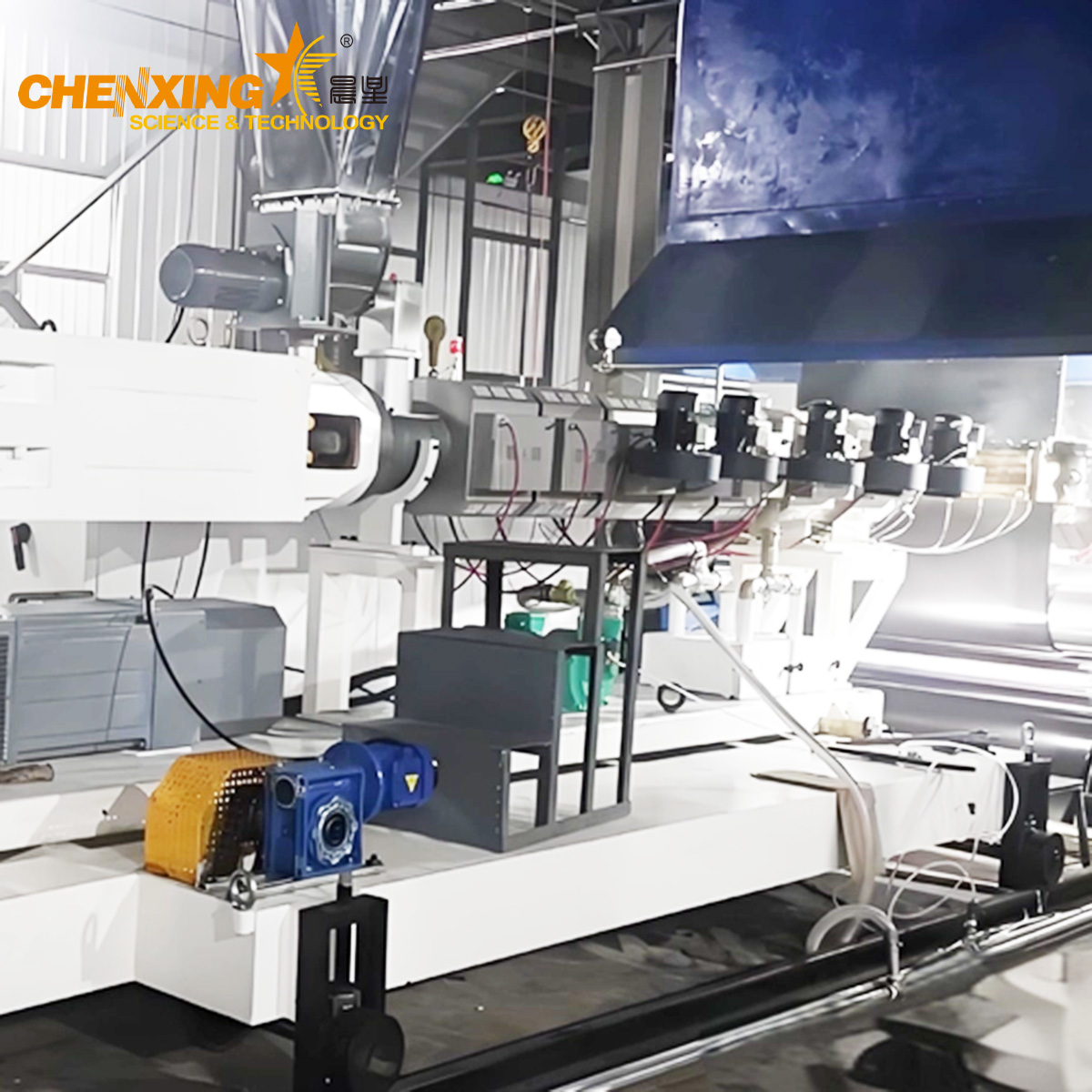

Screw Diameter: 120 mm
L/D Ratio: 25:1
Screw Speed: 67 rpm
Optimized for PVC + rubber composite melting
Improved plasticizing effect and uniform material distribution
Weight: 20,000 KG
Frame and key components built with 38CrMoALA alloy
Excellent wear resistance and long service life
PLC automated control
Precise temperature zones for stable extrusion
Optional remote monitoring and data logging
Type 1: 800–1400 mm
Type 2: 1400–2000 mm
Suitable for major global underground mining projects
Output range: 800–1500 kg/h
Belt thickness tolerance maintained within ±0.1–0.3 mm
Speed range: 0.7–1.3 m/min or 0.5–1.2 m/min depending on model
Main power: 200 kW
Lower energy consumption per ton compared to traditional systems
ISO & CE certified
| Model | Belt Width | Extruder | Output | Speed | Price Range |
|---|---|---|---|---|---|
| 1 | 800–1400 mm | PS95/28 + 2 sets | 800–900 kg/h | 0.7–1.3 m/min | $570,000–710,000 |
| 2 | 1400–2000 mm | PS125/28 + 2 sets | 900–1500 kg/h | 0.5–1.2 m/min | $1,200,000–1,430,000 |
| Item | Specification |
|---|---|
| Extruder Type | Twin Screw |
| Voltage | 380V |
| Warranty | 1 Year |
| Core Components | Motor, Gearbox, PLC, Gear, Screw |
| Raw Material | PVC + Rubber |
| Certificate | ISO, CE |
| Supply Ability | 100 sets/month |
| Video Inspection | Provided |
| Application | Coal Mine Conveyor Belt Manufacturing |
This production line is optimized for manufacturing conveyor belts used in:
Underground coal mining transportation
Metallurgical industry material handling
Chemical industry conveying systems
Flame-retardant and anti-static belt applications

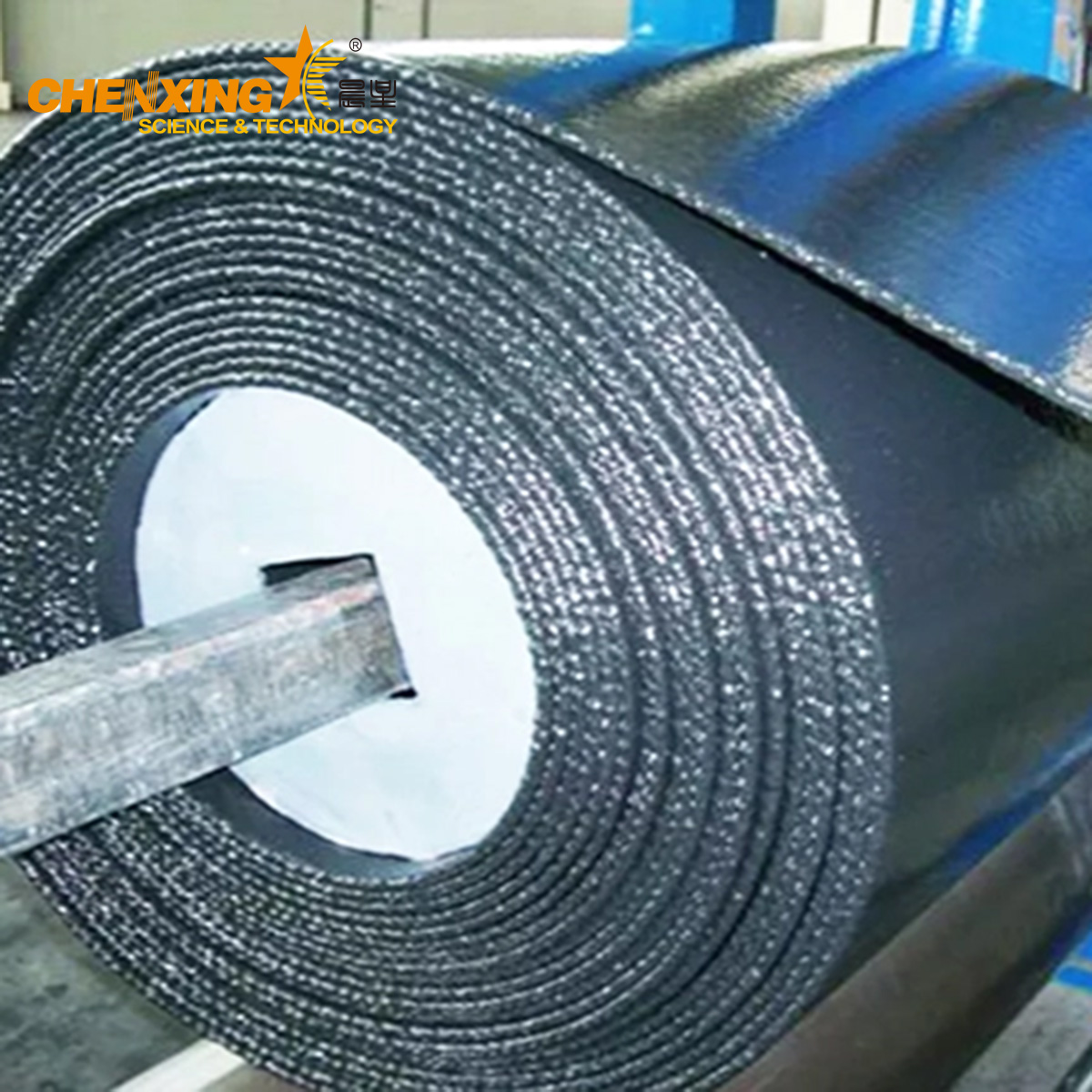

High-strength solid woven PVC/PVG conveyor belts

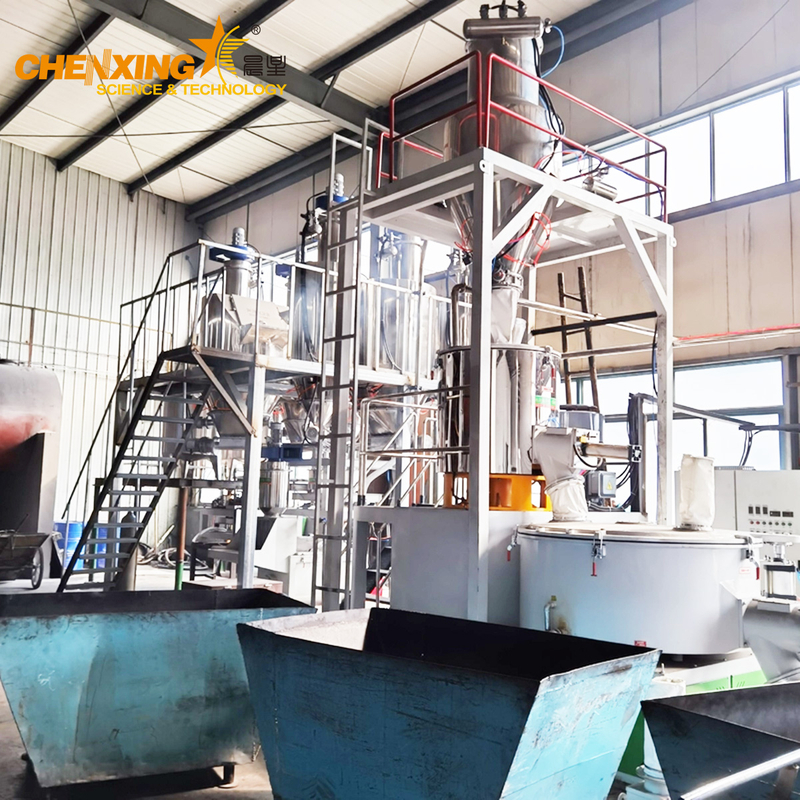

PVC + Rubber Raw Material Feeding
Twin-Screw Plasticizing & Extrusion
Sheet Calendering & Thickness Control
Solid Woven Fabric Layer Bonding
Cover Rubber Coating (PVG type)
Cooling & Stabilizing Section
Slitting & Edge Trimming
Automatic Winding & Storage
This workflow ensures consistent belt strength, superior adhesion, and stable performance under mining conditions.
It can produce both PVC solid woven belts and PVG rubber-coated mining belts with flame-retardant and anti-static properties.
The system is designed for PVC resin, rubber powder, additives, and reinforcement fabrics.
Yes. Belt width (800–2000 mm), output, and screw designs can be fully customized according to project requirements.
ISO and CE certifications are available, and third-party inspection can be arranged.
We provide on-site installation, commissioning, operator training, and lifetime technical support.
Typical delivery time is 90–120 days, depending on configuration and customization.
Yes. Full turnkey solutions including mixers, calenders, coating equipment, and quality test machines are available.
