Fireproof Plastic PVC Faux Marble Stone Profile Extrusion Line | PVC Marble Profile Making Machine for Decoration | Chenxing

Product Positioning — What This Line Is and What It Solves

The Fireproof Plastic PVC Faux Marble Stone Profile Extrusion Line is a conical twin-screw profile extrusion line built to produce PVC imitation marble profiles — the decorative building profiles that carry a marble-stone surface effect on a plastic substrate.

The line answers a specific demand in the decoration market: buyers want the look of marble and stone on skirting, wall panels, ceiling corners, floor boards and background walls, but they need a product that installs easily, resists water, and can be produced in continuous lengths at a commercial cost. This line produces exactly that:

• PVC imitation marble profile — a profile whose surface carries the marble or stone pattern, made on a plastic extrusion line rather than cut from stone

• Skirting line, floor board and ceiling corner — the trim and transition profiles used throughout interior fit-out

• Wall panel, background wall and tile — decorative panels and tile-substitute profiles for feature walls

• Waterproof platform — profiles for damp and wet areas where stone or timber would be heavy or would swell

• For indoor and outdoor building and decoration — the published application scope of the finished products

The machine is published with a products width of 10 – 600 mm, a capacity of 100 – 400 kg/h, a production line speed of 2 – 6 m/min on the attribute panel, an extruder type of twin screw, and PVC, CaCO3 and CPE as the materials stated. It is published as automatic and computerized, eco-friendly, and supplied with lifetime technical support.

In practical terms, the line is a complete decorative-profile factory in one container: a conical twin-screw extruder, a vacuum calibration table, a hot stamping machine combined with an embossing machine, a haul-off machine, a cutter and a stacker — the sequence in which the profile is formed, sized, decorated and finished.

Specifications & Models — What Is Available and How to Choose

Reference Data Note

The figures below are transcribed from two different places in the manufacturer's published data: the machine attribute panel and the model selection table. Where the two places state different figures for the same machine, both are shown with their source labelled, side by side. They have not been merged, and no third figure has been introduced to reconcile them. The final configuration is confirmed in the written quotation.

Table A — Machine Attributes (Product Attribute Panel)

Table B — Model Selection Table (Main Technical Parameter)

Reading the Two Tables Together

• Line speed is published in two forms — the attribute panel states a summary range of 2 – 6 m/min, while the model selection table gives the range for each model: 2 – 8 m/min (PVC51), 2 – 7 m/min (PVC55), 2 – 6 m/min (PVC65) and 1 – 3 m/min (PVC80). Both are shown as published; the smaller machines run the highest line speed and the largest machine the lowest, and the applicable figure for your profile is confirmed at quotation stage.

• The four models are matched to product width and line power — PVC51 at 40 kW, PVC55 at 45 kW, PVC65 at 75 kW and PVC80 at 95 kW, with the published products width range across the line stated as 10 – 600 mm.

• The line footprint is published per model — appearance size grows from 28 × 1.6 × 2 m on PVC51 to 32 × 2.3 × 2 m on PVC80, so the floor length required ranges from about 28 m to about 32 m. This is a useful planning figure, since the calibration table, haul-off and stacker all sit in line downstream of the extruder.

• Capacity is published on the attribute panel as 100 – 400 kg/h; the model table does not restate it, so the attributed figure stands as the published capacity.

How to Choose a Model

• PVC51 (40 kW, 28 × 1.6 × 2 m) — narrow decorative profiles such as skirting line and ceiling corner, at the highest line speed of the range (2 – 8 m/min)

• PVC55 (45 kW, 29 × 1.6 × 2 m) — narrow to medium widths, 2 – 7 m/min

• PVC65 (75 kW, 30 × 1.6 × 2 m) — medium to wide wall panels and background wall profiles, 2 – 6 m/min

• PVC80 (95 kW, 32 × 2.3 × 2 m) — the widest profile and highest output capability of the range, 1 – 3 m/min, with the largest installed power

The wider decorative profile and panel programme is described under Profile Extrusion Line, Profile Extrusion Line Solution, PVC UV Marble Sheet Making Line, Board & Sheet Extrusion Line, PVC Shelf Label Strip Extrusion Line and Pipe Extrusion Line.

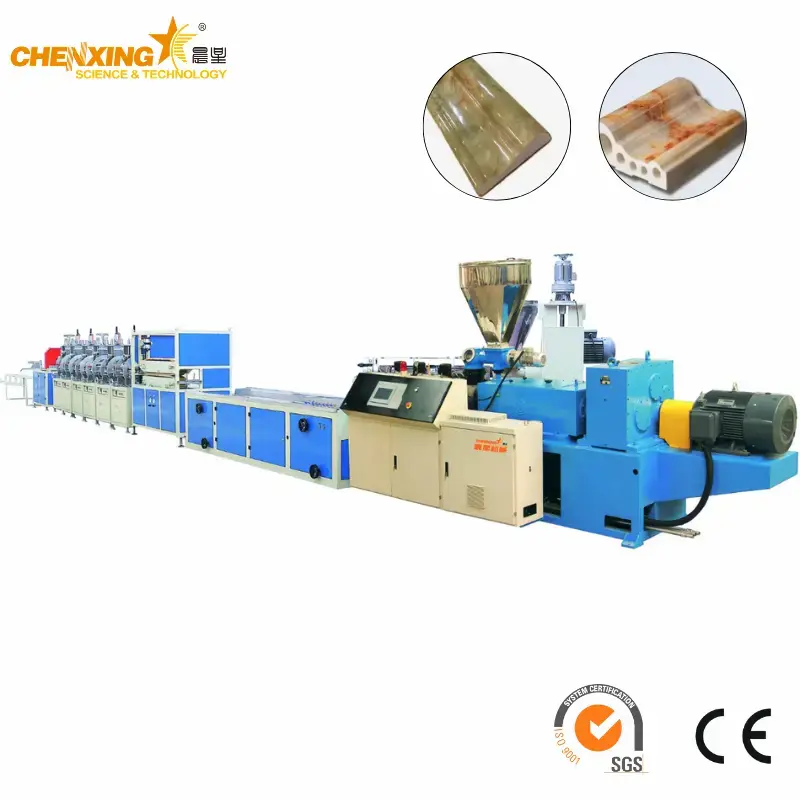

Line Composition & Working Stations

The published production line composition is:

Conical twin screw extruder → Vacuum calibration table → Hot stamping machine + embossing machine → Haul-off machine → Cutter → Stacker and other accessories

Station by Station

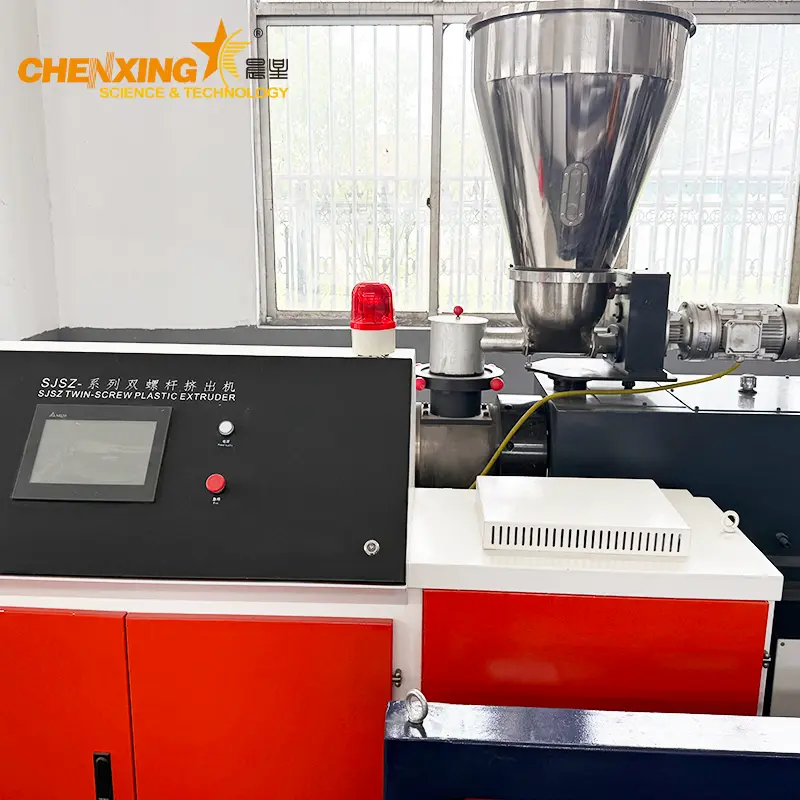

1. Conical twin screw extruder
The extruder is published as a twin screw extruder with a double screw configuration. It processes the PVC compound — PVC powder, CaCO3, stabilizer and DOP — and delivers a uniformly plasticized melt to the die. The electrical package is published as internationally sourced brand-name electrical components, and the machine is computerized with PLC control. A conical twin-screw extruder is the correct choice for engineered PVC compound with a high filler content: it plasticizes the compound gently and evenly, which is what keeps the surface pattern reproducible and the section dimensionally stable.

2. Vacuum calibration table
The profile leaves the die at a temperature above its softening point, so the calibration table sets and sizes it while it cools. Vacuum holds the outer surface against the calibrator so the section keeps its shape, and cooling water removes the heat at a controlled rate. Calibration is what determines whether a decorative panel stays flat over a 4 m length and whether the surface is clean enough for the decoration that follows.

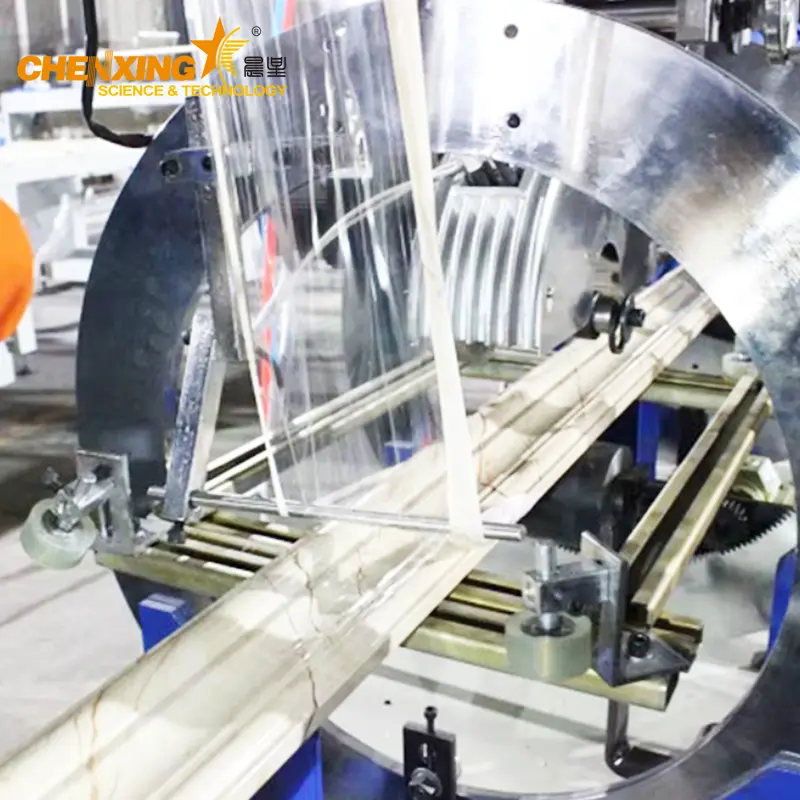

3. Hot stamping machine + embossing machine
This is the decoration station, and it is the reason the line produces a faux marble stone effect rather than a plain plastic profile. The embossing machine presses the surface pattern — the marble or stone texture — into the profile, and the hot stamping machine applies the decorative foil and the surface pattern. Because decoration happens in line, the pattern stays consistent from the first metre to the last instead of being an off-line operation with its own handling losses.

4. Haul-off machine
The haul-off pulls the profile through the calibration and decoration stations at a speed matched to the extruder output (published line speed 2 – 6 m/min on the attribute panel, with per-model ranges in Table B). A steady, even pull is what prevents the profile from being stretched or marked.

5. Cutter
The cutter cuts the moving profile to the ordered length after decoration, so the finished decorative surface is not disturbed downstream.

6. Stacker and other accessories
The stacker receives and stacks the cut profiles, and the remaining accessories complete the line as published.

Technical support. Lifetime technical support is published for this line — relevant on a line where the die, the calibration table and the embossing setup are all tuned together for a specific decorative pattern.

Raw Materials & Formulation

The attribute panel states the material scope as PVC, CaCO3, CPE etc, so a chlorinated polyethylene (CPE) impact modifier together with the formulation above is part of the published material range. Because a faux marble profile carries a decorative surface, the formulation and the degassing and plasticizing performance of the twin-screw extruder are directly visible in the finished product — which is why material and machine should be specified together.

Related compounding, feeding and recycling equipment that can be quoted with the line: Mixing Unit, Auxiliary Machines, Automatic Compounding System, Automatic Compounding System Solution, Powder Suction Machine, Crushing Material Suction Machine, Continuous Powder Suction Machine, SMF Series Grinding Machine, Plastic Agglomerator, Plastic Pelletizing Line and Two Stage Recycling Machine.

Applications — Where Faux Marble Profiles Go

The published finished products and their application field:

Working conditions. The line is installed as a set — conical twin-screw extruder, vacuum calibration table, hot stamping and embossing machine, haul-off machine, cutter and stacker with accessories. The published appearance size shows the floor length required: 28 × 1.6 × 2 m (PVC51), 29 × 1.6 × 2 m (PVC55), 30 × 1.6 × 2 m (PVC65) or 32 × 2.3 × 2 m (PVC80), at a width of 1.6 m to 2.3 m. Electrical supply must suit the published line power of 40 45 75 / 95 kW for the model selected, with cooling water for the calibration table and compressed air for the line. The compound is prepared from PVC powder, CaCO3, stabilizer and DOP, together with the decorative foil for the hot stamping station.

Customization Scope — What Can and Cannot Be Changed

What Can Be Customized

• Model and size — PVC51, PVC55, PVC65 or PVC80, selected by product width and required output

• Profile section and width — the published products width range is 10 – 600 mm, and the line is published as customized; the die and calibration tooling are made to your decorative profile section

• Surface pattern — the embossing and hot stamping setup defines the marble or stone pattern, so the pattern is specified with the order

• Extrusion and decoration combination — the published composition combines the hot stamping machine with an embossing machine, allowing the pattern and the decorative foil to be applied in line

• Formulation — material scope published as PVC, CaCO3, CPE etc, with the working formulation given as PVC powder, CaCO3, stabilizer and DOP; the filler level and stabilizer system are tuned to your profile and market

• Electrical configuration — internationally sourced brand-name electrical components, with the supply voltage and frequency specified for your country at order stage

• Automation — automatic, computerized with PLC control as standard

• Technical support — lifetime technical support as published

• Upstream and downstream equipment — mixing, compounding, powder conveying, grinding and pelletising equipment can be quoted with the line

• Certification — CE and ISO 9001:2008; tell us at the enquiry stage if your market requires additional certification

What Is Fixed by the Platform

• Conical twin-screw (double-screw) extrusion — the published extruder configuration of the machine

• The published station sequence — conical twin screw extruder, vacuum calibration table, hot stamping machine with embossing machine, haul-off machine, cutter and stacker

• The four published models with their line power and footprint — PVC51 PVC55 PVC65 PVC80 at 40 45 75 95 kW and 28 29 30 / 32 m length

• The published capacity and line speed ranges — 100 – 400 kg/h and the model-specific speeds in Table B

• Transport packing — plastic film packing, wooden pallet

• Production capacity of 50 sets per month — the published manufacturing capacity of this line

Quality & Certification — Tests, Standards and Proof

• CE and ISO 9001:2008 — the line is published with both certification marks; our quality management system covers the design and manufacture of the machine

• More than 20 years of experience in plastic profile machines — the published background of the manufacturer, and the reason the die, calibration table and embossing station are engineered together rather than assembled from unrelated parts

• Exported to India, Egypt, South Africa, Turkey, the Philippines, Australia, Indonesia, Vietnam, Thailand, Russia, Canada, the USA and Mexico — the published export markets of the factory, across different climates and building standards

• Internationally sourced brand-name electrical components — the published electrical scope, supported worldwide so a failed component can be replaced locally

• Published production capacity of 50 sets per month — an indicator of build maturity and of the ability to keep a delivery date

• Lifetime technical support — published for this line, covering the process know-how of the decorative profile rather than the machine alone

• Eco-friendly — published as an eco-friendly line, producing a completely recyclable PVC profile

• In-line decoration quality — because embossing and hot stamping happen in the line, the pattern, gloss and foil adhesion are controlled as process parameters rather than as a separate manual operation

• Pre-delivery testing — every machine is assembled and run before shipment, and a test run on your profile section and pattern can be arranged so the decorative effect is confirmed; a detailed user manual is supplied with the machine

• Documentation and after-sales — technical files are under Downloads, application articles on Company News, and the machine is covered by lifetime technical support with after-sales service provided

Other lines in the same factory programme are described under Profile Extrusion Line Solution, PVC Pipe Extrusion Line Solution, HDPE Pipe Extrusion Line Solution, PPR Pipe Extrusion Line Solution, Other Type Pipe Extrusion Line Solution, 3-Layer High Speed PE/PPR/HDPE Pipe Extrusion Line, HDPE Pipe Production Line 16-1600 mm, ABS Pipe Production Line, Plastic Drainage Pipe Machine, PVC Fiber Reinforced Soft Pipe Extrusion Line and PC LED Light Cover Extrusion Line.

Delivery Terms — MOQ, Lead Time, Packing, Trade Terms

• MOQ — 1 set

• Packing — plastic film packing, wooden pallet; the loading and container fixing plan is prepared and verified before dispatch

• Shipping — sea freight from China; the line is partly disassembled to suit container dimensions, and the container is inspected before closing

• Technical support — lifetime technical support, as published

• Installation and training — our engineers guide machine installation and train your operators; a test run can be arranged before shipment

• Payment terms and Incoterms — the terms applicable to your order, including T/T and L/C and the applicable Incoterm, are confirmed in the written quotation together with the currency

• Lead time and destination — confirmed at quotation stage for your destination port and the model selected

Frequently Asked Questions

1. What is a faux marble stone profile, and what does this line produce?

It is a PVC profile whose surface carries a marble or stone pattern, produced on a plastic extrusion line instead of being cut from stone. The line produces PVC imitation marble profile, skirting line, floor board, ceiling corner, tile, wall panel, background wall and waterproof platform, with the extruder type published as twin screw.

2. What are the models, and how do I choose between them?

Choose by the width and output of the profile you will run — PVC51 for narrow skirting and corner profiles, PVC80 for the widest sections and highest output capability.

3. What product width and capacity can the line handle?

The attribute panel publishes a products width of 10 – 600 mm and a capacity of 100 – 400 kg/h. The published production line speed appears as 2 – 6 m/min on the attribute panel and as per-model ranges in the model table — both are shown above as published.

4. What does the line consist of?

Conical twin screw extruder → Vacuum calibration table → Hot stamping machine + embossing machine → Haul-off machine → Cutter → Stacker and other accessories. The hot stamping and embossing station is what creates the marble surface effect on the profile.

5. What raw materials does the line use?

PVC powder, CaCO3, stabilizer and DOP as the working formulation, with the published material scope given as PVC, CaCO3, CPE etc.

6. Is the line automatic?

Yes — it is published as automatic and computerized, with PLC control, and the electrical components are internationally sourced brand-name electrical components.

7. What is the MOQ?

MOQ is 1 set.

8. How is the machine packed for shipment?

Plastic film packing on wooden pallets, with the loading and container fixing plan verified before dispatch.

9. What is the warranty and the technical support?

The line is published with lifetime technical support and after-sales service; certification is CE and ISO 9001:2008. For general questions, see the FAQ list.

10. Can you make the line for my own profile section and pattern?

Yes. The line is published as customized, with a products width range of 10 – 600 mm. Send the cross-section drawing of your skirting, panel or trim profile together with the marble or stone pattern you want embossed, and the die, calibration tooling and embossing setup are made to suit.

11. How quickly will I get a quotation and a reply?

Once we know the raw material, the final product dimensions and your special requirements, we provide a detailed quotation within 24 hours. If you contact us by email, WhatsApp or WeChat we aim to reply within 2 hours.

Inquiry Entry — What to Send and What You Get Back

Please include the following so that the quotation is accurate on the first reply:

1. Product — skirting line, floor board, ceiling corner, tile, wall panel, background wall or waterproof platform

2. Profile drawing or sample — cross-section drawing, wall thickness, overall width and the required tolerance

3. Surface effect — the marble or stone pattern required, its colour, and whether a specific decorative foil is to be used

4. Model — PVC51, PVC55, PVC65 or PVC80, according to width and target output

5. Material and formulation — PVC powder grade, CaCO3 filler level, stabilizer and DOP or CPE as applicable

6. Output target — kilograms per hour or metres per shift

7. Cut length — the fixed length your market buys

8. Plant utilities — available power supply for the published 40 45 75 / 95 kW line, cooling water and compressed air, plus the available floor length of about 28 – 32 m

9. Commercial terms — quantity, destination port and the applicable Incoterm

10. Certification requirement — whether CE and ISO 9001:2008 documentation is sufficient for your market

11. Service requirement — whether you need engineer attendance for installation and operator training

What you get back: a written quotation for the complete line — conical twin screw extruder, vacuum calibration table, hot stamping machine with embossing machine, haul-off machine, cutter and stacker with accessories — stating the model, the product width, the line power, the die and calibration tooling scope, the packing plan and the trade terms, together with our engineers' recommendation on the formulation and the embossing setup for your faux marble profile.

Build Your Faux Marble Profile Line with Chenxing

Send us your profile cross-section drawing and the marble pattern you want, and we will confirm the model, the die and calibration tooling, the embossing and hot stamping setup and the complete scope of supply in a written quotation. Company background is on About Us; application cases are collected under Application Cases, the product catalogue under Products and the full range of solutions under Solutions. For a closer look at the reference machine configuration behind this page, view more machine details.
