Product Description

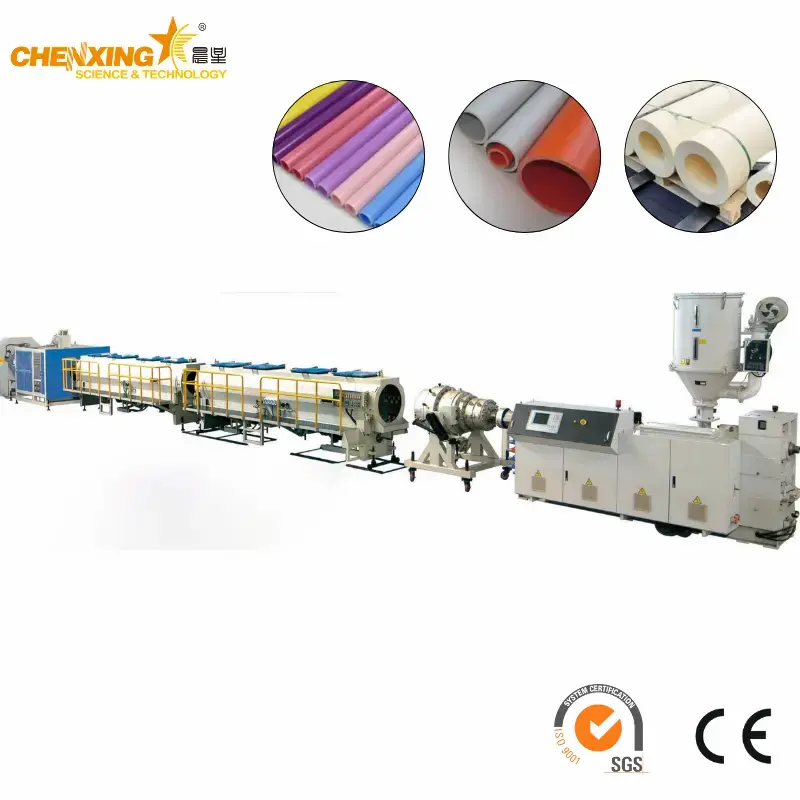

The ABS Pipe Production Line is a complete single screw extrusion line for ABS plastic pipe, built on the SJ65/30 extruder platform and extendable across a seven-model pipe range from 16 mm up to 630 mm. It takes ABS (and compatible PP / PS material) from granule to finished, cut-to-length pipe in one continuous flow: extruder, mould, vacuum calibration water tank, haul-off, cutter and collection stand.
The problem this line solves is consistency on a technical material. ABS is a demanding extrusion polymer — it needs controlled melt temperature and a stable calibration stage, or the pipe comes out oval, with visible weld lines and unreliable wall thickness. This line addresses that with a vertical high torque gearbox, a bimetallic screw and barrel, cast aluminum heating, and an intelligent PLC controlling system with human-friendly interface, so the extrusion conditions stay repeatable from the first metre to the last.
Positioning in short:
Material: ABS as the primary raw material; the line is also suitable for PPR, PE, HDPE, LDPE and LLDPE pipe when re-tooled
Automation: automatic, computerized control throughout, with PLC and touch screen operation
Scope: a full production line rather than a single machine — pipe from 16 mm to 630 mm depending on model
Service model: video technical support and free spare parts, with a 12-month after-sales service period
The line is ordered by pipe outside diameter range. Seven standard models cover the market from small technical tube to large diameter drainage and industrial pipe; the extruder, calibration tank, haul-off and cutter scale with the model.
| Model | Pipe range (mm) | Capacity (kg/h) | Hauling speed max. (m/min) | Total power (kW) | Line length (m) |
|---|---|---|---|---|---|
| ABS 63B | 16-63 | 100-150 | 10 | 35 | 35 |
| ABS 125B | 40-125 | 200-250 | 6 | 145 | 38 |
| ABS 250B | 90-250 | 300-350 | 3.5 | 195 | 42 |
| ABS 315B | 110-315 | 300-350 | 3 | 220 | 44 |
| ABS 450B | 100-450 | 400-500 | 1.2 | 300 | 56 |
| ABS 500B | 200-500 | 400-500 | 1.1 | 330 | 56 |
| ABS 630B | 250-630 | 700-800 | 0.9 | 440 | 64 |
How to read the table when choosing: the model number equals the maximum pipe diameter in the standard range (63, 125, 250, 315, 450, 500 and 630 mm). Capacity and hauling speed move in opposite directions — small pipe runs fast at modest output, large pipe runs slowly at high output. Line length tells you the floor space to reserve.
| Item | Specification |
|---|---|
| Model NO. | SJ65/30 |
| Screw | Single-screw |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008 |
| Customized | Customized |
| Condition | New |
| Raw material | ABS |
| Suitable material | ABS, PPR, PE, HDPE, LDPE, LLDPE |
| Heating way | Cast aluminum heating |
| Inverter brand | ABB |
| Motor brand | Siemens |
| Temperature controller | Omorn |
| Power supply | 380V 3 phase 50Hz or as your demand |
| Gearbox / screw spec | Vertical high torque gearbox, bimetallic screw |
| After-sales service | 12 months |
| Service | Video technical support, free spare parts |
| Transport package | Wood block fixed steel wire reinforcement |
| HS code | 84772090 |
| Production capacity | 300 sets / year |
| Package size | 1000.00 cm × 1500.00 cm × 1500.00 cm |
| Package gross weight | 1000.000 kg |
For the wider extruder platform this line belongs to, see the Chenxing extruder range and the pipe extrusion line overview.
World famous brand electrical components such as Siemens and ABB
High torque gearbox adopting NSK bearing
Bimetallic screw and barrel for long service life on technical polymers
Intelligent PLC controlling system with human-friendly interface

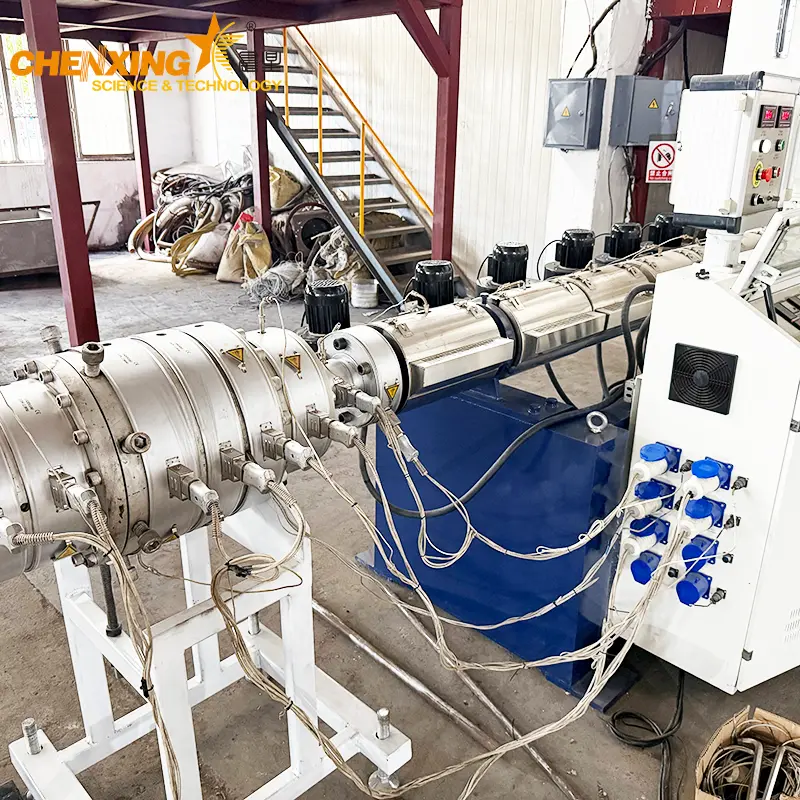

Cast aluminum heating for even barrel temperature, with Omorn temperature controllers
Material of mould body is Steel 45#, hardened and polished
Material of inner mould parts is 40Cr
The material of the calibration bushing is stannum bronze
The diameter can be customized
Stable calibration and high dimension precision

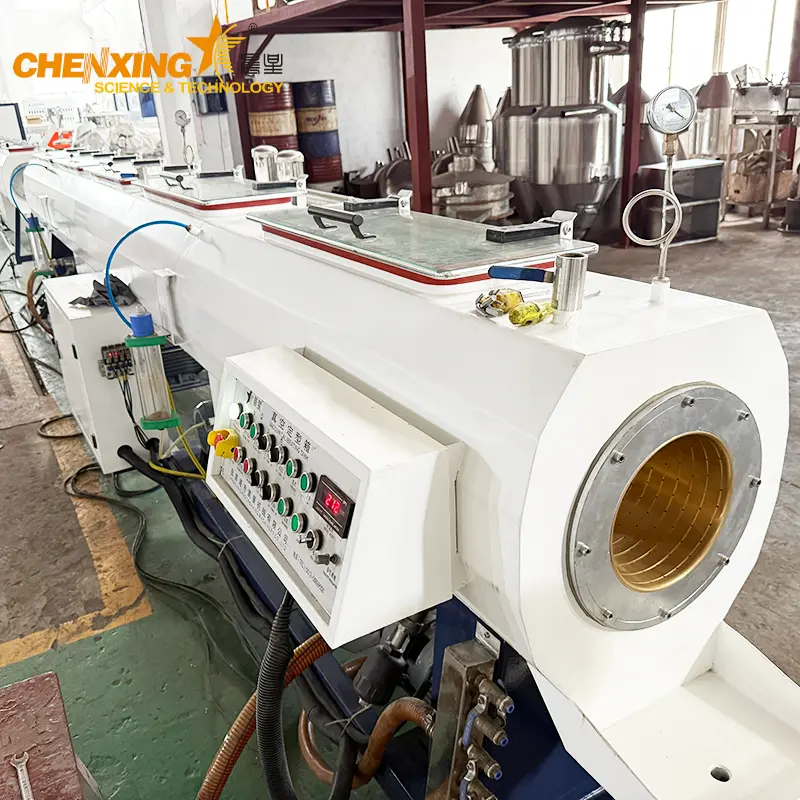

The body of the water tank is imported SUS304 material, adjustable up-down, left-right and front-back in 3D, easy to operate
With a stainless steel water storage tank, the cooling water can be recycled, with no splash onto the floor
High precision ball guide rail system, with center height adjusting and open-close adjusting

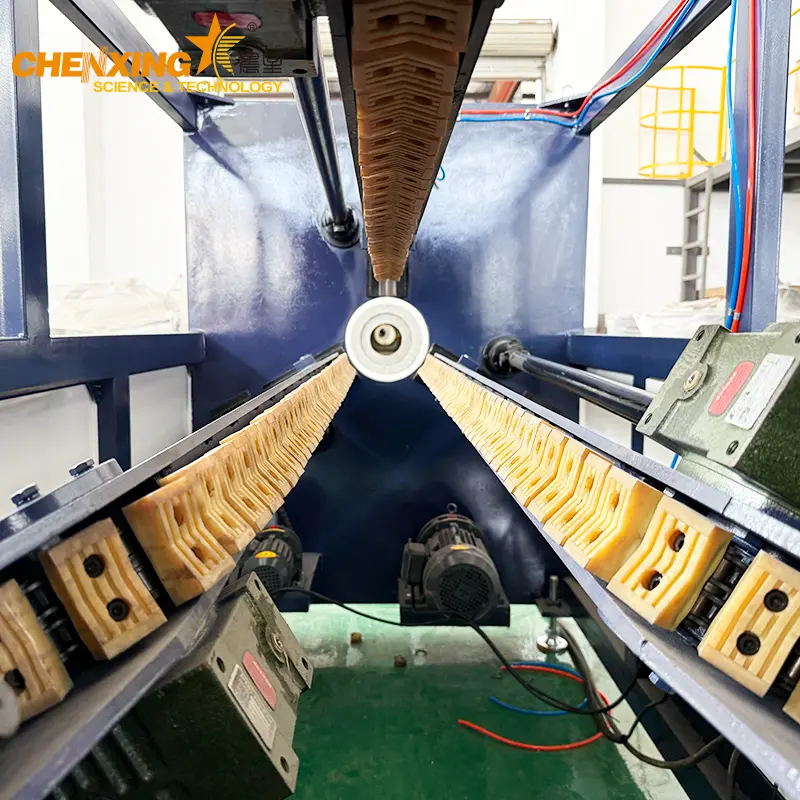

High wear-resistant surface foam PU multi-wedge belt that grips the pipe without marking it
Frequency conversion controller, tractor speed stepless adjustable, motor power 0.75-2.2 kW, stable linear speed
Alloy saw blade; special motor for the high speed saw blade with a special clamp for the blade — stable and quiet
Precise reciprocating online cutting platform running through a precise straight line guide rail
Optical sensing length-setting device

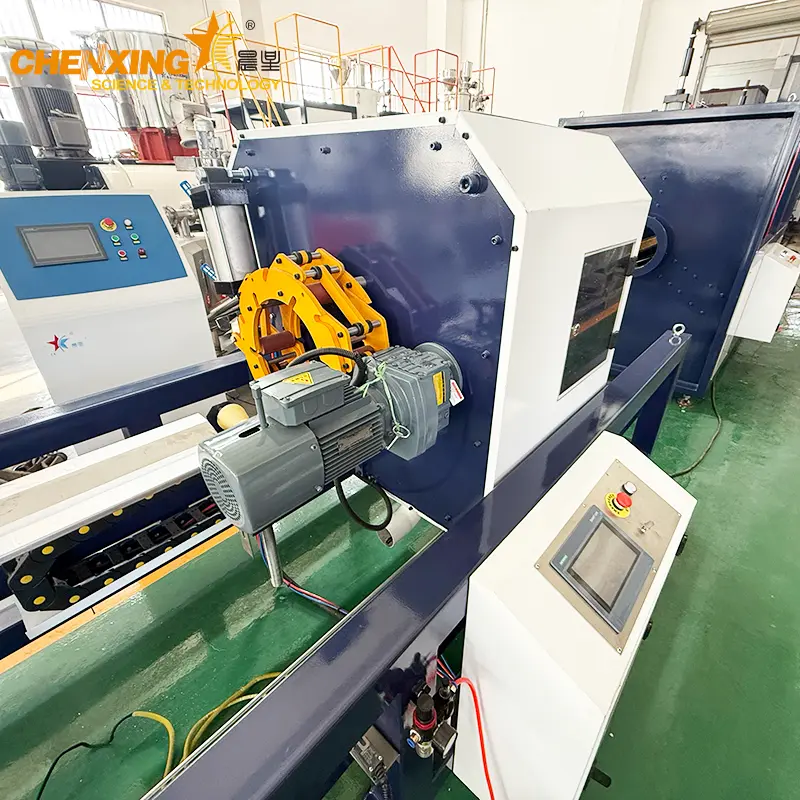

PLC control with a 5 inch color touch screen operation panel
Automatic turnover collection stand
Online cutting accuracy: 0.5 mm
ABS pipe is specified where stiffness, impact resistance and dimensional stability matter more than the lowest material cost.
| Application field | Typical ABS pipe use | Why this line fits |
|---|---|---|
| Drainage and waste water | Building drainage, vent and waste pipe | Stable calibration for round, close-tolerance pipe |
| Industrial piping | Chemical and process lines, plant utility pipe | Bimetallic screw and barrel handle technical polymer melt |
| Electrical and conduit | Cable protection and conduit systems | Clean surface finish from polished hardened mould |
| Water supply and distribution | Pressure pipe in compatible PP PE HDPE re-tooling | Same platform, material change via die set |
| Automotive and equipment building | Tubing and structural pipe components | Tight wall control from vacuum calibration |
| Consumer and furniture products | Pipe frames, tube structures | Consistent dimension across long runs |
Working conditions are standard for an extrusion plant: a level floor with line length reserved, three-phase supply (380V 3 phase 50Hz or as your demand), cooling water for the calibration tank, and granule handling capacity. The line is a complete production line, so material drying and conveying upstream are worth planning together — see auxiliary machines, mixing unit, crushing material suction machine, powder suction machine and continuous powder suction machine.
Pipe diameter — the mould diameter can be customized, and the line model is selected against your pipe range
Power supply — 380V 3 phase 50Hz as standard, or as your demand
Line configuration — extruder, calibration length, haul-off and cutter arrangement matched to the model and to your layout
Material changeover — the platform is suitable for ABS, PPR, PE, HDPE, LDPE and LLDPE, with the die set and process settings adjusted accordingly
Cutting length and collection — length is set through the optical sensing device and the PLC; the automatic turnover collection stand can be configured to the pipe weight
Plant planning — technical support such as plant planning according to your requirements
The model-to-diameter mapping — each model covers the pipe range listed in the parameter table; pipe outside the range of the selected model requires a different model rather than a modification
The single screw platform — the line is a single-screw design (Model NO. SJ65/30 as the base unit)
The maximum hauling speed per model — as listed in the parameter table, since it follows the mechanical drive of that size
The certification basis — CE and ISO9001:2008 apply to the machine as built, so any change of scope is re-checked before shipment
Where a project needs a different extruder family or a twin screw platform — for example stiff PVC formulations or high filler loading — Chenxing covers that under the PVC pipe extrusion line solution, PPR pipe extrusion line solution, HDPE pipe extrusion line solution and other type pipe extrusion line solution pages.
Certification: CE and ISO9001:2008
Electrical components from Siemens and ABB, NSK bearings in the gearbox, and Omorn temperature controllers — named brands make the build verifiable rather than a claim
Bimetallic screw and barrel and a hardened, polished Steel 45# mould body with 40Cr inner parts and a stannum bronze calibration bushing, so the wear parts that set pipe dimension are made to specification
Online cutting accuracy of 0.5 mm is checked on the running line, and pipe is dimensionally inspected across the run rather than only at start-up
12 months after-sales service period, with video technical support and free spare parts
Manufacturing is carried out in-house, including screw, barrel, mould and electrical assembly, so the critical geometry is under one quality system
Material preparation and reclaim equipment that supports pipe extrusion quality is described under automatic compounding system, Automatic Compounding System Solution, plastic pelletizing line, plastic agglomerator, SMF series grinding machine, two-stage recycling machine and plastic recycling line solution.
MOQ — one set. Each line is built to the confirmed pipe range, so a single line is the normal starting quantity; multi-line projects are quoted together
Transport package — wood block fixed steel wire reinforcement, a heavy-duty method suited to long sea freight and to the machine weight involved
Package size — 1000.00 cm × 1500.00 cm × 1500.00 cm
Package gross weight — 1000.000 kg
HS code — 84772090
Production capacity — 300 sets per year, so delivery slots are planned with the order queue
Lead time — confirmed at order, with the schedule set once the die diameter and line model are frozen
Payment terms — T/T, L/C and Western Union, confirmed in the formal quotation
Incoterms — FOB, EXW, CFR, CIF and CIP, quoted against your destination port
Documentation — commercial invoice, packing list, bill of lading, and the machine manual with wiring diagram
Installation and training — engineers guide machine installation and train your workers on extruder settings, calibration, haul-off and cutter adjustment
Delivery runs from a frozen specification: confirm the pipe range, the power supply and the destination port, and the packing, port of loading and shipping documents follow from there. Technical files can be requested through Downloads.
To receive a usable quotation, please send:
Pipe range — minimum and maximum outside diameter in mm, and wall thickness (this selects the model: ABS 63B through ABS 630B)
Raw material — ABS grade, or PP PPR PE HDPE LDPE / LLDPE if you plan to run more than one material
Capacity target — required kg/h, referenced against the capacity column of the parameter table
Power supply — 380V 3 phase 50Hz or your local specification
Cutting requirement — pipe length per piece, and whether the automatic turnover collection stand is needed
Plant information — available line length and floor layout
Commercial expectations — destination port, preferred Incoterm, and required certification for your market
What you get back: a written quotation naming the recommended model with pipe range, capacity, hauling speed, total power and line length, plus the mould diameter, extruder configuration, packing method, Incoterm, port and delivery schedule — normally within 24 hours once the pipe specification is complete.
ABS is the primary raw material. The line is also suitable for PPR, PE, HDPE, LDPE and LLDPE — the die set and process settings are adjusted to the material you plan to extrude.
Choose by the pipe diameter you sell. ABS 63B covers 16-63 mm at 100-150 kg/h, ABS 250B covers 90-250 mm at 300-350 kg/h, and ABS 630B covers 250-630 mm at 700-800 kg/h. Larger pipe means higher output but lower hauling speed, so the whole line is matched to that duty.
The cutter runs a precise reciprocating online cutting platform with an optical sensing length-setting device, PLC control and a 5 inch color touch screen panel. Online cutting accuracy is 0.5 mm, and the automatic turnover collection stand collects the pieces.
The extruder line uses world famous brand electrical components such as Siemens and ABB, NSK bearings in the high torque gearbox, Omorn temperature controllers, a bimetallic screw and barrel, heating by cast aluminum, and a mould body of hardened polished Steel 45# with 40Cr inner parts and a stannum bronze calibration bushing.
The machine is certified to CE and ISO9001:2008. After-sales service covers 12 months, and the service package includes video technical support and free spare parts.
Yes — the machine is customized and the mould diameter can be customized. Power supply is 380V 3 phase 50Hz as standard, or as your demand. Line layout can be adapted to your floor space.
The transport package is wood block fixed steel wire reinforcement; package size is 1000.00 cm × 1500.00 cm × 1500.00 cm with a package gross weight of 1000.000 kg. HS code is 84772090, and Incoterms available are FOB, EXW, CFR, CIF and CIP.
Yes. Our engineers will guide machine installation and train your workers on extruder temperature settings, mould and calibration adjustment, haul-off tension and cutter length setting. More answers are on our FAQ list.
Production capacity is 300 sets per year, so your delivery slot is planned with the current order queue. Chenxing Machinery has been building plastic extrusion equipment for more than 20 years, and machines are exported to Southeast Asia, the Middle East, Africa, Europe and the Americas.
Send Chenxing Machinery your pipe range, wall thickness, material and target capacity, and our engineering team will confirm the line model, mould diameter, extruder configuration, calibration tank, haul-off and cutter in a written quotation, with the packing method, Incoterm and delivery schedule stated up front. Company background is on About Us; news and technical articles are on Company News.
