Product Description
The Corrugated Flexible Draining Hose Making Machine is a single-screw extrusion line for small-diameter single-wall corrugated pipe — the flexible bellows tube that runs inside washing machines, vacuum cleaners, air conditioners, machine tools, lamp wiring and prestressed concrete ducts, and that is bought in bulk as wire conduit and drain hose.
The machine is built around three things that decide whether a corrugated tube line is worth running:
Even corrugation and a clean wall. The forming section uses gears to drive the mould blocks and templates and combines circulating water cooling with air cooling. That combination is what produces high-speed moulding, even corrugation, and smooth inner and outer pipe wall — the three quality points every corrugated hose buyer inspects first.
Small diameters, one homogeneous bellows. The line is designed for PVC, PP and PE small-diameter single-wall corrugated pipe, with the die and the corresponding forming moulds producing a homogeneous single-wall bellows product — no lamination, no seams.
A model for every production speed. The machine is offered in three versions, so the line speed matches the market you sell into:
Normal-speed single-wall corrugated pipe machine — line speed up to 8 – 12 m/min
High-speed single-wall corrugated pipe machine — line speed up to 20 – 25 m/min
Vacuum-type single-wall corrugated pipe machine — used for making pipe with joint
What it produces: corrugated flexible draining hose for wire conduit and cable threading pipe, washing machine drains, vacuum cleaner hose, ventilation pipe, and special tubes for prestressed concrete.
The figures below are transcribed from the manufacturer's published data in two places on the source page: the product attribute panel and the model parameter table. Where the two places state different figures for the same machine, both are shown with their source labelled. They are not merged, and no third value has been introduced to reconcile them.
| Model | Pipe diameter | Extruder | Forming machine length |
|---|---|---|---|
| cx35 | Φ9 mm – 35 mm | SJ45/28 | 3 m |
| cx55 | Φ35 mm – 55 mm | SJ55/28 | 4 m |
| (model code not stated on the source page) | Φ55 mm – 75 mm | SJ65/28 | 4 m |
The extruder designation (for example SJ45/28) is the standard form: SJ for single-screw, the first number for screw diameter in mm, and the second for the screw length-to-diameter ratio, so SJ45/28 is a 45 mm screw running at a 28:1 L/D.
| Attribute | Published value |
|---|---|
| Machine name | Corrugated Flexible Draining Hose Making Machine |
| Model No. | SJ65/30 |
| Screw type | Single screw |
| Screw No. | Single-screw |
| Capacity | 60 kg/h |
| Production speed | 20 m/min |
| Total installed power | About 30 kW |
| Power supply | 380 V, 3 phase, 50 Hz — or as your demand |
| Heating way | Cast aluminium heating |
| Forming machine cooling way | Water cooling |
| Suitable material | PPR, PE, HDPE, LDPE, LLDPE |
| Raw material | PE granule |
| Product type | PP, PE |
| Automation | Automatic |
| Computerized | Computerized (PLC control) |
| Certification | CE, ISO 9001:2008 |
| Customized | Customized |
| Condition | New |
| Warranty | 12 months |
| After-sales service | 18 months |
| Service | Video technical support, free spare parts |
| Delivery | 45 days |
| Transport package | Wood block fixed, steel wire reinforcement |
| Specification | Vertical high-torque gearbox, bimetallic screw |
| HS code | 84772090 |
| MOQ | 1 set |
| Price | US$15,000.00 – 27,000.00 (reference, as published) |
Reading the model figures together. The attribute panel names a SJ65/30 machine as the quoted model, while the parameter table lists the extruder that pairs with each pipe-diameter range — SJ45/28 for Φ9 – 35 mm, SJ55/28 for Φ35 – 55 mm and SJ65/28 for Φ55 – 75 mm. These are two views of the same series: the attribute panel states the machine class, the parameter table states the extruder matched to a given pipe diameter. The extruder, the die and the forming moulds are always specified together for the pipe size you intend to run, and the exact configuration is confirmed in the quotation.
By pipe diameter — Φ9 – 35 mm (cx35, 3 m forming machine), Φ35 – 55 mm (CX55, 4 m forming machine) or Φ55 – 75 mm (SJ65/28 extruder, 4 m forming machine)
By required line speed — normal-speed version at 8 – 12 m/min, or high-speed version at 20 – 25 m/min if you are supplying high-volume conduit or appliance hose programs
By product type — if you need pipe with joint (a corrugated tube moulded onto a socket or fitting), choose the vacuum-type machine
By material — the line is published for PVC, PP and PE, and the attribute panel lists PPR, PE, HDPE, LDPE and LLDPE as suitable materials; the die and mould set is matched to the material and the pipe diameter
By capacity — the quoted attribute configuration is published at 60 kg/h with a 20 m/min production speed and about 30 kW total installed power
The wider catalogue around this machine is described under Single Wall Corrugated Pipe Extrusion Line, Double Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extrusion Line Solution, Pipe Extrusion Line, Pipe Extrusion Line Solution and Other Type Pipe Extrusion Line Solution.

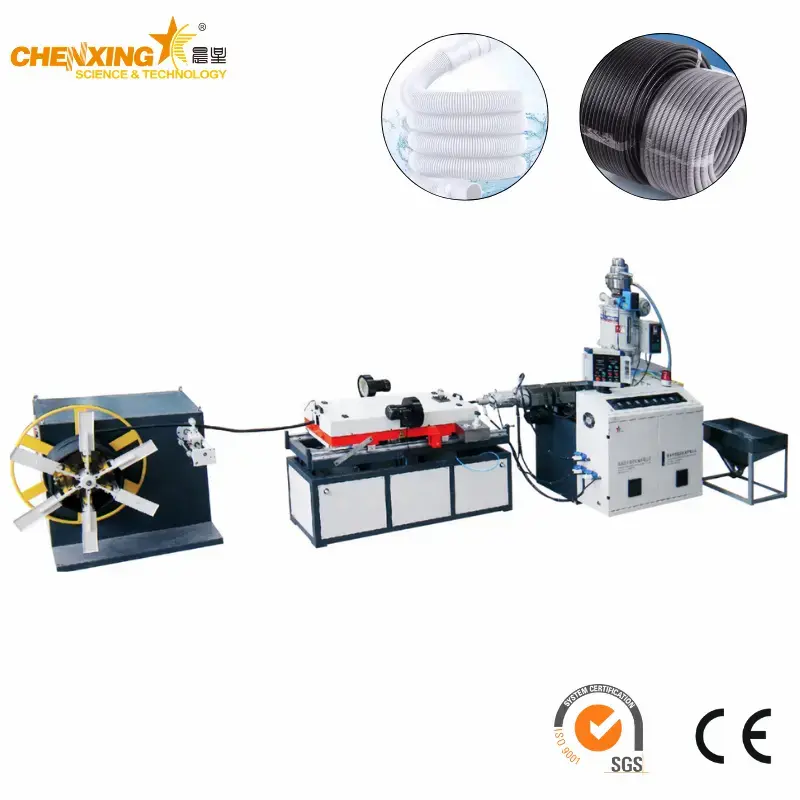

The published process sequence for the line is:
Material + master batches → mixing → vacuum feeding → material drying → single screw extruder → extrusion mould → corrugated forming machine → meter measure → double winder → finished product inspecting & packing
1. Material dosing and master batch — base polymer (PE granule as published, or PVC / PP) together with colour and property master batches is dosed in the required ratio. Because the colour and the property additives are the same master batch stream, the ratio is set once and repeated.
2. Mixing — the compound is mixed to a uniform blend before it enters the feed system. Good mixing here is what keeps the corrugation wall thickness consistent along the coil.
3. Vacuum feeding — the mixed material is drawn into the machine by vacuum feeding, which keeps the extruder hopper filled automatically and keeps the working area free of powder. Dust-free conveying equipment for the plant can be quoted from the same factory.
4. Material drying — the compound is dried before extrusion. Moisture in the melt shows up as bubbles and a rough inner wall in a thin corrugated wall — drying is a quality step, not an optional one, particularly for PE and for humid climates.

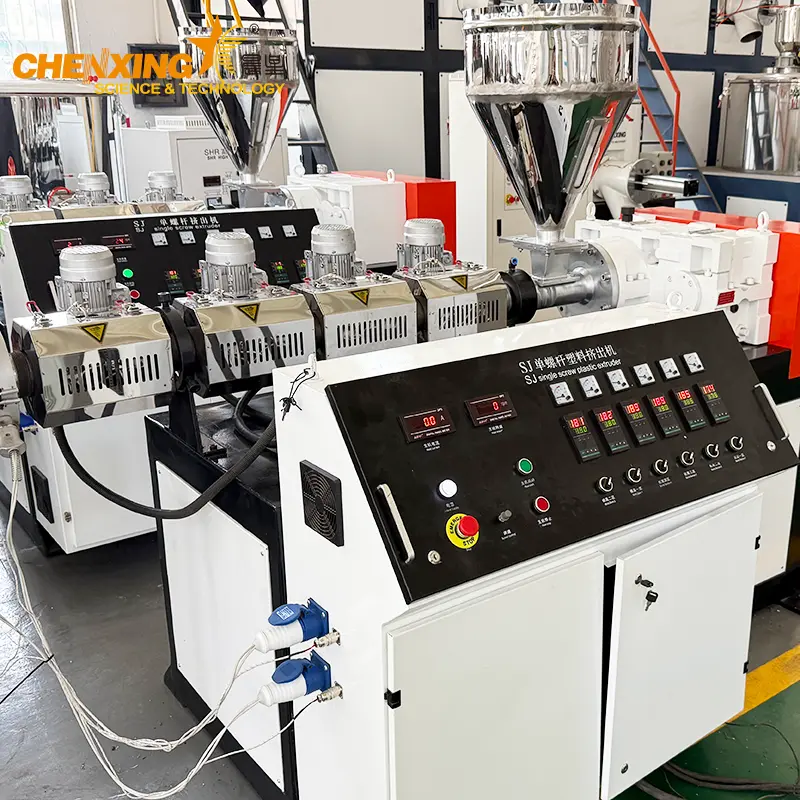

5. Single-screw extruder — the heart of the machine. The extruder is a single-screw machine with a vertical high-torque gearbox, a bimetallic screw and barrel, cast aluminium heating and an intelligent PLC control system with a human-friendly interface. The electrical components are internationally sourced brand-name parts. A high-torque gearbox is what allows a small-diameter screw to be run at the speed a corrugated line needs, and the bimetallic screw and barrel are what give the screw life when running filled or recycled material.
6. Extrusion mould (die head) — the melt is shaped in the die head, which is manufactured as follows:
Mould body: Steel 45#, hardened and polished
Inner mould parts: 40Cr
Calibration bushing: tin bronze (Stannum bronze)
Diameter: can be customized

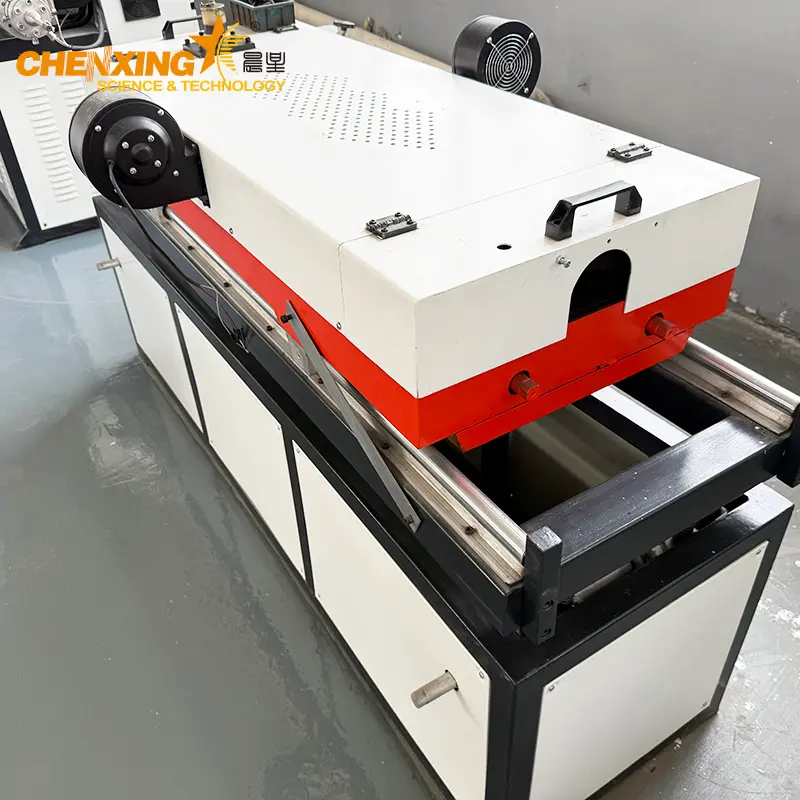

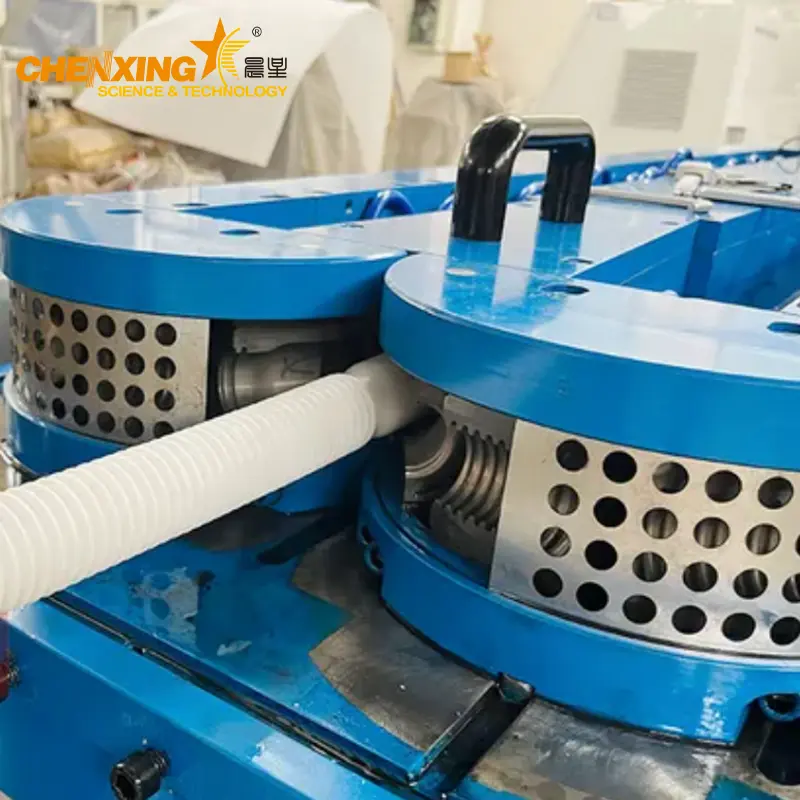

7. Corrugated forming machine — the tube passes through the corrugating section, where gears run the mould blocks and templates around the tube. The mould blocks form the corrugation profile while circulating water cooling and air cooling set the shape. This is the section that delivers high-speed moulding, even corrugation and smooth inner and outer pipe wall. The forming machine is designed and built in-house on our own machining centre, so the corrugation profile and the mould set are made to the pipe you need.
8. Meter measure — the finished tube is measured by length metering, so each coil or cut length is measured rather than estimated, which matters when the product is sold by the metre.
9. Double winder — the tube is wound by a double winder, allowing continuous production: the line keeps running while a completed coil is changed over.
10. Finished product inspecting and packing — the coils are inspected and packed for shipment.
| Application field | Typical product |
|---|---|
| Electrical and cable protection | Wire and cable threading pipe, conduit pipe for wires |
| Automotive | Auto wire harness protective conduit |
| Machine building | Circuit protective conduit for machine tools |
| Lighting | Protective pipes for lamps and lanterns wiring |
| Household appliances | Drain hose for washing machines, suction hose for vacuum cleaners |
| Air conditioning | Tubes for air conditioners |
| Construction and civil engineering | Prestressed concrete special tubes (ducting for post-tensioning) |
| Ventilation | Ventilation pipe |
| Bathroom and sanitary | Flexible drain hose for toilet, bathroom and shower connections |
Working conditions. The line runs as a compact set — feeding system, drying, single-screw extruder, die head, corrugated forming machine, length meter, double winder, and inspection and packing station. The machine requires a levelled industrial floor, a 380 V three-phase 50 Hz supply sized for the about 30 kW installed power, cooling water for the forming machine's circulating water cooling, and compressed air for the plant. The electrical configuration is built as your demand, so a different voltage or frequency is specified at order stage.
Machine version — normal speed (8 – 12 m/min), high speed (20 – 25 m/min), or vacuum type (for pipe with joint)
Pipe diameter and corrugation profile — die and calibration bushing diameter are customized to the tube you produce; the published ranges are Φ9 – 35 mm, Φ35 – 55 mm and Φ55 – 75 mm
Extruder — SJ45/28, SJ55/28 or SJ65/28 matched to the pipe diameter, with the quoted machine class published as SJ65/30
Forming machine length — 3 m or 4 m as published, matched to the diameter and line speed
Material — PVC, PP, PE, and the attribute panel additionally lists PPR, PE, HDPE, LDPE and LLDPE
Power supply — 380 V 3 phase 50 Hz as standard, or as your demand
Electrical component make — internationally sourced brand-name components are used for the motor, inverter and temperature control; the make is confirmed at order stage
Die materials — the published build is Steel 45# mould body (hardened and polished), 40Cr inner mould parts and tin bronze calibration bushing; other selections are discussed at enquiry stage
Automation — automatic, computerized PLC control with a human-friendly interface as standard; the degree of automation and the HMI language are agreed at quotation
Upstream and downstream equipment — mixing unit, vacuum feeding and material drying, plus recycling, grinding and pelletising equipment for line scrap
OEM service — available
Certification — CE and ISO 9001:2008; tell us at enquiry stage if your market requires further certification
Single-screw extrusion — the machine is a single-screw line with a vertical high-torque gearbox and bimetallic screw and barrel
Single-wall corrugated construction — the die and the corresponding forming moulds produce a homogeneous single-wall bellows; double-wall corrugated pipe is a different line
Gear-driven mould block and template forming with water + air cooling — this is the published forming principle and the reason for even corrugation and smooth walls
Cast aluminium heating — the published heating method
The 10-step process sequence — vacuum feeding, drying, extrusion, corrugating, metering, double winding and inspection are integral to the line as published
Wood block packing with steel wire reinforcement — as published for this machine size
Related equipment that can be quoted with the line: Mixing Unit, Auxiliary Machines, Automatic Compounding System, Automatic Compounding System Solution, Powder Suction Machine, Crushing Material Suction Machine, Continuous Powder Suction Machine, SMF Series Grinding Machine, Plastic Agglomerator, Plastic Pelletizing Line and Two Stage Recycling Machine.
CE and ISO 9001:2008 — the machine is published with CE and ISO 9001:2008 certification; our quality management system covers the design and manufacture of the line
Bimetallic screw and barrel — the screw and barrel are bimetallic, selected for wear life when running filled, coloured or recycled compounds on a small-diameter screw
Vertical high-torque gearbox — the gearbox is a vertical high-torque design matched to the extruder, which is what keeps the line stable at the published 20 m/min production speed
Precision die and mould manufacture — the die head is built with a Steel 45# mould body, hardened and polished, 40Cr inner mould parts and a tin bronze calibration bushing; the forming machine and its mould blocks are designed and made in-house on our own machining centre, so the corrugation quality is controlled at source
PLC control with a human-friendly interface — an intelligent PLC control system with internationally sourced electrical components
Verifiable forming result — the published and verifiable result of the cooling and forming design is even corrugation and smooth inner and outer pipe wall at high moulding speed; pre-delivery running tests and a test run of your tube profile can be arranged so the corrugation is seen before the machine is dispatched
Plant engineering support — we supply layout and utility information in advance — foundation, power supply, cooling water and compressed air — so the plant is ready before the machine arrives
Documentation and service — a detailed user manual is supplied with the machine, and service includes video technical support and free spare parts. Technical files are collected under Downloads and application articles are posted on Company News
Warranty 12 months, after-sales service 18 months — both figures are as published: a 12-month warranty together with 18 months of after-sales service
Capabilities in other product families are described under Single Wall Corrugated Pipe Extrusion Line, Double Wall Corrugated Pipe Extrusion Line, PVC Pipe Extrusion Line Solution, PPR Pipe Extrusion Line Solution, HDPE Pipe Extrusion Line Solution, 3-Layer High Speed PE/PPR/HDPE Pipe Extrusion Line, HDPE Pipe Production Line 16-1600 mm, ABS Pipe Production Line, Plastic Drainage Pipe Machine, PVC Fiber Reinforced Soft Pipe Extrusion Line, plus our advanced material processing EPC project service.
MOQ — 1 set
Price — US$15,000.00 – 27,000.00 per set, as published for this machine; the final price depends on the model, the number of forming mould sets and the electrical component scope selected
Payment terms — T/T, L/C, D/P, D/A, and other methods on request
Payment currency — USD or CNY
Incoterms — FOB, CFR, CIF, EXW, express delivery also accepted
Lead time — 45 days as published for a machine built to order. Where a machine is in stock, delivery can be as short as 5 – 10 days; for machines not in stock the published lead time is 45 days, depending on quantity. Both figures are as stated, and the applicable one is confirmed at order stage
Packing — wood block fixed, steel wire reinforcement, for a machine of this size; the loading and container fixing plan is prepared and verified before dispatch
Shipping — sea freight from China; the machine is blocked, wired and secured inside the container and the container is inspected before closing
Warranty and service — 12 months warranty with 18 months after-sales service, video technical support and free spare parts
Installation and training — our engineers guide machine installation and train your workers; a test run can be arranged before shipment
We are a manufacturer. We focus on the plastic extrusion and recycling equipment field with many years of experience, and our forming machines and their moulds are designed and built in-house on our own machining centre. We can offer both high-quality, cost-effective products and the engineering support that goes with them.
Small-diameter single-wall corrugated flexible pipe — corrugated draining hose and wire conduit in PVC, PP and PE. The die and the corresponding forming moulds produce a homogeneous single-wall bellows product. Typical end uses are wire and cable threading pipe, washing machine drain hose, vacuum cleaner hose, air conditioner tubes, machine tool circuit conduit, lamp wiring protection, ventilation pipe and prestressed concrete special tubes.
Normal speed single-wall corrugated pipe machine — line speed up to 8 – 12 m/min
High speed single-wall corrugated pipe machine — line speed up to 20 – 25 m/min
Vacuum type single-wall corrugated pipe machine — used for making pipe with joint
Choose the speed version according to your required output, and the vacuum version if your product needs a moulded joint or socket.
The published parameter table gives three combinations:
| Pipe diameter | Extruder | Forming machine length |
|---|---|---|
| Φ9 mm – 35 mm | SJ45/28 | 3 m |
| Φ35 mm – 55 mm | SJ55/28 | 4 m |
| Φ55 mm – 75 mm | SJ65/28 | 4 m |
The quoted machine class in the attribute panel is SJ65/30, published at 60 kg/h and 20 m/min. The die and calibration bushing diameter can be customized, so tell us your exact tube diameter and wall profile when enquiring.
About 30 kW total installed power, on a 380 V, 3 phase, 50 Hz supply — or as your demand, so a different voltage or frequency is built to your specification. Cooling water for the forming machine and compressed air for the plant are also required.

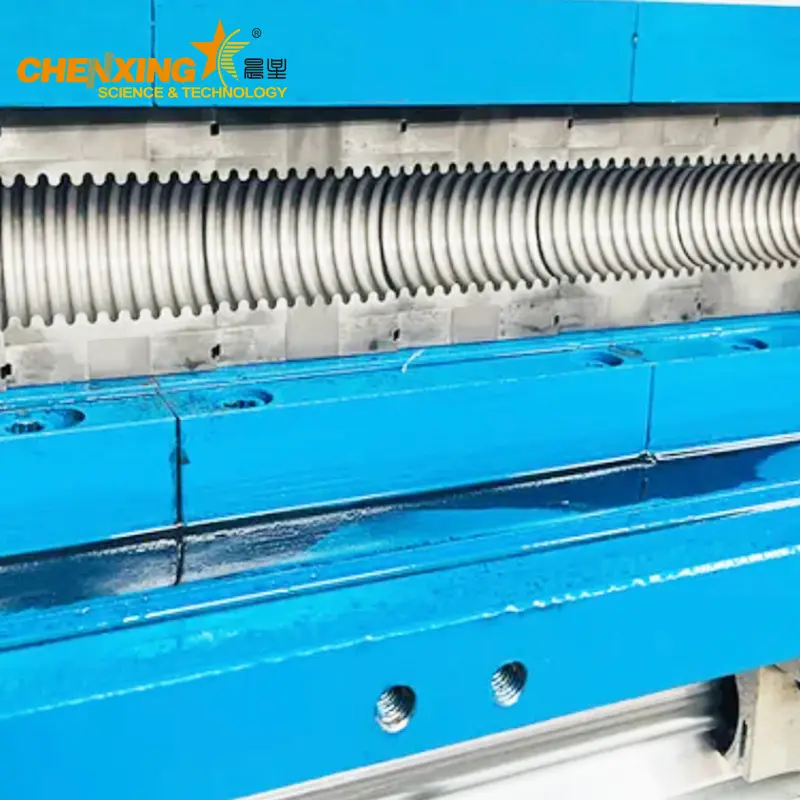

The forming machine uses gears to run the mould blocks and templates, and combines circulating water cooling with air cooling. That design is what delivers high-speed moulding, even corrugation, and smooth inner and outer pipe wall.
The machine is published for the production of PVC, PP and PE small-diameter single-wall corrugated pipe. The attribute panel additionally lists PPR, PE, HDPE, LDPE and LLDPE as suitable materials, with PE granule named as the raw material in the quoted configuration.
MOQ is 1 set. The published price range is US$15,000.00 – 27,000.00 per set. Payment is by T/T, L/C, D/P or D/A, in USD or CNY, and we quote FOB, CFR, CIF or EXW as you prefer.
Delivery is 45 days as published for a machine built to order; where a machine is in stock it can be 5 – 10 days, and where it is not in stock the published lead time is 45 days depending on quantity. Packing is wood block fixed with steel wire reinforcement, and the machine is secured and checked inside the container before dispatch.
The published figures are a 12-month warranty together with 18-month after-sales service, plus video technical support and free spare parts. Yes — our engineers guide machine installation and train your operators. For general questions, see the FAQ list.
Once we know the raw material, the final product dimensions and your special requirements, we provide a detailed quotation within 24 hours. If you contact us by email, WhatsApp or WeChat we aim to reply within 2 hours.
Please include the following so that the quotation is accurate on the first reply:
Product — corrugated draining hose, wire conduit, appliance hose, ventilation pipe or prestressed concrete ducting
Pipe specification — inner and outer diameter, wall thickness and corrugation profile, so the die and calibration bushing can be set
Machine version — normal speed (8 – 12 m/min), high speed (20 – 25 m/min), or vacuum type for pipe with joint
Material — PVC, PP, PE or another polymer in the published material list, together with whether recycled material will be used
Output target — kilograms per hour or metres per shift
Forming machine length and mould sets — 3 m or 4 m, and how many corrugation profiles you need
Electrical supply — voltage, phase and frequency at your plant (380 V 3 phase 50 Hz or your own demand)
Plant conditions — floor area, cooling water and compressed air availability
Coil or cut length — the winding format your market buys in
Commercial terms — Incoterm (FOB CFR CIF / EXW), destination port, payment method and currency
Certification requirement — whether CE or ISO 9001:2008 documentation is sufficient for your market
Service requirement — whether you need engineer attendance for installation and operator training
What you get back: a written quotation for the complete line — vacuum feeding and material drying, single-screw extruder with vertical high-torque gearbox and bimetallic screw and barrel, extrusion die head with the calibrated bushing for your diameter, gear-driven corrugated forming machine, length meter, double winder, control cabinet and standard spare parts — stating the version, the pipe diameter range, the line speed, the lead time, the packing plan and the trade terms, together with our engineers' recommendation on the corrugation profile and mould set for your product.
Send us your tube diameter, the corrugation profile and your required line speed, and we will confirm the extruder, the die and calibration bushing, the forming machine length and the complete scope of supply in a written quotation. If you would like to see how this corrugated hose line is presented in more detail first, view more machine details. Company background is on About Us; application cases are collected under Application Cases, the product catalogue under Products and the full range of solutions under Solutions.
