SMP Series Knife Pulverizer for PVC Pipe & Profile Waste — 60-800 Kg/h

The Business Case for PVC Waste Recycling — Recovering Value from Scrap Streams

PVC extrusion operations — pipe, window profile, wall panel, foam board — generate 5-15% process waste. Cut-offs from length changes, extrusion startup scrap, dimensional rejects, and color-change purge accumulate daily. For a mid-size PVC pipe plant producing 5,000 tons annually, this translates to 250-750 tons of scrap per year — material that has already been purchased, compounded, and extruded once, now sitting in bins waiting for a destination.

Some companies sell this scrap to external recyclers at 1.00-1.50/kg cost of virgin PVC compound. Others pay for disposal. The alternative — in-house grinding to powder and re-introduction into the production stream — changes the economics: scrap that cost 1.5-2.25 million annually.

The challenge is grinding. PVC's thermal sensitivity — degradation with HCl release above 180°C — and its chlorine content (56% by weight) make grinding both a quality and safety challenge. A grinder that generates excessive heat degrades the powder. A machine that leaks dust exposes workers to chlorinated particulates. Conventional crushers reduce PVC scrap to flake (5-10mm), which feeds inconsistently in extrusion and creates processing variance.

 Powder, ground consistently to 40-60 mesh, feeds uniformly and melts predictably — the same as virgin compound.

The SMP knife pulverizer from Chenxing Machinery is purpose-built for this task. Its multi-knife rotor design — 20 to 40 blades depending on model — cuts PVC scrap into powder in a single pass, without pre-shredding. The sealed, negative-pressure enclosure contains chlorinated dust. And dual air-water cooling keeps the grinding zone below PVC's degradation threshold, delivering powder that processes like virgin.

SMP Series Models & Technical Specifications

Capacity for rigid PVC pipe/profile scrap at 40-60 mesh. Softer or foam PVC may process at higher throughput. Heavily filled or impact-modified PVC reduces throughput by 10-20%.

Model Selection for PVC Waste Recycling

How Knife Pulverizing Works for PVC Waste — Cutting vs. Grinding

The SMP's knife-based approach is fundamentally different from disc grinding — and it is this difference that makes it optimal for PVC waste.

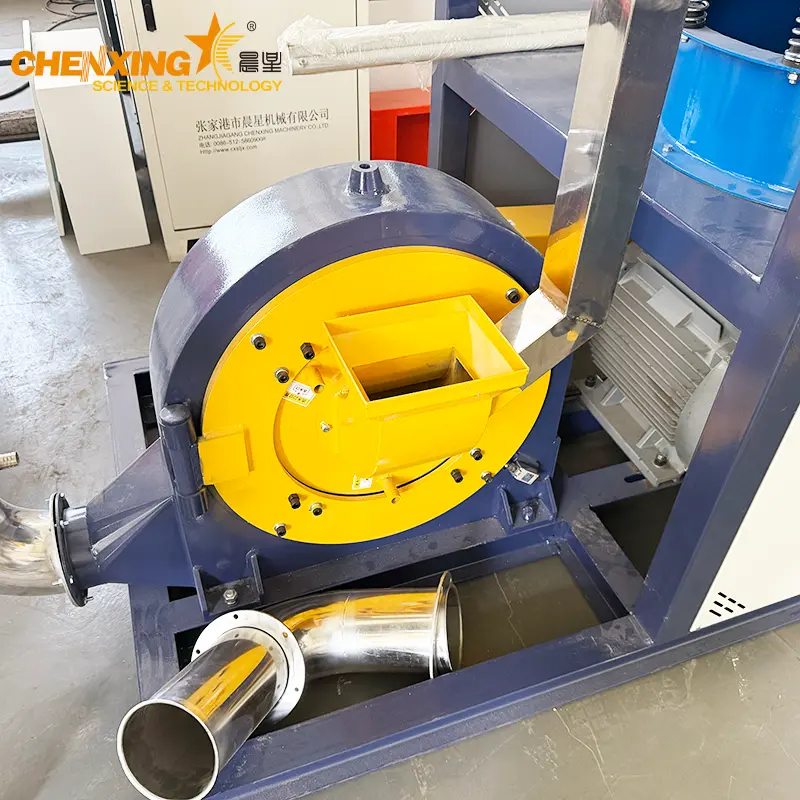

Step 1 — Direct Waste Feeding: PVC pipe sections, profile cut-offs, and sheet edge trim feed directly into the SMP's hopper. Unlike disc mills that require pre-crushing to pellet-sized feed, the SMP's multi-knife rotor can accept whole pipe sections (cut to <400mm length for SMP-400/500, <600mm for SMP-600/800/1000) and irregular profile scrap. A heavy-duty screw feeder or belt conveyor delivers consistent material flow.

Step 2 — Multi-Knife Impact Cutting: The rotor, carrying 20-40 hardened steel blades, spins at 2950-3800 RPM. Each blade acts as a high-speed fly-cutter: as the rotor turns, each blade impacts the PVC scrap in the cutting chamber, cleaving off powder-sized particles. With 40 blades at 2950 RPM, the SMP-1000 delivers 118,000 cutting impacts per minute — a cutting density that produces powder directly from whole scrap, without intermediate flake.

Step 3 — Why Knives Excel for PVC Scrap: Plastic extrusion waste — pipe walls, profile cross-sections, and foam board — is bulk material with thickness measured in millimeters, not pellets measured in millimeters. Disc grinding relies on the material being caught between two discs and sheared — efficient for pellets, but a large section of pipe wall simply jams between the discs. Knife cutting impacts the material from one side, cleaving successive layers of powder from the surface. The scrap doesn't need to fit between discs — it just needs to fit in the cutting chamber.

Step 4 — Screening and Classification: Powder passes through a vibrating screen. For PVC pipe recycling, 40-60 mesh powder feeds back into the extrusion line. Finer powder (60-80 mesh) can be used for PVC compounding or masterbatch. Oversize returns automatically to the cutting chamber.

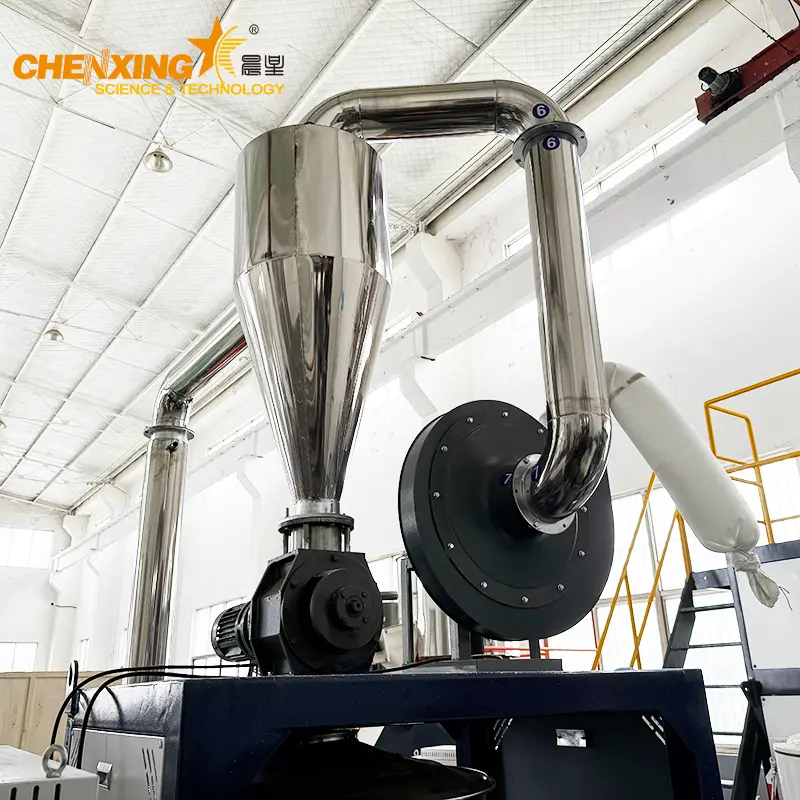

Step 5 — Sealed Collection: Negative-pressure pneumatic conveying moves powder from the screen to the cyclone separator and air-lock discharge. The fully sealed design is essential for PVC: chlorinated PVC dust is a respiratory irritant and a combustible dust. The SMP contains all dust within the system.

Step 6 — Dual Cooling: Air cooling for chamber ambient, water cooling for the rotor bearings and stator body. For PVC, the water circuit is the primary thermal control: it extracts frictional heat before it can raise the cutting zone above PVC's 180°C degradation threshold. Unlike the SMF disc grinding pulverizer, where cooling prevents melting, in PVC knife grinding it prevents thermal degradation and HCl release.

Key Advantages of SMP for PVC Waste Recycling

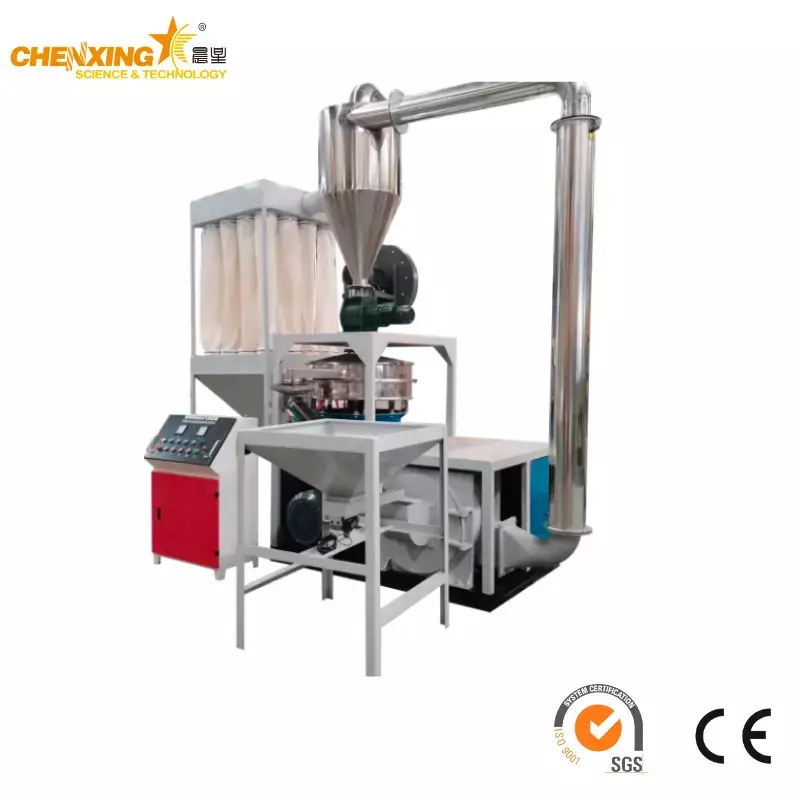

Multi-Knife Rotor — Whole Sections to Powder, No Pre-Shredder

• Feature: 20 to 40 hardened steel blades on a high-speed rotor, delivering 74,000–118,000 cutting impacts per minute.

• Advantage: PVC scrap arrives in the form it was produced: pipe sections, profile cut-offs, sheet edge trim. Adding a pre-shredder to reduce these to pellet-sized feed adds capital cost ($15,000–30,000 for a shredder), floor space, energy consumption, and a second maintenance point. The SMP's multi-knife design eliminates this entire stage — the scrap is fed directly and emerges as powder.

• Benefit: Lower capital investment — one machine instead of shredder + grinder. Less floor space — the SMP's 2700–4000mm length is the entire recycling footprint. Lower operating cost — one motor to power and maintain instead of two. For a PVC pipe plant, eliminating the pre-shredder saves 3,000–5,000 annually in energy and maintenance.

Sealed Dust Containment — Protecting Workers from Chlorinated Dust

• Feature: Fully enclosed cutting chamber, pneumatic conveying circuit, screening unit, and cyclone with air-lock discharge — all under negative pressure.

• Advantage: PVC contains approximately 56% chlorine by weight. PVC dust, if leaked into the factory environment, is a respiratory irritant that can cause occupational asthma with prolonged exposure. It is also classified as combustible dust, creating a secondary hazard. A grinder with open transfer points or vented collection exposes workers to these hazards. The SMP's negative-pressure design ensures that all dust — from cutting impact through to the collection bag — stays within the system.

• Benefit: Clean factory air. Reduced respiratory health risk for operators. Easier compliance with occupational exposure limits for PVC dust. Lower housekeeping burden — no dust accumulation on surrounding equipment that would need to be cleaned. The sealed design also prevents cross-contamination when the same SMP is used for different PVC colors or grades.

New Knife Design — High Output, Long Service Life

• Feature: Knife geometry optimized for PVC's mechanical properties and edge retention; knife material selected for combined abrasion resistance and impact toughness.

• Advantage: PVC scrap varies in hardness depending on filler content. Unfilled PVC pipe compound (Shore D ~80) causes moderate knife wear. Calcium-carbonate-filled profiles (10-30 phr filler) are more abrasive. The SMP's knife geometry — cutting edge angle, clearance angle, and rake — is designed for PVC: the edge slices rather than scrapes, reducing abrasive wear while maintaining cutting efficiency.

• Benefit: Extended knife life — 500-800 hours in unfilled PVC, 300-500 hours in filled PVC. Consistent powder quality throughout the knife service life because the cutting geometry wears uniformly. Lower knife replacement cost per ton of PVC powder produced. For an operation processing 500 tons of PVC scrap annually, extending knife life from 400 to 700 hours saves 2-3 knife changes per year.

Dual Cooling — Preventing Thermal Degradation

• Feature: Simultaneous air and water cooling with the water circuit extracting heat directly from the cutting zone.

• Advantage: PVC begins to degrade at approximately 180°C, releasing HCl gas. This degradation has two consequences: the powder yellows and develops a burnt odor (quality issue), and HCl gas corrodes the internal surfaces of the grinder (maintenance issue). A single cooling mode — air only — may not extract enough heat during sustained high-throughput grinding. The dual cooling provides both ambient air circulation for the cutting chamber and targeted water cooling for the hottest components.

• Benefit: Consistent white powder — no degradation yellowing. No HCl corrosion on internal machine surfaces. The ability to run continuously at full throughput without thermal shutdown. For PVC pipe recycling where powder feeds back into the production line, this thermal control is the difference between re-usable powder and degraded scrap.

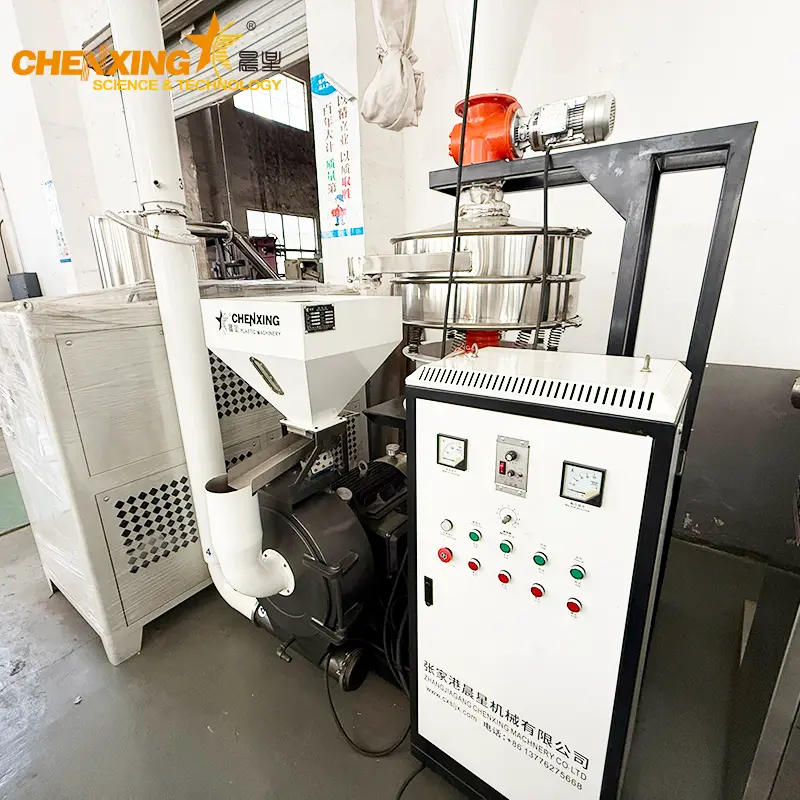

Open-Door Access — Fast Cleaning and Color Changes

• Feature: Hinged full-access door on the cutting chamber. Tool-free access to the rotor, blades, screen, and interior surfaces.

• Advantage: PVC recycling operations often process multiple colors or grades. White PVC pipe scrap cannot be contaminated with grey window profile powder — cross-contamination produces visible color streaks in the finished product. Machines that are difficult to access encourage incomplete cleaning between batches. The SMP's open-door design enables complete visual inspection of all interior surfaces.

• Benefit: Complete cleanout in 15-20 minutes. Confident color and grade changes. No customer complaints from cross-contamination in recycled-content product. The fast cleanout also makes routine knife inspection practical — operators are more likely to inspect knives every 100 hours when access takes minutes rather than hours.

Fully Automated — Consistent Powder, Less Labor

• Feature: Integrated automatic feeding, cutting, pneumatic evacuation, screening, and oversize return.

• Advantage: PVC recycling powder quality depends on consistent operating parameters — feed rate, rotor speed, screen condition. Manual operation introduces variability from operator technique and attention. The SMP's automation maintains consistent parameters without constant operator intervention.

• Benefit: One operator can manage the SMP plus the associated plastic pelletizer or PVC hot-cutting pelletizing line. Consistent powder quality, batch to batch — no variability from operator technique. Continuous operation through breaks and shift changes.

New Bearing Design — Reliability Under Impact Loading

• Feature: High-load-rated main bearings with forced oil lubrication, engineered for the combination of high RPM and the impact loads of knife cutting.

• Advantage: Each blade impact on PVC scrap transmits a shock load through the rotor shaft to the bearings. At 118,000 impacts per minute on the SMP-1000, the bearing loading regime is high-frequency cyclic impact — bearing-specific. The new bearing design uses larger bearing surfaces and forced oil circulation to maintain the lubricant film under this loading.

• Benefit: Extended bearing life. Reduced risk of bearing-related downtime — critical in a recycling operation where the grinder is the bottleneck of the scrap recovery process. If the grinder is down, scrap accumulates until it stops the entire extrusion line.

PVC Waste Preparation & Grinding Guide

Critical Process Steps

1. Magnetic Separation: PVC pipe and profile scrap can contain metal contaminants — staples from packaging, bolt fragments from dismantled equipment. A CJ magnetic frame installed before the SMP feed hopper captures ferrous metal before it damages blades.

2. Feed Size Management: SMP-400/500 accept sections <400mm; SMP-600/800/1000 accept <600mm. Cut longer pipes with a dust-free pipe cutter before feeding.

3. Blend Ratio Control: Recycled PVC powder typically blends at 10-30% into virgin compound. Higher letdown ratios risk processing inconsistency. Use a high-speed mixer to homogenize the recycled/virgin blend before extrusion.

Frequently Asked Questions

Can SMP handle whole PVC pipe sections without pre-shredding?

Yes — this is the SMP's core design advantage. Unlike disc mills that require pellet-sized feed, the SMP's multi-knife rotor can accept PVC pipe sections up to 600mm in length (for SMP-600/800/1000) or 400mm (SMP-400/500). The knives impact the pipe wall from the outside, cleaving powder particles with each rotation. This eliminates the need for a separate shredder or crusher, saving capital, floor space, and the energy and maintenance of a second machine. For operations processing long pipe lengths, a simple cut-off saw reduces pipes to the feed length — a standard tool already present in any pipe plant.

What powder output quality can I expect from PVC window profile waste?

PVC window profiles are typically filled compounds (10-30 phr calcium carbonate or other fillers) and produce powder at 40-60 mesh with the same cutting parameters as unfilled pipe PVC. The powder will be slightly more abrasive to downstream equipment than unfilled PVC powder, reflecting the filler content. For re-extrusion into profile, recycled powder can be blended at 10-30% letdown without measurable impact on profile surface finish or mechanical properties. The powder's particle size distribution is controlled by the screen mesh — change the screen to target 60-80 mesh if finer powder is needed.

How does knife cutting differ from disc grinding for PVC?

Knife cutting and disc grinding are fundamentally different size-reduction mechanisms. In disc grinding (as used by the SMF series), PVC pellets or pre-crushed flake is fed between two rotating discs and ground by friction and shear — efficient for small, uniform feed but the material must fit between the discs. In knife cutting (SMP), hardened steel blades on a rotor impact the material from one side, cleaving powder without requiring the material to pass through a narrow gap. This makes knife cutting the preferred method for bulky waste — pipe sections, profile cut-offs, sheet chunks — that would jam between grinding discs. The SMP's knives produce powder directly from whole scrap, skipping the pre-crushing stage that disc grinding requires.

What is the energy cost per ton when recycling PVC waste?

Based on the SMP's total installed power (main motor + blower + air-lock valve), the specific energy consumption is approximately 300-350 kWh per ton for unfilled PVC pipe scrap. At an industrial electricity rate of 30-35 per ton. Compared to the cost of virgin PVC compound (50-80 per ton — versus $150-300/ton to buy recycled PVC powder on the open market.

Can SMP process both rigid and foam PVC waste?

Yes. Rigid PVC (solid pipe, solid profile) and foam PVC (foam-core pipe, foam board) both grind effectively on the SMP. Foam PVC, with its lower density, grinds at higher throughput by weight at the same volumetric feed rate. The powder from foam PVC has lower bulk density than powder from rigid PVC, which affects feeding characteristics in extrusion — consider this when determining the letdown ratio. The SMP's dual cooling is more than adequate for foam PVC, which generates less frictional heat than rigid PVC due to its lower density and lower mechanical strength.

How often do blades need replacement for PVC grinding?

For unfilled rigid PVC pipe and profile, expect 500-800 operating hours between blade changes. For calcium-carbonate-filled PVC (window profiles), blade life drops to 300-500 hours due to increased abrasion from the filler. Blades should be inspected every 100-200 operating hours, and sharpened or replaced when the cutting edge shows visible rounding. Running blades past their service life reduces throughput (blunt blades require more motor power to achieve the same cut), degrades powder quality (wider particle size distribution), and increases motor load and energy consumption. A spare blade set kept on hand minimizes changeover downtime.

What is the ROI for recycling PVC scrap into powder?

The ROI depends on the volume of scrap and the virgin material cost avoided, but a typical PVC pipe plant can achieve payback in 6-12 months. Example: a plant producing 100 tons of PVC pipe scrap annually. The SMP-400 costs approximately 20/ton = 1,200/ton = 60/ton for grinding (114,000 compared to selling scrap. The SMP-400 investment is recovered in under 3 months. Even a higher-capacity SMP-600 ($30,000-40,000) recovers its cost in under 6 months at these volumes.

Start Recovering Your PVC Waste Value Today

Step 1 — Quantify Your PVC Scrap: Type (pipe profile sheet / foam), annual volume, and current disposal method.

Step 2 — Select Your SMP Model: Use the model selection and waste preparation guide above. For pipe or profile plants, the SMP-500 or SMP-600 typically matches a single extrusion line's scrap output.

Step 3 — Contact Nicole for a Quote: Provide your scrap type, annual volume, and target mesh. We will confirm the optimal SMP model, pricing, lead time, and shipping.

Step 4 — Install and Start Recovering: Installation support and commissioning guidance are included. We can also supply complementary equipment — CJ magnetic frames for metal protection, high-speed mixers for blending, and plastic pelletizers if pellet output is preferred.

For alternative grinding configurations, explore the SMF disc grinding pulverizer for pellet feed, or the dual disc pulverizer PNMF-Pro for high-volume pellet grinding. For complete PVC extrusion lines, we also offer pipe extrusion lines, sheet extrusion lines, and reinforced pipe lines.
