PP/PET Strapping Band Extrusion Line

Overview

The global strapping market is undergoing a decisive shift. Steel straps — once the default for heavy-duty pallet securing — are losing ground to high-tenacity polyester (PET) and polypropylene (PP) strapping, driven by lower cost, rust-free safety, and superior elastic recovery. Industry estimates place the plastic strapping market above USD 6 billion annually, with PET strapping growing at over 7% CAGR as logistics, construction materials, and export packaging sectors adopt non-metallic alternatives.

Chenxing Machinery addresses this demand with a multi-strand PP/PET strapping band extrusion line that produces 2, 4, 6, or 8 parallel straps simultaneously from a single extruder. The line achieves finished line speeds up to 260 m/min, with a 4-strand PP configuration delivering a stable daily output of 5–6 tons. A 6-strand variant — an industry-first innovation — pushes throughput even higher for large-scale manufacturers.

The line accepts 100% virgin PP/PET, washed recycled material, or blends with calcium carbonate (CaCO3) filler to reduce raw material cost by 15–25%. For PET producers, the line supports direct bottle-flake-to-strap processing, eliminating the pelletizing intermediate step and saving an additional 15–20% on material cost. Finished straps meet international quality benchmarks — tensile strength ≥400 MPa for PET (steel strap replacement grade) and ≥200 MPa for PP, with embossing quality comparable to European, Japanese, and Korean products.

Key differentiators include a loop-heating oven that recirculates hot air to cut energy consumption by 30–40%, a five-roller traction system that reduces maintenance cost by 60%, and an optional no-stop hydraulic screen changer enabling continuous 24/7 production. Every line is powered by a Siemens PLC with HMI touchscreen, recipe storage, and centralized monitoring — purpose-built for operators who need repeatable quality with minimal training.

Whether you are entering the strapping market with a 2-strand starter line or scaling to an 8-strand high-volume plant, this extrusion line is engineered for three outcomes: maximum output per kilowatt, minimum downtime per ton, and strapping quality that wins repeat buyers.

Technical Parameters

PP Strapping Band Extrusion Line

Note: The SJ90-PP6 6-strand configuration is an industry-first innovation, delivering 4.8–6.0 tons/day — ideal for high-volume strapping manufacturers targeting export markets.

PET Strapping Band Extrusion Line

All PET models include a dehumidifying dryer (desiccant wheel type, dew point ≤−40°C, 160–170°C operating temperature) as standard equipment. PET bottle flakes must be dried to <50 ppm moisture before extrusion to prevent hydrolysis and ensure mechanical property retention.

> Note: PET straps produced on this line achieve tensile strength ≥400 MPa and elongation at break 8–15%, meeting ISO 15750-2 standards for steel strap replacement in pallet loads up to 1,500 kg. The shredder-extruder recycling system can be integrated upstream for closed-loop bottle-flake processing.

System Configuration

Each PP/PET strapping band extrusion line is delivered as a turnkey system comprising the following core equipment. All components are pre-assembled, wired, and tested at our Zhangjiagang facility before shipment.

Auxiliary Equipment Options

The line can be integrated with upstream and downstream auxiliary machines for a fully automated plant:

• Pellet vacuum loader — automatic resin conveying from silo to extruder hopper

• Vacuum conveyor loader — for recycled flake feeding

• Plastic pelletizer machine — optional upstream pelletizing for recycled material preprocessing

• Online thickness gauge — real-time width and thickness monitoring with out-of-tolerance alarm

• Inkjet printer — inline strap marking with batch code, date, and logo

Core Features

1. Multi-Strand High-Speed Production

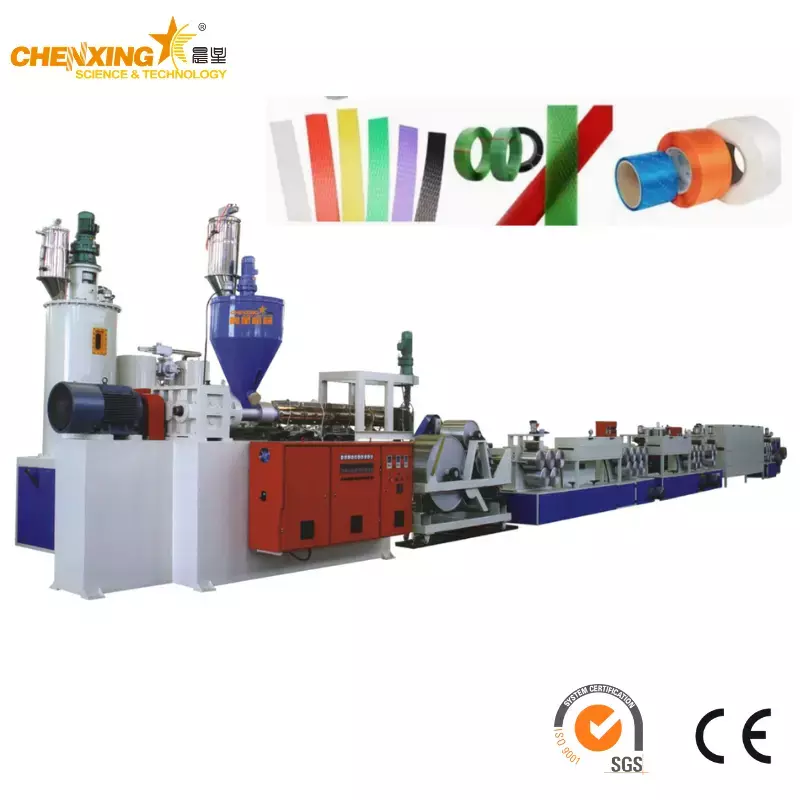

A single extruder feeds a multi-channel flat strip die, producing 2, 4, 6, or 8 parallel straps simultaneously — multiplying throughput without multiplying floor space. The 4-strand PP configuration (SJ80-PP4) delivers 2.9–4.3 tons per day; the 6-strand SJ90-PP6 achieves 4.8–6.0 tons per day and represents an industry-first innovation unmatched by conventional 2-strand lines. Finished line speed reaches 260 m/min, with each strand independently monitored for width and thickness deviations via the Siemens PLC control system. For manufacturers scaling from regional distribution to export markets, the jump from 2 strands to 6 strands on the same factory footprint transforms unit economics.

2. Precision Stretching & Molecular Orientation

The heart of strapping strength lies in the stretching oven. Chenxing's unique multi-roller oven employs a loop heating system with internal reciprocating winding — straps traverse the heating zone multiple times, maximizing residence time without increasing oven length. PP straps are stretched at 6–10:1 ratio at 100–140°C, developing tensile strength ≥200 MPa; PET straps stretch at 4–6:1 ratio at 120–180°C, achieving ≥400 MPa — sufficient to replace steel straps on pallet loads up to 1,500 kg. The reciprocating roller path and hot air recirculation reduce energy consumption by 30–40% compared to conventional single-pass ovens. Precise multi-zone PID control maintains ±2°C uniformity across the strap width, ensuring consistent orientation from edge to center.

3. Five-Roller Traction with Zero-Slip Control

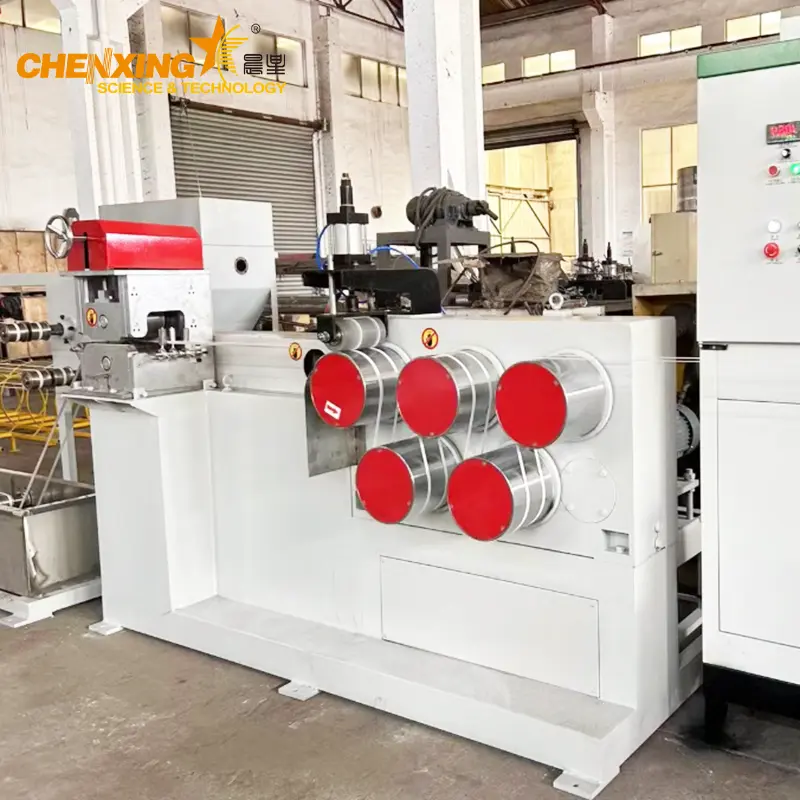

Conventional 2- or 3-roller haul-off systems suffer from belt slippage, causing speed inconsistency between extruder output, stretching zone, and winder — the root cause of thickness variation and wandering. Chenxing's AC servo-driven five-roller S-wrap traction unit eliminates slippage through extended surface contact. Closed-loop speed synchronization links extruder screw RPM, stretching roller differential, and winding tension into a single coordinated control loop. The robust gear train — with carburized, quenched, and ground tooth profiles — reduces maintenance cost by 60% versus traditional designs. Operators report fewer unplanned stops, consistent strap dimensions across full coil runs, and dramatically lower spare parts consumption.

4. High-Definition Embossing for Tool Compatibility

Strapping that slips in the tensioner is a customer complaint that costs repeat business. The plastic embossing machine integrated into this line applies diamond, checkered, or matte patterns at 0.1–0.3 mm depth with pneumatic pressure independently adjustable per strand. The resulting surface texture ensures reliable friction grip in both pneumatic and manual strapping tools — a critical quality parameter for logistics end-users. Pattern clarity and uniformity are comparable to European, US, Japanese, and Korean grades, verified by surface profilometer during factory acceptance testing.

5. Energy-Efficient Oven with Loop Heating

Thermal energy is the single largest operating cost in strapping production. The loop heating oven addresses this with a hot air recirculation system that recycles thermal energy within the heating zone rather than exhausting it. Combined with the internal reciprocating winding path — which keeps straps within the heated zone longer — the system achieves 30–40% lower electrical consumption than single-pass oven designs. Multi-zone PID controllers maintain ±2°C across the strap width, eliminating hot spots that cause uneven stretching and cold spots that leave sections under-oriented. For a 4-strand line running 24/7, the annual electricity savings alone can exceed USD 8,000–12,000 depending on local rates.

6. PET Bottle-Flake-to-Strap Direct Processing

Traditional PET strapping production starts with pelletized resin — adding USD 150–250 per ton in pelletizing cost. This line accepts washed PET bottle flakes directly, bypassing the pelletizing step entirely. A dehumidifying dryer (desiccant wheel, dew point ≤−40°C, 160–170°C) reduces moisture to <50 ppm before extrusion — the threshold below which hydrolysis-driven IV loss is negligible. The result: 15–20% lower raw material cost with finished PET straps meeting tensile strength ≥400 MPa, elongation at break 8–15%, suitable for pallet loads up to 1,500 kg. Bottle flake feedstock can come from a dedicated shredder-extruder recycling system, creating a closed-loop production model from post-consumer bottles to export-grade strapping.

7. Optional No-Stop Hydraulic Screen Changer

Filtration downtime is a hidden capacity killer — every screen change stops the line, purges material, and requires restart. The optional dual-plate sliding hydraulic screen changer eliminates this interruption. Filter mesh at 80–120 mesh captures contaminants from recycled PP/PET feedstock; when a screen change is needed, the operator slides a fresh plate into position in ≤3 seconds without halting extrusion. This enables true 24/7 continuous production with zero downtime for filtration maintenance — critical for manufacturers running the line at its rated 5–6 tons/day capacity. The screen changer is equally valuable for virgin material lines, where gel particles and carbonized specks from extended run times can degrade strap surface quality.

Production Process

PP Strapping Band Process (7 Steps)

Step 1 — Material Feeding & Plasticizing

PP granules, recycled pellets, and optional CaCO3 masterbatch (5–15%) are pre-blended in a plastic heating mixer and fed via hopper into the SJ single-screw extruder. Barrel temperature profile: 180–240°C across heating zones. The 38CrMoAlA nitrided screw (L/D 28–33:1 depending on model) delivers high plasticizing capacity with low shear heating, minimizing thermal degradation of recycled content.

Step 2 — Melt Filtration & Strip Formation

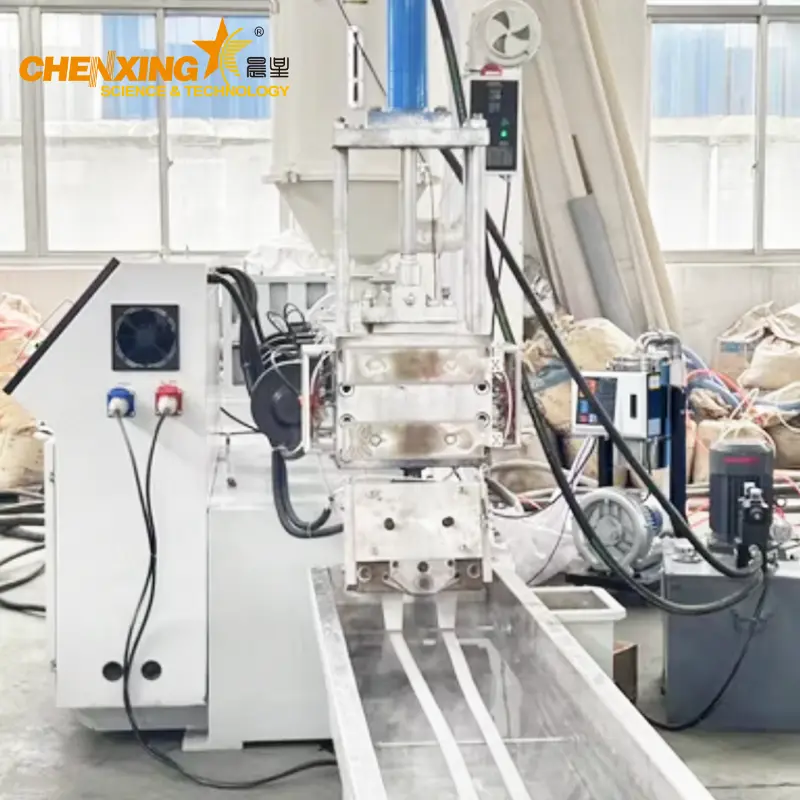

Homogenized melt passes through the hydraulic screen changer (80–100 mesh) into the multi-channel flat strip die. The coat-hanger manifold distributes melt uniformly across all channels, and the adjustable lip gap (0.3–2.0 mm) sets initial tape thickness. Melt exits as 2/4/6/8 parallel flat tapes.

Step 3 — Water Quenching

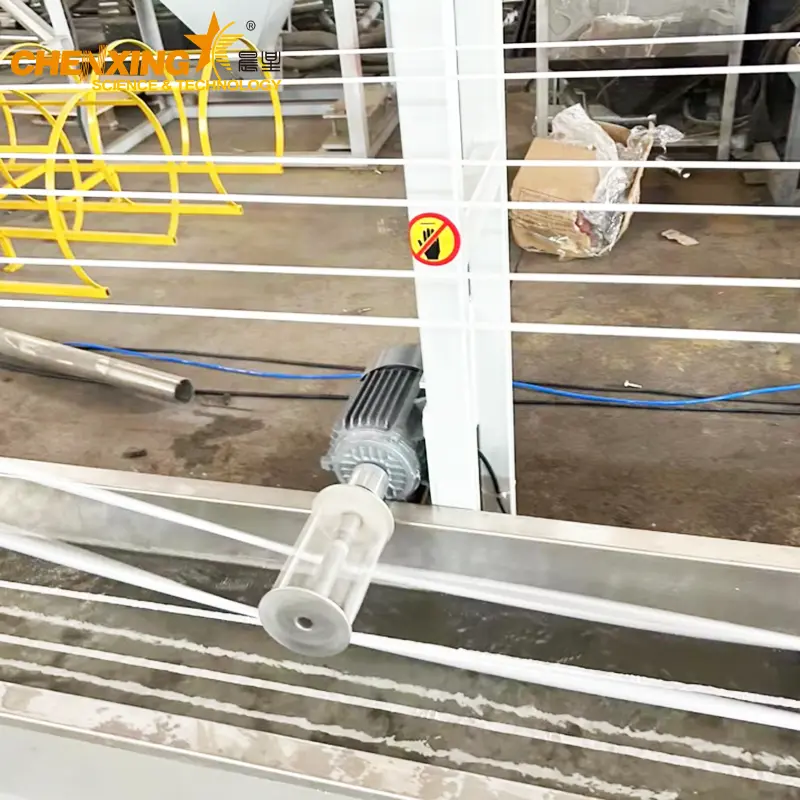

Hot tapes immediately enter the SUS304 water quenching tank at 20–40°C. Rapid cooling to below the crystallization temperature freezes the polymer in an amorphous state — the tapes become transparent and pliable, a prerequisite for the high draw ratios in the next stage.

Step 4 — Heating & Stretching

Amorphous tapes enter the multi-roller heating oven at 100–140°C with hot air circulation. Heated to orientation temperature, they are stretched 6–10:1 between slow and fast roller sets. Molecular chains align longitudinally under tension, developing tensile strength while reducing thickness and width to final dimensions. The reciprocating winding path maximizes residence time for uniform heating.

Step 5 — Embossing

Stretched tapes pass through the embossing station, where pneumatic rollers imprint diamond, checkered, or matte patterns at 0.1–0.3 mm depth. Surface texture is critical for downstream strapping tool grip — pattern uniformity is verified inline.

Step 6 — Annealing & Cooling

Embossed tapes enter the annealing section, heat-set at 10–20°C below stretching temperature for 5–10 seconds. This relieves internal stress locked in during orientation, reducing post-production shrinkage to ≤2%. Tapes then pass through a forced-air cooling loop with multiple guided rollers, stabilizing final dimensions.

Step 7 — Winding & QC

Stabilized tapes are wound onto spools via the constant-tension dual-station winder (auto-changeover). QC inspection checks: width tolerance ±0.3 mm, thickness tolerance ±0.03 mm, tensile strength, elongation at break, and surface pattern uniformity. Coils weigh 10–25 kg, ready for packaging and shipment.

PET Strapping Band Process

The PET process follows the same 7-step sequence as PP, with one critical additional step upstream and adjusted temperature setpoints throughout.

Pre-Step — Dehumidifying Drying (PET Only)

Washed PET bottle flakes enter a dehumidifying dryer at 160–170°C for 4–6 hours. The desiccant wheel maintains dew point ≤−40°C, reducing moisture content to <50 ppm. This step is non-negotiable: PET hydrolyzes rapidly above 0.02% moisture at extrusion temperatures, causing irreversible intrinsic viscosity (IV) loss and embrittlement of the finished strap. Bottle flakes with IV ≥0.70 dL/g are recommended for strapping-grade output.

Steps 1–7 — Extrusion Through Winding

Dried flakes → SJ single-screw extruder (L/D 30–33:1, 260–290°C) → melt filtration (80–100 mesh) → multi-channel flat strip die → water quench (30–50°C) → heating oven (120–180°C) → stretch 4–6:1 → embossing → annealing → forced-air cooling → constant-tension winding.

> Key difference from PP: PET requires higher barrel temperatures (260–290°C vs 180–240°C), a narrower stretching ratio range (4–6:1 vs 6–10:1), and the mandatory dehumidifying dryer. PET straps exit the line with tensile strength ≥400 MPa — the threshold for steel strap replacement in heavy pallet applications. The plastic pelletizer machine can be integrated upstream if pelletized PET feedstock is preferred over direct bottle flake feeding.

Process Comparison at a Glance

Frequently Asked Questions

Q1: What's the difference between PP and PET strapping — and which material should I produce for my target market?

PP and PET strapping serve different market tiers. PP (raw material cost USD 800–1,200/ton) produces straps with tensile strength 180–250 MPa and elongation 15–25% — ideal for carton bundling, newspaper baling, and light pallets up to 500 kg. PET (USD 1,000–1,500/ton) delivers 400–600 MPa tensile strength with 8–15% elongation, directly replacing steel straps for heavy pallets of 500–1,500 kg. PET's key advantages over steel: rust-free (no corrosion staining on goods), safer handling (no sharp cut edges), and elastic recovery that maintains tension after load settling during transport. Many Chenxing Machinery customers start with a PP line for domestic markets and add a PET line when entering export logistics segments. The same extrusion platform accommodates both — the PET variant adds a dehumidifying dryer and operates at higher barrel temperatures.

Q2: Can I use 100% recycled materials to produce export-quality straps, and what are the quality trade-offs?

Yes — both PP and PET lines accept 100% recycled feedstock when proper filtration and material preparation are in place. For PP: clean post-industrial or post-consumer recyclate can run at 100%, though tensile strength typically drops 10–20% versus virgin. Adding 5–10% virgin PP or 2–3% compatibilizer recovers most properties. For PET: washed bottle flakes work at 100% provided the dehumidifying dryer reduces moisture to <50 ppm and intrinsic viscosity is ≥0.70 dL/g. Both routes require the hydraulic screen changer at 80–120 mesh to remove contaminants. Final strap appearance may show slight color variation, but mechanical properties can meet ISO 15750-2 standards. We recommend running trial batches with your specific recycled source to establish the optimal virgin/recycled blend ratio.

Q3: How does the stretching ratio affect strap mechanical properties — and what is the optimal ratio range?

The stretching ratio is the dominant lever controlling strap tensile strength and elongation. For PP: a minimum 6:1 draw ratio initiates molecular orientation; 7–9:1 is optimal, producing 200–250 MPa tensile with 15–20% elongation — the balanced range for general-purpose strapping. Pushing to 10:1 maximizes tensile but reduces elongation below 12%, making the strap brittle and prone to splitting under shock loads. For PET: 4:1 is the minimum for useful orientation; 5–6:1 achieves the sweet spot of 400–500 MPa tensile with 10–15% elongation. Over-stretching causes fibrillation — visible longitudinal splitting. Temperature control during stretching is equally critical: PP requires 100–130°C (too cold = brittle fracture, too hot = insufficient orientation); PET requires 100–150°C. The Siemens PLC on this line stores recipe parameters for each product specification, enabling one-touch changeover between different stretching ratios.

Q4: What are the key quality specifications that strapping buyers check?

Professional strapping buyers inspect six parameters against ISO 15750-2. First, tensile strength: PP ≥200 MPa, PET ≥400 MPa — tested on a universal testing machine at 100 mm/min crosshead speed. Second, dimensional tolerance: width ±0.5 mm and thickness ±0.03 mm, verified with micrometer at multiple points per coil. Third, coil appearance: 10–25 kg spools with flat, even layer winding and no telescoping — poorly wound coils jam automatic strapping machines. Fourth, embossing uniformity: pattern depth 0.1–0.3 mm across the full strap width with no skipped areas. Fifth, surface quality: free of bubbles, gel particles, and contamination specks. Sixth, joint efficiency: friction-welded joints must retain ≥80% of original tensile strength. For PET straps specifically, moisture content must be ≤0.02% to prevent hydrolysis-driven embrittlement during warehouse storage. Chenxing's QC station at the winding system performs inline dimensional checks; we recommend adding a tensile tester for full QC capability.

Q5: What is the daily output capacity and utility consumption for a 4-strand PP line vs a 4-strand PET line?

A 4-strand PP line (SJ80-PP4) delivers 120–180 kg/h or 2.9–4.3 tons/day with total installed power ~90 kW and actual consumption 55–70 kWh. Cooling water requirement: 2–3 m³/h (recirculated via chiller). Compressed air: 0.6 MPa at 0.5 m³/min. The equivalent 4-strand PET line (SJ80-PET4) produces 90–150 kg/h or 2.2–3.6 tons/day — lower output due to PET's higher melt viscosity and narrower processing window. Total installed power is ~120 kW (includes 18 kW dryer), actual consumption 75–95 kWh. The dehumidifying dryer alone draws 15–18 kWh continuously. Cooling water: 3–4 m³/h. PET lines require 1–2 additional operators for bottle flake handling, sorting, and dryer maintenance compared to pellet-fed PP lines. For a complete plant layout and utility sizing, contact our solutions team.

Why Choose Chenxing Machinery

Chenxing Machinery (Zhangjiagang City Chenxing Machinery Co., Ltd.) has been designing and manufacturing plastic extrusion equipment for over 15 years. Our strapping band extrusion line reflects a philosophy of incremental engineering excellence — each subsystem has been refined through customer feedback and field data to eliminate the failure modes that cause downtime in competing designs.

Industry-First Innovation. The 6-strand PP configuration (SJ90-PP6) is the only commercially proven 6-strand strapping line on the market, delivering 4.8–6.0 tons/day from a single extruder. For manufacturers constrained by factory floor space, multiplying strands is more capital-efficient than adding parallel lines.

Verified 60% Maintenance Reduction. The five-roller traction unit's carburized, quenched, and ground gear train — combined with the overall use of high-strength alloy steel for wheel and shaft components — has been documented to reduce unplanned maintenance events by 60% compared to traditional 2–3 roller systems. Fewer stops mean more saleable output per year.

Energy Cost Transparency. The loop-heating oven design is not a marketing claim — it is a measurable 30–40% reduction in electrical consumption per ton of finished strapping versus single-pass ovens. We provide utility consumption estimates during quotation so you can model ROI before purchase.

Turnkey Delivery. Every line is pre-assembled, wired, and dry-tested at our Zhangjiagang facility. Our engineers travel to your site for installation, commissioning, and operator training. We supply one year of wear-and-tear spare parts at no additional charge and offer remote diagnostics via the PLC's network interface.

Certified Quality. Our equipment holds CE and ISO certifications. We can assist with additional certifications (SGS, SASO, etc.) required by your target export markets.

Global References. Our extrusion lines are operating in over 30 countries across Southeast Asia, the Middle East, Africa, Eastern Europe, and Latin America. We welcome factory visits and can arrange reference calls with existing customers producing strapping on our equipment.

Learn more about Chenxing or browse our full product catalog, including PVC pipe extrusion lines, PVC roof tile extrusion lines, and plastic recycling systems. For the latest updates, visit our news page.

Get Your Customized Quotation in 4 Steps

Ready to evaluate a PP/PET strapping band extrusion line for your production facility? Our engineering team will prepare a tailored proposal with layout drawings, utility specifications, and ROI projections — typically within 48 hours.

Step 1 — Share Your Requirements
Tell us your target material (PP PET both), desired daily output (tons), strap width and thickness range, number of strands, and available factory space. Include your local voltage and frequency (e.g., 380V/50Hz 3-phase).

Step 2 — Receive a Tailored Proposal
We prepare a detailed quotation with the recommended extruder model, line configuration, floor plan drawing, installed power estimate, and delivery timeline. No generic templates — every proposal is matched to your production goals.

Step 3 — Factory Visit or Video Tour
Visit our Zhangjiagang facility to see lines under assembly and running at customer reference sites, or request a live video walkthrough. Test your own raw material on our pilot line and take home sample straps for buyer approval.

Step 4 — Production & Shipment
Once the order is confirmed (30% deposit, 70% before shipment via T/T or L/C at sight), we manufacture, assemble, and dry-test your line. Our engineers travel to your factory for installation, commissioning, and operator training — typically 7–14 days on site.
