Product Description
The haul-off series covers pipe diameters from 16 mm to 800 mm, with model-specific maximum pulling speeds ranging from 0.8 to 12 m/min. Each model uses frequency inverter speed regulation, allowing operators to adjust the pulling speed according to the extrusion process and pipe specifications.

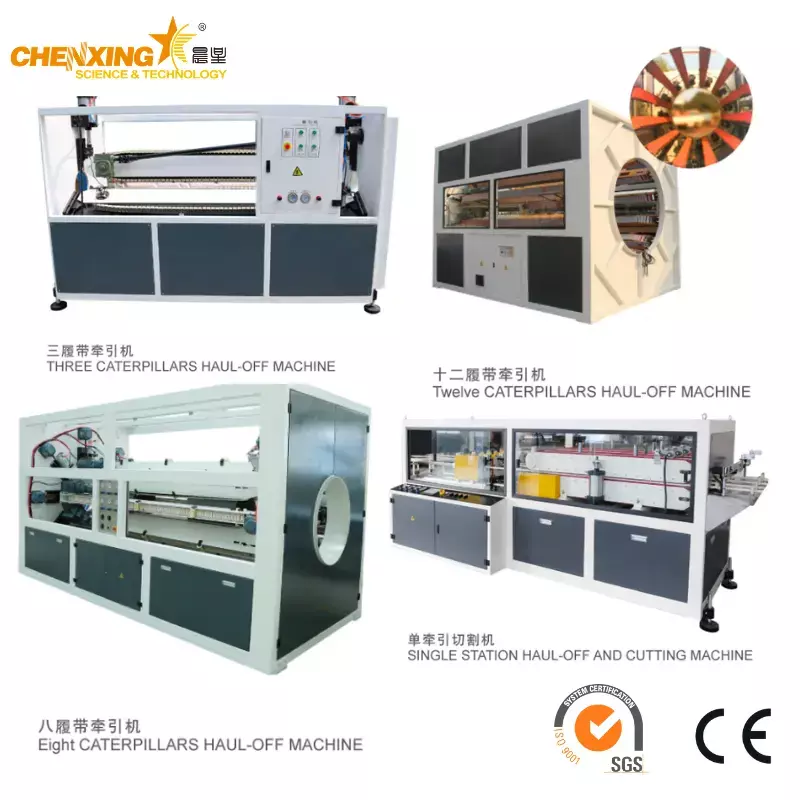

The Three Caterpillars Haul-off Machine is designed for medium to large-diameter pipe production where stable, multi-point gripping is essential. Models in this category — covering pipe ranges from 50–160 mm up to 400–800 mm — deploy 3 to 8 synchronized rubber brick belts arranged around the pipe circumference. This multi-belt architecture ensures uniform radial pressure distribution, preventing ovality and surface marring during continuous haul-off at speeds ranging from 0.8 to 8 m/min.
These units integrate seamlessly with upstream equipment such as high-speed mixers for material preparation and screw feeders for consistent material metering, forming a complete plastic extrusion line solution.
For production environments where floor space and operational efficiency are at a premium, the Single Station Haul-off and Cutting Machine integrates traction and cutting into one compact unit. This configuration covers pipe ranges from 16–63 mm to 20–110 mm, ideal for small-diameter PE, PVC, and PPR pipe manufacturing.
The integrated design eliminates the need for a separate pipe cutting machine station, reducing line footprint by approximately 30%. The cutting mechanism — available in fly-saw, circular saw, or servo-saw configurations — triggers automatically upon reaching the preset length, then retracts for the next cycle. This makes the single station configuration the preferred choice for standardized building wiring conduit, water supply risers, and irrigation drip pipe production where consistent cut length and high throughput are critical.
The following table presents the complete technical parameters for all 9 models of the caterpillar haul-off machine series:
| Parameter | 16-63 | 16-63 (Double) | 20-110 | 50-160 | 75-250 | 90-315 | 110-450 | 315-630 | 400-800 |
|---|---|---|---|---|---|---|---|---|---|
| Pipe Range (mm) | 16–63 | 16–63 | 20–110 | 50–160 | 75–250 | 90–315 | 110–450 | 315–630 | 400–800 |
| Belt Quantity | 2 | 4 | 2 | 3 | 4 | 4 | 6 | 6 | 8 |
| Belt Type | Rubber Brick | Rubber Brick | Rubber Brick | Rubber Brick | Rubber Brick | Rubber Brick | Rubber Brick | Rubber Brick | Rubber Brick |
| Effective Length (mm) | 1,050 | 1,050 | 1,200 | 1,500 | 1,600 | 1,800 | 1,800 | 2,000 | 2,200 |
| Max Hauling Speed (m/min) | 12 | 12 | 10 | 8 | 6 | 4.5 | 3 | 1.5 | 0.8 |
| Speed Regulation | Frequency Inverter | Frequency Inverter | Frequency Inverter | Frequency Inverter | Frequency Inverter | Frequency Inverter | Frequency Inverter | Frequency Inverter | Frequency Inverter |
| Motor Power (kW) | 1.1 × 2 | 1.1 × 4 | 1.1 × 2 | 1.1 × 3 | 1.1 × 4 | 1.1 × 4 | 1.1 × 6 | 0.75 × 6 | 0.75 × 8 |
Design rationale: Belt quantity increases progressively with pipe diameter — from 2 belts for the 16–63 mm range to 8 belts for the 400–800 mm range — ensuring that traction force is distributed uniformly around the pipe circumference. Effective length extends from 1,050 mm to 2,200 mm, providing longer contact zones for larger diameters to reduce vibration and deflection. Maximum hauling speed decreases from 12 m/min for small pipes to 0.8 m/min for large-diameter production, following material mechanics principles and operational safety standards. All models employ frequency inverter stepless speed regulation for precise synchronization with extruder output.

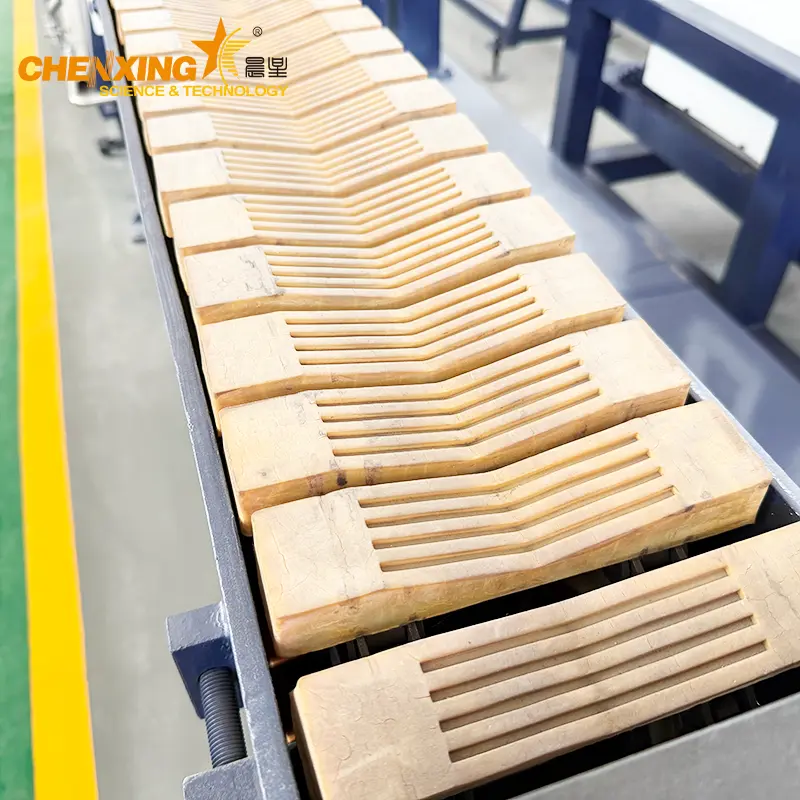

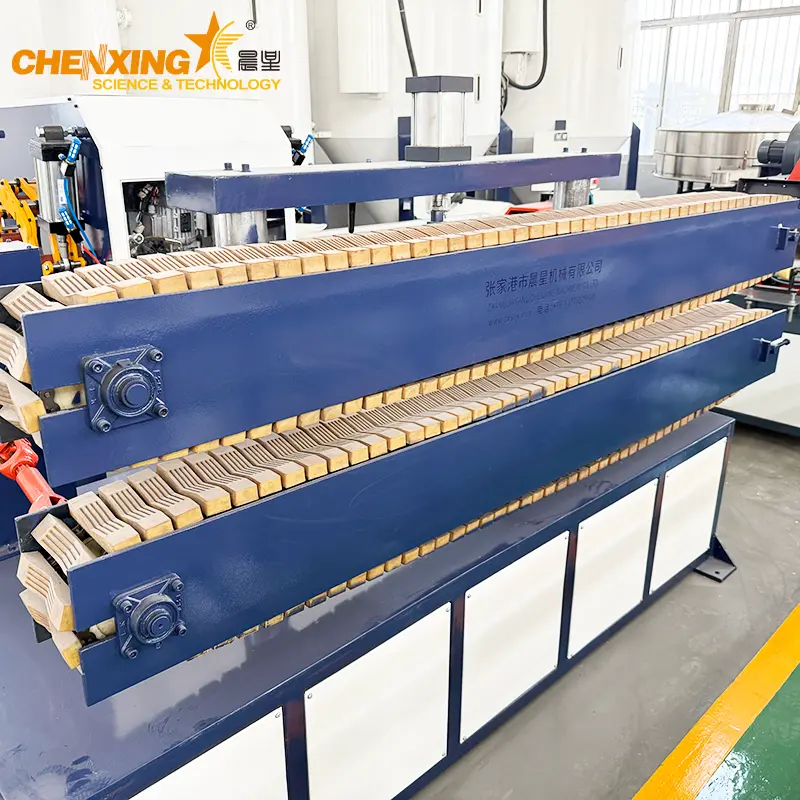

All 9 models in the plastic pipe haul-off series are equipped with rubber brick caterpillar belts. The textured rubber surface delivers exceptional friction coefficient without scratching, marring, or deforming the pipe surface — a critical advantage when handling soft or thin-wall materials such as PE water supply pipes, PPR hot-water pipes, and PVC electrical conduits. Unlike metal grip pads, rubber brick contacts conform to minor surface irregularities while maintaining consistent pull force across the entire effective length.
The unified frequency inverter speed control system provides infinitely variable speed adjustment across the full operating range of each model. Operators can fine-tune haul-off speed from 0.8 to 12 m/min via the PLC touchscreen HMI, ensuring precise synchronization between the caterpillar puller and the extruder output rate. This eliminates the risk of pipe stretching (from over-speed pulling) or buckling (from under-speed accumulation), particularly important for thin-wall pipe production and multi-layer co-extrusion lines where dimensional tolerance is tight.

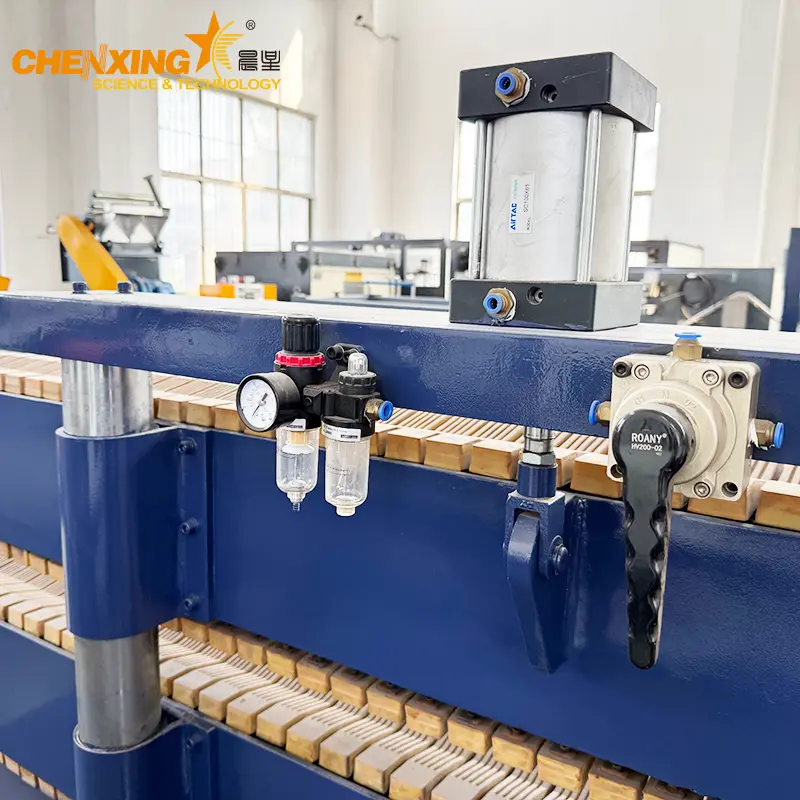

The multi-belt caterpillar design distributes the gripping force across several contact points around the pipe circumference.
This arrangement helps maintain stable traction and reduce localized pressure during continuous pipe production. Adjustable clamping pressure allows operators to adapt the gripping force to different pipe diameters, wall thicknesses and material characteristics.
Proper haul-off adjustment, together with suitable sizing and cooling conditions, helps maintain consistent pipe dimensions and surface quality.
Effective traction length extends from 1,050 mm on small-diameter models (16–63 mm) to 2,200 mm on the largest model (400–800 mm). This progressive lengthening ensures that larger, heavier pipes have sufficient contact zone for stable haul-off, reducing vibration-induced surface defects and minimizing centerline deviation. The extended contact path also allows more gradual acceleration and deceleration profiles, reducing stress concentration at the gripping points.
The Single Station Haul-off and Cutting Machine combines traction and cutting in one compact unit, eliminating the need for a separate dust-free pipe cutter downstream. This design reduces the overall extrusion line footprint while maintaining fully automatic cut-to-length operation. The cutting mechanism — capable of fly-saw, circular saw, or servo-driven configurations — synchronizes with the haul-off speed during the cut cycle, producing clean, square ends without stopping the production line.
The machine frame is fabricated from heavy-gauge steel plate with full-penetration welding and finished with electrostatic spray coating for corrosion resistance. Adjustable leveling feet at all mounting points ensure stable installation on uneven factory floors, while the enclosed transmission housing protects gears, chains, and bearings from dust and process water ingress — extending service intervals and reducing maintenance costs in the demanding environment of a PVC WPC foam board extrusion line or pipe manufacturing facility.
Every machine in the series is equipped with a multi-layer safety architecture: emergency stop buttons located on both the control panel and the machine body, motor overload protection with automatic cut-off, earth leakage circuit breakers, and interlocked transparent safety guards with warning labels. The PLC controller continuously monitors motor current, belt tension, and speed feedback, triggering automatic shutdown if any parameter exceeds the safe operating envelope. These safety features meet international manufacturing safety standards and are suitable for integration into fully automated production lines alongside equipment such as plastic crushers and plastic pelletizers.
The advanced PLC-based control system, paired with an industrial-grade touchscreen HMI, provides intuitive access to all operational parameters. Operators can set haul-off speed, monitor motor current and belt status, program cut-to-length sequences (on cutting models), and view production statistics — all from a single interface. Parameter recipes can be stored and recalled for different pipe specifications, reducing changeover time between production batches. The system supports integration with upstream extruder controllers and downstream equipment, enabling full-line automation from raw material feeding through finished pipe collection.
The caterpillar haul-off system operates through a precisely orchestrated sequence that converts extruder output into dimensionally stable, uniformly pulled pipe:
Step 1: Pipe Entry. Hot extruded pipe exits the die head and passes through the cooling and sizing tank. After achieving sufficient surface solidification, the pipe enters the haul-off machine's gripping zone at a controlled entry angle.
Step 2: Belt Clamping and Traction. Multiple synchronized rubber brick caterpillar belts close around the pipe circumference with adjustable pneumatic or manual clamping pressure. The rubber brick surface texture grips the pipe firmly without surface damage, while the motor-driven belt rotation pulls the pipe forward at precisely the speed set on the frequency inverter. On models with 6 or 8 belts, the multi-point grip eliminates localized stress points that could cause deformation.
Step 3: Frequency Inverter Speed Synchronization. The PLC controller continuously adjusts motor speed via the frequency inverter to match the extruder output rate. This closed-loop synchronization prevents speed mismatch — the most common cause of dimensional deviation in extrusion lines. The system can also interface with upstream equipment such as a screw feeder to maintain consistent material throughput.
Step 4: Cut-to-Length (Cutting Models). On single station haul-off and cutting configurations, an integrated encoder tracks the total length of pipe that has passed through the gripping zone. When the preset cut length is reached, the controller triggers the cutting mechanism — a fly-saw that moves in synchronization with the pipe during the cut stroke, producing a clean, perpendicular cut without stopping production. This is the same principle used in standalone pipe cutting machines.
Step 5: Discharge and Collection. After cutting, the finished pipe section is discharged onto a collection rack or conveyor for manual or automated transfer to downstream operations such as quality inspection, printing, or packaging.
The plastic pipe haul-off machine series supports a broad spectrum of pipe manufacturing applications across multiple industries:
PVC-U drainage pipes, PPR hot and cold water supply pipes, PE-RT floor heating pipes, and HDPE silent drainage systems for residential and commercial buildings. These applications demand consistent outside diameter and wall thickness — achieved through the precise speed control and uniform gripping of the caterpillar haul-off system.
Large-diameter PE100 and PE80 water mains (up to 800 mm), HDPE gas distribution pipes requiring long-term pressure rating integrity. The 6-belt and 8-belt configurations on models 315–630 and 400–800 provide the uniform traction needed to prevent stress-induced micro-cracks during haul-off. These production lines often incorporate ZSQ vibrating screens for raw material classification and SML air-cooled chillers for process cooling.
PVC rigid electrical conduits, flexible corrugated cable protection pipes, and underground power cable ducts. Small-diameter, high-speed production (12 m/min on the 16–63 mm model) combined with the single station haul-off and cutting configuration delivers cost-effective, high-volume output for this commodity segment.
PE drip irrigation laterals, PVC-U mainlines, HDPE sprinkler system pipes, and LDPE micro-irrigation tubing. The soft rubber brick belts are particularly suited for thin-wall, flexible PE pipes where metal grips would cause damage. Integration with a plastic grinding machine for in-line scrap recycling further improves production economics.
PP chemical-resistant process pipes, PVDF high-purity piping, and multi-layer composite pipes for specialized industrial applications. The frequency inverter speed control provides the precision required for co-extrusion lines producing pipes with functional barrier layers.
Chenxing Machinery's haul-off machines integrate seamlessly into complete pipe extrusion solutions alongside upstream equipment such as the plastic pelletizer for raw material preparation, PVC hot-cutting pelletizing line for compounding, the SMF disc grinding pulverizer for powder production, and the industrial chiller for optimal process temperature control.
A plastic pipe haul-off machine is installed downstream of the sizing and cooling equipment in a pipe extrusion line. Its main function is to provide continuous and stable traction, pulling the extruded pipe through the production process at a controlled speed.
After leaving the extrusion die, the pipe passes through the vacuum calibration and cooling tanks. Once it reaches the required dimensional stability and surface condition, it enters the haul-off unit.
Rubber caterpillar belts close around the pipe and apply an adjustable gripping force. The clamping pressure should be selected according to the pipe diameter, wall thickness and material properties.
The motor-driven belts move at a controlled speed, pulling the pipe forward through the production line. The belt speed must be coordinated with the extruder output to avoid excessive stretching or material accumulation.
A frequency inverter allows operators to adjust the haul-off speed according to the production requirements. Optional control interfaces can be used to coordinate the haul-off unit with other extrusion line equipment.
After traction, the pipe enters a separate cutting machine or an integrated haul-off and cutting unit. The finished pipe sections are then transferred to a stacking rack or other downstream equipment.
| Advantage | Description |
|---|---|
| 9-Model Coverage | From 16 mm to 800 mm pipe diameter, one supplier covers all your production needs — no need to source multiple vendors for different size ranges. |
| Rubber Brick Standard | All models use rubber brick belts as standard, not as an optional upgrade. This ensures every machine delivers surface-safe traction from day one. |
| Frequency Inverter Across the Board | Stepless speed regulation is standard on every model, eliminating mechanical variator maintenance and improving speed accuracy. |
| Modular Motor Architecture | Multiple smaller motors (1.1 kW or 0.75 kW per belt drive) rather than a single large motor — easier maintenance, lower spare parts cost, and built-in redundancy. |
| PLC + HMI Standard | Touchscreen control with recipe storage, production data logging, and remote diagnostics capability comes standard, not as a premium feature. |
| Full-Line Integration | As a comprehensive plastic extrusion machinery manufacturer, Chenxing provides everything from material handling to finished pipe collection — mixers, feeders, extruders, chillers, crushers, pulverizers, pelletizers, and haul-off systems — all engineered to work together. |
Chenxing Machinery's global clients benefit from end-to-end extrusion solutions engineered in Zhangjiagang, China — one of the world's largest plastic machinery manufacturing hubs.
A plastic pipe haul-off machine provides continuous traction to pull extruded pipes through the production line at a controlled speed. It helps maintain stable movement between the sizing, cooling and cutting stages.
2. What is the difference between a two-belt and multi-belt caterpillar haul-off machine?
A two-belt haul-off machine uses two opposing belts to grip and pull the pipe. Multi-belt configurations use three or more belts arranged around the pipe circumference to distribute the gripping force across multiple contact points. The suitable configuration depends on pipe diameter, weight, wall thickness and required traction force.
The current series covers pipe diameters from 16 mm to 800 mm. Different models are designed for different diameter ranges, with belt quantity, motor power, effective traction length and maximum pulling speed selected accordingly.
Yes. Rubber belt caterpillar haul-off machines can be configured for PVC, PE, HDPE, PPR and PP pipe production. Clamping pressure and belt specifications should be selected according to the pipe material, dimensions and surface requirements.
A haul-off machine pulls the extruded pipe forward at a controlled speed, while a pipe cutting machine cuts it to the required length. Some small-diameter configurations combine both functions in one integrated unit.
Consider the pipe diameter range, material, wall thickness, required line speed, pipe weight and whether integrated cutting is required. The number of caterpillar belts and motor configuration should be selected according to the actual production conditions.
Yes. Integration is possible after checking the pipe center height, line speed, pipe diameter range, control interface, installation space and required traction force. The electrical and mechanical interface should be confirmed before ordering.
The haul-off speed is adjusted through a frequency inverter. Depending on the control configuration, the machine can operate with independent speed adjustment or be coordinated with the upstream extruder control system.
Ready to integrate a plastic pipe haul-off machine into your extrusion line? Follow our streamlined 4-step inquiry process:
Step 1 — Send Your Inquiry
Submit your requirements via the contact form below or email us directly. Please include: pipe material(s), diameter range, target production speed, and whether you need integrated cutting capability. The more detail you provide, the more accurate our initial recommendation will be.
Step 2 — Receive Customized Quotation
Within 24 business hours, our engineering team will review your specifications and provide a tailored quotation including the recommended model, complete technical parameter sheet, optional accessories, estimated delivery timeline, and shipping terms (FOB/CIF Shanghai or Ningbo).
Step 3 — Confirm Order & Production
Upon order confirmation and deposit receipt, production begins at our Zhangjiagang facility. You will receive weekly progress updates with photos. Factory acceptance testing (FAT) is scheduled approximately 2 weeks before the agreed delivery date — you are welcome to attend in person or via video conference.
Step 4 — Delivery, Installation & Ongoing Support
Machines are shipped with full documentation (English manuals, electrical schematics, PLC program). Remote commissioning support via video call is included standard; on-site installation and training by a Chenxing engineer is available as an optional service. After-sales support — including spare parts, technical consultation, and production optimization advice — continues for the lifetime of your equipment.
Contact Chenxing Machinery today:
| Contact | Details |
|---|---|
| Contact Person | Nicole |
| Phone / WhatsApp | +86 159 5118 7228 |
| ceo@cxsljx.com | |
| Company | Zhangjiagang Chenxing Machinery Co., Ltd. |
| Website | www.chenxingmachinery.com |
