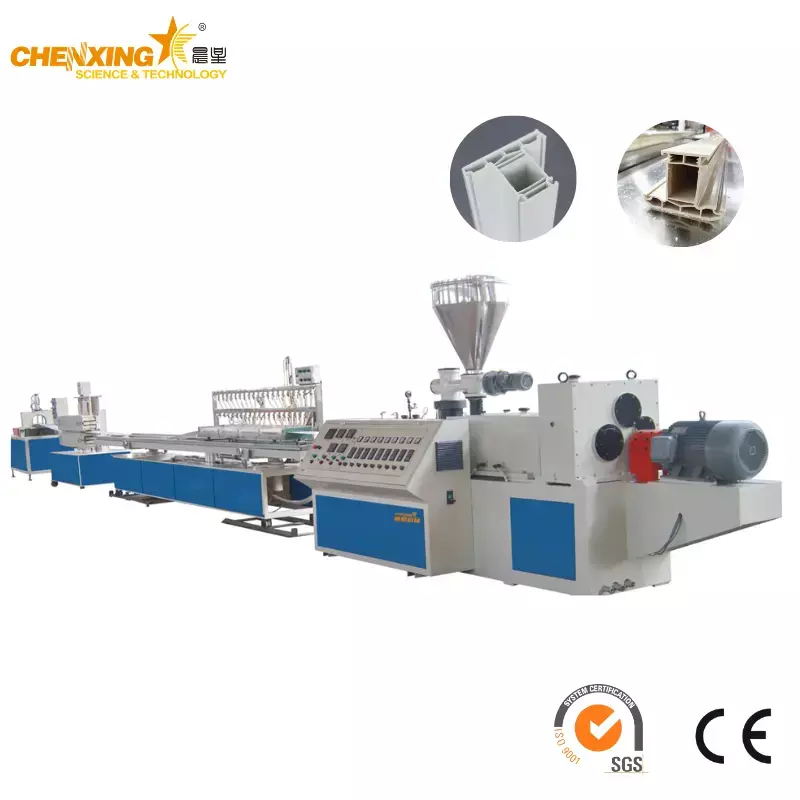

PVC Window & Door Profile Extrusion Line

Overview

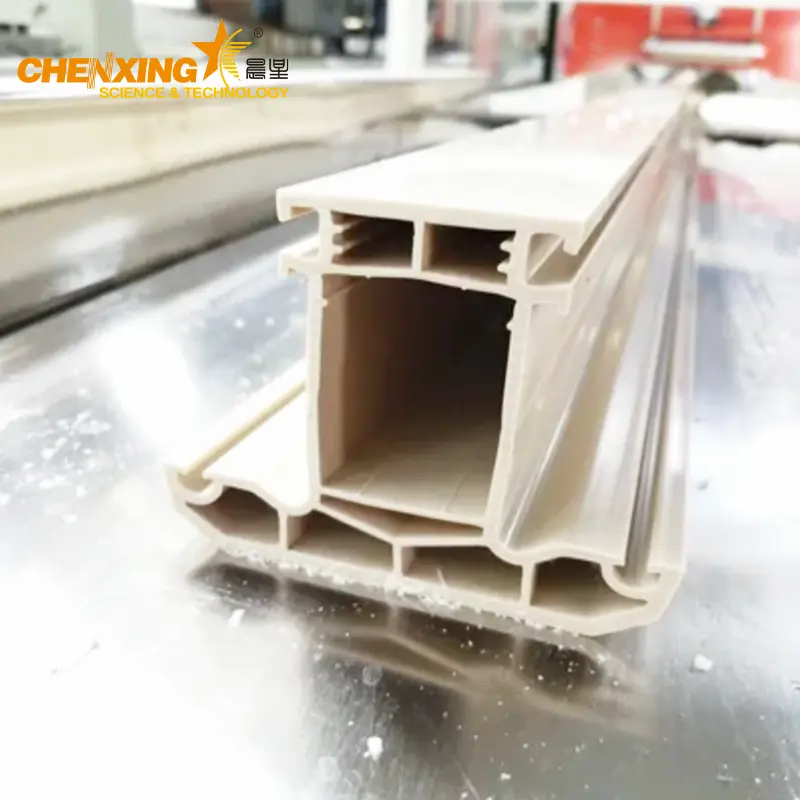

Window and door profiles represent the highest-value downstream segment in the PVC extrusion industry, demanding exceptional dimensional accuracy, surface finish, and long-term weatherability. The PVC Window & Door Profile Extrusion Line — built on the field-proven SJSZ conical twin-screw platform — produces both main profiles (frame, sash, mullion) and auxiliary profiles (glazing bead, adaptor, drip rail) for residential and commercial fenestration systems. The line accommodates a full range of configurations: white uPVC profiles meeting EN 12608 / ASTM D4726, co-extruded EPDM/TPE flexible gaskets that eliminate post-assembly insertion labor, and ASA/PMMA color cap layers providing 15+ year outdoor color retention in any RAL shade. With precision-ground brass sizing plates holding critical dimensions to ±0.2 mm and a servo-driven haul-off maintaining ±0.1% speed stability, this is a complete turnkey solution engineered for profile extruders targeting the export window and door market.

Technical Parameters

Output measured with standard white uPVC window profile compound (SPVC-K65 resin, 8–12 phr CaCO₃). Actual throughput varies with profile cross-section complexity, wall thickness, and formulation.

System Configuration

Core Features

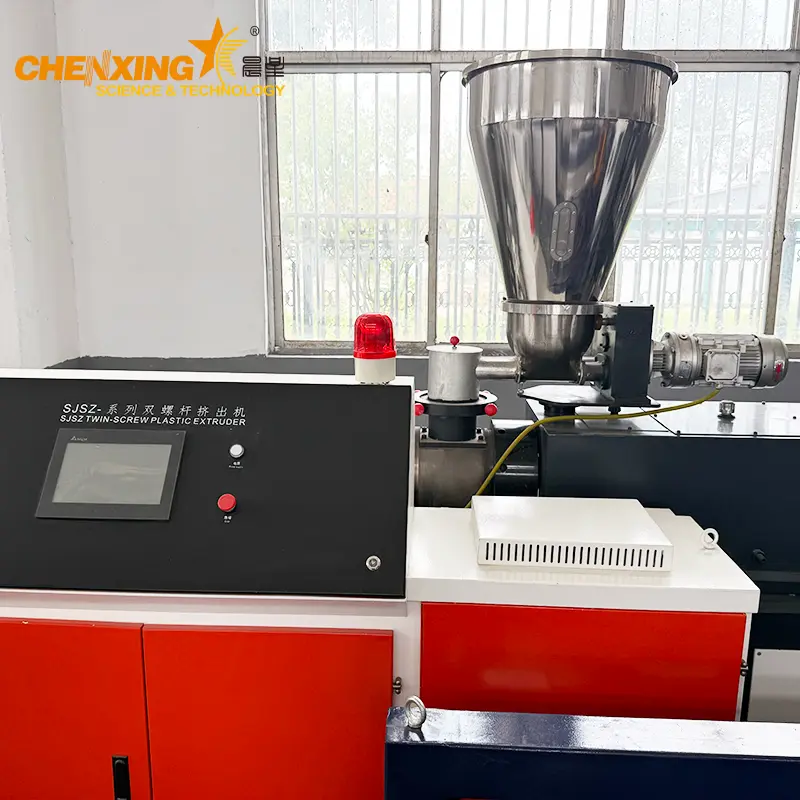

1. Optimized Extrusion for High-Filler Window-Grade uPVC

The SJSZ conical twin-screw with bimetallic barrel is purpose-engineered for uPVC formulations carrying 8–12 phr CaCO₃ — the filler load typical of window profiles that must balance cost against impact resistance. The screw compression ratio (2.5:1 to 3.0:1) and mixing element geometry are tuned to deliver a gelation degree of 60–70% per ASTM D2538, the narrow window where profiles achieve maximum impact strength without the yellowing and embrittlement of over-gelation. Barrel temperature profile spans 160–195 °C across 6–8 independently controlled PID zones, with forced air cooling on each zone to prevent thermal runaway during extended runs.

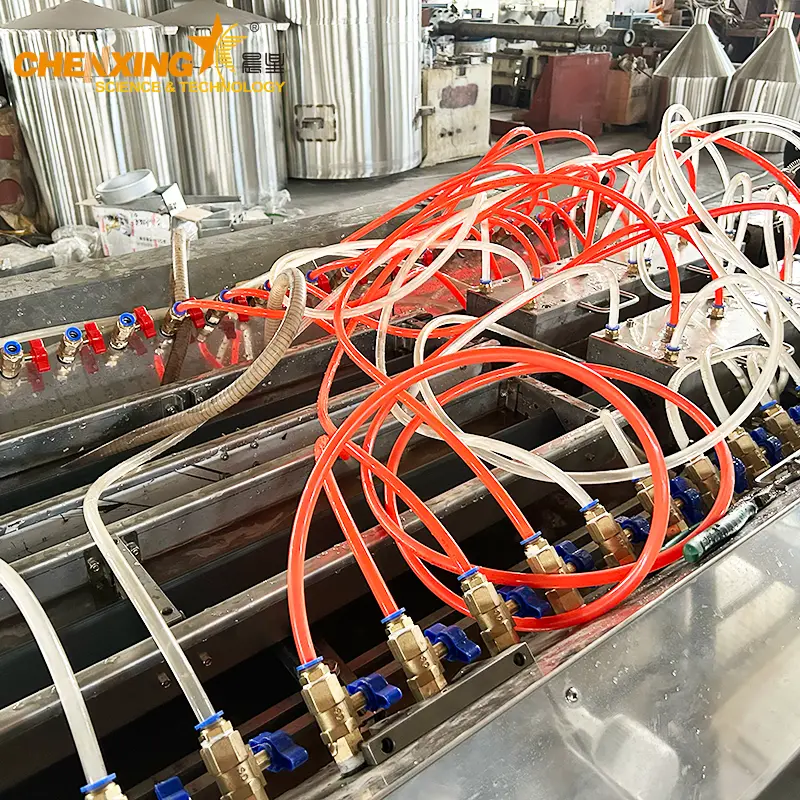

2. Multi-Zone Vacuum Calibration with Independent Pressure Control

The SUS304 stainless steel calibration table is divided into segmented vacuum zones, each with its own vacuum gauge and regulating valve, enabling -0.03 to -0.06 MPa per zone as dictated by the profile's cooling and sizing requirements. Precision-ground Stannum-bronze (copper-tin alloy) sizing plates — ground to ±0.02 mm — make direct contact with the hot profile surface, transferring heat rapidly while establishing final dimensions. Combined with chilled water circulation at 15–20 °C, the system holds profile critical dimensions (wall thickness, chamber wall, external width/height) to ±0.2 mm in continuous production.

3. On-Line EPDM/TPE Gasket Co-Extrusion

A single-screw co-extruder (SJ30/25 or SJ45/25) applies flexible EPDM or TPE gasket material directly into the profile's gasket-retention groove during extrusion. The co-extruder operates at a barrel temperature of 150–180 °C, slightly below the main extruder, to match the thermal requirements of the elastomeric material. The result: a gasket permanently bonded into the profile leg with Shore A 60–70 hardness, eliminating the labor-intensive post-assembly gasket insertion step entirely. This represents a direct labor cost reduction of approximately 0.3–0.5 worker-minutes per linear meter of gasketed profile.

4. ASA/PMMA Color Cap Layer for 15+ Year Weatherability

For colored window profiles, a second co-extruder applies a 0.2–0.5 mm UV-resistant ASA or PMMA cap layer over the white uPVC substrate. This thin surface layer — available in any RAL color — absorbs UV radiation before it penetrates to the underlying PVC, preventing the chalking, color shift, and impact-strength degradation that plague mono-extruded colored profiles. ASA-capped profiles consistently achieve ΔE ≤ 3 after 5,000 hours QUV-B accelerated weathering (ISO 4892), translating to 15+ years of outdoor color integrity in temperate climates.

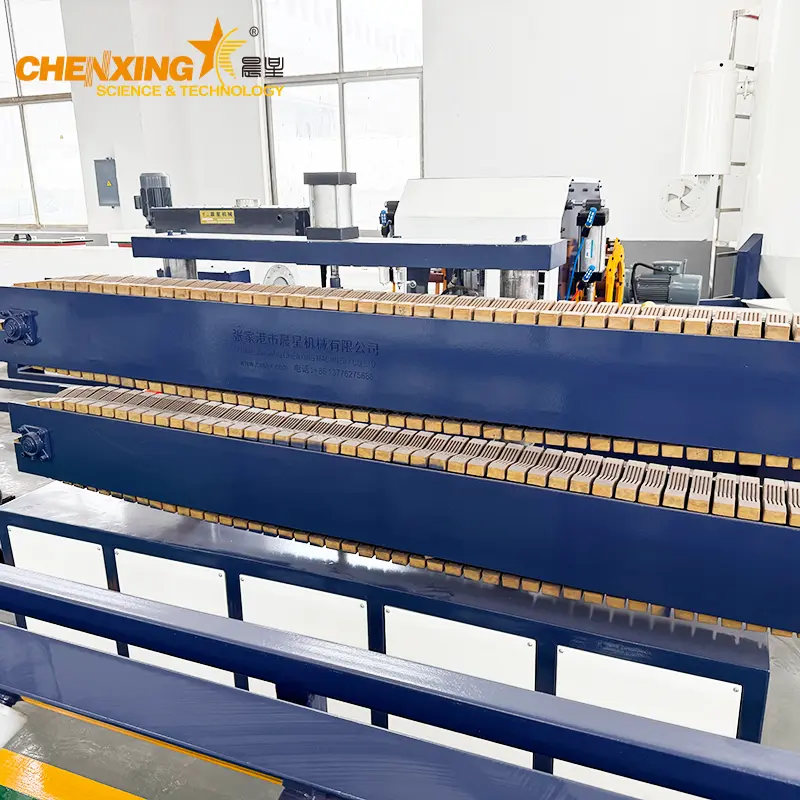

5. Servo-Driven Haul-Off with Closed-Loop Speed Control

The haul-off employs AC servo motors with encoder feedback, achieving ±0.1% speed stability across the full line-speed range. This precision is non-negotiable for window profiles: even a 0.5% speed fluctuation during a 6-meter haul-off pass produces a 0.03 mm wall-thickness deviation from stretching or compression. Pneumatic clamping pads — available in rubber or polyurethane compounds — grip the profile uniformly without surface marring. Speed is continuously synchronized with extruder screw RPM through the PLC to maintain consistent pull tension regardless of throughput changes.

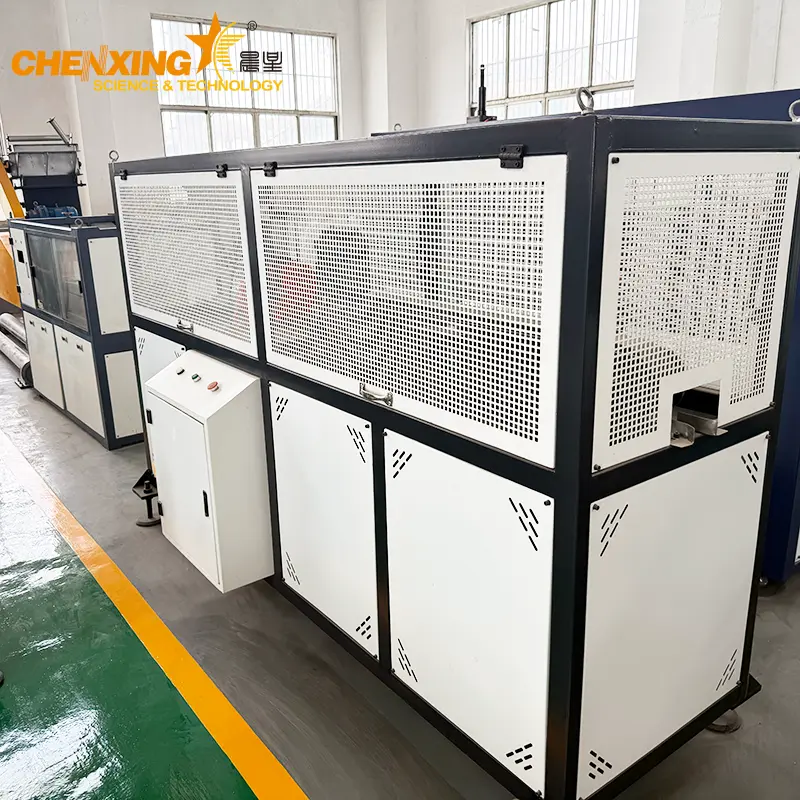

6. Precision Miter Saw Cutting with ±0.5 mm Repeatability

The cutting station employs a carbide-tipped circular saw blade with pneumatic profile clamping and encoder-based automatic length counting. Cut-length repeatability is ±0.5 mm, and the saw head pivots to 45° for miter cuts on corner-welded frame assemblies. An integrated chip extraction system captures PVC saw dust at the source, maintaining a clean work environment and preventing granule contamination. For high-volume operations, the SJSZ80/156 model upgrades to a CNC miter saw with programmable cut sequences and automatic angle adjustment.

7. Custom Tooling Engineered to Customer Profile Drawings

Die head and calibration tooling are custom-designed and fabricated against the customer's profile cross-section CAD drawings. One complete tooling set covers a full window system: frame, sash, mullion, glazing bead, and adaptor profiles. Typical tooling fabrication lead time is 30–45 days from drawing approval. Tooling is manufactured from 40Cr alloy steel (die head) and Stannum-bronze (sizing plates), with hard-chrome plating on melt-contact surfaces for corrosion resistance and extended service life. A trial run with customer-supplied compound produces profile samples for dimensional and visual approval before tooling shipment.

Production Process

Step 1 — Dry Blend Feeding: PVC resin (K-value 65–68), CaCO₃ (8–12 phr), Ca/Zn or organotin stabilizer, impact modifier (CPE or acrylic, 5–8 phr), TiO₂ (4–6 phr for white, 6–8 phr for pastel colors), and processing aids/lubricants are pre-blended in a heating-cooling mixer and fed into the conical twin-screw extruder via the forced-feed hopper.

Step 2 — Plasticizing & Homogenization: Material advances through the multi-zone barrel (160–195 °C) under the shear and mixing action of intermeshing counter-rotating conical screws. Gelation control at this stage is critical: under-gelled profiles (gelation degree < 60%) exhibit low impact strength and surface roughness; over-gelled profiles (> 70%) yellow and suffer thermal degradation embrittlement.

Step 3 — Die-Head Shaping: Homogenized melt exits the custom die head as a near-net-shape profile, with flow-channel geometry designed to compensate for die swell and post-extrusion shrinkage (typically 1–2% for uPVC). The profile immediately enters the dry calibration section where initial surface cooling sets the outer contour before water immersion.

Step 4 — Vacuum Calibration & Full Cooling: The profile passes through the multi-zone vacuum water tank (SUS304), where segmented vacuum zones (-0.03 to -0.06 MPa each) pull the soft profile against precision-ground Stannum-bronze sizing plates. Water at 15–20 °C provides rapid, controlled cooling; typical cooling residence time is 20–40 seconds per meter at 2 m/min line speed.

Step 5 — Haul-Off & Optional Surface Decoration: The servo-driven haul-off pulls the cooled, dimensionally stable profile at synchronized speed. Between the calibration table and cutting station, the profile may pass through an optional inline embossing unit (hot roller for woodgrain texture) or foil-wrapping station (decorative film lamination).

Step 6 — Cutting, Stacking & QC: The precision saw cuts profiles to programmed length (±0.5 mm). Cut profiles are tilted onto the stacking table. QC inspection per batch includes dimensional verification (external dimensions, wall thickness, diagonal squareness), color measurement (ΔE vs. master standard), impact resistance (falling-weight per EN 12608), and visual surface inspection before packaging.

Frequently Asked Questions

Q1: What PVC formulation parameters are critical for producing window profiles that meet EN 12608 / ASTM D4726 standards?

Three parameters dominate compliance. Gelation degree must fall within 60–70% (measured via DSC per ASTM D2538): below 60%, the profile exhibits low impact strength and poor surface quality; above 70%, thermal degradation causes yellowing, reduced elongation at break, and notch sensitivity. Impact modifier loading (CPE or acrylic-based) should be 5–8 phr for temperate climates and 8–10 phr for cold-weather zones requiring Class S impact resistance under EN 12608. TiO₂ loading of 4–6 phr is standard for white profiles to achieve adequate opacity and UV screening; pastel colors require 6–8 phr TiO₂ as a base plus color masterbatch. The Vicat softening temperature (VST B/50) must exceed 75 °C. Beyond formulation, screw temperature profile is equally critical: the metering zone should not exceed 190 °C for standard Ca/Zn-stabilized formulations to avoid pre-decomposition before the die. For operations regularly switching between white and colored profiles, we recommend purging with a dedicated cleaning compound between color changes to prevent speck contamination.

Q2: How does co-extruding EPDM/TPE gasket on-line compare to post-insertion — and what are the key process parameters?

On-line co-extrusion applies the gasket directly into the profile's retention groove while the PVC substrate is still above its Vicat softening point, creating a thermal fusion bond at the interface. This bond achieves peel strengths of 2–4 N/mm (90° peel test), significantly outperforming mechanically inserted gaskets that rely solely on groove geometry for retention. The key process parameters: co-extruder barrel temperature 150–180 °C (TPE formulations trend toward the lower end, EPDM toward the upper end), adaptor/die temperature matched to within ±3 °C of the main profile melt to prevent localized cooling and flow disruption, and co-extruder screw speed synchronized as a ratio of main extruder RPM to maintain consistent gasket cross-section. One practical constraint: co-extruded gasket profiles cannot exceed approximately 3.5 m/min line speed on the SJ30/25 co-extruder without risking incomplete groove filling due to the high viscosity of uncured elastomer. The direct labor saving — approximately 0.3–0.5 worker-minutes per linear meter of gasketed profile — translates to roughly 1.5–2.5 full-time equivalent positions for a line producing 2,500 meters per shift.

Q3: What calibration table length and vacuum configuration is needed for complex multi-chamber window profiles — and how does tooling design affect cooling efficiency?

Multi-chamber window profiles (typically 3–7 internal chambers) demand proportionally longer calibration tables because the internal webs slow heat transfer from core to surface. The SJSZ55/110 with a 4,000 mm table handles simpler 2–4 chamber profiles; the SJSZ65/132 at 6,000 mm accommodates standard 5-chamber designs; the SJSZ80/156 at 8,000 mm is specified for complex 6–7 chamber "Class A" profiles with wall thickness up to 2.8–3.0 mm. Vacuum zone count scales with table length — typically 4 zones for 4 m, 6 for 6 m, and 8 for 8 m — each with independent regulation because cooling demand is highest at the tank entry (profile core still ~160 °C) and tapers toward exit. Tooling design directly governs cooling efficiency: Stannum-bronze sizing plates (thermal conductivity ~60–70 W/m·K vs. ~15 W/m·K for stainless steel) pull heat approximately 4× faster, but brass is softer and wears faster under abrasive formulations. Cooling water flow rate should be sized at 8–12 L/min per meter of calibration length at a supply temperature of 15–20 °C. Typical cooling time for a 2.8 mm wall-thickness profile is 20–40 seconds per meter at 2 m/min, meaning a 6-meter table provides 3 minutes of cooling — adequate for the profile core to reach ≤ 40 °C before haul-off grip.

Q4: What are the typical profile dimensional tolerances achievable, and what factors cause deviation?

Under stable production conditions — consistent feedstock, steady extruder output, stable water temperature — a properly engineered profile extrusion line holds ±0.2 mm on wall thickness and ±0.3 mm on external width/height for profiles up to 80 mm in cross-section. The dominant deviation sources are, in order of impact: (1) Die swell — the viscoelastic expansion of melt upon exiting the die, which the die designer compensates for in the flow-channel geometry but which shifts if melt temperature or throughput deviates from the design point. (2) Post-extrusion shrinkage of 1–2% as the profile cools from ~190 °C to ambient, directionally larger along the extrusion axis than transversely. (3) Haul-off tension fluctuation — a 1% speed error during a 6-meter haul-off pass produces a 0.06 mm wall-thickness deviation through stretching or compression before the profile fully sets. (4) Water temperature drift — a 5 °C rise in calibration water temperature reduces cooling rate, causing the profile to exit the tank with a hotter core that continues shrinking unpredictably after cutting. All four factors are controllable: die design, haul-off servo stability (±0.1%), and chiller-supplied water at steady 15–20 °C. Regular sizing plate inspection for wear is essential; plates should be re-ground or replaced when clearance to the profile exceeds 0.05 mm from nominal.

Q5: How long does tooling fabrication take for a complete window system (frame + sash + mullion + bead), and what information is needed from the customer?

A complete window-system tooling set — typically comprising 4–6 profile cross-sections (outer frame, sash, mullion/transom, glazing bead, and one or two adaptor/accessory profiles) — requires 30–45 days from final drawing approval to shipment. The customer must provide: (1) Full CAD drawings (DWG/DXF or STEP/IGES 3D) of each profile cross-section with all dimensions toleranced, including wall thickness, chamber geometry, gasket groove details, and any co-extrusion grooves. (2) Material specification — PVC formulation type (standard white, high-impact, lead-free Ca/Zn, etc.), whether a co-extruded gasket or color cap layer is planned, and the Shore hardness and compound grade of any co-extruded material. (3) Target throughput and line-speed range to size the die-head flow channels. After tooling fabrication, Chenxing performs a trial extrusion run at our Zhangjiagang factory using customer-supplied compound (50–100 kg). We ship profile sample cuttings for dimensional verification (CMM report) and visual approval before releasing the tooling. If profile drawings are not yet finalized, Chenxing's engineering team can provide design-for-extrusion consultation — optimizing wall-thickness distribution, corner radii, and chamber geometry to balance extrusion process stability against the window system's static and thermal performance requirements — but final tooling fabrication cannot commence until drawings are frozen.

Why Choose Chenxing

Proven SJSZ Platform. The SJSZ conical twin-screw series is deployed in hundreds of PVC extrusion facilities globally. Every profile extrusion line is factory-tested with customer-supplied compound before shipment, validating screw configuration, temperature profile, and tooling dimensions against actual production material. Browse our full product catalog for complementary equipment.

Single-Source Ecosystem. Chenxing manufactures the complete upstream and downstream chain: plastic heating mixers for dry-blend preparation, hopper dryers for moisture control, chillers for precise water temperature, pellet vacuum loaders and vacuum conveyor loaders for material handling, and downstream embossing machines for surface texturing. A single-source supplier streamlines commissioning, service, and spare parts management. Explore our complete auxiliary machines range.

Tooling & Process Expertise. Profile tooling is not a commodity — die-head flow-channel design and sizing-plate geometry directly determine whether your line produces in-spec profiles on day one or spends weeks in trial-and-error adjustment. Chenxing's tooling engineers bring decades of PVC profile extrusion experience, from simple 2-chamber glazing beads to complex 7-chamber passive-house frame profiles.

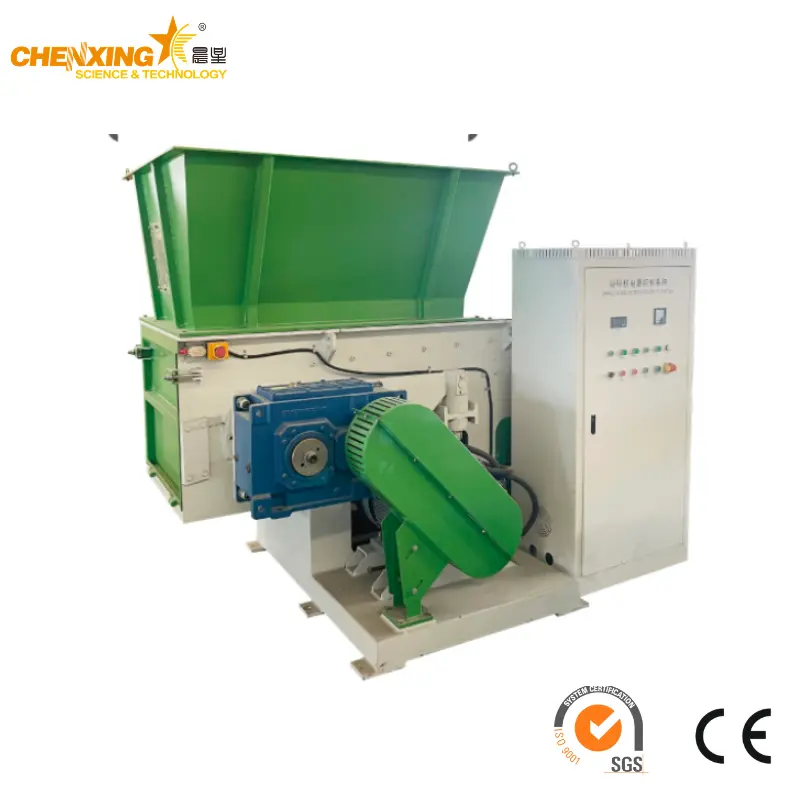

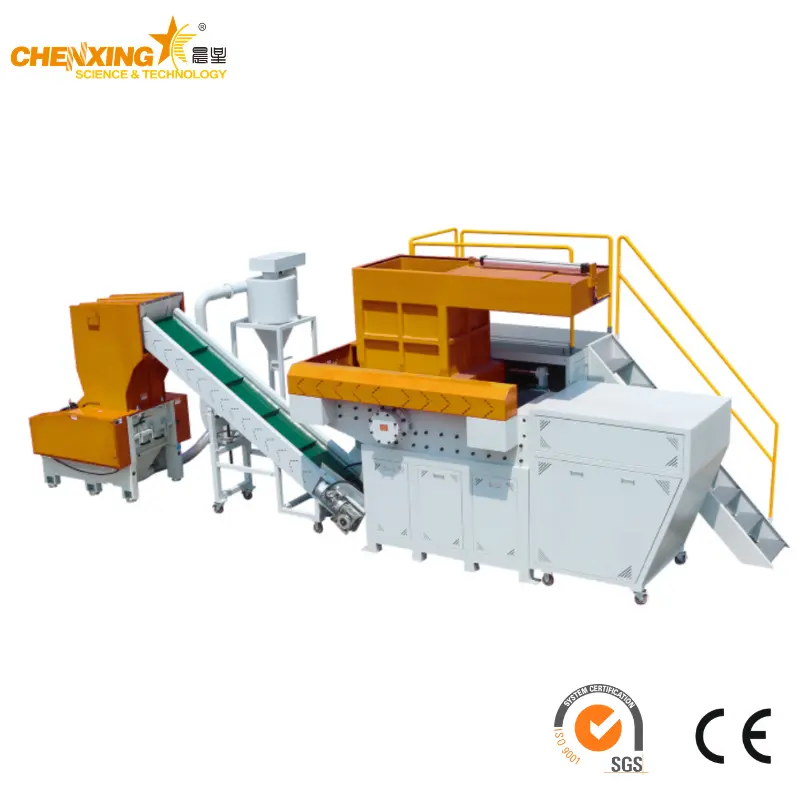

Recycling Integration. For operations incorporating post-industrial PVC regrind, Chenxing offers shredder-extruder recycling and pelletizing machines that close the loop between profile scrap generation and raw material recovery. A companion pipe extrusion line or roof tile line can diversify your product portfolio on shared infrastructure.

Global Support. Chenxing Machinery, headquartered in Zhangjiagang, China, provides remote commissioning guidance, on-site technician dispatch, and lifetime technical support. Read our latest case studies and technical articles and learn more about our company. For tailored configuration advice, visit our solutions page or contact us directly.
