Product Description

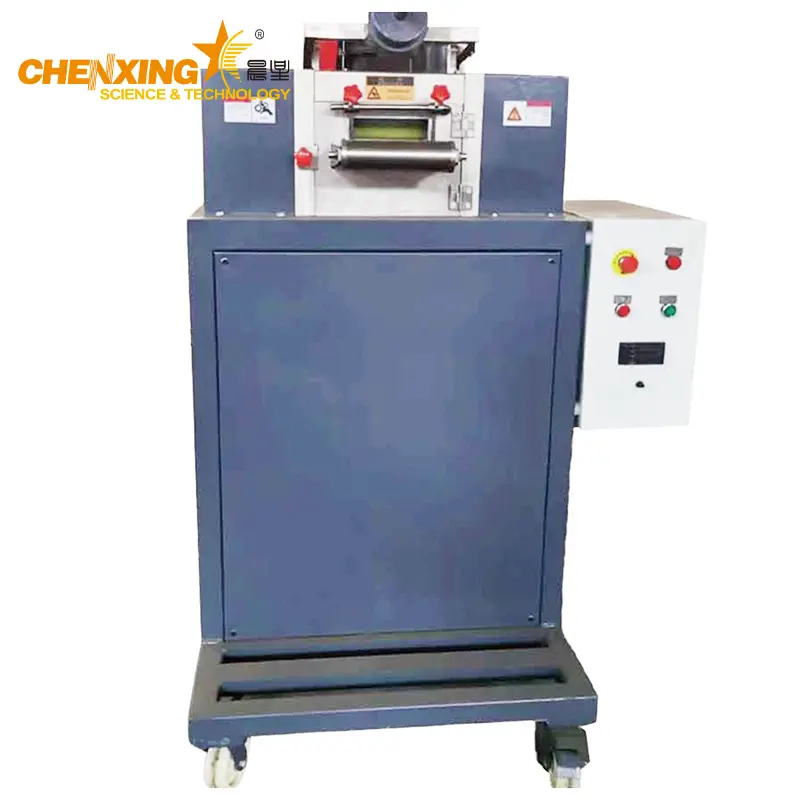

The YLT Series Elastic Material Pelletizing Machine is specially engineered for processing soft, high-elasticity and tough polymer materials, including TPU, TPE, thermoplastic elastomers, and modified rubber-based compounds.
Unlike conventional rigid plastic pelletizers, this system is designed to handle:
High elasticity rebound materials
High-toughness polymers
Difficult-to-cut soft compounds
Continuous unstable feed behavior
It delivers uniform pellet length, stable cutting performance, and high output efficiency, making it an ideal solution for industrial recycling plants and elastomer compound manufacturers.
This machine is built for B2B operators in:
TPU/TPE waste recycling
Film + soft scrap processing
Thermoplastic elastomer production lines
Rubber-plastic blending plants
Edge trim recycling
Defective soft parts reprocessing
Stable ROI recycling systems
Compact pelletizing production lines
Soft materials tend to:
Stretch instead of cut
Wrap around blades
Cause uneven pellet length
The YLT system solves this via:
Optimized cutting chamber geometry
High-precision rotating blade system
Controlled traction + cutting synchronization
Imported wear-resistant blades
Long service life under abrasive elastomers
Reduced downtime for blade replacement
Consistent pellet length
Smooth and glossy surface finish
No deformation or sticking during cutting
This improves:
Re-melting efficiency
Final product quality
Material resale value
Simple structure for quick cleaning
Modular cutting chamber design
Safe access maintenance points
Reduced operator skill requirements
Emergency stop system
Fully enclosed cutting area
Motor overload protection
Stable torque control system

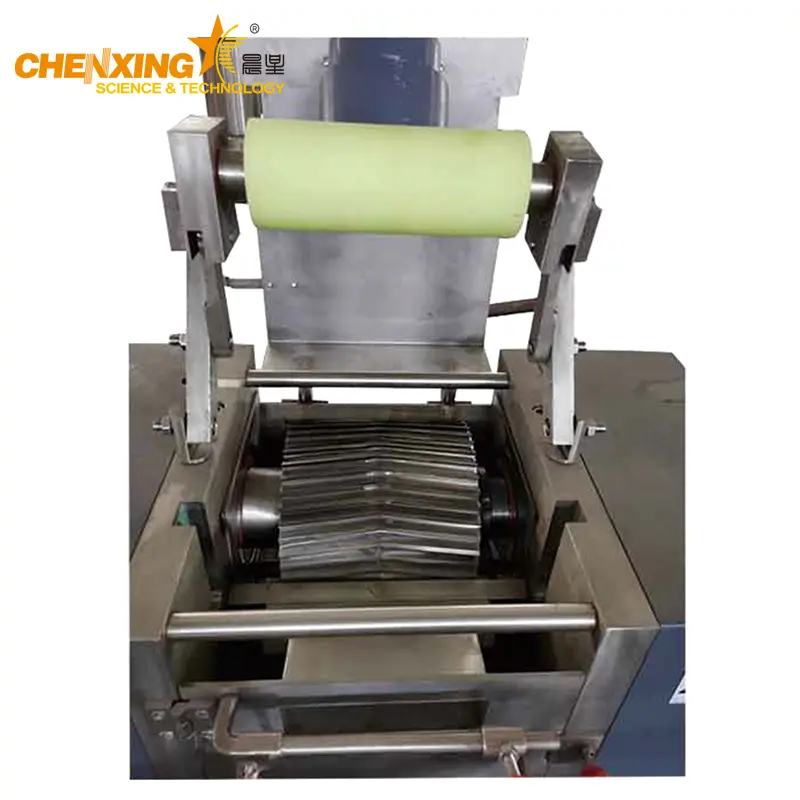

Soft material is fed into the cutting chamber
Rotating blades generate controlled cutting force
Rubber roller traction stabilizes feeding speed
Material is cut into uniform granules (Φ3×3 mm)
Finished pellets are discharged for cooling or storage
This synchronized traction + cutting design ensures no stretching, no winding, and no irregular pellet formation.
| Model | YLT-300 | YLT-500 |
|---|---|---|
| Motor Power | 4 kW | 7.5 kW |
| Speed Control | Slip / Variable frequency | Slip / Variable frequency |
| Noodle Capacity | ≤16 | ≤28 |
| Max Traction Speed | 72 m/min | 72 m/min |
| Granule Size | Φ3×3 mm | Φ3×3 mm |
| Max Output | ≤300 kg/h | ≤500 kg/h |
| Rotary Knife Size | Φ150×150 mm | Φ150×200 mm |
| Blade Quantity | 24 pcs | 24 pcs |
| Rubber Roller Size | Φ70×150 mm | Φ70×200 mm |
The YLT elastic pelletizer is suitable for:
TPU (Thermoplastic Polyurethane)
TPE / TPR elastomers
Soft PVC compounds
Rubber-modified plastics
Flexible industrial scrap materials
Shoe material waste
Automotive soft trim waste
Cable sheath soft plastics
Unlike general pelletizing systems, the YLT series is optimized based on:
Elastomer rheology behavior
Viscoelastic deformation control
Low-friction traction cutting dynamics
Anti-wrapping blade engineering
This ensures stable industrial performance even under:
High humidity materials
Sticky or adhesive compounds
Low-melting soft polymers
Yes. The YLT system is specifically designed for high-elasticity TPU and TPE materials without deformation or blade wrapping.
Standard output is Φ3×3 mm uniform granules, with smooth surface and consistent cutting length.
No pre-cutting is required for most soft plastic materials, improving production efficiency.
No. The machine uses imported wear-resistant blades with extended service life under continuous operation.
Yes. We offer customized configurations for different production capacities and plant layouts.
Yes. It can be integrated into full TPU/TPE recycling systems with extrusion and cooling modules.
If you are looking for a stable, high-efficiency elastic material pelletizing solution, the YLT series is engineered for industrial-grade performance and long-term reliability.
Contact us to receive:
Customized layout design
Material testing support
Full production line proposal
ROI evaluation for your project
