Product Description

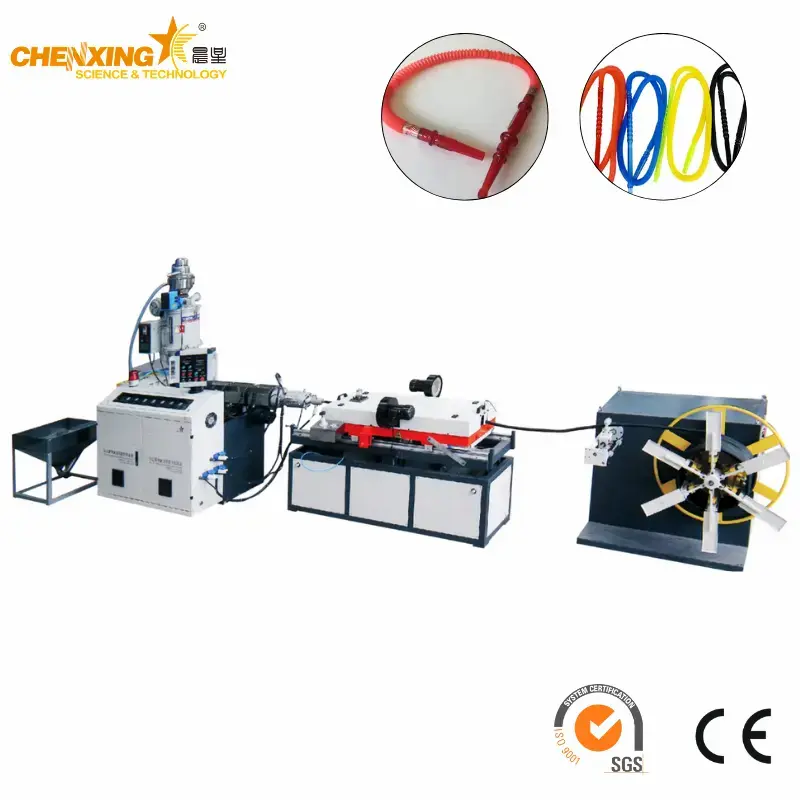

The PP PE Shisha Hookah Hose Extruder — also sold as the Hookah Pipe Making Machine and the Water Smoking Tube Making Machine — is a single-screw extrusion line for small-diameter single-wall corrugated pipe, configured for the shisha hookah hose market and for the whole family of flexible corrugated tube products built on the same platform.
The commercial logic of this machine is simple: one line, one tube profile, high repeat output. A hookah hose is a flexible corrugated tube, usually produced in long runs in a small number of diameters and colours; the same line also runs wire conduit, washing machine drain hose, vacuum cleaner hose and ventilation tube. That is exactly what this machine is designed for:
Even corrugation, smooth walls. The line adopts gears to run the modules and templates and applies water circulating cooling together with air cooling, which ensures high-speed moulding, even corrugation, and smooth inner and outer pipe wall — the three points that decide whether a hookah hose feels right in the hand and whether a conduit tube passes inspection.
PVC, PP and PE small-diameter single-wall corrugated pipe. The die, together with the corresponding forming moulds, produces a homogeneous single-wall corrugated bellows product — no seams, no lamination.
Three build versions, so the line speed matches your market:
Normal-speed single-wall corrugated pipe machine — line speed up to 8 – 12 m/min
High-speed single-wall corrugated pipe machine — line speed up to 20 – 25 m/min
Vacuum-type single-wall corrugated pipe machine — used for making pipe with joint
What it produces: shisha / hookah hose and water smoking tube, plus wire and cable threading pipe, washing machine drains, vacuum cleaner hose, ventilation pipe, machine tool circuit conduit, lamp wiring protection and prestressed concrete special tubes.
The figures below are transcribed from the manufacturer's published data in two places on the source page: the product attribute panel and the model parameter table. Where the two places state different figures for the same machine, both are shown with their source labelled. They are not merged, and no third value has been introduced to reconcile them.
| Model | Pipe diameter | Extruder | Forming machine length |
|---|---|---|---|
| cx35 | Φ9 mm – 35 mm | SJ45/28 | 3 m |
| CX55 | Φ35 mm – 55 mm | SJ55/28 | 4 m |
| (model code not stated on the source page) | Φ55 mm – 75 mm | SJ65/28 | 4 m |
The extruder designation (for example SJ45/28) follows the standard form: SJ for single-screw, the first number for screw diameter in mm, and the second for the screw length-to-diameter ratio — so SJ45/28 is a 45 mm screw running at a 28:1 L/D.
| Attribute | Published value |
|---|---|
| Machine name | Hookah Pipe Making Machine (PP / PE shisha hookah hose extruder) |
| Model No. | SJ65/30 |
| Screw type | Single screw |
| Screw No. | Single-screw |
| Capacity | 30 – 60 kg/h |
| Total installed power | About 30 kW |
| Power supply | 380 V, 3 phase, 50 Hz — or as your demand |
| Heating way | Cast aluminium heating |
| Suitable material | PPR, PE, HDPE, LDPE, LLDPE |
| Raw material | PE granule |
| Product type | PP, PE |
| Automation | Automatic |
| Computerized | Computerized (PLC control) |
| Certification | CE, ISO 9001:2008 |
| Customized | Customized |
| Condition | New |
| Warranty | 12 months |
| After-sales service | 18 months |
| Service | Video technical support, free spare parts |
| Transport package | Wood block fixed, steel wire reinforcement |
| Package size | 2000.00 cm × 1500.00 cm × 1500.00 cm |
| Package gross weight | 1500.000 kg |
| Specification | Vertical high-torque gearbox, bimetallic screw |
| Production capacity | 300 sets / year |
| HS code | 84772090 |
| MOQ | 1 set |
| Price | US$14,000.00 – 25,000.00 (reference, as published) |
Reading the model figures together. The attribute panel names a SJ65/30 machine as the quoted model, while the parameter table lists the extruder matched to each pipe-diameter range — SJ45/28 for Φ9 – 35 mm, SJ55/28 for Φ35 – 55 mm and SJ65/28 for Φ55 – 75 mm. These are two views of the same series: the attribute panel states the machine class, the parameter table states the extruder matched to a given tube diameter. The extruder, the die and the calibration bushing are always specified together for the diameter you intend to run, and the exact configuration is confirmed in the quotation.
By tube diameter — Φ9 – 35 mm (CX35, 3 m forming machine), Φ35 – 55 mm (CX55, 4 m forming machine), or Φ55 – 75 mm (SJ65/28 extruder, 4 m forming machine)
By required line speed — normal-speed version at 8 – 12 m/min for standard hookah hose and conduit programs, or the high-speed version at 20 – 25 m/min for high-volume shisha hose and appliance hose production
By product type — choose the vacuum-type machine if you need pipe with joint (a moulded socket or connector end for the hookah hose assembly)
By material — PVC, PP and PE for the corrugated pipe, with the attribute panel additionally listing PPR, PE, HDPE, LDPE and LLDPE
By capacity — the quoted configuration is published at 30 – 60 kg/h with about 30 kW total installed power
By market — for hookah hose, specify the bore, the corrugation pitch and the surface finish your buyers expect; the die and mould set is made to that profile
The wider catalogue around this machine is described under Single Wall Corrugated Pipe Extrusion Line, Double Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extrusion Line Solution, Pipe Extrusion Line, Pipe Extrusion Line Solution, HDPE Pipe Extrusion Line Solution and Other Type Pipe Extrusion Line Solution.
The published process sequence for the line is:
Material + master batches → mixing → vacuum feeding → material drying → single screw extruder → extrusion mould → corrugated forming machine → meter measure → double winder → finished product inspecting & packing
1. Material dosing and master batch — base polymer (PE granule as published, or PP / PVC) together with colour master batches is dosed in the required ratio. For hookah hose this step decides the colour consistency of the tube across a long production run.
2. Mixing — the compound is mixed to a uniform blend before entering the feed system, so that wall thickness and corrugation stay consistent along the coil.
3. Vacuum feeding — the mixed material is drawn into the machine by vacuum feeding, keeping the hopper filled automatically and the working area clean. Dust-free conveying and powder handling equipment for the plant can be quoted from the same factory.
4. Material drying — the compound is dried before extrusion. Moisture in a thin corrugated wall shows up as bubbles and a rough inner surface, so drying is a quality step rather than an optional one — especially for PE and in humid climates.
5. Single-screw extruder — the heart of the line. The extruder is a single-screw machine built with:

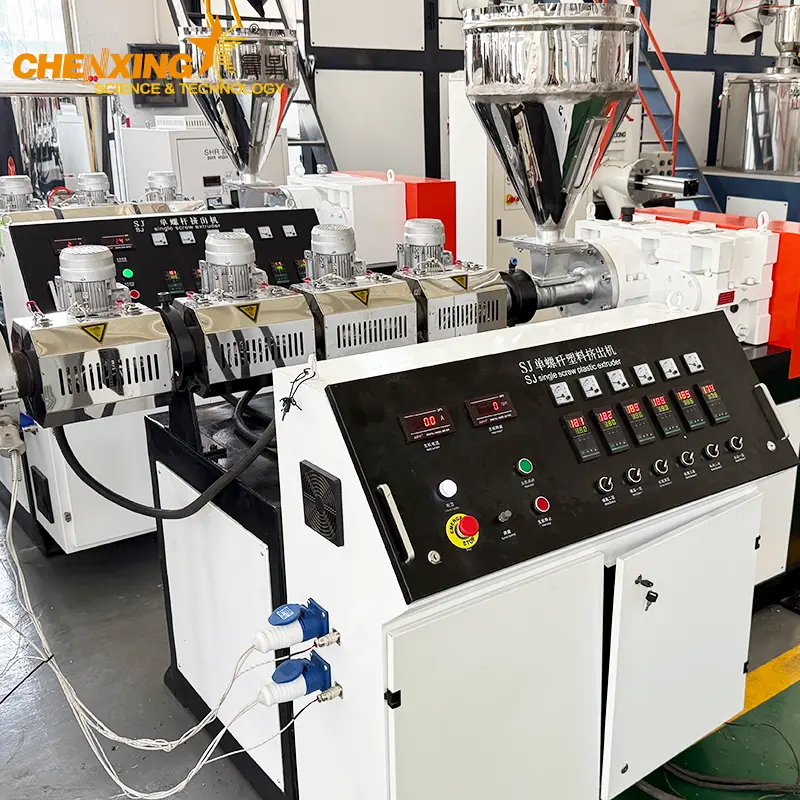

A vertical high-torque gearbox with internationally sourced bearings
A bimetallic screw and barrel
Cast aluminium heating
An intelligent PLC control system with a human-friendly interface
Internationally sourced brand-name electrical components
A high-torque gearbox is what allows a small-diameter screw to run continuously at the speed a corrugated line needs, and the bimetallic screw and barrel are what give the screw its working life when running coloured or recycled compound.
6. Extrusion mould (die head) — the melt is shaped in the die head, built as published:
Mould body: Steel 45#, hardened and polished
Inner mould parts: 40Cr
Calibration bushing: tin bronze (Stannum bronze)
Diameter: can be customized

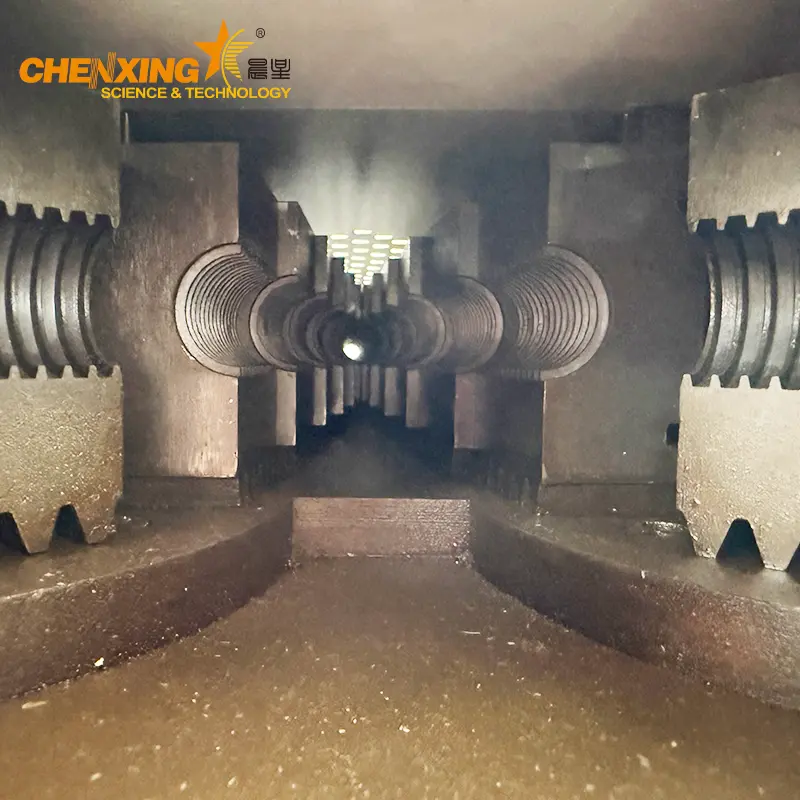

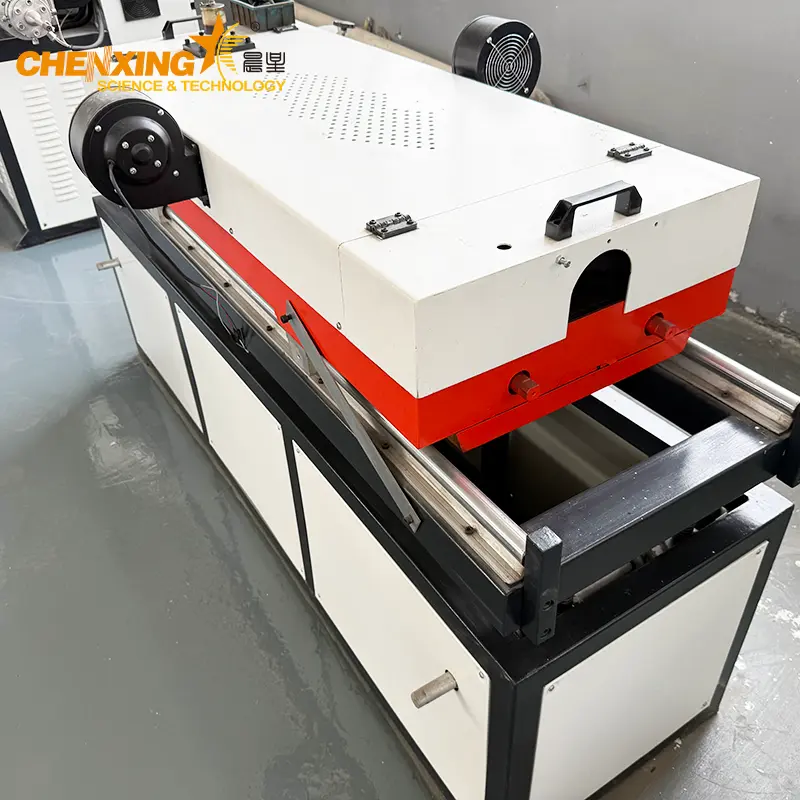

7. Corrugated forming machine — the tube is corrugated in the forming section, where gears run the modules and templates around the tube while water circulating cooling and air cooling set the corrugation. This is the station that delivers high-speed moulding, even corrugation and smooth inner and outer pipe wall. The forming machine is designed and manufactured in-house on our own machining centre, so the corrugation profile is made to the tube you sell — for hookah hose that means the pitch, depth and surface finish your market asks for.
8. Meter measure — the tube is measured by length metering rather than estimated, which matters when hose is sold by the metre or cut to a fixed length.
9. Cutting and double winding — the line includes a cutter machine and a double winder. The cutter sets the cut length, and the double winder allows continuous production: the line keeps running while a completed coil is changed over.
10. Finished product inspecting and packing — the coils and cut lengths are inspected and packed for shipment.
| Application field | Typical product |
|---|---|
| Shisha and hookah | Shisha / hookah hose, water smoking tube — the primary product of this configuration |
| Electrical and cable protection | Wire and cable threading pipe, conduit pipe for wires |
| Household appliances | Drain hose for washing machines, suction hose for vacuum cleaners |
| Automotive | Auto wire harness protective conduit |
| Machine building | Circuit protective conduit for machine tools |
| Lighting | Protective pipes for lamps and lanterns wiring |
| Air conditioning | Tubes for air conditioners |
| Construction and civil engineering | Prestressed concrete special tubes (ducting for post-tensioning) |
| Ventilation | Ventilation pipe |
Working conditions. The line runs as a compact set — feeding and drying, single-screw extruder, die head, corrugated forming machine, length meter, cutter and double winder, and inspection and packing station. It requires a levelled industrial floor, a 380 V three-phase 50 Hz supply sized for the about 30 kW installed power, cooling water for the forming machine's circulating water cooling, and compressed air for the plant. The electrical configuration is built as your demand, so a different voltage or frequency is specified at order stage.
Machine version — normal speed (8 – 12 m/min), high speed (20 – 25 m/min), or vacuum type for pipe with joint
Tube diameter and corrugation profile — die and calibration bushing diameter are customized; published ranges are Φ9 – 35 mm, Φ35 – 55 mm and Φ55 – 75 mm. For hookah hose, the corrugation pitch, depth and finish are made to your sample
Extruder — SJ45/28, SJ55/28 or SJ65/28 matched to the tube diameter, with the quoted machine class published as SJ65/30
Forming machine length — 3 m or 4 m as published, matched to diameter and line speed
Material — PVC, PP, PE, and the attribute panel additionally lists PPR, PE, HDPE, LDPE and LLDPE
Power supply — 380 V 3 phase 50 Hz as standard, or as your demand
Electrical component make — internationally sourced brand-name motor, inverter and temperature control components; the make is confirmed at order stage
Die materials — published build is Steel 45# mould body (hardened and polished), 40Cr inner mould parts and tin bronze calibration bushing; other selections on request
Cutting and winding format — cut length set by the cutter machine, or coil winding by the double winder
Automation — automatic, computerized PLC control with a human-friendly interface as standard; the degree of automation and the HMI language are agreed at quotation
Upstream and downstream equipment — mixing unit, vacuum feeding and material drying, plus recycling, grinding and pelletising equipment for line scrap
OEM service — available
Certification — CE and ISO 9001:2008; tell us at enquiry stage if your market requires further certification
Single-screw extrusion with a vertical high-torque gearbox and bimetallic screw and barrel
Single-wall corrugated construction — the die and corresponding forming moulds produce a homogeneous single-wall bellows; double-wall corrugated pipe is a different line

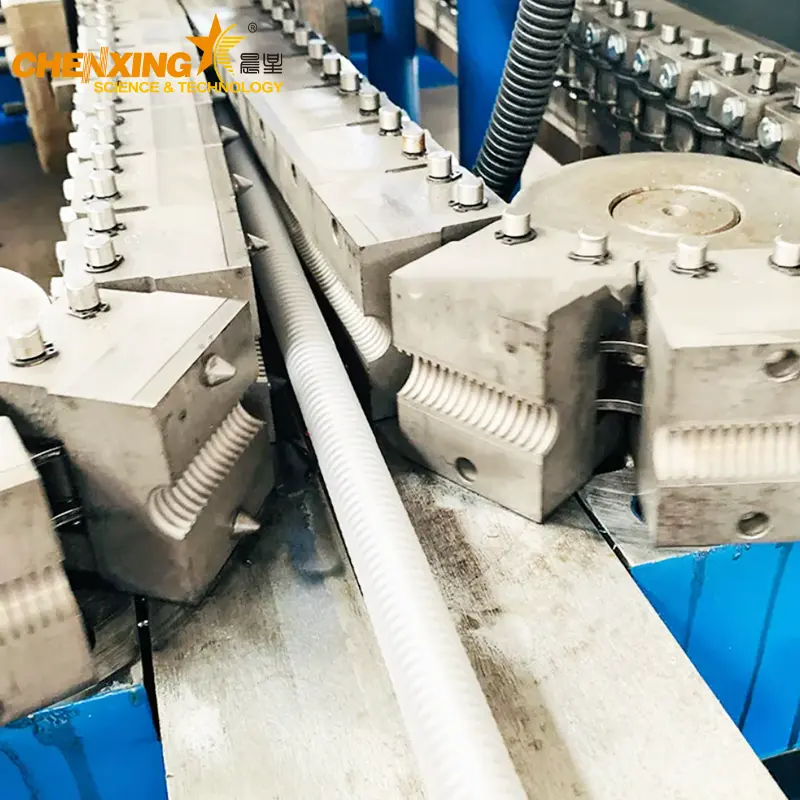

Gear-driven module and template forming with water + air cooling — the published forming principle behind even corrugation and smooth walls
Cast aluminium heating — the published heating method
The 10-step process sequence — vacuum feeding, drying, extrusion, corrugating, metering, cutting / double winding and inspection are integral to the line as published
Wood block packing with steel wire reinforcement — as published for this machine size
Related equipment that can be quoted with the line: Mixing Unit, Auxiliary Machines, Automatic Compounding System, Automatic Compounding System Solution, Powder Suction Machine, Crushing Material Suction Machine, Continuous Powder Suction Machine, SMF Series Grinding Machine, Plastic Agglomerator, Plastic Pelletizing Line and Two Stage Recycling Machine.
CE and ISO 9001:2008 — the machine is published with CE and ISO 9001:2008 certification; our quality management system covers the design and manufacture of the line
Bimetallic screw and barrel — selected for wear life when running coloured, filled or recycled compounds through a small-diameter screw
Vertical high-torque gearbox with internationally sourced bearings — the drive matched to the extruder, keeping the line stable in continuous running
Precision die and mould manufacture — die head built with a Steel 45# mould body, hardened and polished, 40Cr inner mould parts and a tin bronze calibration bushing; the forming machine and its moulds are designed and produced in-house on our own machining centre, so corrugation quality is controlled at source
Intelligent PLC control with a human-friendly interface — with internationally sourced electrical components
Verifiable forming result — the published and verifiable outcome of the cooling and forming design is even corrugation and smooth inner and outer pipe wall at high moulding speed; pre-delivery running tests and a test run of your tube profile can be arranged so the corrugation and the finish are seen before the machine is dispatched
Production capacity of 300 sets per year — the published annual production capacity of this machine series, which indicates the maturity of the build
Plant engineering support — layout and utility information is supplied in advance — foundation, power supply, cooling water and compressed air — so the plant is ready before the machine arrives
Documentation and service — a detailed user manual is supplied, with video technical support and free spare parts. Technical files are under Downloads and application articles on Company News
Warranty 12 months, after-sales service 18 months — both figures as published: a 12-month warranty together with 18 months of after-sales service
Capabilities in other product families are described under Single Wall Corrugated Pipe Extrusion Line, Double Wall Corrugated Pipe Extrusion Line, PVC Pipe Extrusion Line Solution, PPR Pipe Extrusion Line Solution, 3-Layer High Speed PE/PPR/HDPE Pipe Extrusion Line, HDPE Pipe Production Line 16-1600 mm, ABS Pipe Production Line, Plastic Drainage Pipe Machine, PVC Fiber Reinforced Soft Pipe Extrusion Line, plus our advanced material processing EPC project service.
MOQ — 1 set
Price — US$14,000.00 – 25,000.00 per set, as published for this machine; the final price depends on the model, the number of forming mould sets and the electrical component scope selected
Payment terms — T/T, L/C, D/P, D/A and other methods on request
Payment currency — USD or CNY
Incoterms — FOB, CFR, CIF, EXW; express delivery also accepted
Lead time — 45 days as published for a machine built to order; where a machine is in stock delivery can be as short as 5 – 10 days. Both figures are as stated, and the applicable one is confirmed at order stage
Packing — wood block fixed, steel wire reinforcement; published package size 2000.00 cm × 1500.00 cm × 1500.00 cm, package gross weight 1500.000 kg. The loading and container fixing plan is prepared and verified before dispatch
Shipping — sea freight from China; the machine is blocked and wired inside the container and the container is inspected before closing
Warranty and service — 12 months warranty with 18 months after-sales service, video technical support and free spare parts
Installation and training — our engineers guide machine installation and train your workers; a test run can be arranged before shipment
Yes. The shisha hookah hose is the lead application of this configuration — the machine is published for PVC, PP and PE small-diameter single-wall corrugated pipe, and the die with the corresponding forming moulds produces the homogeneous single-wall corrugated bellows that a hookah hose is made of. Send us a sample or the bore, corrugation pitch and finish you need, and the die and mould set is made to that profile.
Beyond shisha hose: wire and cable threading pipe, washing machine drain hose, vacuum cleaner hose, ventilation pipe, air conditioner tubes, machine tool circuit conduit, lamp wiring protection pipe and prestressed concrete special tubes. The same extruder and forming platform serves all of them; what changes is the die and the corrugation mould set.
Normal-speed single-wall corrugated pipe machine — line speed up to 8 – 12 m/min
High-speed single-wall corrugated pipe machine — line speed up to 20 – 25 m/min
Vacuum-type single-wall corrugated pipe machine — used for making pipe with joint
Choose the speed version according to your required output, and the vacuum version if your tube needs a moulded joint or connector end.
| Pipe diameter | Extruder | Forming machine length |
|---|---|---|
| Φ9 mm – 35 mm | SJ45/28 | 3 m |
| Φ35 mm – 55 mm | SJ55/28 | 4 m |
| Φ55 mm – 75 mm | SJ65/28 | 4 m |
The quoted machine class in the attribute panel is SJ65/30, published at 30 – 60 kg/h. The die and calibration bushing diameter can be customized, so tell us the exact bore and wall profile when enquiring.
The attribute panel publishes a capacity of 30 – 60 kg/h and a total installed power of about 30 kW, on a 380 V, 3 phase, 50 Hz supply — or as your demand, so a different voltage or frequency is built to your specification. Cooling water for the forming machine and compressed air for the plant are also required.
The forming machine adopts gears to run the modules and templates, and combines water circulating cooling with air cooling of the product. That design is what delivers high-speed moulding, even corrugation and smooth inner and outer pipe wall.
The machine is published for the production of PVC, PP and PE small-diameter single-wall corrugated pipe; the attribute panel additionally lists PPR, PE, HDPE, LDPE and LLDPE as suitable materials, with PE granule named as the raw material in the quoted configuration.
MOQ is 1 set. The published price range is US$14,000.00 – 25,000.00 per set. Payment is by T/T, L/C, D/P or D/A, in USD or CNY, and we quote FOB, CFR, CIF or EXW as you prefer.
Delivery is 45 days as published for a machine built to order, and can be 5 – 10 days where a machine is in stock. Packing is wood block fixed with steel wire reinforcement; the published package size is 2000.00 cm × 1500.00 cm × 1500.00 cm with a gross weight of 1500.000 kg. The container loading and fixing plan is verified before dispatch.
The published figures are a 12-month warranty together with 18-month after-sales service, plus video technical support and free spare parts. Yes — our engineers guide machine installation and train your operators. For general questions, see the FAQ list.
Once we know the raw material, the final product dimensions and your special requirements, we provide a detailed quotation within 24 hours. If you contact us by email, WhatsApp or WeChat we aim to reply within 2 hours.
Please include the following so that the quotation is accurate on the first reply:
Product — shisha / hookah hose, wire conduit, appliance hose, ventilation tube or prestressed concrete ducting
Tube specification — inner and outer diameter, wall thickness, corrugation pitch and depth, and the surface finish required
Machine version — normal speed (8 – 12 m/min), high speed (20 – 25 m/min), or vacuum type for pipe with joint
Material and colour — PVC, PP, PE or another polymer in the published list, with the master batch colour used
Output target — kilograms per hour or metres per shift
Forming machine length and mould sets — 3 m or 4 m, and how many corrugation profiles you need
Cutting and winding format — fixed cut lengths or coils, and the coil weight your market buys
Electrical supply — voltage, phase and frequency at your plant (380 V 3 phase 50 Hz or your own demand)
Plant conditions — floor area, cooling water and compressed air availability
Commercial terms — Incoterm (FOB CFR CIF / EXW), destination port, payment method and currency
Certification requirement — whether CE or ISO 9001:2008 documentation is sufficient for your market
Service requirement — whether you need engineer attendance for installation and operator training
What you get back: a written quotation for the complete line — vacuum feeding and material drying, single-screw extruder with vertical high-torque gearbox and bimetallic screw and barrel, extrusion die head with the calibrated bushing for your bore, gear-driven corrugated forming machine, length meter, cutter, double winder, control cabinet and standard spare parts — stating the version, the tube diameter range, the line speed, the lead time, the packing plan and the trade terms, together with our engineers' recommendation on the corrugation profile and mould set for your shisha hose.
Send us your hose bore, the corrugation profile or a sample, and the line speed you need, and we will confirm the extruder, the die and calibration bushing, the forming machine length and the complete scope of supply in a written quotation. If you would like to see how this shisha hose line is presented in more detail first, view more machine details. Company background is on About Us; application cases are collected under Application Cases, the product catalogue under Products and the full range of solutions under Solutions.
