PVC/UPVC/WPC Small Profile Extrusion Line — Cable Trunking, Edge Banding, Corner Bead, Sealing Strip, Waterstop, Conduit & Skirting

Overview

PVC small profiles are indispensable in modern construction, electrical infrastructure, and interior decoration. From cable trunking organizing wiring in commercial buildings, to edge banding finishing furniture panels, to PVC waterstop sealing expansion joints in dams and basements — these extruded profiles share a common manufacturing backbone: a high-precision twin-screw extrusion line.

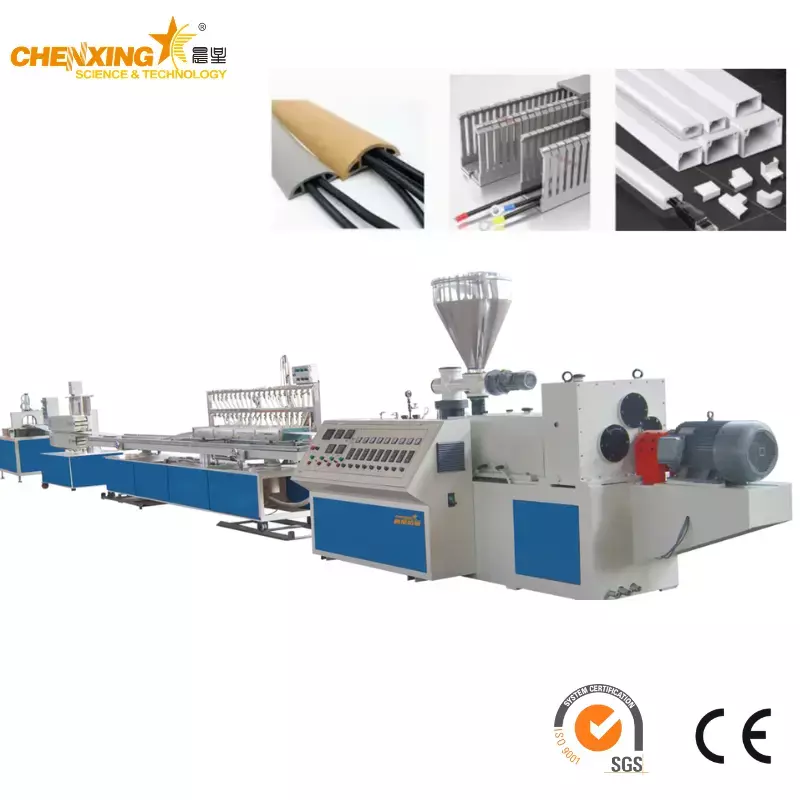

The YF Series Small Profile Extrusion Line from Chenxing Machinery is engineered as a one-line, seven-product-family solution. A single line — with rapid die changeover — covers:

Surface decoration options — hot stamping, heat transfer printing (woodgrain/marble/solid color), or PVC/PET film lamination with glossy oil topcoat — transform plain PVC profiles into high-value decorative products that command a 30–50% price premium in export markets. These decorated profiles are widely specified for modern residential and hospitality interiors across Europe, Southeast Asia, the Middle East, and South America.

All equipment is manufactured at our ISO-certified facility in Zhangjiagang, China. Contact Nicole at +8615951187228 or ceo@cxsljx.com for a customized quotation.

Technical Parameters

Note: All models are available with optional 38:1 L/D extruder configuration, delivering approximately 30% higher output and 30% lower specific power consumption compared to the standard 33:1 version. WPC formulations (wood-plastic composite) are fully supported with minor parameter adjustments.

System Configuration

Core Features

1. 38:1 L/D Ratio Extruder — 30% Higher Output, 30% Lower Power

Conventional conical twin-screw extruders for PVC profiles operate at 33:1 L/D. Chenxing's upgraded 38:1 design extends the plasticizing zone by approximately 15%, ensuring 100% pellet-to-melt conversion even with high-filler formulations. Measured on YF240: output increases from 300 kg/h (33:1) to ~390 kg/h (38:1) at equivalent screw RPM; specific energy consumption drops from 0.25 to 0.18 kWh/kg. The extended compression and metering zones also improve melt homogeneity — critical for thin-wall profiles (<1.0mm) where pinholes are unacceptable. Air-cooled ceramic heaters eliminate water-cooling infrastructure and scale maintenance. Output scales near-linearly with RPM, making process optimization straightforward and predictable.

2. One Line, Seven Product Families — Maximum Asset Utilization

A single YF extrusion line covers the full spectrum of PVC small profiles: cable trunking (20×12mm to 240×100mm), edge banding (0.4–3.0mm thick), corner beads (20×20mm to 50×50mm), sealing strips (hollow/solid), PVC waterstop (150–550mm wide), electrical conduit (16–50mm diameter), and skirting profiles (up to 180mm tall). Full die changeover takes 2–3 hours. Adjusting calibrator sleeves and die lip clearance for size variation within the same profile family takes only 30–60 minutes. Recipe memory on the Siemens HMI stores all process parameters — temperature zones, haul-off speed, cutter length — for one-touch recall. A single YF240 line typically runs 3–5 distinct SKUs in a 24-hour production cycle, serving multiple market segments simultaneously.

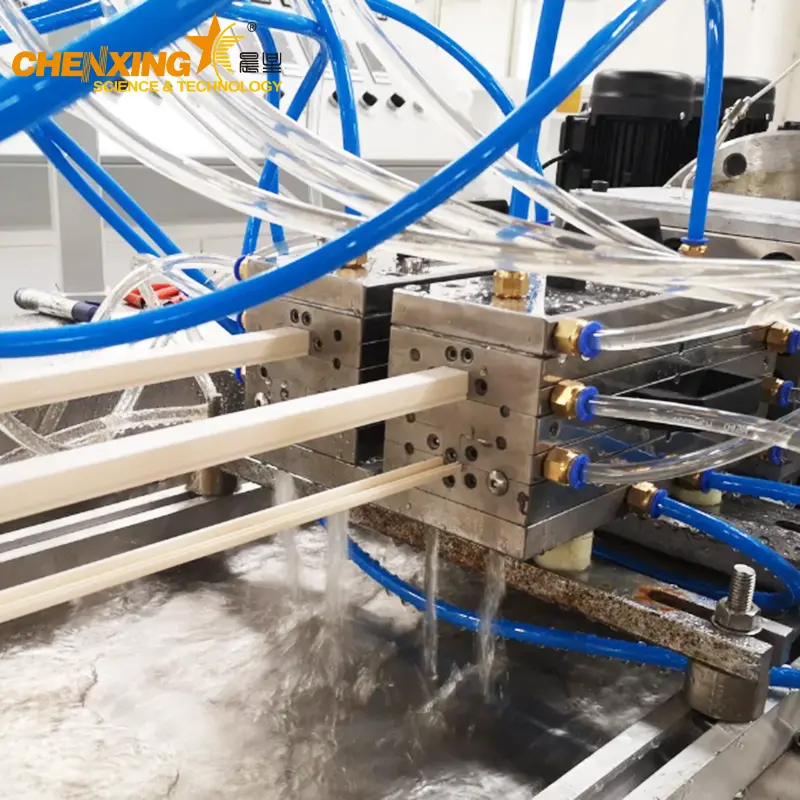

3. Spiral Manifold Die Head — Mirror-Polish Flow, Zero Weld Lines

Each flow channel in the spiral manifold die head is precisely equal in length, heat-treated, and mirror-polished to Ra≤0.1μm — eliminating dead zones where PVC can stagnate and degrade. The design produces uniform wall thickness across multi-cavity profiles and eliminates weld lines that weaken product integrity. Stable operating pressure of 19–20 MPa ensures consistent output quality shift after shift. An integrated core cooling device enables efficient hollow profile production (cable ducts, conduits). Die head rotary and moving devices enable fine alignment with the calibration table. Multi-layer co-extrusion option allows a thin ASA or PMMA cap layer (0.1–0.3mm) over PVC core for enhanced UV and weather resistance — a requirement for outdoor profiles in Middle Eastern and Australian markets.

4. Double-Chamber Vacuum Calibration — Fast Setting, Compact Footprint

The dual-chamber vacuum calibration table is optimized for rapid profile shape setting. The first chamber (0.8–1.2m) delivers intense cooling right at the die exit — the calibrator die molds hot PVC extrudate (170–185°C) into its final cross-section within the first 0.5–1.0 seconds. The second chamber (4–6m) completes gradual dimensional stabilization under moderate vacuum, with spray water at 15–25°C cooling the profile to 30–40°C at exit. This dual-chamber layout reduces overall calibration table length by approximately 25% compared to single-chamber designs, saving floor space. Vacuum maintained at -0.03 to -0.05 MPa. Final dimensional tolerance: width ±0.3mm, height ±0.2mm.

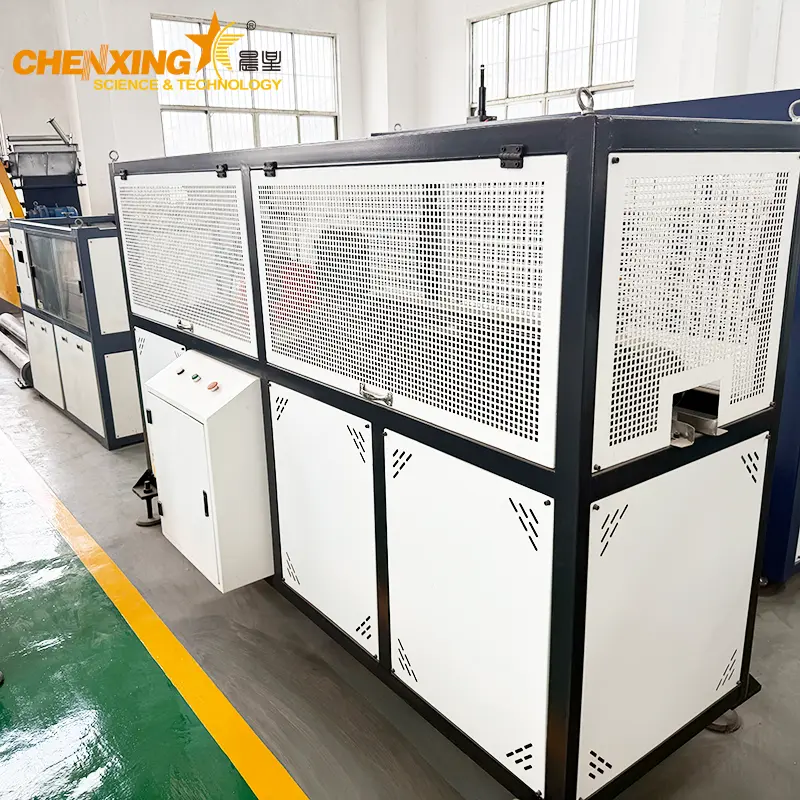

5. Siemens PLC Synchronized Cutting — ±1mm Precision, 50-Recipe Memory

The cutting unit is fully synchronized with the haul-off unit via encoder feedback on the Siemens PLC. An aluminum clamping device grips the profile securely during the saw stroke, eliminating burrs, skewed cuts, and surface marking. Hydraulic or pneumatic saw feed with integrated cyclone dust collection keeps the production floor clean. Chamfering function deburrs the cut edge in a single pass. Cutting length is freely programmable from 0.5m to 6m via the HMI touchscreen. The built-in recipe memory stores 50+ complete product specifications — including profile dimensions, extruder temperature zones, haul-off speed, and cut length — enabling one-touch recall for repeat production runs and minimizing operator training requirements.

6. Inline Surface Decoration — Add 30–50% Product Value

Three inline surface finishing technologies are integrated as standalone modules after the haul-off unit, fully synchronized with line speed via PLC:

• Hot Stamping: Metallic or woodgrain foil transferred at 160–220°C via temperature-controlled silicone pressure roller. Best suited for edge banding and narrow decorative trims. Foil cost: $0.02–0.05/m.

• Heat Transfer Printing: PET carrier film with woodgrain, marble, or solid-color patterns applied by heated roller at 180–200°C. Coverage up to 150mm width. Film cost: $0.05–0.15/m.

• PVC/PET Film Lamination: Adhesive-coated decorative film applied via pressure roller with pre-heating and edge trimming stations. Best for wide skirting and wall panels. Film cost: $0.10–0.30/m.

An optional glossy UV oil topcoat station ($0.01–0.02/m) enhances scratch resistance. Decorated profiles consistently achieve 30–50% higher market pricing compared to plain PVC equivalents.

7. Ceramic Heater Bands with Air Cooling — Energy-Efficient, Low Maintenance

Ceramic-insulated heater bands with embedded resistance wire provide uniform barrel heating at ±1°C per zone via multi-zone PID control. Air cooling (blower-based) replaces traditional water cooling, eliminating scale buildup in cooling channels and the associated maintenance costs. Compared to mica-insulated heaters, ceramic heaters offer approximately 25% longer service life and superior thermal uniformity — critical for consistent melt quality when running high-filler formulations. The Siemens PLC monitors all heating and cooling zones with over-temperature alarm protection. Combined with the 38:1 L/D screw geometry, total power consumption per kilogram of output is 30–35% lower than the industry average for comparable twin-screw extrusion lines.

Production Process

Step 1 — Raw Material Preparation
PVC resin (K-value 65–68) + CaCO₃ filler (5–20 phr) + Ca-Zn stabilizer (3–5 phr) + impact modifier (CPE, 5–8 phr) + processing aid (ACR, 1–2 phr) + TiO₂ (2–5 phr) + lubricants are weighed per formulation and fed into an SRL-Z high-speed mixer. The mixer operates at 800–1200 rpm, heating the blend to 110–120°C through frictional heat. The hot blend is then discharged to an SRL-W cooling mixer and cooled to 40–45°C, producing a free-flowing dry blend ready for extrusion. For WPC profiles: add pre-dried wood flour (80–120 mesh, dried to ≤1% moisture at 100–110°C for 2–4 hours) at 30–60% loading plus MAPE coupling agent at 2–4%.

Step 2 — Extrusion & Plasticizing
The dry blend is gravity-fed from the hopper into the SJSZ conical twin-screw extruder. Barrel temperature zones are set progressively: 160°C (feed) → 175°C → 185°C → 195°C (metering). Screw core temperature is maintained at 150–170°C via oil circulation. The counter-rotating intermeshing twin screws plasticize, mix, and convey the material forward. The vent zone removes residual moisture and volatiles. At L/D 33:1 or 38:1, the extended plasticizing path ensures complete gelation. Melt pressure at die entry is stable at 19–20 MPa.

Step 3 — Die Forming
Homogenized melt enters the spiral manifold die head, where equal-length flow channels distribute the material uniformly across the profile cross-section. Die temperature is maintained at 185–200°C. Mirror-polished flow surfaces (Ra≤0.1μm) prevent material stagnation and thermal degradation. The melt exits the die lip as a precisely shaped profile.

Step 4 — Vacuum Calibration & Cooling
The hot profile (170–185°C at die exit) immediately enters the vacuum calibration tank. In the first chamber (short, strong vacuum), the calibrator sleeve molds the profile to final dimensions within 0.5–1.0 seconds of contact. In the second chamber (longer, moderate vacuum), spray cooling water at 15–25°C reduces profile temperature to 30–40°C. The vacuum pump maintains -0.03 to -0.05 MPa throughout. Dimensional tolerance is established: width ±0.3mm, height ±0.2mm.

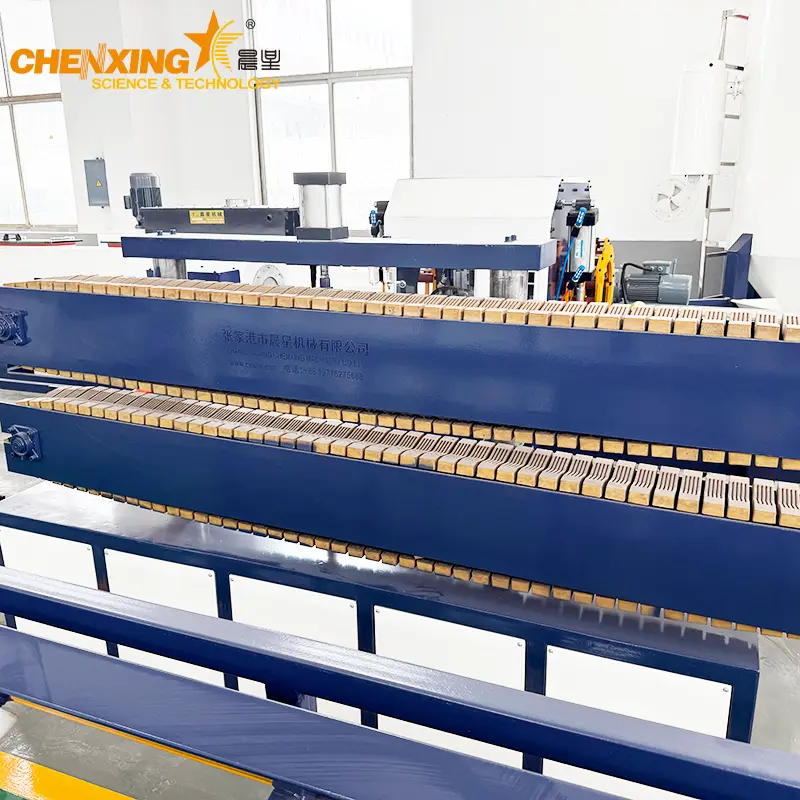

Step 5 — Haul-off & Cutting
The cooled profile enters the caterpillar haul-off unit. Rubber cleats grip the profile at constant speed (0.15–4.0 m/min), synchronized with extruder output via the Siemens PLC. An encoder reads line speed and feeds data to the saw cutter, which tracks the profile during cutting via servo drive. The profile is cut to preset length (0.5–6m) with ±1mm precision. Dust is collected by the cyclone separator. Finished lengths are automatically discharged to the stacker.

Step 6 — Optional Surface Finishing & Packaging
If inline decoration is specified: hot stamping (foil, 160–220°C) or heat transfer printing (woodgrain/marble patterns) is applied → optional glossy UV oil coating → or PVC/PET film lamination. Quality inspection checks: dimensional accuracy, surface finish, color consistency, and impact resistance per EN 50085. Approved profiles are stacked, wrapped in PE film, and palletized for shipment.

FAQ

Q1: What range of profiles can this line produce, and what is the changeover time between different products?

The YF series covers seven product families: cable trunking (20×12mm to 240×100mm), edge banding (0.4–3.0mm thick), corner beads (20×20mm to 50×50mm), sealing strips (hollow/solid cross-sections), PVC waterstop (up to 550mm wide), electrical conduit (16–50mm diameter), and skirting profiles (up to 180mm tall). A full die changeover — including die head cleaning, calibrator sleeve swap, and re-heating to operating temperature — takes 2–3 hours. For size variation within the same profile family (e.g., switching from 25×25mm to 40×20mm cable trunking), adjusting the die lip gap and calibrator sleeve takes 30–60 minutes. The Siemens HMI recipe memory stores all process parameters — extruder temperature zones, haul-off speed, and cutter length — enabling one-touch recall and minimizing downtime between production runs. A typical YF240 line operating 24 hours/day runs 3–5 distinct SKUs, serving multiple market segments simultaneously.

Q2: What surface finishing options are available for decorative profiles, and how are they integrated into the line?

Three inline finishing technologies are available as standalone modules installed after the haul-off unit, fully synchronized with line speed via the Siemens PLC. (a) Hot stamping: metallic or woodgrain transfer foil applied at 160–220°C via temperature-controlled silicone pressure roller — ideal for edge banding and narrow trims. Foil cost: 0.05–0.15/m. (c) PVC/PET film lamination: adhesive-coated decorative film applied via pressure roller with pre-heating and edge trimming — best for wide skirting and wall panels. Film cost: 0.01–0.02/m) enhances scratch resistance. Decorated profiles consistently achieve 30–50% higher market pricing compared to plain PVC.

Q3: How does the 38:1 L/D extruder option compare to standard 33:1, and when should I choose it?

The 38:1 L/D configuration extends the plasticizing zone by approximately 15% compared to the standard 33:1. Measured benefits on YF240: output increases from 300 to approximately 390 kg/h at equivalent screw RPM (+30%), while specific energy consumption drops from 0.25 to 0.18 kWh/kg (-30%). Gelation degree reaches 100% (confirmed via DSC analysis) versus 92–95% typical for 33:1 when running high-filler formulations. The 38:1 option is strongly recommended when: (a) running CaCO₃ filler above 30% loading — requires longer residence time for uniform dispersion; (b) producing thin-wall profiles below 1.0mm thickness — demands high melt homogeneity to prevent pinhole defects; (c) running WPC formulations with wood flour above 50% — extended plasticizing prevents localized charring and improves surface finish. The trade-off: a 38:1 extruder costs approximately 15% more and is 1.5–2m longer, requiring slightly more floor space.

Q4: What quality standards must the finished cable trunking and small profiles meet for export to Europe, Australia, and the Middle East?

Key international standards include: EN 50085 (cable trunking systems for electrical installations) — flame propagation index ≤10, glow wire test at 650–850°C depending on application class, impact resistance ≥2J at -5°C for heavy-duty classification, dimensional stability ≤2% after 70°C/4h exposure. AS/NZS 2053 (conduits and fittings) — compression strength ≥750N/100mm at 23°C, insulation resistance ≥100MΩ. For general PVC-U profiles: EN 13245-2 — Vicat softening temperature ≥75°C, Charpy impact strength ≥20 kJ/m² at 23°C, color fastness ΔE≤5 after 1000 hours QUV accelerated weathering. The SJSZ extruder with 38:1 L/D and spiral manifold die head consistently produces profiles exceeding these specifications thanks to superior melt homogeneity and dimensional control. We provide free test samples with third-party accredited laboratory certificates upon request — most customers use these for pre-shipment compliance verification with their local import authorities.

Q5: Can this line produce WPC (wood-plastic composite) profiles in addition to PVC? If so, what modifications are needed?

Yes, the YF series runs both rigid PVC and WPC formulations on the same hardware with minimal adjustments. Key differences for WPC production: (a) Raw material — wood flour (80–120 mesh, 30–60% loading) must be pre-dried to ≤1% moisture at 100–110°C for 2–4 hours, typically using a separate hot-air dryer or dehumidifying dryer. Excess moisture causes surface roughness, foaming, and internal voids in the finished profile. (b) Extruder configuration — the 38:1 L/D option is strongly recommended when wood flour exceeds 50% to prevent charring from prolonged residence time. Screw core temperature should be set 5–10°C lower than rigid PVC processing (maximum 190°C in the metering zone) to avoid thermal degradation of wood flour. (c) Die head — land length should be increased by 15–20% to compensate for the higher melt viscosity of WPC compounds. (d) Cooling — WPC requires gentler cooling; reduce vacuum in the first calibration chamber by approximately 20% to prevent surface checking (micro-cracks). Output rate for WPC is typically 70–80% of the equivalent rigid PVC output. Many of our customers run PVC trunking on day shift and WPC decking/skirting on night shift on the same YF line, maximizing asset utilization and return on investment.

Why Choose Chenxing Machinery

Zhangjiagang Chenxing Machinery Co., Ltd. is a specialized manufacturer of plastic extrusion equipment with deep expertise in PVC, UPVC, and WPC profile production lines. Our YF series small profile extrusion line integrates advanced European design principles with practical, cost-effective manufacturing — delivering European-grade performance at competitive pricing.

• Proven technology: 38:1 L/D conical twin-screw design developed through continuous R&D, validated across 50+ installed lines globally.

• One-stop supply: From high-speed mixer and extruder to downstream calibration, haul-off, cutting, and surface decoration — a complete, integrated line from a single supplier.

• Quality assurance: ISO-certified manufacturing, CE marking available, all key components (gearbox, screw, barrel) processed on CNC equipment with full traceability.

• Engineer support: Professional installation and commissioning engineers dispatched to your factory. Remote video support and spare parts shipment within 48 hours.

• Free sample testing: Send your raw material and profile drawing — we run a trial production free of charge and ship samples with a third-party test report so you can verify quality before purchase.
